NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1908- )MZEA11,NRE210

Click highlighted areas on diagram

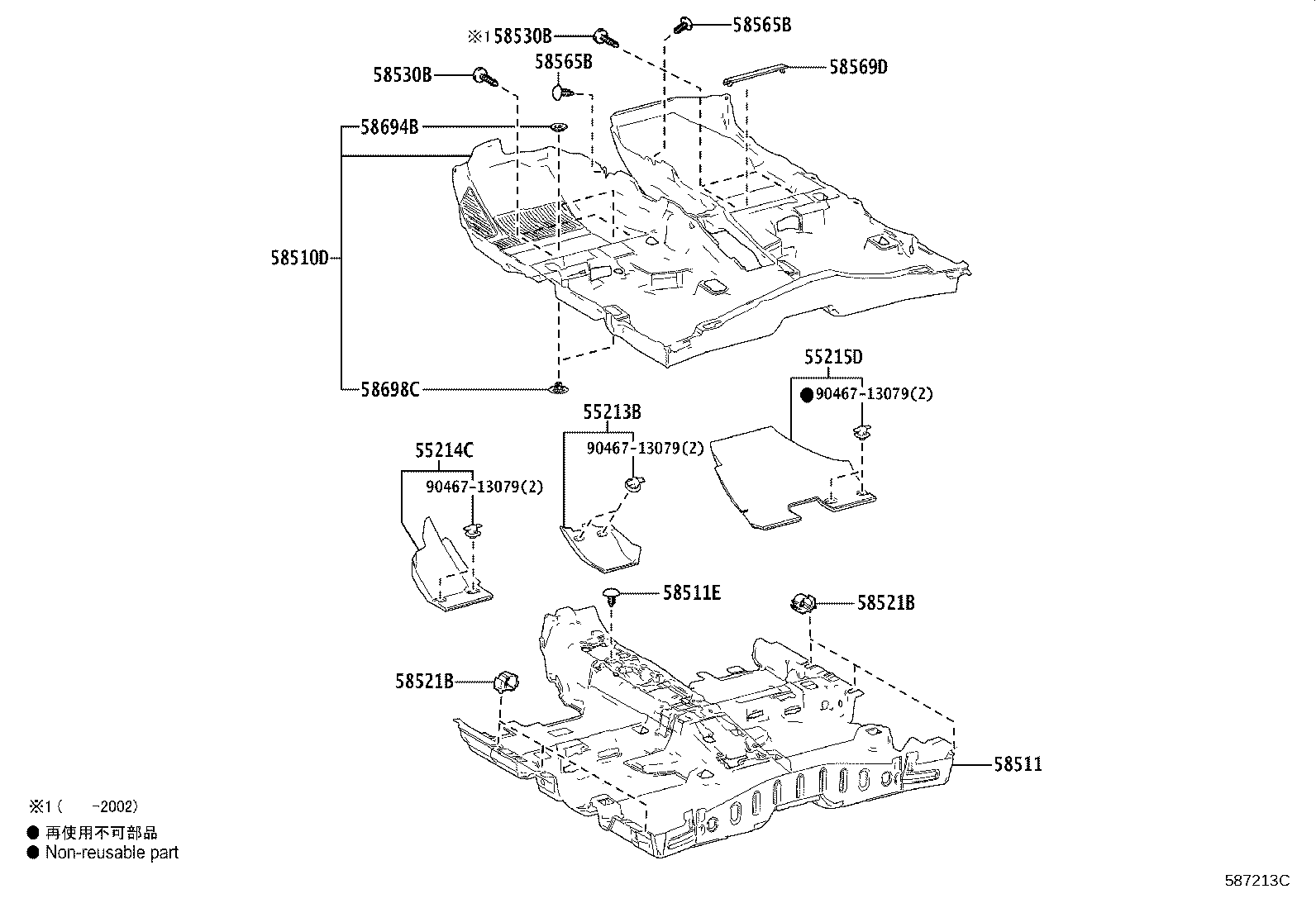

FLOOR CARPET

diagram 55213B 55214C 55215D 58510D 58511 58511E 58521B 58521B 58530B 58530B 58565B 58565B 58569D 58694B 58698C 9046713079 9046713079 9046713079
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-02390

NRE210..HI

 1
55213-02390

NRE210..HI

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-02350

NRE210..HI

 1
55214-02350

NRE210..HI

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-02250

NRE210..HI

 1
55215-02250

NRE210..HI

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-02T40C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58510-02T40C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58511 - MAT, FLOOR, FRONT
58511-02410

NRE210..HI

 1
58511-02410

NRE210..HI

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-C0054C0

NRE210..HI

BLACK,TRIM0#,2#

 1
90467-C0054C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58521B - HOOK, FLOOR CARPET
58521-33060

NRE210..HI

 6
58521-F4010

MZEA11,NRE210,ZWE211

 6
58521-33060

NRE210..HI

 6
58521B - HOOK, FLOOR CARPET
58521-33060

NRE210..HI

 6
58521-F4010

MZEA11,NRE210,ZWE211

 6
58521-33060

NRE210..HI

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-C0059C0

NRE210,ZWE211

BLACK,TRIM0#,2#

 4
90467-C0059C0

NRE210..HI

BLACK,TRIM0#,2#

 2
64726-10020C2

MZEA11,NRE210,ZWE211

BLACK,TRIM0#,2#

 2
90467-C0059C0

NRE210..HI

BLACK,TRIM0#,2#

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-C0059C0

NRE210,ZWE211

BLACK,TRIM0#,2#

 4
90467-C0059C0

NRE210..HI

BLACK,TRIM0#,2#

 2
64726-10020C2

MZEA11,NRE210,ZWE211

BLACK,TRIM0#,2#

 2
90467-C0059C0

NRE210..HI

BLACK,TRIM0#,2#

 2
58565B - CLIP
90467-C0016C1

NRE210..HI

BLACK,TRIM0#,2#

 2
90467-C0016C1

NRE210..HI

BLACK,TRIM0#,2#

 2
58565B - CLIP
90467-C0016C1

NRE210..HI

BLACK,TRIM0#,2#

 2
90467-C0016C1

NRE210..HI

BLACK,TRIM0#,2#

 2
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-02170C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58569-02170C0

NRE210..HI

BLACK,TRIM0#,2#

 1
58694B - PLATE, MAT SET, UPPER
58694-78010

NRE210..HI

 2
58694-78010

NRE210..HI

 2
58698C - PLATE, MAT SET, LOWER
58698-78010

NRE210..HI

 2
58698-78010

NRE210..HI

 2
Common parts
90467-13079

ILLUST NO. 2 OF 2(1908- )

Click highlighted areas on diagram

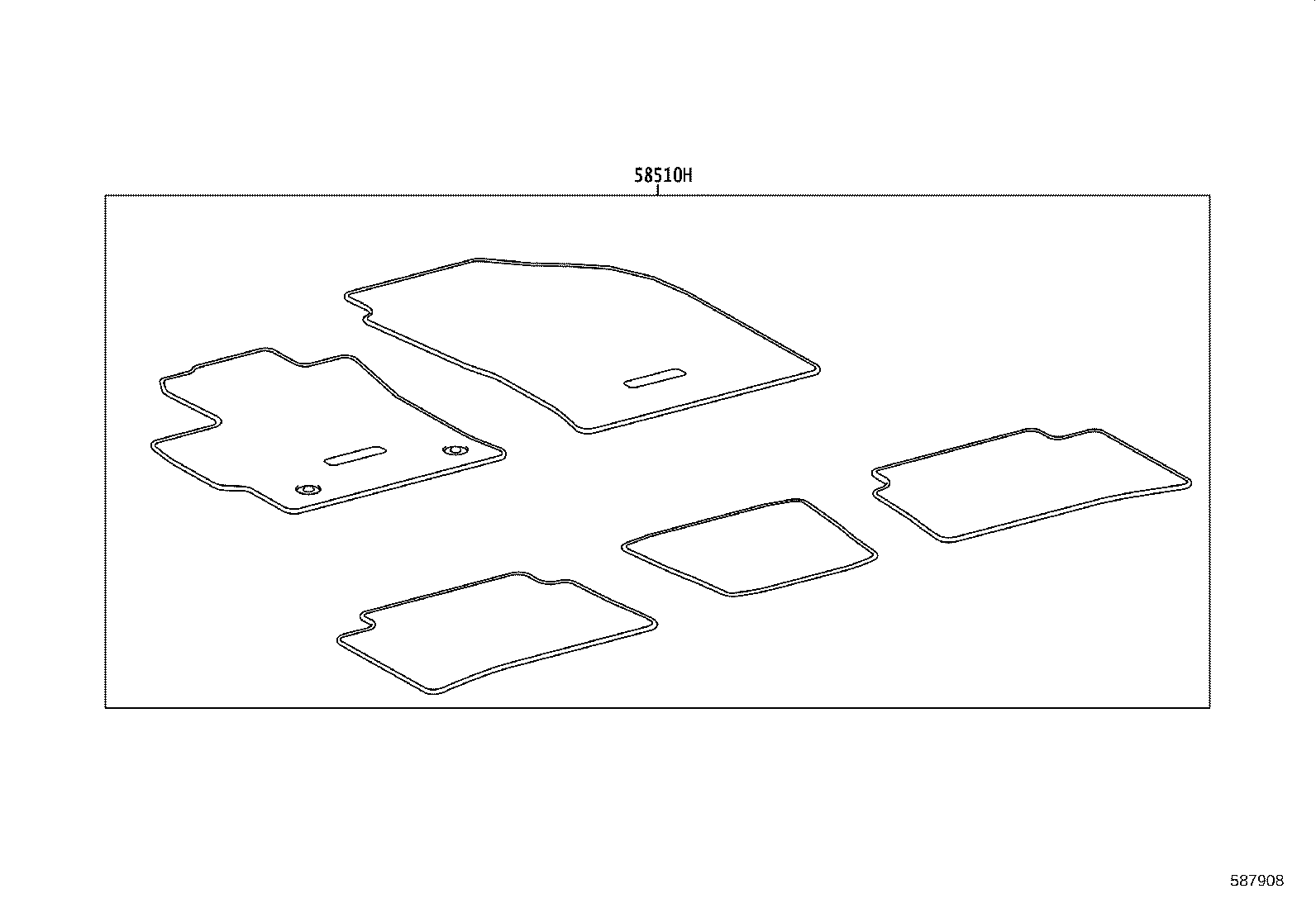

FLOOR MAT

diagram 58510H
Part # Description Qty Price
58510H - MAT ASSY, FLOOR
58510-YYR40C0

NRE210..HI

FLOOR MAT-WITH(FOR ACCESSORY),BLACK,TRIM0#,2#

 1
58510-YYR40C0

NRE210..HI

FLOOR MAT-WITH(FOR ACCESSORY),BLACK,TRIM0#,2#

 1
