NRE210L-GEXGZC (2019)
Toyota Corolla

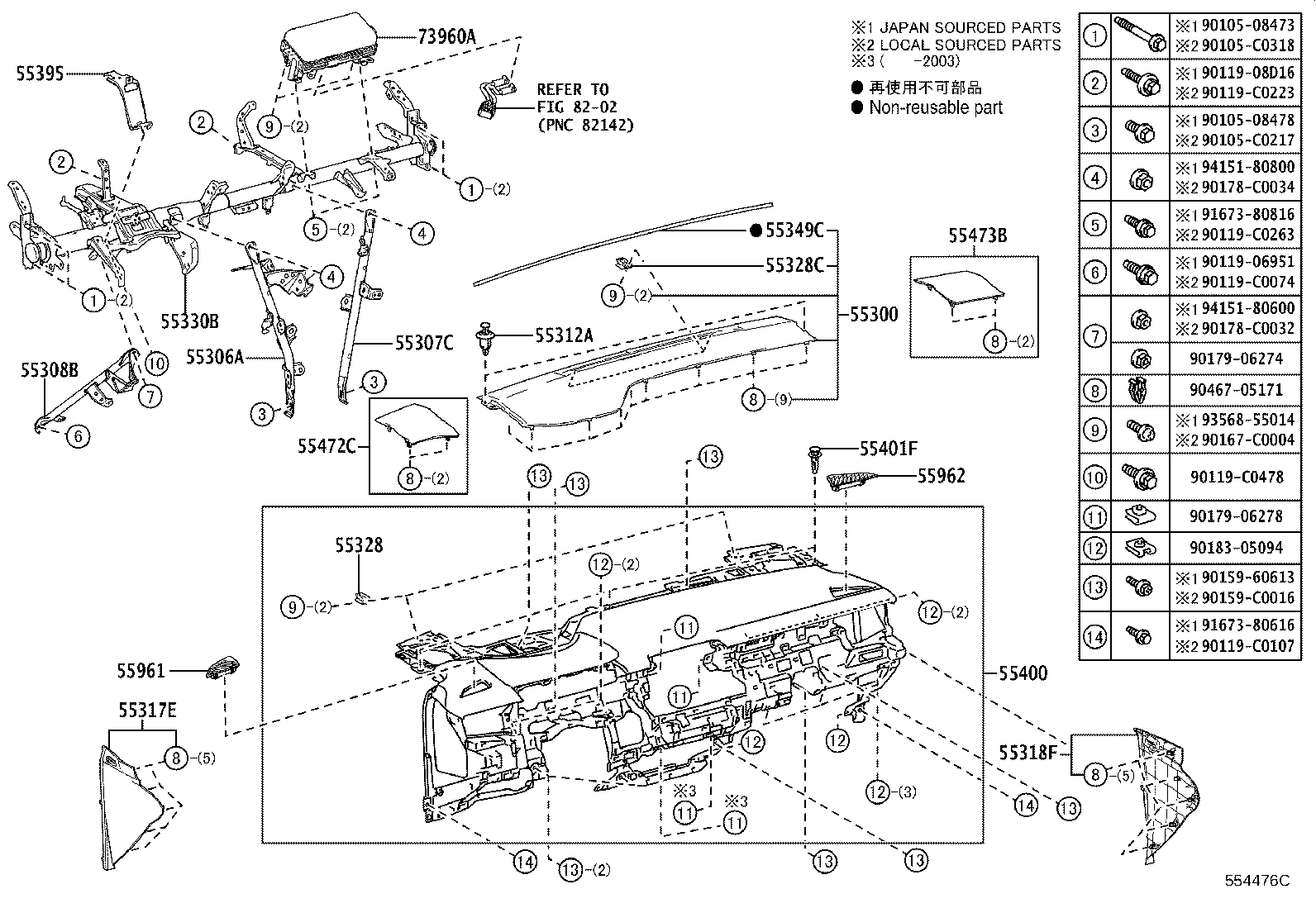

ILLUST NO. 1 OF 2(1908- )
W/O(AVN(12.1INCH))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55300-02220C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55300-02220C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02790 |
NRE210..HI |
1 | ||
| 55306-02790 |
NRE210..HI |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02620 |
NRE210..HI |
1 | ||
| 55307-02620 |
NRE210..HI |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-02270 |
NRE210..HI |
1 | ||
| 55308-02270 |
NRE210..HI |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-C0051 |
NRE210..HI (L) |
2 | ||
| 90467-07217 |
NRE210..HI (J) |
2 | ||
| 90467-C0051 |
NRE210..HI (L) |
2 | ||
| 90467-07217 |
NRE210..HI (J) |
2 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-02790C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55317-02790C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-02420C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55318-02420C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-0E100 |
NRE210..HI |
2 | ||
| 55328-0E100 |
NRE210..HI |
2 | ||
| 55328C - PIN, INSTRUMENT PANEL, NO.2 | ||||
| 55328-02800 |
NRE210..HI |
2 | ||
| 55328-02800 |
NRE210..HI |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02D80 |
NRE210..HI |
1 | ||
| 55330-02D80 |
NRE210..HI |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-02390 |
NRE210..HI |
1 | ||
| 55349-02390 |
NRE210..HI |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-02140 |
NRE210..HI |
1 | ||
| 55395-02140 |
NRE210..HI |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-02580C0 |
NRE210..HI SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02580C0 |
NRE210..HI SOFT BLACK,TRIM0#,2# |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-02040 |
NRE210..HI (L) |
3 | ||
| 52161-16010 |
NRE210..HI (J) |
3 | ||
| 52161-16010 |
NRE210..HI (J) |
3 | ||
| 52161-02040 |
NRE210..HI (L) |
3 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-02190C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55472-02190C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-02170C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55473-02170C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02340C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55961-02340C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-02290C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55962-02290C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02470 |
NRE210..HI |
1 | ||
| 73960-02470 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90105-C0217 | ||||
| 90105-C0318 | ||||
| 90119-06951 | ||||
| 90119-08D16 | ||||
| 90119-C0074 | ||||
| 90119-C0107 | ||||
| 90119-C0223 | ||||
| 90119-C0263 | ||||
| 90119-C0478 | ||||
| 90159-60613 | ||||
| 90159-C0016 | ||||
| 90167-C0004 | ||||
| 90178-C0032 | ||||
| 90178-C0034 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

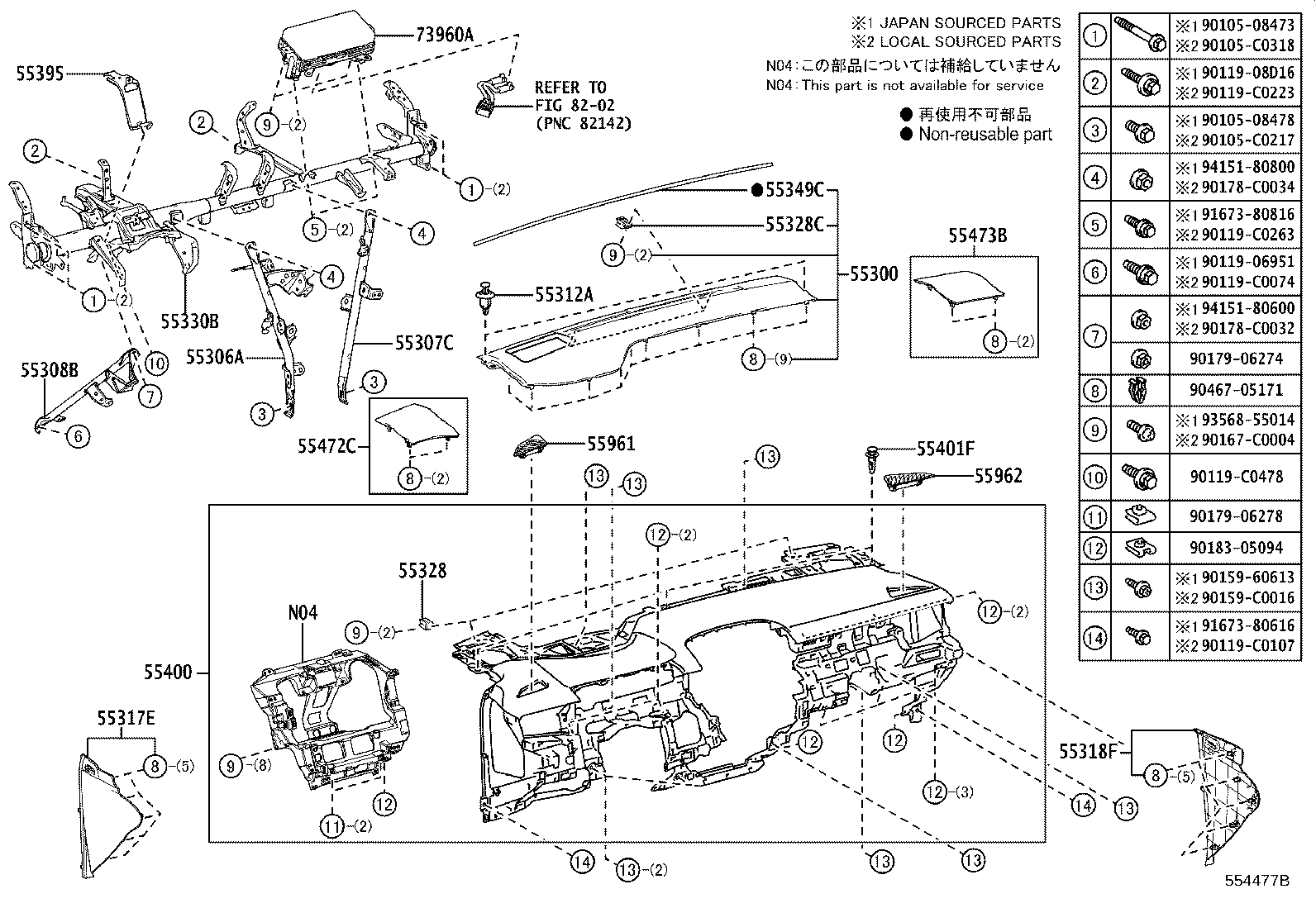

ILLUST NO. 1 OF 2(1908- )
W(AVN(12.1INCH))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55300-02220C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55300-02220C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02790 |
NRE210..HI |
1 | ||
| 55306-02790 |
NRE210..HI |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02620 |
NRE210..HI |
1 | ||
| 55307-02620 |
NRE210..HI |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-02270 |
NRE210..HI |
1 | ||
| 55308-02270 |
NRE210..HI |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-C0051 |
NRE210..HI (L) |
2 | ||
| 90467-07217 |
NRE210..HI (J) |
2 | ||
| 90467-C0051 |
NRE210..HI (L) |
2 | ||
| 90467-07217 |
NRE210..HI (J) |
2 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-02790C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55317-02790C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-02420C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55318-02420C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-0E100 |
NRE210..HI |
2 | ||
| 55328-0E100 |
NRE210..HI |
2 | ||
| 55328C - PIN, INSTRUMENT PANEL, NO.2 | ||||
| 55328-02800 |
NRE210..HI |
2 | ||
| 55328-02800 |
NRE210..HI |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02D80 |
NRE210..HI |
1 | ||
| 55330-02D80 |
NRE210..HI |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-02390 |
NRE210..HI |
1 | ||
| 55349-02390 |
NRE210..HI |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-02140 |
NRE210..HI |
1 | ||
| 55395-02140 |
NRE210..HI |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-02580C0 |
NRE210..HI SOFT BLACK,TRIM0#,2# |
1 | ||
| 55400-02580C0 |
NRE210..HI SOFT BLACK,TRIM0#,2# |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-02040 |
NRE210..HI (L) |
3 | ||
| 52161-16010 |
NRE210..HI (J) |
3 | ||
| 52161-16010 |
NRE210..HI (J) |
3 | ||
| 52161-02040 |
NRE210..HI (L) |
3 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-02190C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55472-02190C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-02170C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55473-02170C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02340C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55961-02340C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-02290C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55962-02290C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02470 |
NRE210..HI |
1 | ||
| 73960-02470 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90105-C0217 | ||||
| 90105-C0318 | ||||
| 90119-06951 | ||||
| 90119-08D16 | ||||
| 90119-C0074 | ||||
| 90119-C0107 | ||||
| 90119-C0223 | ||||
| 90119-C0263 | ||||
| 90119-C0478 | ||||
| 90159-60613 | ||||
| 90159-C0016 | ||||
| 90167-C0004 | ||||
| 90178-C0032 | ||||
| 90178-C0034 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

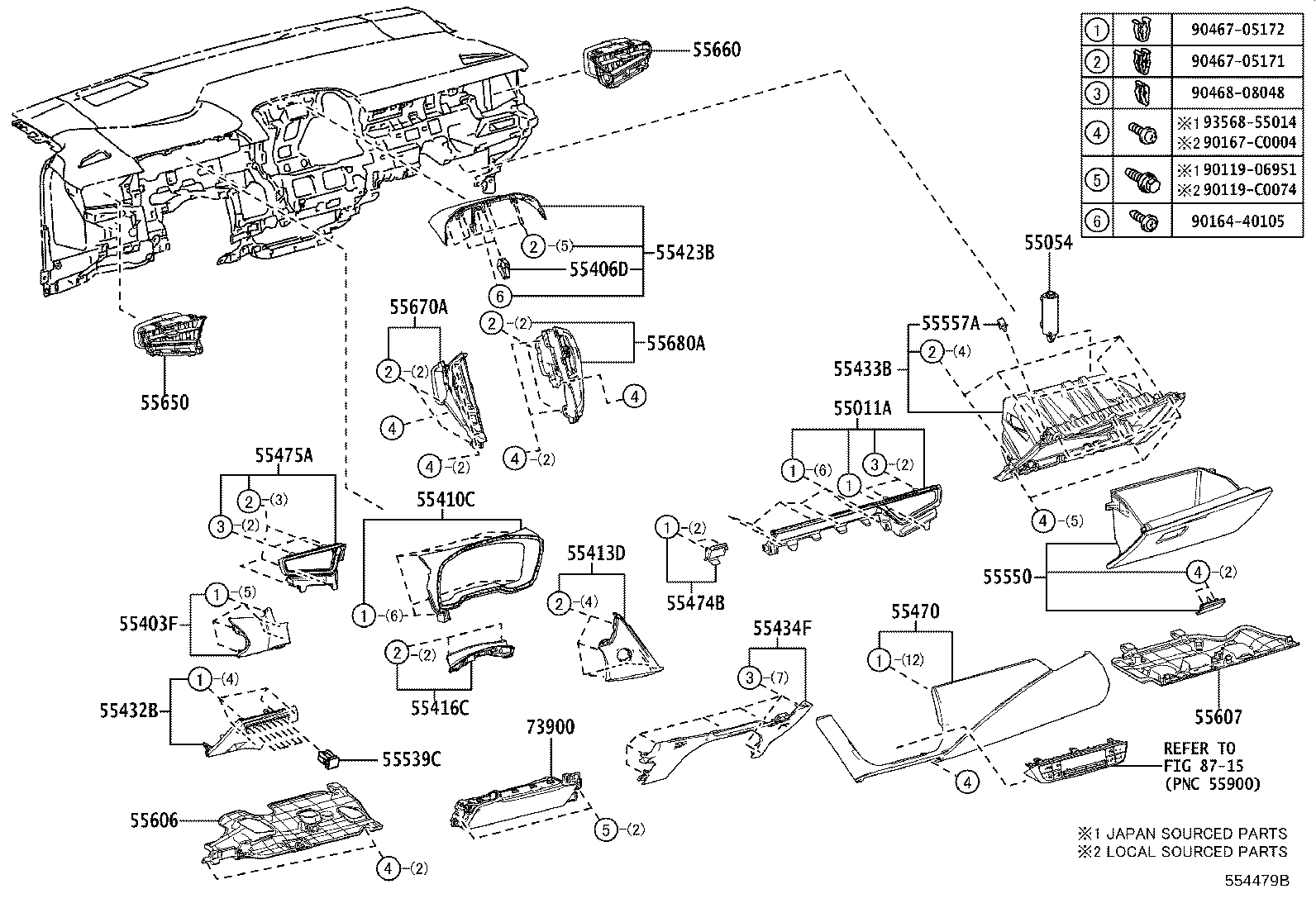

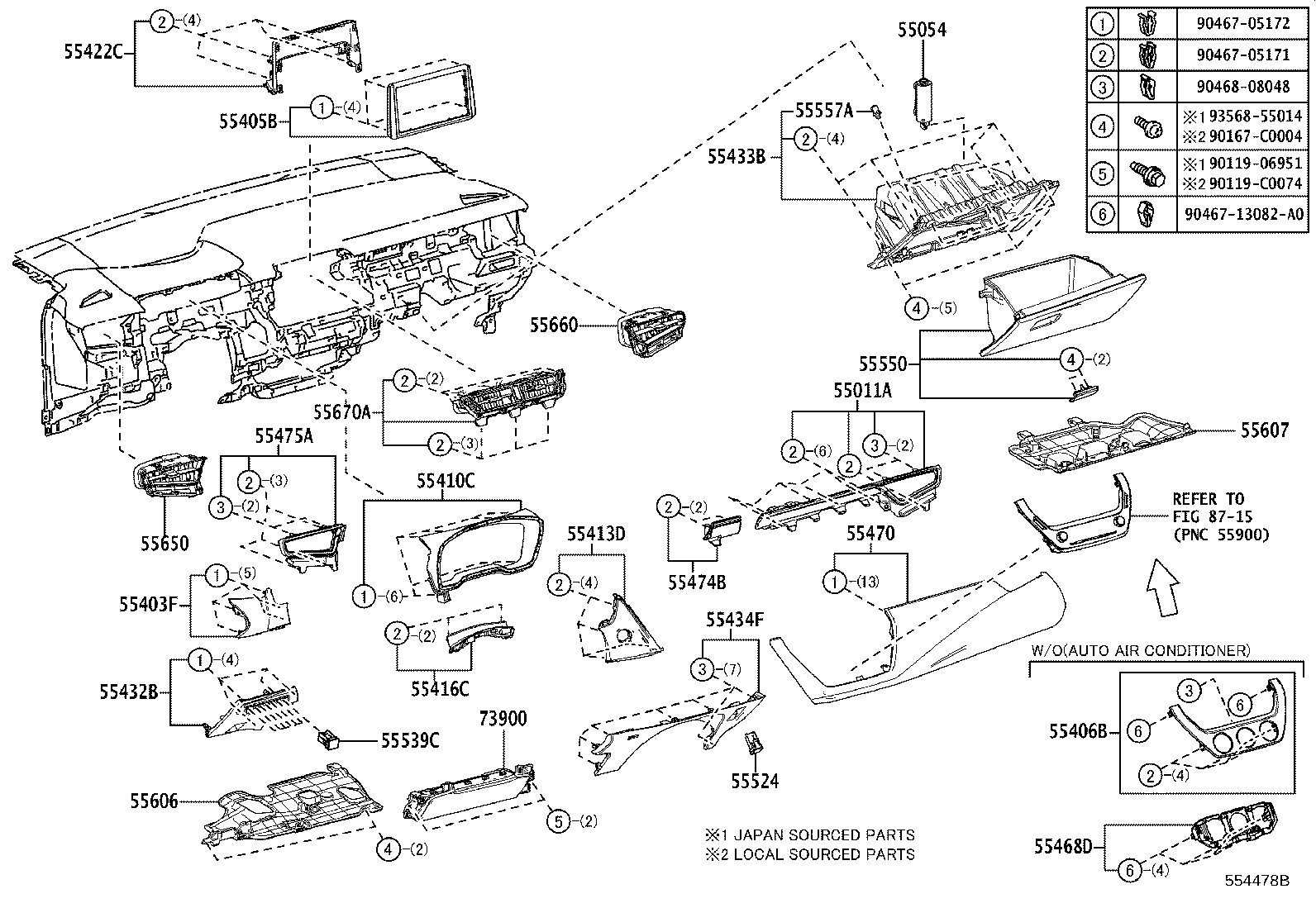

ILLUST NO. 2 OF 2(1908- )
W/O(AVN(12.1INCH))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-02570C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55011-02570C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
NRE210..HI |
1 | ||
| 55054-47010 |
NRE210..HI |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-02750A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 55403-02750C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 55403-02750C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 55403-02750A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02A20 |
NRE210..HI |
1 | ||
| 55410-02A21 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 55410-02A20 |
NRE210..HI |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-02830C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 55413-02830A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 55413-02830A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 55413-02830C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02600 |
NRE210..HI |
1 | ||
| 55416-02600 |
NRE210..HI |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-02A70C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55432-02A70C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-02650C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55433-02650C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02710C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55434-02710C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02880C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 55470-02880A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 55470-02880C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 55470-02880A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-02340B0 |
NRE210..HI SILVER,TRIM0#,2# |
1 | ||
| 55474-02340B0 |
NRE210..HI SILVER,TRIM0#,2# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-02210C1 |
NRE210..HI SLIVER,TRIM0#,2# |
1 | ||
| 55475-02210C1 |
NRE210..HI SLIVER,TRIM0#,2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-07020 |
NRE210..HI |
1 | ||
| 55539-07020 |
NRE210..HI |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02630C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55550-02630C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
NRE210..HI |
2 | ||
| 55557-52030 |
NRE210..HI |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02400 |
NRE210..HI |
1 | ||
| 55606-02400 |
NRE210..HI |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02410 |
NRE210..HI |
1 | ||
| 55607-02410 |
NRE210..HI |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02A70 |
NRE210..HI |
1 | ||
| 55650-02A70 |
NRE210..HI |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02640 |
NRE210..HI |
1 | ||
| 55660-02640 |
NRE210..HI |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02B10 |
NRE210,ZWE211..HI |
1 | ||
| 55670-02B11 |
NRE210..HI |
1 | ||
| 55670-02B11 |
NRE210..HI |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02300C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 73900-02300C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-C0074 | ||||
| 90167-C0004 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-13082A0 | ||||
| 90468-08048 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 2 OF 2(1908- )
W(AVN(12.1INCH))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-02570C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55011-02570C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
NRE210..HI |
1 | ||
| 55054-47010 |
NRE210..HI |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-02750A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 55403-02750C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 55403-02750C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 55403-02750A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
NRE210,ZWE211..HI MELLOW WHITE |
2 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02A20 |
NRE210..HI |
1 | ||
| 55410-02A21 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 55410-02A20 |
NRE210..HI |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-02830C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 55413-02830A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 55413-02830A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 55413-02830C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02600 |
NRE210..HI |
1 | ||
| 55416-02600 |
NRE210..HI |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-02210 |
NRE210..HI |
1 | ||
| 55423-02210 |
NRE210..HI |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-02A70C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55432-02A70C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-02650C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55433-02650C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02710C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55434-02710C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02880C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 55470-02880A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 55470-02880C0 |
NRE210..HI BLACK,TRIM2# |
1 | ||
| 55470-02880A0 |
NRE210..HI FROMAGE,TRIM0# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-02340B0 |
NRE210..HI SILVER,TRIM0#,2# |
1 | ||
| 55474-02340B0 |
NRE210..HI SILVER,TRIM0#,2# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-02210C1 |
NRE210..HI SLIVER,TRIM0#,2# |
1 | ||
| 55475-02210C1 |
NRE210..HI SLIVER,TRIM0#,2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-07020 |
NRE210..HI |
1 | ||
| 55539-07020 |
NRE210..HI |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02630C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55550-02630C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
NRE210..HI |
2 | ||
| 55557-52030 |
NRE210..HI |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02400 |
NRE210..HI |
1 | ||
| 55606-02400 |
NRE210..HI |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02410 |
NRE210..HI |
1 | ||
| 55607-02410 |
NRE210..HI |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02A70 |
NRE210..HI |
1 | ||
| 55650-02A70 |
NRE210..HI |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02640 |
NRE210..HI |
1 | ||
| 55660-02640 |
NRE210..HI |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02B10 |
NRE210,ZWE211..HI |
1 | ||
| 55670-02B11 |
NRE210..HI |
1 | ||
| 55670-02B11 |
NRE210..HI |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-02270 |
NRE210..HI |
1 | ||
| 55680-02270 |
NRE210..HI |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02300C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| 73900-02300C0 |
NRE210..HI BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-C0074 | ||||
| 90164-40105 | ||||
| 90167-C0004 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-08048 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
