NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

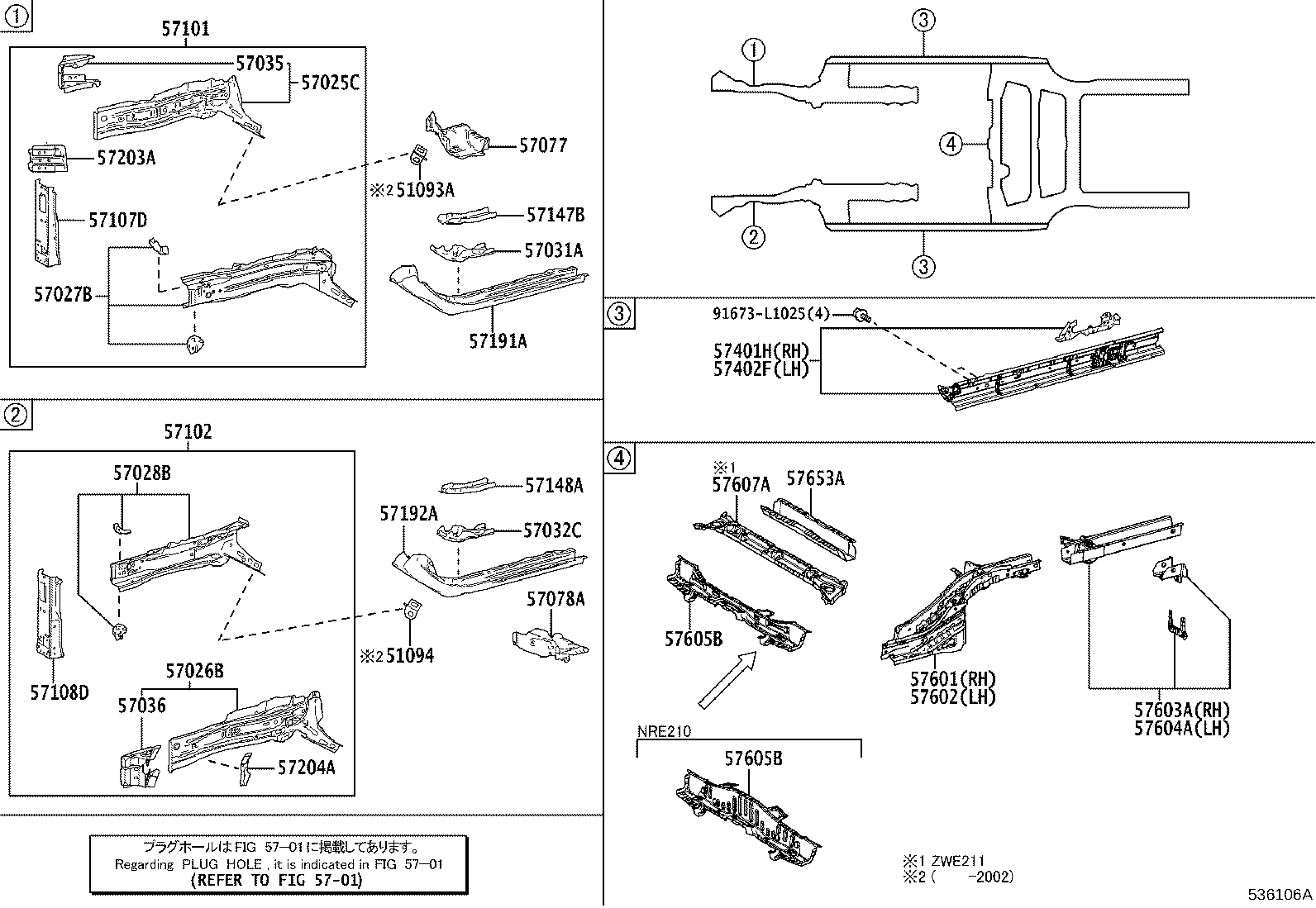

Click highlighted areas on diagram

diagram 51093A 51094 5701 57025C 57026B 57027B 57028B 57031A 57032C 57035 57036 57077 57078A 57101 57102 57107D 57108D 57147B 57148A 57191A 57192A 57203A 57204A 57401H 57402F 57601 57602 57603A 57604A 57605B 57605B 57607A 57653A 91673L1025
Part # Description Qty Price
51093A - HOOK SUB-ASSY, TRANSPORT, FRONT RH
51093-F4020

NRE210,ZWE211

 1
51094 - HOOK SUB-ASSY, TRANSPORT, FRONT LH
51094-F4020

NRE210,ZWE211

 1
57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57025-F4030

NRE210..HI

 1
57025-F4030

NRE210..HI

 1
57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57026-F4030

NRE210..HI

 1
57026-F4030

NRE210..HI

 1
57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH
57027-F4030

NRE210..HI

 1
57027-F4030

NRE210..HI

 1
57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH
57028-F4030

NRE210..HI

 1
57028-F4030

NRE210..HI

 1
57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57031-F4030

NRE210..HI

 1
57031-F4030

NRE210..HI

 1
57032C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57032-F4030

NRE210..HI

 1
57032-F4030

NRE210..HI

 1
57035 - PANEL SUB-ASSY, FRONT STEP, RH
57035-F4031

NRE210..HI

 1
57035-F4031

NRE210..HI

 1
57036 - PANEL SUB-ASSY, FRONT STEP, LH
57036-F4031

NRE210..HI

 1
57036-F4031

NRE210..HI

 1
57077 - BOX SUB-ASSY, TORQUE, FRONT RH
57077-F4030

NRE210,ZWE211

 1
57077-F4031

NRE210..HI

 1
57078A - BOX SUB-ASSY, TORQUE, FRONT LH
57078-F4030

NRE210,ZWE211

 1
57078-F4031

NRE210..HI

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-F4909

NRE210..HI

 1
57101-F4909

NRE210..HI

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-F4908

NRE210..HI

 1
57102-F4908

NRE210..HI

 1
57107D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH
57107-02170

NRE210..HI

 1
57107-02170

NRE210..HI

 1
57108D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH
57108-02170

NRE210..HI

 1
57108-02170

NRE210..HI

 1
57147B - PLATE, FRONT SIDE MEMBER, REAR RH
57147-F4030

NRE210..HI

 1
57147-F4030

NRE210..HI

 1
57148A - PLATE, FRONT SIDE MEMBER, REAR LH
57148-F4030

NRE210..HI

 1
57148-F4030

NRE210..HI

 1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57191-F4030

NRE210..HI

 1
57191-F4030

NRE210..HI

 1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57192-F4030

NRE210..HI

 1
57192-F4030

NRE210..HI

 1
57203A - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57203-F4031

NRE210..HI

 1
57203-F4031

NRE210..HI

 1
57204A - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57204-F4031

NRE210..HI

 1
57204-F4031

NRE210..HI

 1
57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-02420

NRE210..HI

 1
57401-02420

NRE210..HI

 1
57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-02430

NRE210..HI

 1
57402-02430

NRE210..HI

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-F4030

NRE210..HI

 1
57601-F4030

NRE210..HI

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-F4030

NRE210..HI

 1
57602-F4030

NRE210..HI

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57603-02280

NRE210..HI

 1
57603-02280

NRE210..HI

 1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57604-02180

NRE210..HI

 1
57604-02180

NRE210..HI

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-F4060

NRE210..HI

 1
57605-F4060

NRE210..HI

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-F4060

NRE210..HI

 1
57605-F4060

NRE210..HI

 1
57653A - MEMBER, REAR FLOOR CROSS, NO.2
57653-F4030

NRE210..HI

 1
57653-F4030

NRE210..HI

 1
Common parts
91673-L1025
Linked diagrams
5701
