NRE210L-GEXGZC (2019)
Toyota Corolla

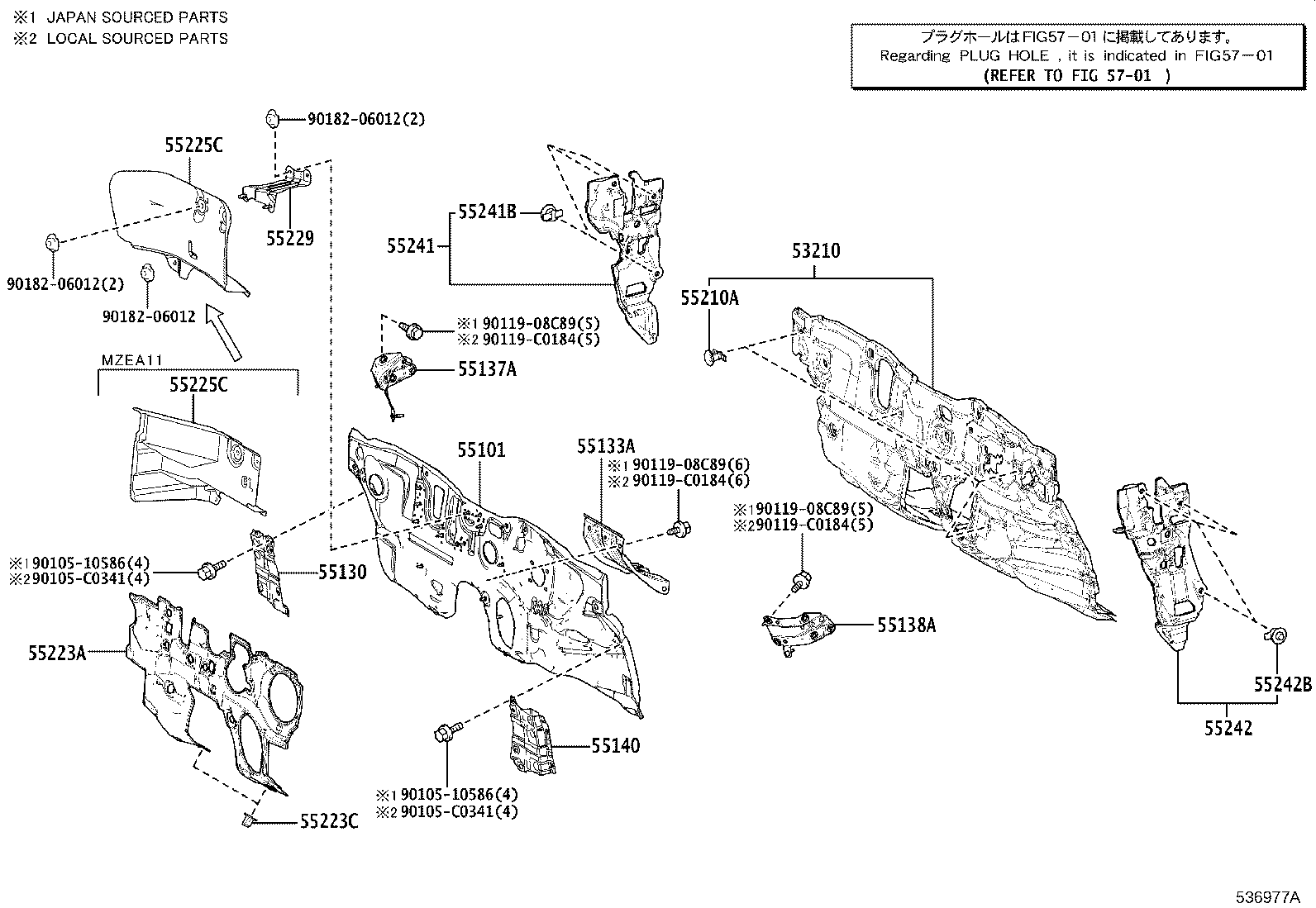

ILLUST NO. 3 OF 3(1908- )
DASH PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53210 - SUPPORT ASSY, RADIATOR | ||||
| 55210-02770 |
NRE210..HI |
1 | ||
| 55210-02770 |
NRE210..HI |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-F4060 |
NRE210..HI |
1 | ||
| 55101-F4060 |
NRE210..HI |
1 | ||
| 55130 - PLATE ASSY, FENDER APRON SET, RH | ||||
| 55130-02020 |
NRE210..HI |
1 | ||
| 55130-02020 |
NRE210..HI |
1 | ||
| 55133A - REINFORCEMENT, DASH TO FLOOR, RH | ||||
| 55133-F4030 |
NRE210..HI |
1 | ||
| 55133-F4030 |
NRE210..HI |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-02250 |
NRE210..HI |
1 | ||
| 55137-02250 |
NRE210..HI |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-02250 |
NRE210..HI |
1 | ||
| 55138-02250 |
NRE210..HI |
1 | ||
| 55140 - PLATE ASSY,FENDER APRON SET, LH | ||||
| 55140-02030 |
NRE210..HI |
1 | ||
| 55140-02030 |
NRE210..HI |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
NRE210..HI |
4 | ||
| 90467-11122 |
NRE210..HI |
4 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-F4040 |
NRE210..HI |
1 | ||
| 55223-F4040 |
NRE210..HI |
1 | ||
| 55223C - CLIP | ||||
| 90467-06197 |
NRE210..HI |
2 | ||
| 90467-06197 |
NRE210..HI |
2 | ||
| 55225C - INSULATOR, DASH PANEL HEAT | ||||
| 55225-02100 |
NRE210..HI |
1 | ||
| 55225-02100 |
NRE210..HI |
1 | ||
| 55225C - INSULATOR, DASH PANEL HEAT | ||||
| 55225-02100 |
NRE210..HI |
1 | ||
| 55225-02100 |
NRE210..HI |
1 | ||
| 55229 - PLATE, DASH PANEL INSULATOR, NO.4 | ||||
| 55229-F4020 |
NRE210..HI |
1 | ||
| 55229-F4020 |
NRE210..HI |
1 | ||
| 55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH | ||||
| 55241-02130 |
NRE210..HI |
1 | ||
| 55241-02130 |
NRE210..HI |
1 | ||
| 55241B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
NRE210..HI |
3 | ||
| 90467-13079 |
NRE210..HI |
3 | ||
| 55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH | ||||
| 55242-02120 |
NRE210..HI |
1 | ||
| 55242-02120 |
NRE210..HI |
1 | ||
| 55242B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
NRE210..HI |
3 | ||
| 90467-13079 |
NRE210..HI |
3 | ||
| Common parts | ||||
| 90105-10586 | ||||
| 90105-C0341 | ||||
| 90119-08C89 | ||||
| 90119-C0184 | ||||
| 90182-06012 | ||||
| Linked diagrams | ||||
| 5701 | ||||

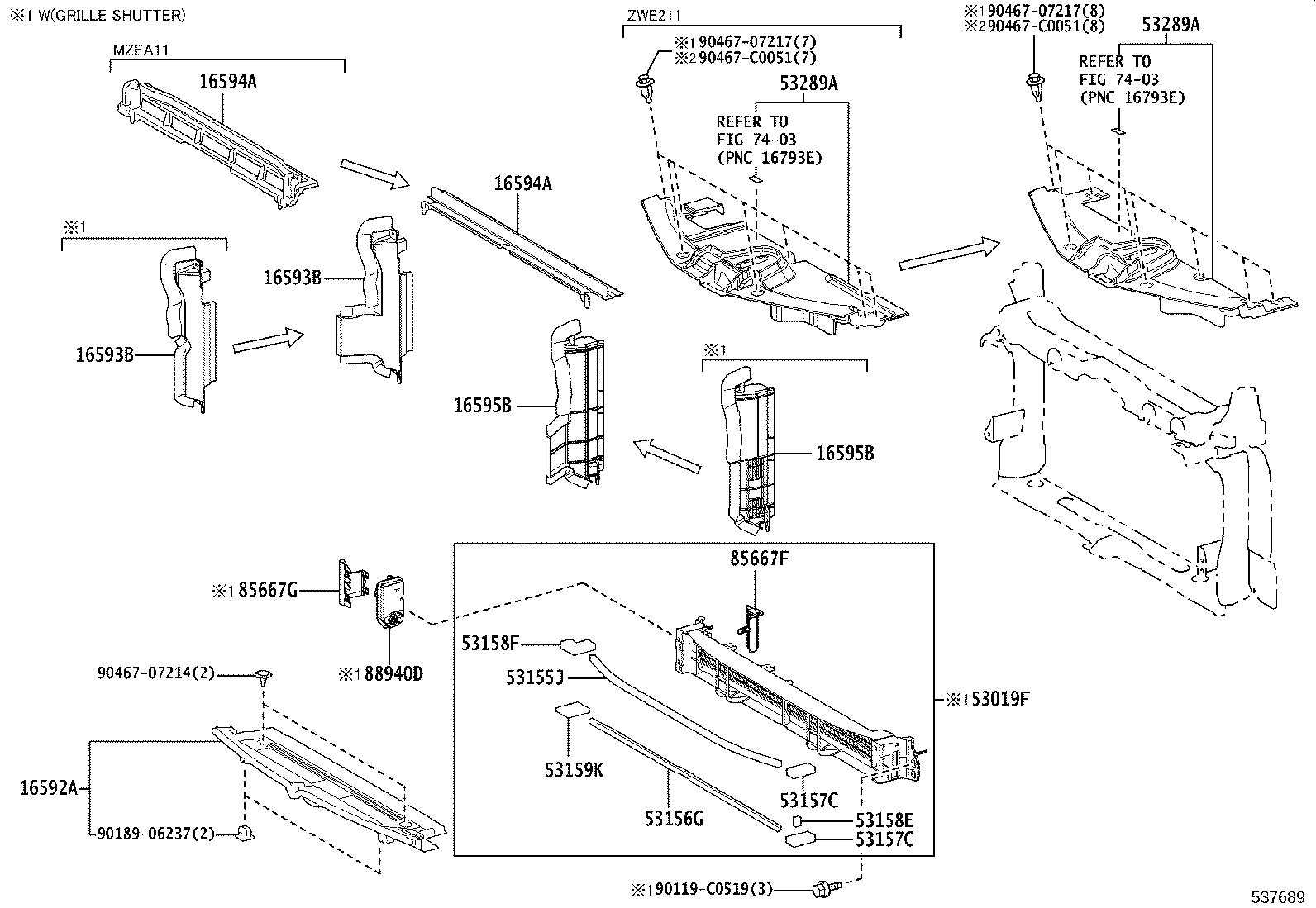

ILLUST NO. 1 OF 3(1908- )
AIRGUIDE & RADIATOR SUPPORT COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-0T210 |
9NRFTS..NRE210..HI |
1 | ||
| 16592-0T210 |
9NRFTS..NRE210..HI |
1 | ||
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-0T220 |
9NRFTS..NRE210..HI |
1 | ||
| 16593-0T220 |
9NRFTS..NRE210..HI |
1 | ||
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-0T220 |
9NRFTS..NRE210..HI |
1 | ||
| 16593-0T220 |
9NRFTS..NRE210..HI |
1 | ||
| 16594A - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-0Y090 |
9NRFTS..NRE210..HI |
1 | ||
| 16594-0Y090 |
9NRFTS..NRE210..HI |
1 | ||
| 16594A - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-0Y090 |
9NRFTS..NRE210..HI |
1 | ||
| 16594-0Y090 |
9NRFTS..NRE210..HI |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-0Y170 |
9NRFTS..NRE210..HI |
1 | ||
| 16595-0Y170 |
9NRFTS..NRE210..HI |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-0Y170 |
9NRFTS..NRE210..HI |
1 | ||
| 16595-0Y170 |
9NRFTS..NRE210..HI |
1 | ||
| 53019F - SHUTTER SUB-ASSY, RADIATOR | ||||
| 53019-02040 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 53155J - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53155-02270 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 53156G - SEAL, RADIATOR GRILLE, NO.2 | ||||
| 53156-02150 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 53157C - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-02050 |
MZEA11,NRE210,ZWE211 |
2 | ||
| 53157C - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-02050 |
MZEA11,NRE210,ZWE211 |
2 | ||
| 53158E - SEAL, RADIATOR GRILLE, NO.4 | ||||
| 53158-02070 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 53158F - SEAL, RADIATOR GRILLE, NO.4 | ||||
| 53158-02080 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 53159K - SEAL, RADIATOR GRILLE, NO.5 | ||||
| 53159-02040 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-02190 |
NRE210..HI |
1 | ||
| 53289-02190 |
NRE210..HI |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-02190 |
NRE210..HI |
1 | ||
| 53289-02190 |
NRE210..HI |
1 | ||
| 85667F - COVER, MOTOR | ||||
| 85667-02060 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 85667G - COVER, MOTOR | ||||
| 85667-02040 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 88940D - ACTUATOR ASSY, SWING GRILLE | ||||
| 88940-02030 |
MZEA11,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-C0519 | ||||
| 90189-06237 | ||||
| 90467-07214 | ||||
| 90467-07217 | ||||
| 90467-C0051 | ||||
| Linked diagrams | ||||
| 7403 | ||||

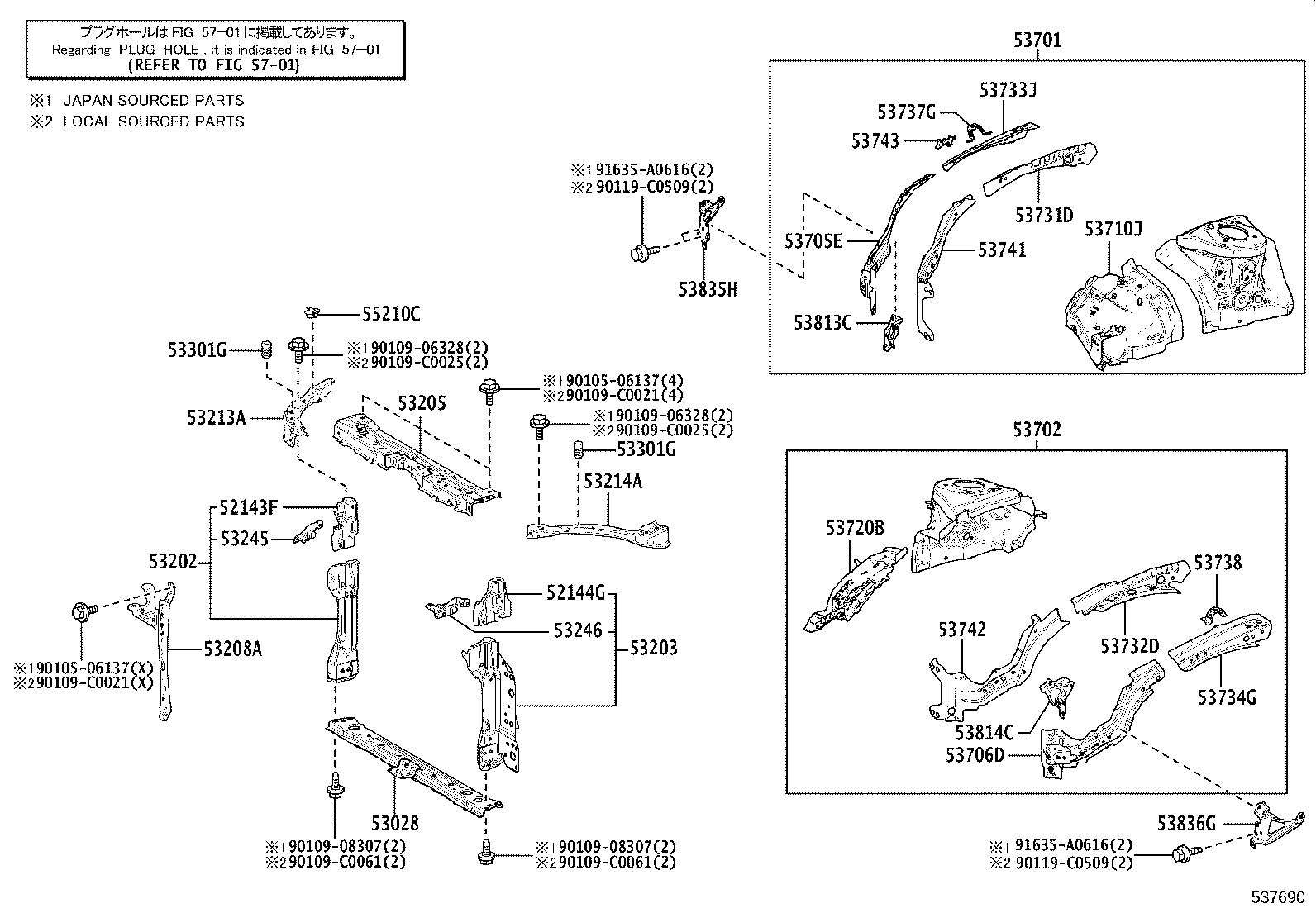

ILLUST NO. 2 OF 3(1908- )
RADIATOR SUPPORT & FENDER APRON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52143F - BRACKET, FRONT BUMPER SIDE, RH | ||||
| 52143-02130 |
NRE210..HI |
1 | ||
| 52143-02130 |
NRE210..HI |
1 | ||
| 52144G - BRACKET, FRONT BUMPER SIDE, LH | ||||
| 52144-02120 |
NRE210..HI |
1 | ||
| 52144-02120 |
NRE210..HI |
1 | ||
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-02160 |
NRE210..HI |
1 | ||
| 53028-02160 |
NRE210..HI |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-02912 |
NRE210..HI |
1 | ||
| 53202-02916 |
NRE210,ZWE211 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-02911 |
NRE210,ZWE211 |
1 | ||
| 53203-02908 |
NRE210..HI |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-02410 |
NRE210..HI |
1 | ||
| 53205-02410 |
NRE210..HI |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-02330 |
NRE210..HI |
1 | ||
| 53208-02330 |
NRE210..HI |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-02270 |
NRE210..HI |
1 | ||
| 53213-02270 |
NRE210..HI |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-02270 |
NRE210..HI |
1 | ||
| 53214-02270 |
NRE210..HI |
1 | ||
| 53245 - BRACKET, HEADLAMP, RH | ||||
| 53245-02110 |
NRE210..HI |
1 | ||
| 53245-02110 |
NRE210..HI |
1 | ||
| 53246 - BRACKET, HEADLAMP, LH | ||||
| 53246-02110 |
NRE210..HI |
1 | ||
| 53246-02110 |
NRE210..HI |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15037 |
NRE210..HI |
2 | ||
| 90541-15037 |
NRE210..HI |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15037 |
NRE210..HI |
2 | ||
| 90541-15037 |
NRE210..HI |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-02480 |
NRE210..HI |
1 | ||
| 53701-02480 |
NRE210..HI |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-02410 |
NRE210..HI |
1 | ||
| 53702-02410 |
NRE210..HI |
1 | ||
| 53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH | ||||
| 53705-F4030 |
NRE210..HI |
1 | ||
| 53705-F4030 |
NRE210..HI |
1 | ||
| 53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH | ||||
| 53706-F4030 |
NRE210..HI |
1 | ||
| 53706-F4030 |
NRE210..HI |
1 | ||
| 53710J - APRON ASSY, FRONT FENDER, RH | ||||
| 53710-F4030 |
NRE210..HI |
1 | ||
| 53710-F4030 |
NRE210..HI |
1 | ||
| 53720B - APRON ASSY, FRONT FENDER, LH | ||||
| 53720-F4030 |
NRE210..HI |
1 | ||
| 53720-F4030 |
NRE210..HI |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-F4030 |
NRE210..HI |
1 | ||
| 53731-F4030 |
NRE210..HI |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-F4030 |
NRE210..HI |
1 | ||
| 53732-F4030 |
NRE210..HI |
1 | ||
| 53733J - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH | ||||
| 53733-F4030 |
NRE210..HI |
1 | ||
| 53733-F4030 |
NRE210..HI |
1 | ||
| 53734G - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH | ||||
| 53734-F4030 |
NRE210..HI |
1 | ||
| 53734-F4030 |
NRE210..HI |
1 | ||
| 53737G - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-02280 |
NRE210..HI |
1 | ||
| 53737-02280 |
NRE210..HI |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-02250 |
NRE210..HI |
1 | ||
| 53738-02250 |
NRE210..HI |
1 | ||
| 53741 - PLATE, FRONT FENDER APRON WIND GUIDE, RH | ||||
| 53741-F4030 |
NRE210..HI |
1 | ||
| 53741-F4030 |
NRE210..HI |
1 | ||
| 53742 - PLATE, FRONT FENDER APRON WIND GUIDE, LH | ||||
| 53742-F4030 |
NRE210..HI |
1 | ||
| 53742-F4030 |
NRE210..HI |
1 | ||
| 53743 - REINFORCEMENT, FRONT FENDER APRON EXTENSION | ||||
| 53743-F4030 |
NRE210..HI |
1 | ||
| 53743-F4030 |
NRE210..HI |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-F4030 |
NRE210..HI |
1 | ||
| 53813-F4030 |
NRE210..HI |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-F4030 |
NRE210..HI |
1 | ||
| 53814-F4030 |
NRE210..HI |
1 | ||
| 53835H - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-02120 |
NRE210..HI |
1 | ||
| 53835-02120 |
NRE210..HI |
1 | ||
| 53836G - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53836-02120 |
NRE210..HI |
1 | ||
| 53836-02120 |
NRE210..HI |
1 | ||
| 55210C - CLIP | ||||
| 53326-52010 |
NRE210..HI |
1 | ||
| 53326-52010 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90109-06328 | ||||
| 90109-08307 | ||||
| 90109-C0021 | ||||
| 90109-C0025 | ||||
| 90109-C0061 | ||||
| 90119-C0509 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5701 | ||||
