NRE210L-GEXGZC (2019)
Toyota Corolla

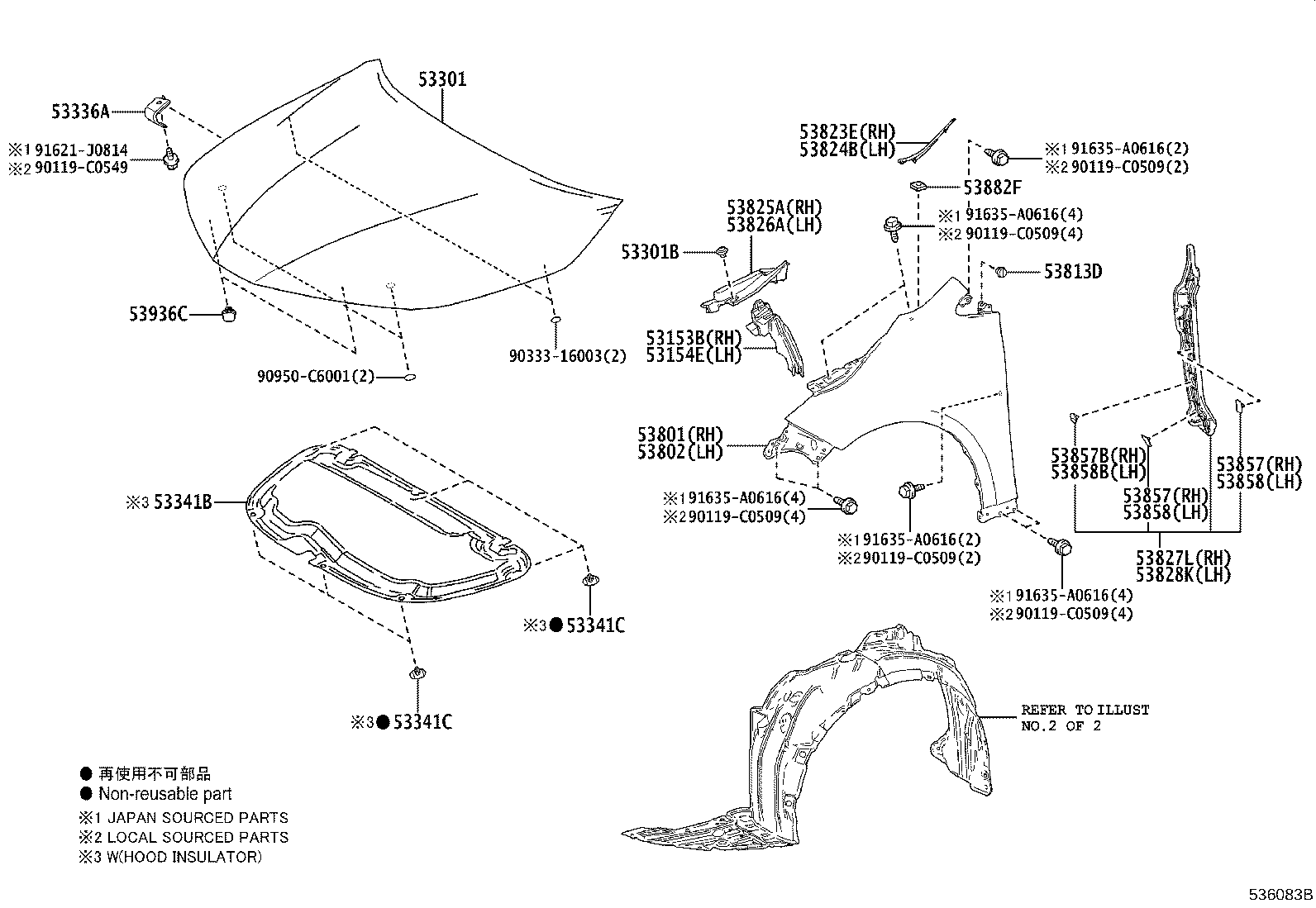

ILLUST NO. 1 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153B - GUIDE, FRONT SIDE AIR | ||||
| 53153-02170 |
NRE210..HI |
1 | ||
| 53153-02170 |
NRE210..HI |
1 | ||
| 53154E - GUIDE, FRONT SIDE AIR, NO.2 | ||||
| 53154-02170 |
NRE210..HI |
1 | ||
| 53154-02170 |
NRE210..HI |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-02450 |
NRE210..HI |
1 | ||
| 53301-02450 |
NRE210..HI |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 53384-78010 |
NRE210..HI |
2 | ||
| 53384-78010 |
NRE210..HI |
2 | ||
| 53336A - BRACKET, HOOD STAY | ||||
| 53336-02030 |
NRE210..HI |
1 | ||
| 53336-02030 |
NRE210..HI |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-02460 |
NRE210..HI |
1 | ||
| 53341-02460 |
NRE210..HI |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-C0025 |
NRE210..HI (L) |
6 | ||
| 90467-09050 |
NRE210..HI (J) |
6 | ||
| 90467-09050 |
NRE210..HI (J) |
6 | ||
| 90467-C0025 |
NRE210..HI (L) |
6 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-C0025 |
NRE210..HI (L) |
6 | ||
| 90467-09050 |
NRE210..HI (J) |
6 | ||
| 90467-09050 |
NRE210..HI (J) |
6 | ||
| 90467-C0025 |
NRE210..HI (L) |
6 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-02350 |
NRE210..HI |
1 | ||
| 53801-02350 |
NRE210..HI |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-02340 |
NRE210..HI |
1 | ||
| 53802-02340 |
NRE210..HI |
1 | ||
| 53813D - EXTENSION, FRONT FENDER | ||||
| 53813-48011 |
NRE210..HI |
2 | ||
| 53813-48011 |
NRE210..HI |
2 | ||
| 53823E - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-02260 |
NRE210..HI |
1 | ||
| 53823-02260 |
NRE210..HI |
1 | ||
| 53824B - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-02260 |
NRE210..HI |
1 | ||
| 53824-02260 |
NRE210..HI |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-02240 |
NRE210..HI |
1 | ||
| 53825-02240 |
NRE210..HI |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-02240 |
NRE210..HI |
1 | ||
| 53826-02240 |
NRE210..HI |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-02320 |
NRE210..HI |
1 | ||
| 53827-02320 |
NRE210..HI |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-02320 |
NRE210..HI |
1 | ||
| 53828-02320 |
NRE210..HI |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-12010 |
NRE210..HI |
2 | ||
| 53857-12010 |
NRE210..HI |
2 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-12010 |
NRE210..HI |
2 | ||
| 53857-12010 |
NRE210..HI |
2 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
NRE210..HI |
1 | ||
| 53857-47011 |
NRE210..HI |
1 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-12010 |
NRE210..HI |
2 | ||
| 53857-12010 |
NRE210..HI |
2 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-12010 |
NRE210..HI |
2 | ||
| 53857-12010 |
NRE210..HI |
2 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
NRE210..HI |
1 | ||
| 53857-47011 |
NRE210..HI |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-0D020 |
NRE210..HI (L) |
2 | ||
| 53882-0D020 |
NRE210..HI (L) |
2 | ||
| 53882-33060 |
NRE210..HI (J) |
2 | ||
| 53882-33060 |
NRE210..HI (J) |
2 | ||
| 53936C - CUSHION | ||||
| 90541-09117 |
NRE210..HI |
2 | ||
| 90541-09117 |
NRE210..HI |
2 | ||
| Common parts | ||||
| 90119-C0509 | ||||
| 90119-C0549 | ||||
| 90333-16003 | ||||
| 90950-C6001 | ||||
| 91621-J0814 | ||||
| 91635-A0616 | ||||

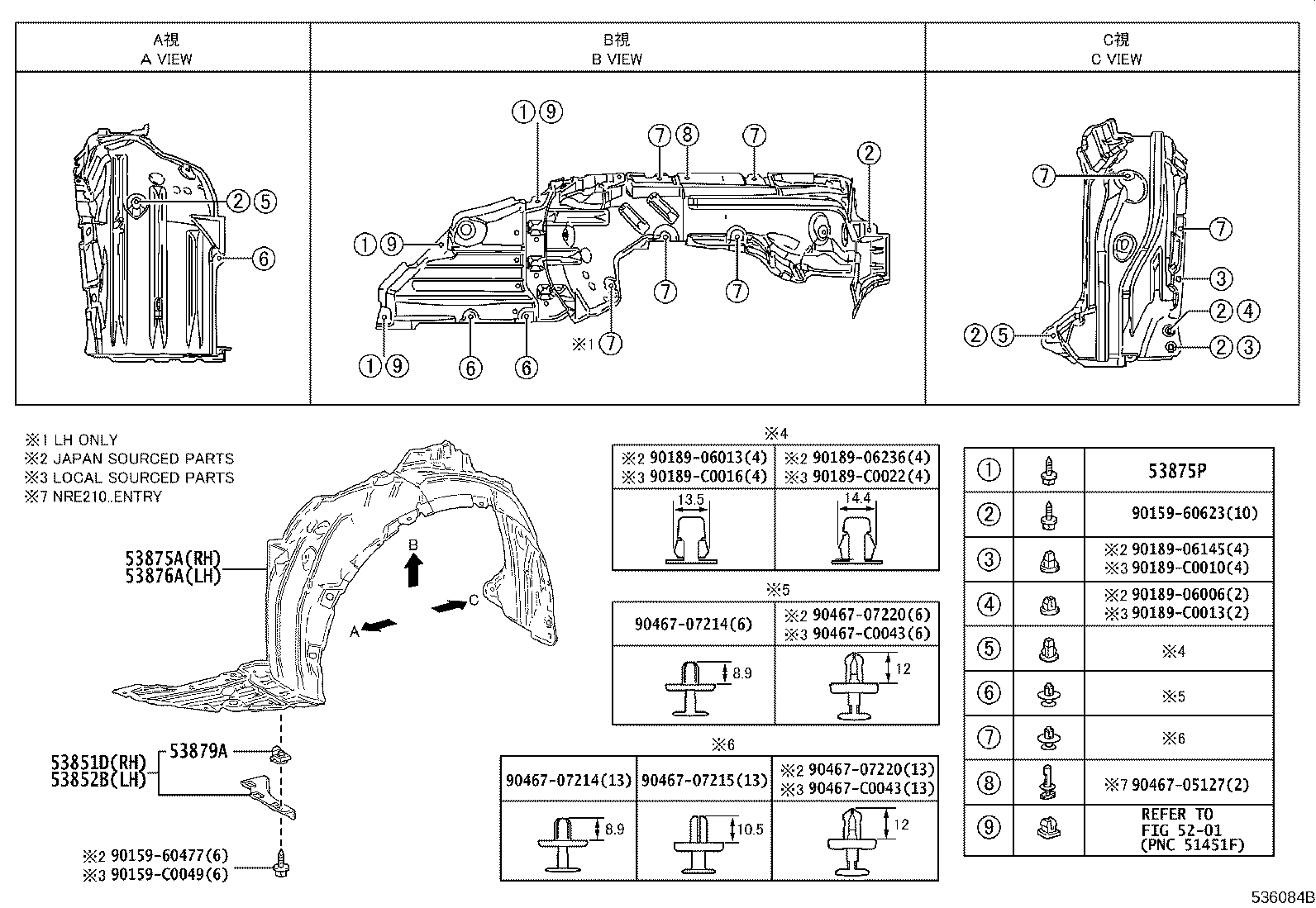

ILLUST NO. 2 OF 2(1908- )
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-02290 |
NRE210..HI |
1 | ||
| 53851-02290 |
NRE210..HI |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-02270 |
NRE210..HI |
1 | ||
| 53852-02270 |
NRE210..HI |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-02860 |
NRE210..HI |
1 | ||
| 53875-02860 |
NRE210..HI |
1 | ||
| 53875-02861 |
MZEA11,ZWE211;NRE210..HI,MID |
1 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-C0049 |
NRE210..HI (L) |
6 | ||
| 90159-60477 |
NRE210..HI (J) |
6 | ||
| 90159-60477 |
NRE210..HI (J) |
6 | ||
| 90159-C0049 |
NRE210..HI (L) |
6 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-02A00 |
NRE210..HI |
1 | ||
| 53876-02A01 |
MZEA11,ZWE211;NRE210..HI,MID |
1 | ||
| 53876-02A00 |
NRE210..HI |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-47020 |
NRE210..HI |
6 | ||
| 53879-47020 |
NRE210..HI |
6 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90159-60623 | ||||
| 90159-C0049 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 90189-06145 | ||||
| 90189-06236 | ||||
| 90189-C0010 | ||||
| 90189-C0013 | ||||
| 90189-C0016 | ||||
| 90189-C0022 | ||||
| 90467-05127 | ||||
| 90467-07214 | ||||
| 90467-07215 | ||||
| 90467-07220 | ||||
| 90467-C0043 | ||||
| Linked diagrams | ||||
| 5201 | ||||
