NRE210L-GEXGZC (2019)
Toyota Corolla
Production
Aug 2019
-
Sep 9999
Engine
9NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )

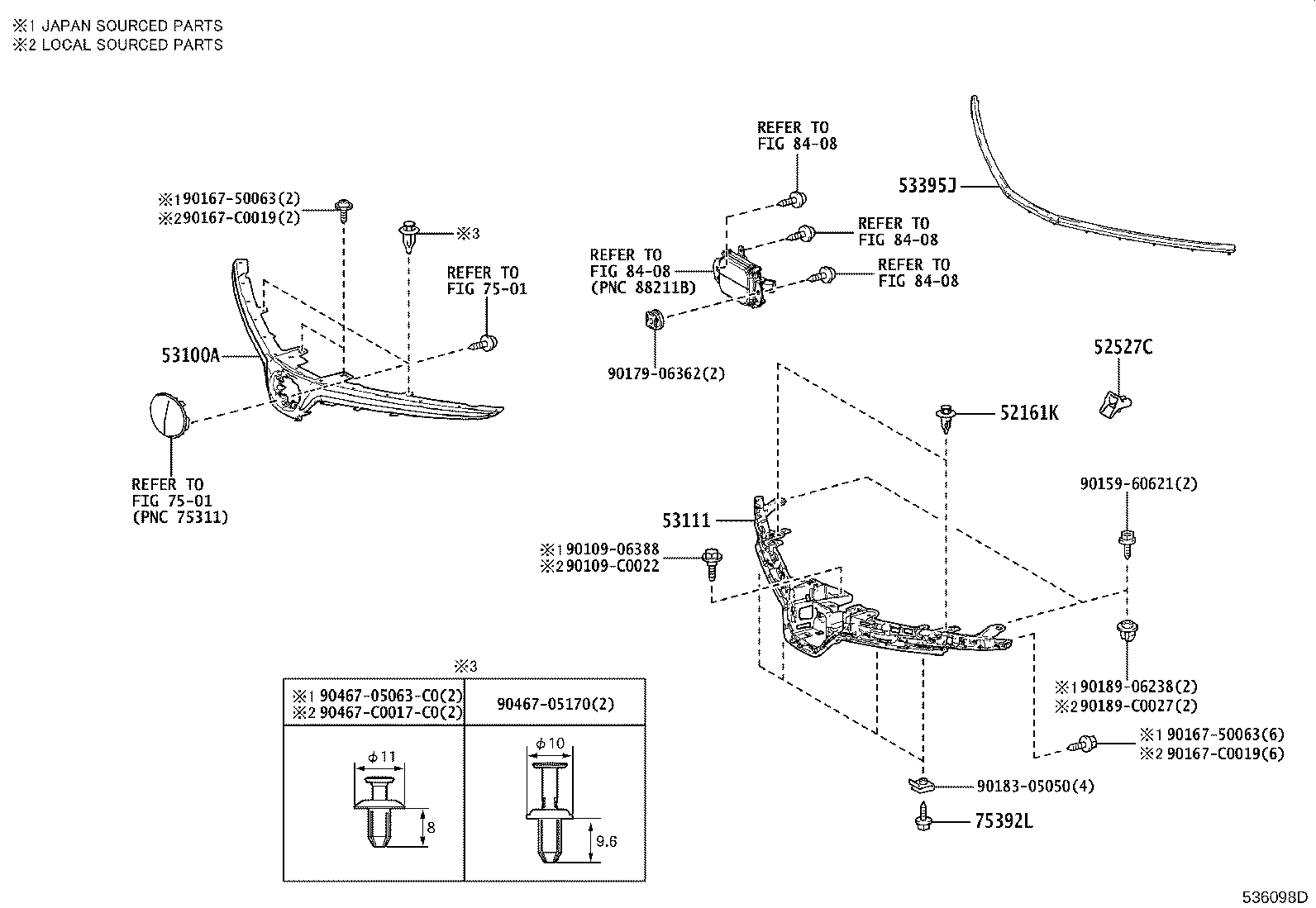

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161K - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NRE210..HI (J) |
2 | ||
| 52161-02040 |
NRE210..HI (L) |
2 | ||
| 52161-16010 |
NRE210..HI (J) |
2 | ||
| 52161-02040 |
NRE210..HI (L) |
2 | ||
| 52527C - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 52527-02100 |
NRE210..HI |
1 | ||
| 52527-02100 |
NRE210..HI |
1 | ||
| 53100A - GRILLE ASSY, RADIATOR | ||||
| 53100-02860 |
NRE210..HI |
1 | ||
| 53100-02860 |
NRE210..HI |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-02E40 |
NRE210..HI NO PAINT REQ. |
1 | ||
| 53111-02E40 |
NRE210..HI NO PAINT REQ. |
1 | ||
| 53395J - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-02170 |
NRE210..HI |
1 | ||
| 53395-02170 |
NRE210..HI |
1 | ||
| 75392L - RETAINER, OUTSIDE MOULDING | ||||
| 75392-42030 |
NRE210..HI |
4 | ||
| 75392-42030 |
NRE210..HI |
4 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90109-C0022 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90167-C0019 | ||||
| 90179-06362 | ||||
| 90183-05050 | ||||
| 90189-06238 | ||||
| 90189-C0027 | ||||
| 90467-05063C0 | ||||
| 90467-05170 | ||||
| 90467-C0017C0 | ||||
| Linked diagrams | ||||
| 7501 | ||||
| 8408 | ||||
