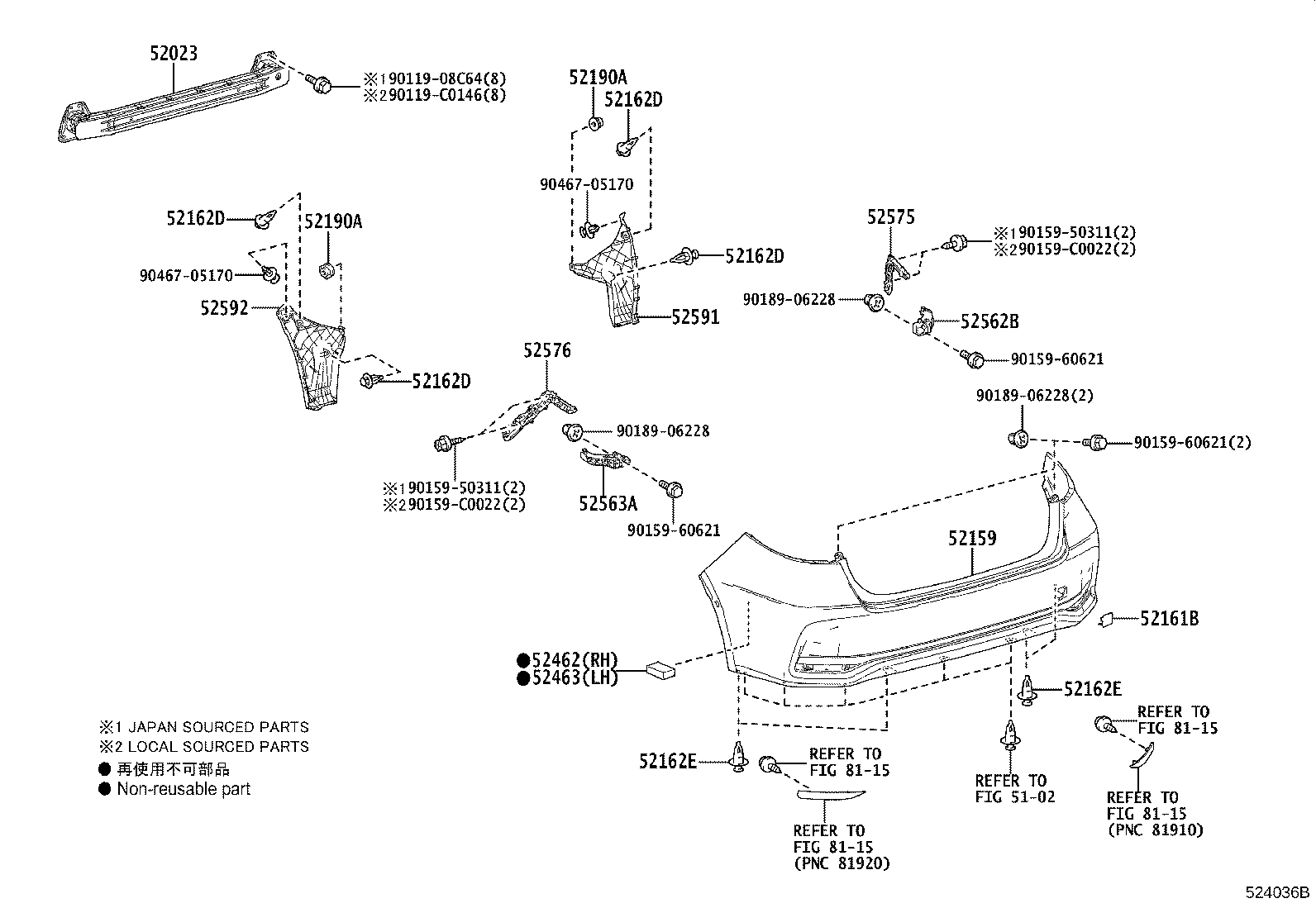

Toyota Corolla NRE210 REAR BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-02310	NRE210..HI	08/2019 - 06/2020	1
52023-02310	NRE210..HI	07/2020 - 12/2999	1
52159 - COVER, REAR BUMPER
52159-0Z965	NRE210..HI PAINT REQ.	08/2019 - 06/2020	1
52159-0Z965	NRE210..HI PAINT REQ.	07/2020 - 12/2999	1
52161B - PIECE, REAR BUMPER
52161-02904	NRE210..HI	08/2019 - 06/2020	1
52161-02904	NRE210..HI	07/2020 - 12/2999	1
52162D - PIECE, REAR BUMPER
52161-02040	NRE210..HI (L)	08/2019 - 06/2020	4
52161-02040	NRE210..HI (L)	07/2020 - 12/2999	4
52161-16010	NRE210..HI (J)	08/2019 - 06/2020	4
52161-16010	NRE210..HI (J)	07/2020 - 12/2999	4
52162D - PIECE, REAR BUMPER
52161-02040	NRE210..HI (L)	08/2019 - 06/2020	4
52161-02040	NRE210..HI (L)	07/2020 - 12/2999	4
52161-16010	NRE210..HI (J)	08/2019 - 06/2020	4
52161-16010	NRE210..HI (J)	07/2020 - 12/2999	4
52162D - PIECE, REAR BUMPER
52161-02040	NRE210..HI (L)	08/2019 - 06/2020	4
52161-02040	NRE210..HI (L)	07/2020 - 12/2999	4
52161-16010	NRE210..HI (J)	08/2019 - 06/2020	4
52161-16010	NRE210..HI (J)	07/2020 - 12/2999	4
52162D - PIECE, REAR BUMPER
52161-02040	NRE210..HI (L)	08/2019 - 06/2020	4
52161-02040	NRE210..HI (L)	07/2020 - 12/2999	4
52161-16010	NRE210..HI (J)	08/2019 - 06/2020	4
52161-16010	NRE210..HI (J)	07/2020 - 12/2999	4
52162E - PIECE, REAR BUMPER
52161-16010	NRE210..HI (J)	08/2019 - 06/2020	4
52161-16010	NRE210..HI (J)	07/2020 - 12/2999	4
52161-02040	NRE210..HI (L)	08/2019 - 06/2020	4
52161-02040	NRE210..HI (L)	07/2020 - 12/2999	4
52162E - PIECE, REAR BUMPER
52161-16010	NRE210..HI (J)	08/2019 - 06/2020	4
52161-16010	NRE210..HI (J)	07/2020 - 12/2999	4
52161-02040	NRE210..HI (L)	08/2019 - 06/2020	4
52161-02040	NRE210..HI (L)	07/2020 - 12/2999	4
52190A - CLIP
90467-06206C0	NRE210..HI BLACK	08/2019 - 06/2020	2
90467-06206C0	NRE210..HI BLACK	07/2020 - 12/2999	2
52190A - CLIP
90467-06206C0	NRE210..HI BLACK	08/2019 - 06/2020	2
90467-06206C0	NRE210..HI BLACK	07/2020 - 12/2999	2
52462 - PAD, REAR BUMPER, RH
52462-02360	NRE210..HI	08/2019 - 06/2020	1
52462-02360	NRE210..HI	07/2020 - 12/2999	1
52463 - PAD, REAR BUMPER, LH
52462-02360	NRE210..HI	08/2019 - 06/2020	1
52462-02360	NRE210..HI	07/2020 - 12/2999	1
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-02380	NRE210..HI	08/2019 - 06/2020	1
52562-02380	NRE210..HI	07/2020 - 12/2999	1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-02350	NRE210..HI	07/2020 - 12/2999	1
52563-02350	NRE210..HI	08/2019 - 06/2020	1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-02250	NRE210..HI	08/2019 - 06/2020	1
52575-02250	NRE210..HI	07/2020 - 12/2999	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-02250	NRE210..HI	08/2019 - 06/2020	1
52576-02250	NRE210..HI	07/2020 - 12/2999	1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-02460	NRE210..HI	07/2020 - 12/2999	1
52591-02460	NRE210..HI	08/2019 - 06/2020	1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-02420	NRE210..HI	07/2020 - 12/2999	1
52592-02420	NRE210..HI	08/2019 - 06/2020	1
Common parts
90119-08C64
90119-C0146
90159-50311
90159-60621
90159-C0022
90189-06228
90467-05170
Linked diagrams
5102
8115

NRE210L-GEXGZC (2019)

(1908- )
