NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

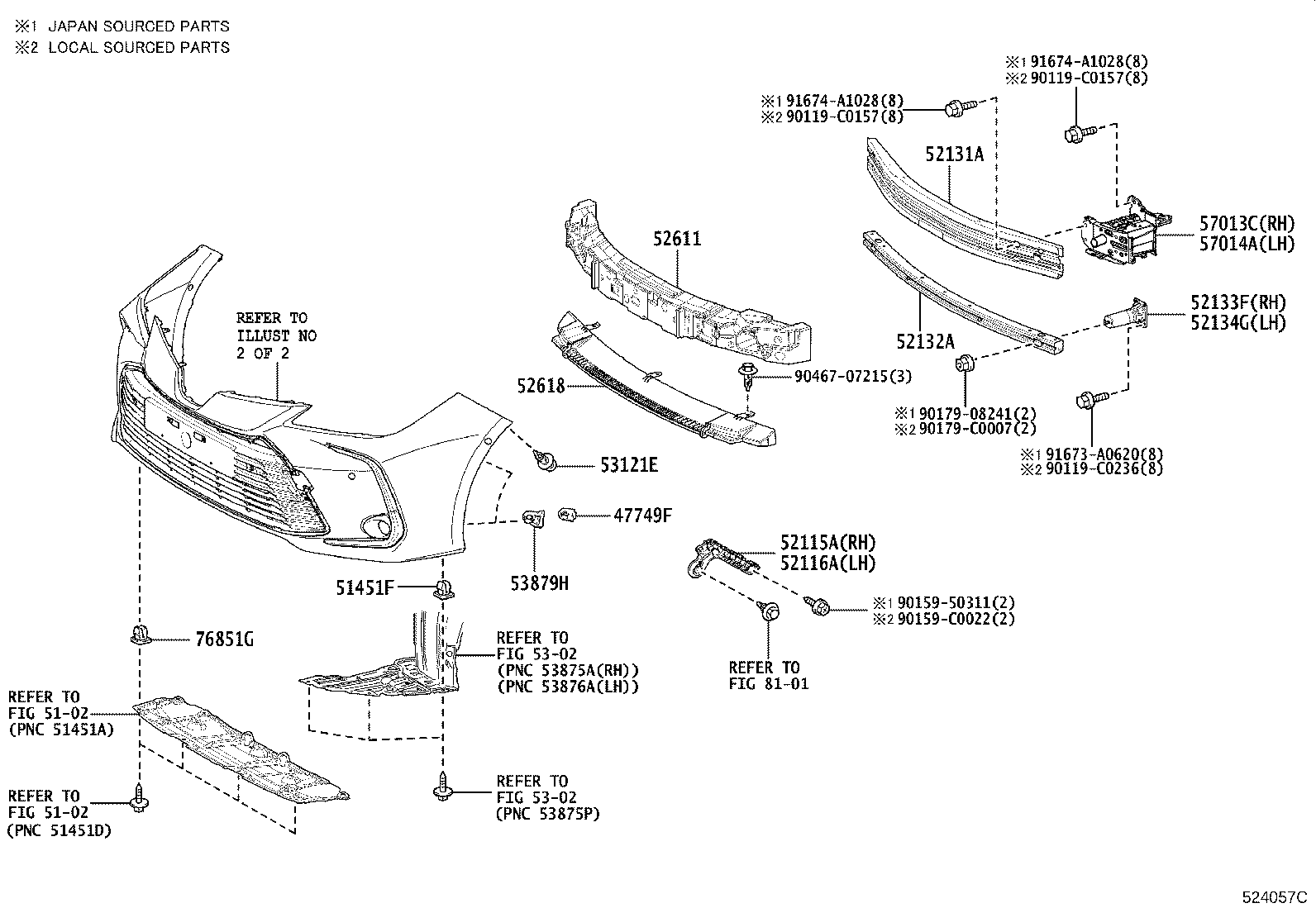

ILLUST NO. 1 OF 2(1908- )

Click highlighted areas on diagram

diagram 47749F 5102 5102 51451F 52115A 52116A 52131A 52132A 52133F 52134G 52611 52618 5302 5302 53121E 53879H 57013C 57014A 76851G 8101 90119C0157 90119C0157 90119C0236 9015950311 90159C0022 9017908241 90179C0007 9046707215 91673A0620 91674A1028 91674A1028
Part # Description Qty Price
47749F - CLIP, PIN HOLD
47749-33030

NRE210..HI

 4
47749-02010

MZEA11,NRE210,ZWE211

 4
47749-33030

NRE210..HI

 4
51451F - GROMMET, NO.1
90189-C0020

NRE210..HI

(L)

 6
90189-06237

NRE210..HI

(J)

 6
90189-06237

NRE210..HI

(J)

 6
90189-C0020

NRE210..HI

(L)

 6
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02550

NRE210..HI

 1
52115-02550

NRE210..HI

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02540

NRE210..HI

 1
52116-02540

NRE210..HI

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-02340

NRE210..HI

 1
52131-02340

NRE210..HI

 1
52132A - REINFORCEMENT, FRONT BUMPER, NO.2
52132-02120

NRE210..HI

 1
52132-02120

NRE210..HI

 1
52133F - BRACKET, FRONT BUMPER, RH
52133-02180

NRE210..HI

 1
52133-02180

NRE210..HI

 1
52133-02200

MZEA11,NRE210,ZWE211

 1
52134G - BRACKET, FRONT BUMPER, LH
52133-02180

NRE210..HI

 1
52133-02180

NRE210..HI

 1
52133-02200

MZEA11,NRE210,ZWE211

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-02640

NRE210..HI

 1
52611-02640

NRE210..HI

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-02260

NRE210..HI

 1
52618-02260

NRE210..HI

 1
53121E - CLIP(FOR FRONT BUMPER), NO.1
90467-05170

NRE210..HI

 2
90467-05170

NRE210..HI

 2
53879H - RETAINER, FRONT FENDER LINER
53879-33030

NRE210..HI

 4
53879-33030

NRE210..HI

 4
53879-02050

MZEA11,NRE210,ZWE211

 4
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-02250

NRE210..HI

 1
57013-02250

NRE210..HI

 1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-02250

NRE210..HI

 1
57014-02250

NRE210..HI

 1
76851G - GROMMET, SCREW, NO.1
90189-06193

NRE210..HI

(J)

 4
90189-C0015

NRE210..HI

(L)

 4
90189-C0015

NRE210..HI

(L)

 4
90189-06193

NRE210..HI

(J)

 4
Common parts
90119-C0157
90119-C0236
90159-50311
90159-C0022
90179-08241
90179-C0007
90467-07215
91673-A0620
91674-A1028
Linked diagrams
5102
5302
8101

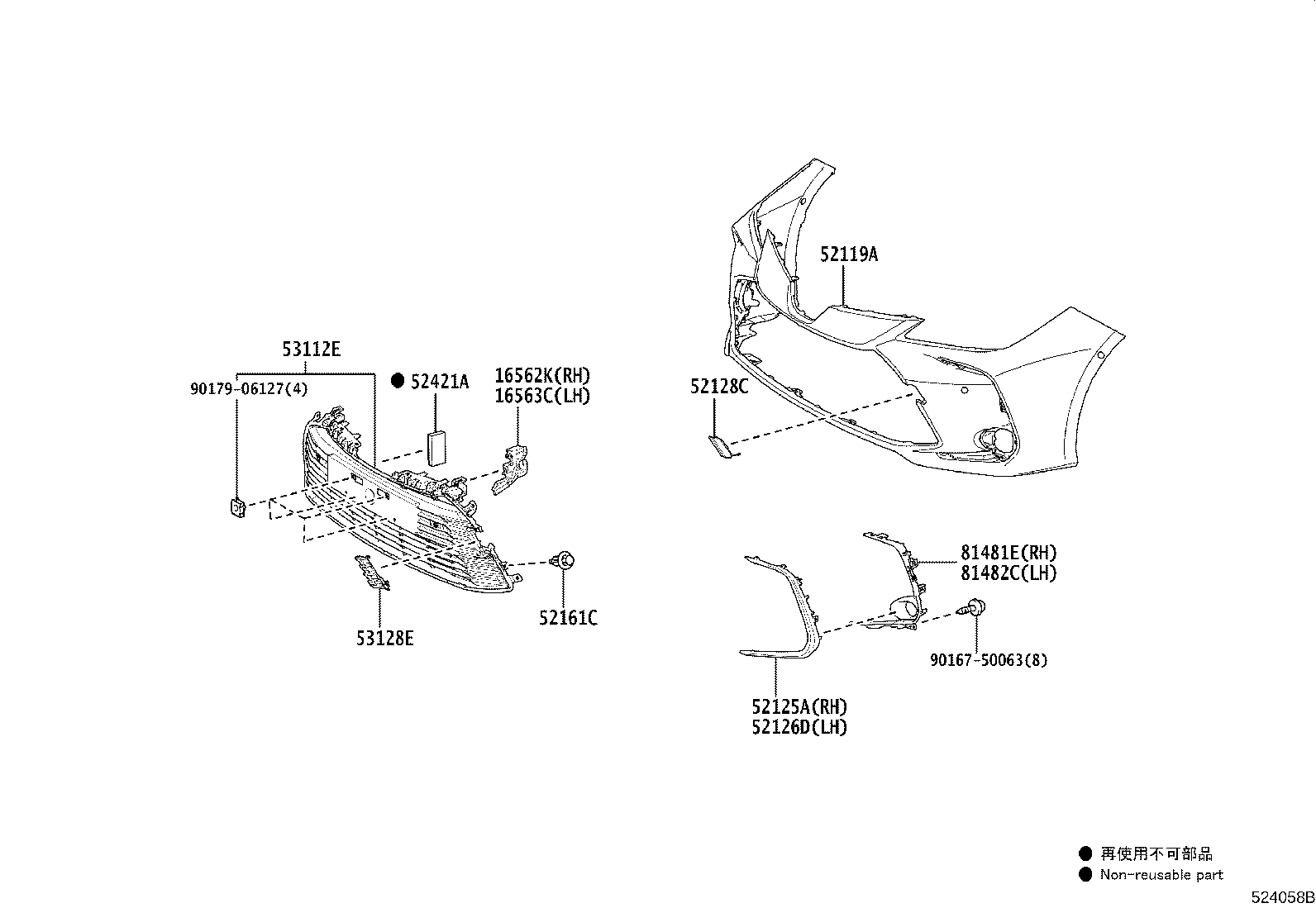

ILLUST NO. 2 OF 2(1908- )

Click highlighted areas on diagram

diagram 16562K 16563C 52119A 52125A 52126D 52128C 52161C 52421A 53112E 53128E 81481E 81482C 9016750063 9017906127
Part # Description Qty Price
16562K - SEAL, RADIATOR TO SUPPORT, NO.2
16562-0T120

9NRFTS..NRE210..HI

 1
16562-0T120

9NRFTS..NRE210..HI

 1
16563C - SEAL, RADIATOR TO SUPPORT, NO.3
16563-0T120

9NRFTS..NRE210..HI

 1
16563-0T120

9NRFTS..NRE210..HI

 1
52119A - COVER, FRONT BUMPER
52119-F2929

NRE210..HI

PAINT REQ.

 1
52119-F2929

NRE210..HI

PAINT REQ.

 1
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-02500

NRE210..HI

 1
52125-02500

NRE210..HI

 1
52126D - BRACKET, FOG LAMP MOUNTING, LH
52126-02490

NRE210..HI

 1
52126-02490

NRE210..HI

 1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-02923

NRE210..HI

 1
52128-02923

NRE210..HI

 1
52161C - PIECE, FRONT BUMPER
52161-16010

NRE210..HI

(J)

 2
52161-16010

NRE210..HI

(J)

 2
52161-02040

NRE210..HI

(L)

 2
52161-02040

NRE210..HI

(L)

 2
52421A - PAD, FRONT BUMPER
52421-02100

NRE210..HI

 2
52421-02100

NRE210..HI

 2
53112E - GRILLE, RADIATOR, LOWER NO.1
53102-02510

NRE210..HI

 1
53102-02510

NRE210..HI

 1
53128E - GRILLE, RADIATOR, LOWER SIDE LH
53128-02310

NRE210..HI

 1
53128-02310

NRE210..HI

 1
81481E - COVER, FOG LAMP, RH
81481-02B90

NRE210..HI

 1
81481-02B90

NRE210..HI

 1
81482C - COVER, FOG LAMP, LH
81482-02B90

NRE210..HI

 1
81482-02B90

NRE210..HI

 1
Common parts
90167-50063
90179-06127
