NRE210L-GEXGZC (2019)
Toyota Corolla

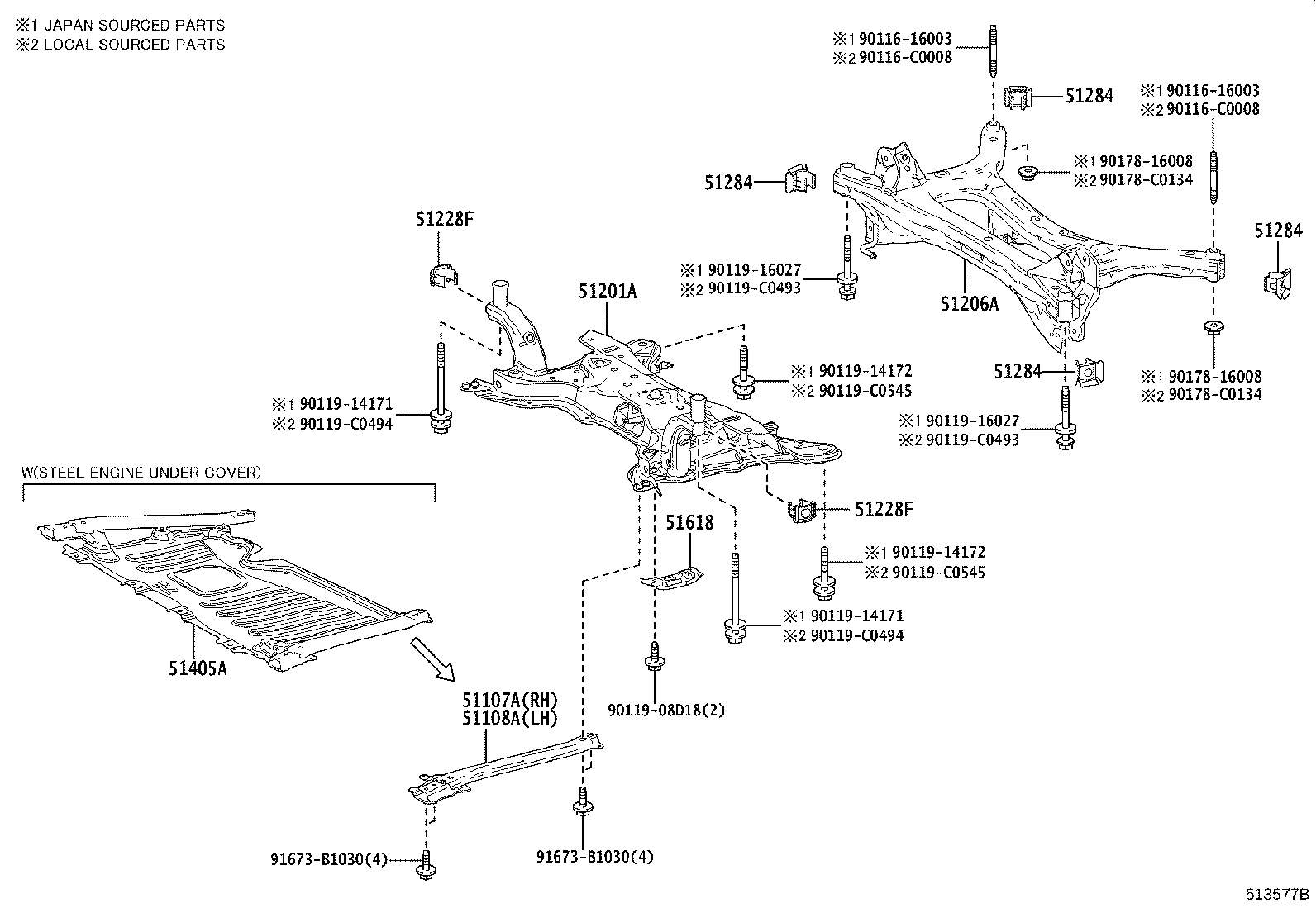

ILLUST NO. 1 OF 2(1908- )
SUSPENSION MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH | ||||
| 51107-02130 |
NRE210..HI |
1 | ||
| 51107-02130 |
NRE210..HI |
1 | ||
| 51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH | ||||
| 51108-02130 |
NRE210..HI |
1 | ||
| 51108-02130 |
NRE210..HI |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-02311 |
NRE210..HI |
1 | ||
| 51201-02311 |
NRE210..HI |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-02160 |
NRE210..HI |
1 | ||
| 51206-02160 |
NRE210..HI |
1 | ||
| 51228F - PLATE, FRONT SUSPENSION MEMBER DUMPER | ||||
| 51228-F4030 |
NRE210..HI |
2 | ||
| 51228-F4030 |
NRE210..HI |
2 | ||
| 51228F - PLATE, FRONT SUSPENSION MEMBER DUMPER | ||||
| 51228-F4030 |
NRE210..HI |
2 | ||
| 51228-F4030 |
NRE210..HI |
2 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-F4030 |
NRE210,ZWE211 |
4 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-F4030 |
NRE210,ZWE211 |
4 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-F4030 |
NRE210,ZWE211 |
4 | ||
| 51284 - COVER, REAR SUSPENSION MEMBER HOLE | ||||
| 51284-F4030 |
NRE210,ZWE211 |
4 | ||
| 51618 - GUARD, FRONT DIFFERENTIAL SUPPORT, LH | ||||
| 51618-02060 |
NRE210..HI |
1 | ||
| 51618-02060 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90116-16003 | ||||
| 90116-C0008 | ||||
| 90119-08D18 | ||||
| 90119-14171 | ||||
| 90119-14172 | ||||
| 90119-16027 | ||||
| 90119-C0493 | ||||
| 90119-C0494 | ||||
| 90119-C0545 | ||||
| 90178-16008 | ||||
| 90178-C0134 | ||||
| 91673-B1030 | ||||

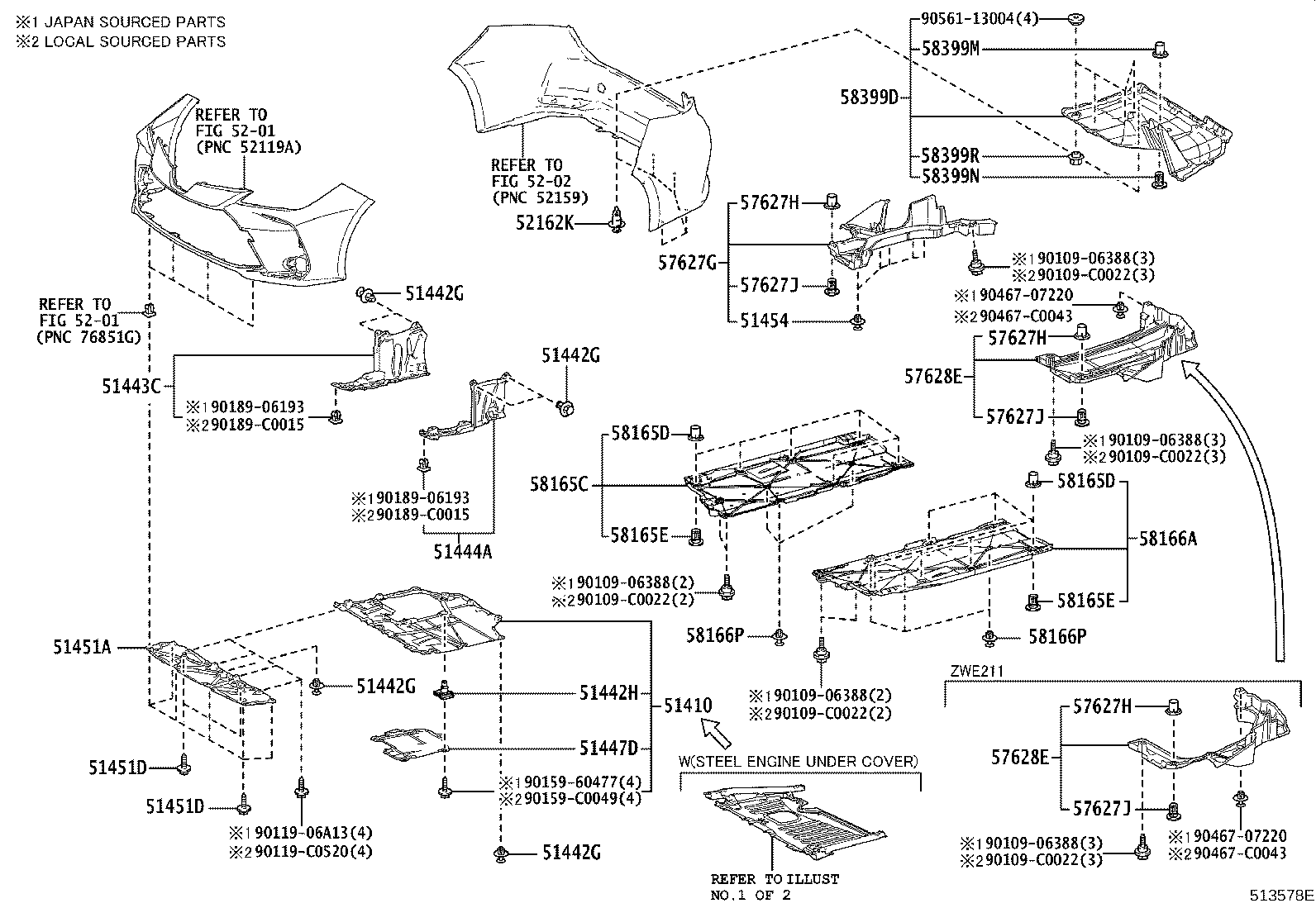

ILLUST NO. 2 OF 2(1908- )
UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51410 - COVER ASSY, ENGINE UNDER, NO.1 | ||||
| 51410-02450 |
NRE210..HI |
1 | ||
| 51410-02450 |
NRE210..HI |
1 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90467-C0043 |
NRE210..HI (L) |
1 | ||
| 90467-07220 |
NRE210..HI (J) |
1 | ||
| 90467-C0043 |
NRE210..HI (L) |
1 | ||
| 90467-07220 |
NRE210..HI (J) |
1 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90467-C0043 |
NRE210..HI (L) |
1 | ||
| 90467-07220 |
NRE210..HI (J) |
1 | ||
| 90467-C0043 |
NRE210..HI (L) |
1 | ||
| 90467-07220 |
NRE210..HI (J) |
1 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90467-C0043 |
NRE210..HI (L) |
1 | ||
| 90467-07220 |
NRE210..HI (J) |
1 | ||
| 90467-C0043 |
NRE210..HI (L) |
1 | ||
| 90467-07220 |
NRE210..HI (J) |
1 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90467-C0043 |
NRE210..HI (L) |
1 | ||
| 90467-07220 |
NRE210..HI (J) |
1 | ||
| 90467-C0043 |
NRE210..HI (L) |
1 | ||
| 90467-07220 |
NRE210..HI (J) |
1 | ||
| 51442H - CLIP, ENGINE UNDER COVER, NO.2 | ||||
| 90179-06104 |
NRE210,ZWE211 |
4 | ||
| 90467-05176 |
NRE210..HI |
4 | ||
| 90467-05176 |
NRE210..HI |
4 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-02220 |
NRE210..HI |
1 | ||
| 51443-02220 |
NRE210..HI |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-02290 |
NRE210..HI |
1 | ||
| 51444-02290 |
NRE210..HI |
1 | ||
| 51447D - COVER, ENGINE UNDER, NO.4 CENTER | ||||
| 51447-02190 |
NRE210..HI |
1 | ||
| 51447-02190 |
NRE210..HI |
1 | ||
| 51451A - COVER, ENGINE UNDER, CENTER | ||||
| 51451-02230 |
NRE210..HI |
1 | ||
| 51451-02230 |
NRE210..HI |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60477 |
NRE210..HI (J) |
4 | ||
| 90159-60477 |
NRE210..ENTRY,HI (J) |
4 | ||
| 90159-C0049 |
NRE210..ENTRY,HI (L) |
4 | ||
| 90159-C0049 |
NRE210..HI (L) |
4 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60477 |
NRE210..HI (J) |
4 | ||
| 90159-60477 |
NRE210..ENTRY,HI (J) |
4 | ||
| 90159-C0049 |
NRE210..ENTRY,HI (L) |
4 | ||
| 90159-C0049 |
NRE210..HI (L) |
4 | ||
| 51454 - CLIP | ||||
| 90467-07220 |
NRE210..HI (J) |
5 | ||
| 90467-C0043 |
NRE210..HI (L) |
5 | ||
| 90467-07220 |
NRE210..HI (J) |
5 | ||
| 90467-C0043 |
NRE210..HI (L) |
5 | ||
| 52162K - PIECE, REAR BUMPER | ||||
| 52161-02040 |
NRE210..HI (L) |
5 | ||
| 52161-02040 |
NRE210..HI (L) |
5 | ||
| 52161-16010 |
NRE210..HI (J) |
5 | ||
| 52161-16010 |
NRE210..HI (J) |
5 | ||
| 57627G - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-02230 |
NRE210,ZWE211 |
1 | ||
| 58390-02100 |
NRE210..HI |
1 | ||
| 58390-02100 |
NRE210..HI |
1 | ||
| 57627H - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1 | ||||
| 90467-17026A0 |
NRE210..HI SUPER WHITE 2 |
2 | ||
| 90467-17026A0 |
NRE210..HI SUPER WHITE 2 |
2 | ||
| 57627H - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1 | ||||
| 90467-17026A0 |
NRE210..HI SUPER WHITE 2 |
2 | ||
| 90467-17026A0 |
NRE210..HI SUPER WHITE 2 |
2 | ||
| 57627H - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1 | ||||
| 90467-17026A0 |
NRE210..HI SUPER WHITE 2 |
2 | ||
| 90467-17026A0 |
NRE210..HI SUPER WHITE 2 |
2 | ||
| 57627J - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2 | ||||
| 90467-17027C0 |
NRE210..HI BLACK |
2 | ||
| 90467-17027C0 |
NRE210..HI BLACK |
2 | ||
| 57627J - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2 | ||||
| 90467-17027C0 |
NRE210..HI BLACK |
2 | ||
| 90467-17027C0 |
NRE210..HI BLACK |
2 | ||
| 57627J - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2 | ||||
| 90467-17027C0 |
NRE210..HI BLACK |
2 | ||
| 90467-17027C0 |
NRE210..HI BLACK |
2 | ||
| 57628E - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-02260 |
NRE210..HI |
1 | ||
| 57628-02260 |
NRE210..HI |
1 | ||
| 57628E - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-02260 |
NRE210..HI |
1 | ||
| 57628-02260 |
NRE210..HI |
1 | ||
| 58165C - COVER, FRONT FLOOR, RH | ||||
| 58165-02310 |
NRE210..HI |
1 | ||
| 58165-02310 |
NRE210..HI |
1 | ||
| 58165D - CLIP, FLOOR COVER | ||||
| 90467-17026A0 |
NRE210..HI SUPER WHITE 2 |
12 | ||
| 90467-17026A0 |
NRE210..HI SUPER WHITE 2 |
12 | ||
| 58165D - CLIP, FLOOR COVER | ||||
| 90467-17026A0 |
NRE210..HI SUPER WHITE 2 |
12 | ||
| 90467-17026A0 |
NRE210..HI SUPER WHITE 2 |
12 | ||
| 58165E - CLIP, FLOOR COVER | ||||
| 90467-17027C0 |
NRE210..HI BLACK |
12 | ||
| 90467-17027C0 |
NRE210..HI BLACK |
12 | ||
| 58165E - CLIP, FLOOR COVER | ||||
| 90467-17027C0 |
NRE210..HI BLACK |
12 | ||
| 90467-17027C0 |
NRE210..HI BLACK |
12 | ||
| 58166A - COVER, FRONT FLOOR, LH | ||||
| 58166-02250 |
NRE210..HI |
1 | ||
| 58166-02250 |
NRE210..HI |
1 | ||
| 58166P - CLIP, FRONT FLOOR COVER | ||||
| 90467-C0043 |
NRE210..HI (L) |
6 | ||
| 90467-07220 |
NRE210..HI (J) |
6 | ||
| 90467-07220 |
NRE210..HI (J) |
6 | ||
| 90467-C0043 |
NRE210..HI (L) |
6 | ||
| 58166P - CLIP, FRONT FLOOR COVER | ||||
| 90467-C0043 |
NRE210..HI (L) |
6 | ||
| 90467-07220 |
NRE210..HI (J) |
6 | ||
| 90467-07220 |
NRE210..HI (J) |
6 | ||
| 90467-C0043 |
NRE210..HI (L) |
6 | ||
| 58399D - COVER, FLOOR UNDER, NO.2 | ||||
| 58399-02260 |
NRE210..HI |
1 | ||
| 58399-02260 |
NRE210..HI |
1 | ||
| 58399M - CLIP, FLOOR UNDER COVER, NO.1 | ||||
| 90467-17026A0 |
NRE210..HI SUPER WHITE 2 |
1 | ||
| 90467-17026A0 |
NRE210..HI SUPER WHITE 2 |
1 | ||
| 58399N - CLIP, FLOOR UNDER COVER, NO.2 | ||||
| 90467-17027C0 |
NRE210..HI BLACK |
1 | ||
| 90467-17027C0 |
NRE210..HI BLACK |
1 | ||
| 58399R - CLIP, FLOOR UNDER COVER, NO.3 | ||||
| 90467-14054 |
NRE210..HI |
4 | ||
| 90467-14054 |
NRE210..HI |
4 | ||
| 90467-14053 |
NRE210,ZWE211 |
4 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90109-C0022 | ||||
| 90119-06A13 | ||||
| 90119-C0520 | ||||
| 90159-60477 | ||||
| 90159-C0049 | ||||
| 90189-06193 | ||||
| 90189-C0015 | ||||
| 90467-07220 | ||||
| 90467-C0043 | ||||
| 90561-13004 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5202 | ||||
