NRE210L-GEXGZC (2019)
Toyota Corolla
(1908- )

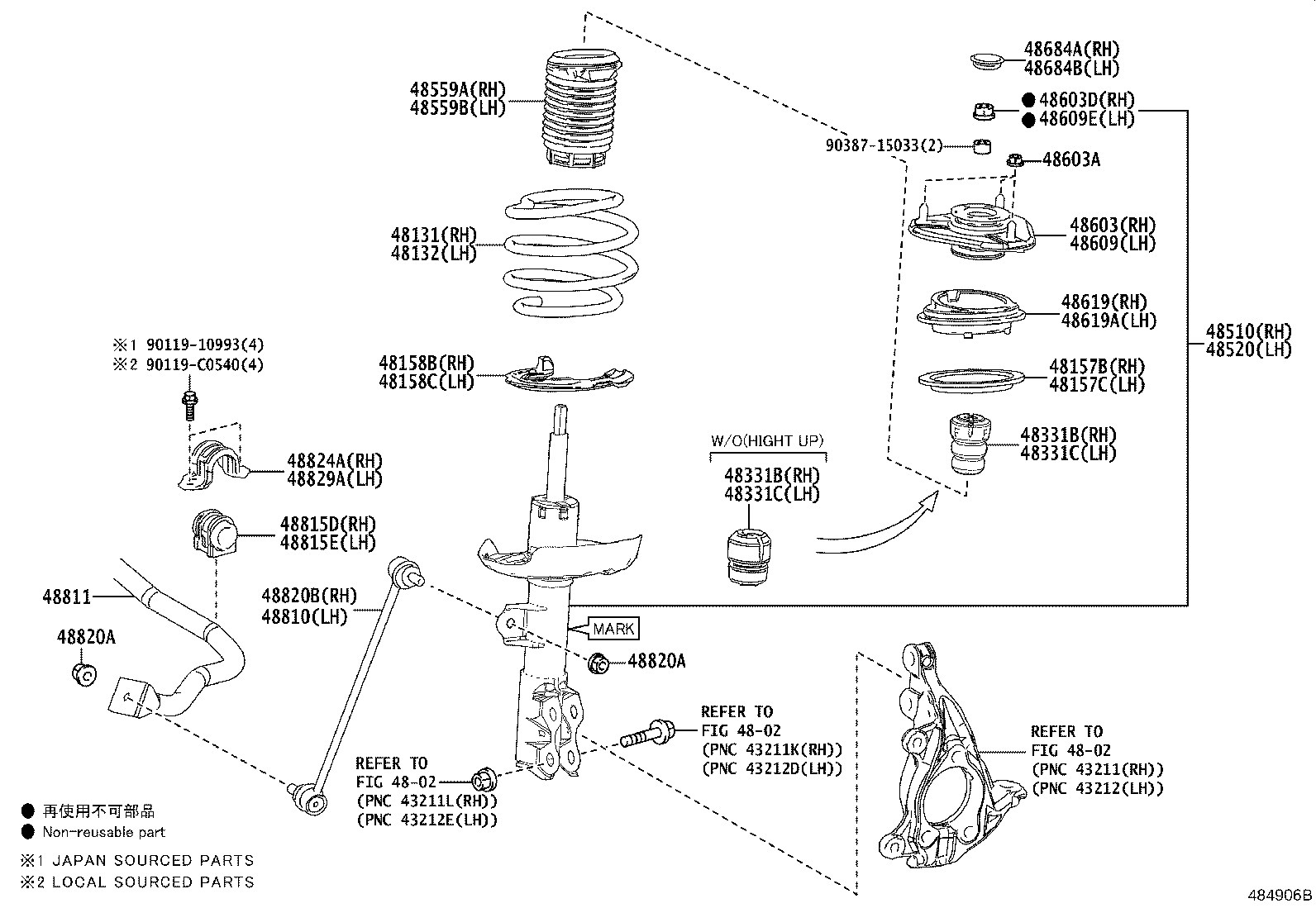

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-0Z850 |
NRE210..HI |
1 | ||
| 48131-0Z850 |
NRE210..HI |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-0Z850 |
NRE210..HI |
1 | ||
| 48131-0Z850 |
NRE210..HI |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-F4030 |
NRE210..HI |
1 | ||
| 48157-F4030 |
NRE210..HI |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-F4030 |
NRE210..HI |
1 | ||
| 48157-F4030 |
NRE210..HI |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-F4030 |
NRE210..HI |
1 | ||
| 48158-F4030 |
NRE210..HI |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-F4030 |
NRE210..HI |
1 | ||
| 48158-F4030 |
NRE210..HI |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-02210 |
NRE210..HI |
1 | ||
| 48331-02210 |
NRE210..HI |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-02210 |
NRE210..HI |
1 | ||
| 48331-02210 |
NRE210..HI |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-02210 |
NRE210..HI |
1 | ||
| 48331-02210 |
NRE210..HI |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-02210 |
NRE210..HI |
1 | ||
| 48331-02210 |
NRE210..HI |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-8Z420 |
NRE210..HI MARK 48510-02T90 |
1 | ||
| 48510-8Z420 |
NRE210..HI MARK 48510-02T90 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-8Z274 |
NRE210..HI MARK 48520-02T90 |
1 | ||
| 48520-8Z274 |
NRE210..HI MARK 48520-02T90 |
1 | ||
| 48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48559-F4030 |
NRE210..HI |
1 | ||
| 48559-F4030 |
NRE210..HI |
1 | ||
| 48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48559-F4030 |
NRE210..HI |
1 | ||
| 48559-F4030 |
NRE210..HI |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-F4030 |
NRE210..HI |
1 | ||
| 48609-F4030 |
NRE210..HI |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10029 |
NRE210..HI (J) |
6 | ||
| 90178-C0033 |
NRE210..HI (L) |
6 | ||
| 90178-10029 |
NRE210..HI (J) |
6 | ||
| 90178-C0033 |
NRE210..HI (L) |
6 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90177-C0025 |
NRE210..HI (L) |
1 | ||
| 90177-14007 |
NRE210..HI (J) |
1 | ||
| 90177-14007 |
NRE210..HI (J) |
1 | ||
| 90177-C0025 |
NRE210..HI (L) |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-F4030 |
NRE210..HI |
1 | ||
| 48609-F4030 |
NRE210..HI |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90177-14007 |
NRE210..HI (J) |
1 | ||
| 90177-C0025 |
NRE210..HI (L) |
1 | ||
| 90177-14007 |
NRE210..HI (J) |
1 | ||
| 90177-C0025 |
NRE210..HI (L) |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-F4030 |
NRE210..HI |
1 | ||
| 48619-F4030 |
NRE210..HI |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-F4030 |
NRE210..HI |
1 | ||
| 48619-F4030 |
NRE210..HI |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52010 |
NRE210..HI |
1 | ||
| 48684-52010 |
NRE210..HI |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52010 |
NRE210..HI |
1 | ||
| 48684-52010 |
NRE210..HI |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-F4020 |
NRE210..HI |
1 | ||
| 48820-F4020 |
NRE210..HI |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-02510 |
NRE210..HI |
1 | ||
| 48811-02510 |
NRE210..HI |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-02500 |
NRE210..HI |
1 | ||
| 48815-02500 |
NRE210..HI |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-02500 |
NRE210..HI |
1 | ||
| 48815-02500 |
NRE210..HI |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90178-C0018 |
NRE210..HI (L) |
4 | ||
| 94151-21241 |
NRE210..HI (J) |
4 | ||
| 94151-21241 |
NRE210..HI (J) |
4 | ||
| 90178-C0018 |
NRE210..HI (L) |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90178-C0018 |
NRE210..HI (L) |
4 | ||
| 94151-21241 |
NRE210..HI (J) |
4 | ||
| 94151-21241 |
NRE210..HI (J) |
4 | ||
| 90178-C0018 |
NRE210..HI (L) |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-F4020 |
NRE210..HI |
1 | ||
| 48820-F4020 |
NRE210..HI |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-F4030 |
NRE210..HI |
1 | ||
| 48824-F4030 |
NRE210..HI |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-F4030 |
NRE210..HI |
1 | ||
| 48824-F4030 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90119-10993 | ||||
| 90119-C0540 | ||||
| 90387-15033 | ||||
| Linked diagrams | ||||
| 4802 | ||||
