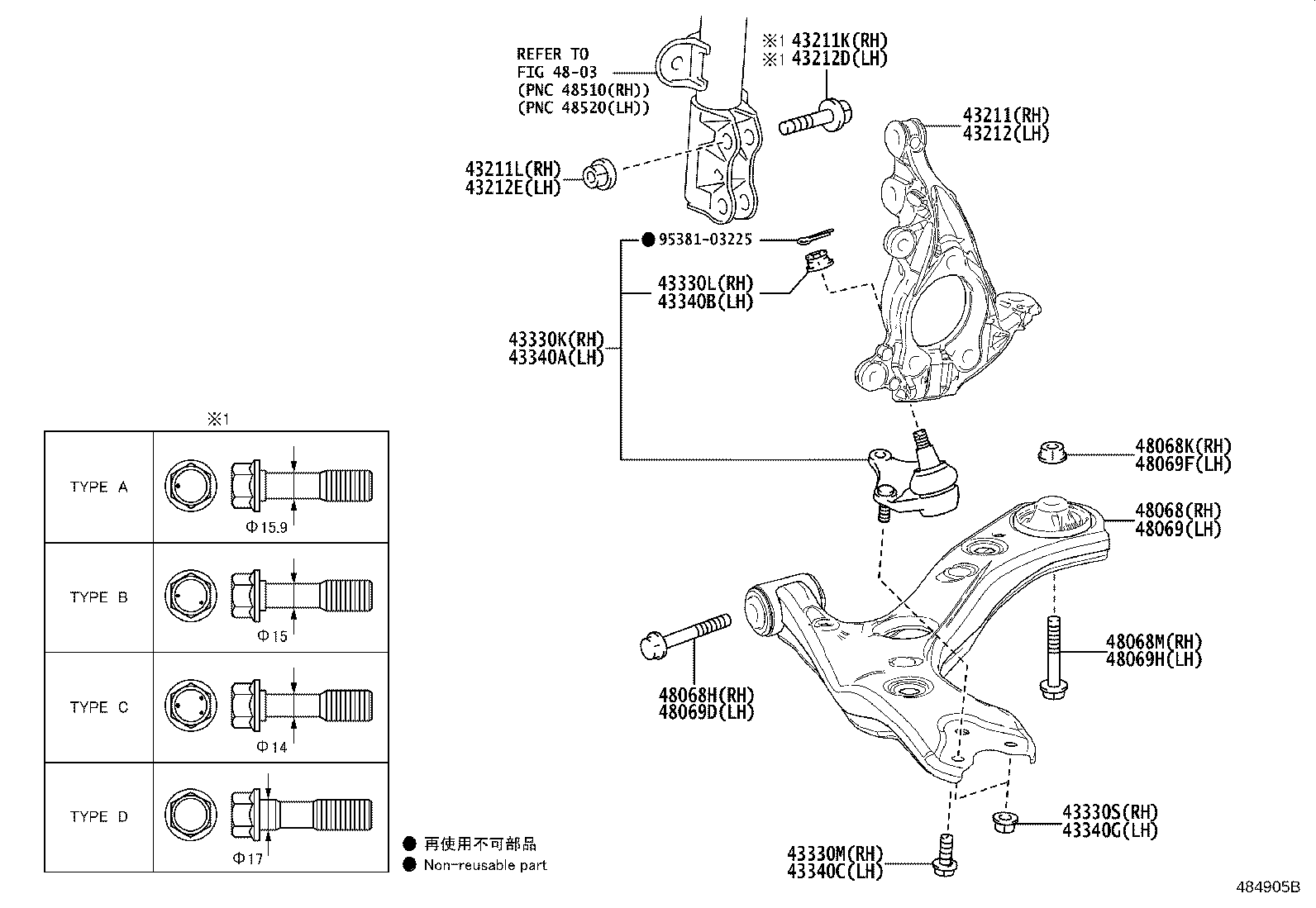

NRE210L-GEXGZC (2019)
Toyota Corolla
(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-02430 |
NRE210..HI |
1 | ||
| 43211-02430 |
NRE210..HI |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-17010 |
NRE210..HI OD=15,TYPE B:REFER ILLUST. |
1 | ||
| 90105-17010 |
NRE210..HI OD=15,TYPE B:REFER ILLUST. |
1 | ||
| 90105-17011 |
NRE210..HI OD=14,TYPE C:REFER ILLUST. |
1 | ||
| 90105-17021 |
NRE210..HI OD=17,(J),TYPE D:REF ILL. |
2 | ||
| 90105-17009 |
NRE210..HI OD=15.9,TYPE A:REFER ILLUST. |
1 | ||
| 90105-C0363 |
NRE210..HI OD=17,(L),TYPE D:REF ILL. |
2 | ||
| 90105-17009 |
NRE210..HI OD=15.9,TYPE A:REFER ILLUST. |
1 | ||
| 90105-C0363 |
NRE210..HI OD=17,(L),TYPE D:REF ILL. |
2 | ||
| 90105-17011 |
NRE210..HI OD=14,TYPE C:REFER ILLUST. |
1 | ||
| 90105-17021 |
NRE210..HI OD=17,(J),TYPE D:REF ILL. |
2 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90178-C0084 |
NRE210..HI (L) |
2 | ||
| 90178-17002 |
NRE210..HI (J) |
2 | ||
| 90178-C0084 |
NRE210..HI (L) |
2 | ||
| 90178-17002 |
NRE210..HI (J) |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-02430 |
NRE210..HI |
1 | ||
| 43212-02430 |
NRE210..HI |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-17009 |
NRE210..HI OD=15.9,TYPE A:REFER ILLUST. |
1 | ||
| 90105-C0363 |
NRE210..HI OD=17,(L),TYPE D:REF ILL. |
2 | ||
| 90105-17021 |
NRE210..HI OD=17,(J),TYPE D:REF ILL. |
2 | ||
| 90105-17011 |
NRE210..HI OD=14,TYPE C:REFER ILLUST. |
1 | ||
| 90105-17011 |
NRE210..HI OD=14,TYPE C:REFER ILLUST. |
1 | ||
| 90105-17021 |
NRE210..HI OD=17,(J),TYPE D:REF ILL. |
2 | ||
| 90105-17009 |
NRE210..HI OD=15.9,TYPE A:REFER ILLUST. |
1 | ||
| 90105-17010 |
NRE210..HI OD=15,TYPE B:REFER ILLUST. |
1 | ||
| 90105-17010 |
NRE210..HI OD=15,TYPE B:REFER ILLUST. |
1 | ||
| 90105-C0363 |
NRE210..HI OD=17,(L),TYPE D:REF ILL. |
2 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90178-17002 |
NRE210..HI (J) |
2 | ||
| 90178-17002 |
NRE210..HI (J) |
2 | ||
| 90178-C0084 |
NRE210..HI (L) |
2 | ||
| 90178-C0084 |
NRE210..HI (L) |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-09B10 |
NRE210..HI |
1 | ||
| 43330-09B10 |
NRE210..HI |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
NRE210..HI |
1 | ||
| 90171-14003 |
NRE210..HI |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90105-C0329 |
NRE210..HI (L) |
1 | ||
| 90105-12407 |
NRE210..HI (J) |
1 | ||
| 90105-12407 |
NRE210..HI (J) |
1 | ||
| 90105-C0329 |
NRE210..HI (L) |
1 | ||
| 43330S - NUT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90178-12019 |
NRE210..HI (J) |
2 | ||
| 90178-C0062 |
NRE210..HI (L) |
2 | ||
| 90178-C0062 |
NRE210..HI (L) |
2 | ||
| 90178-12019 |
NRE210..HI (J) |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-09B10 |
NRE210..HI |
1 | ||
| 43330-09B10 |
NRE210..HI |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
NRE210..HI |
1 | ||
| 90171-14003 |
NRE210..HI |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90105-C0329 |
NRE210..HI (L) |
1 | ||
| 90105-C0329 |
NRE210..HI (L) |
1 | ||
| 90105-12407 |
NRE210..HI (J) |
1 | ||
| 90105-12407 |
NRE210..HI (J) |
1 | ||
| 43340G - NUT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90178-12019 |
NRE210..HI (J) |
2 | ||
| 90178-C0062 |
NRE210..HI (L) |
2 | ||
| 90178-C0062 |
NRE210..HI (L) |
2 | ||
| 90178-12019 |
NRE210..HI (J) |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-02340 |
NRE210..HI |
1 | ||
| 48068-02340 |
NRE210..HI |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90105-16091 |
NRE210..HI (J) |
1 | ||
| 90105-C0335 |
NRE210..HI (L) |
1 | ||
| 90105-C0335 |
NRE210..HI (L) |
1 | ||
| 90105-16091 |
NRE210..HI (J) |
1 | ||
| 48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90178-C0030 |
NRE210..HI (L) |
1 | ||
| 90179-14068 |
NRE210..HI (J) |
1 | ||
| 90178-C0030 |
NRE210..HI (L) |
1 | ||
| 90179-14068 |
NRE210..HI (J) |
1 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90119-14180 |
NRE210..HI (J) |
1 | ||
| 90119-C0501 |
NRE210..HI (L) |
1 | ||
| 90119-14180 |
NRE210..HI (J) |
1 | ||
| 90119-C0501 |
NRE210..HI (L) |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-02340 |
NRE210..HI |
1 | ||
| 48069-02340 |
NRE210..HI |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90105-C0335 |
NRE210..HI (L) |
1 | ||
| 90105-16091 |
NRE210..HI (J) |
1 | ||
| 90105-C0335 |
NRE210..HI (L) |
1 | ||
| 90105-16091 |
NRE210..HI (J) |
1 | ||
| 48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90179-14068 |
NRE210..HI (J) |
1 | ||
| 90178-C0030 |
NRE210..HI (L) |
1 | ||
| 90178-C0030 |
NRE210..HI (L) |
1 | ||
| 90179-14068 |
NRE210..HI (J) |
1 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90119-14180 |
NRE210..HI (J) |
1 | ||
| 90119-C0501 |
NRE210..HI (L) |
1 | ||
| 90119-14180 |
NRE210..HI (J) |
1 | ||
| 90119-C0501 |
NRE210..HI (L) |
1 | ||
| Common parts | ||||
| 95381-03225 | ||||
| Linked diagrams | ||||
| 4803 | ||||
