NRE210L-GEXGZC (2019)
Toyota Corolla

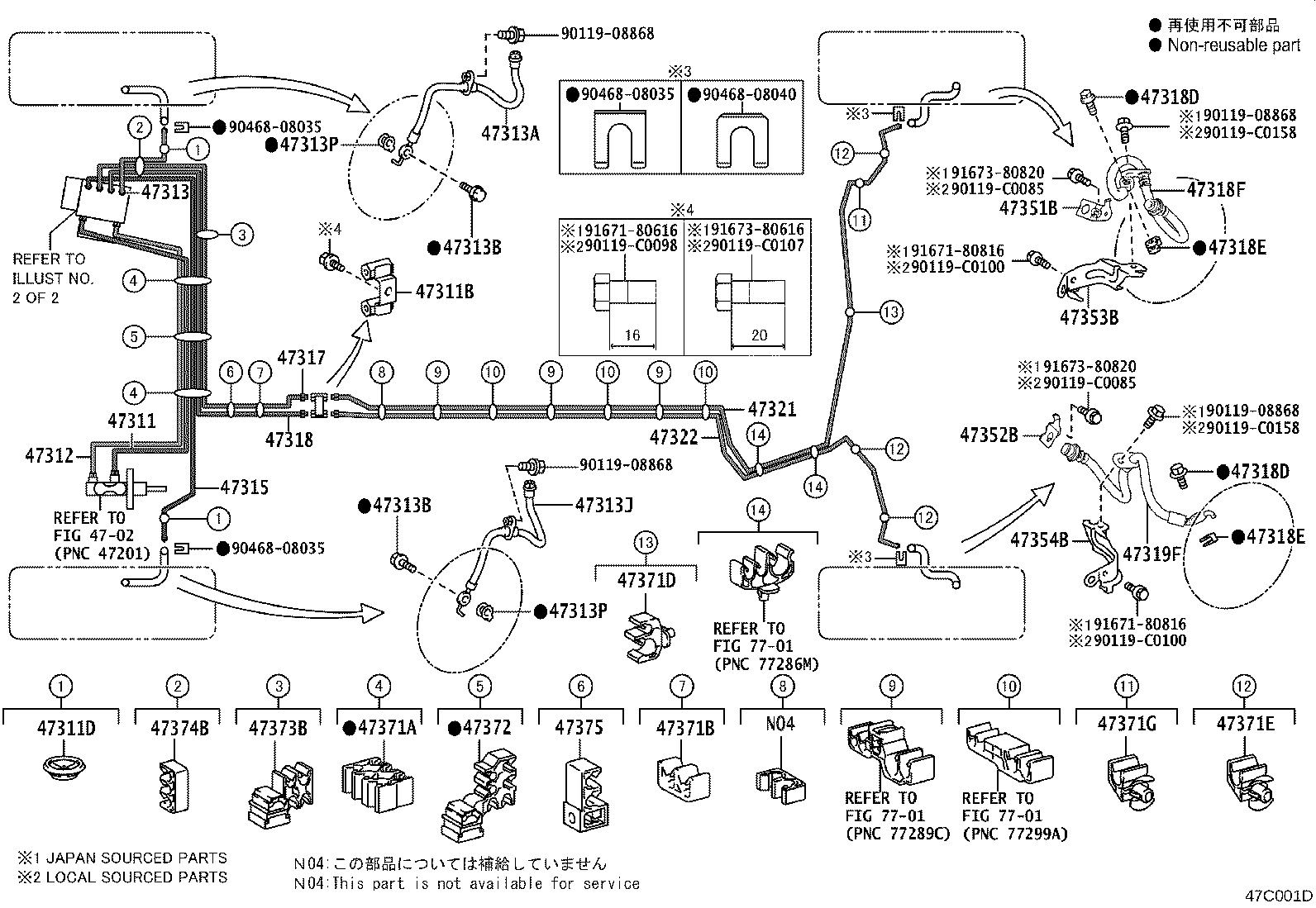

ILLUST NO. 1 OF 2(1908- )NRE210
BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-F4070 |
NRE210..HI |
1 | ||
| 47311-F4070 |
NRE210..HI |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-C0004 |
NRE210..HI (L) |
1 | ||
| 90412-10285 |
NRE210..HI (J) |
1 | ||
| 90412-10285 |
NRE210..HI (J) |
1 | ||
| 90412-C0004 |
NRE210..HI (L) |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-25037 |
NRE210..HI |
2 | ||
| 90480-25037 |
NRE210..HI |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-F4070 |
NRE210..HI |
1 | ||
| 47312-F4070 |
NRE210..HI |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-F4070 |
NRE210..HI |
1 | ||
| 47313-F4070 |
NRE210..HI |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-C2082 |
NRE210..HI |
1 | ||
| 90947-C2082 |
NRE210..HI |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
NRE210..HI |
2 | ||
| 90401-C0001 |
NRE210..HI |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
NRE210..HI |
2 | ||
| 90401-C0001 |
NRE210..HI |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-C2083 |
NRE210..HI |
1 | ||
| 90947-C2083 |
NRE210..HI |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02660 |
NRE210..HI |
1 | ||
| 47315-02660 |
NRE210..HI |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-F4070 |
NRE210..HI |
1 | ||
| 47317-F4070 |
NRE210..HI |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-F4070 |
NRE210..HI |
1 | ||
| 47318-F4070 |
NRE210..HI |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NRE210..HI (J) |
2 | ||
| 90401-C0001 |
NRE210..HI (L) |
2 | ||
| 90401-C0001 |
NRE210..HI (L) |
2 | ||
| 90401-10058 |
NRE210..HI (J) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NRE210..HI (J) |
2 | ||
| 90401-C0001 |
NRE210..HI (L) |
2 | ||
| 90401-C0001 |
NRE210..HI (L) |
2 | ||
| 90401-10058 |
NRE210..HI (J) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-C2086 |
NRE210..HI |
1 | ||
| 90947-C2086 |
NRE210..HI |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-C2087 |
NRE210..HI |
1 | ||
| 90947-C2087 |
NRE210..HI |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-02730 |
NRE210..HI |
1 | ||
| 47321-02730 |
NRE210..HI |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02730 |
NRE210..HI |
1 | ||
| 47322-02730 |
NRE210..HI |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-F4040 |
NRE210..HI |
1 | ||
| 47351-F4040 |
NRE210..HI |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-F4040 |
NRE210..HI |
1 | ||
| 47352-F4040 |
NRE210..HI |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-02260 |
NRE210..HI |
1 | ||
| 47351-02260 |
NRE210..HI |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-02260 |
NRE210..HI |
1 | ||
| 47352-02260 |
NRE210..HI |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01E44 |
NRE210..HI |
2 | ||
| 90949-01E44 |
NRE210..HI |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D91 |
NRE210..HI |
1 | ||
| 90949-01D91 |
NRE210..HI |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 77285-02270 |
NRE210..HI |
1 | ||
| 77285-02270 |
NRE210..HI |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01E10 |
NRE210..HI |
3 | ||
| 90949-01E10 |
NRE210..HI |
3 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90949-01E10 |
NRE210..HI |
1 | ||
| 90949-01E10 |
NRE210..HI |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01E42 |
NRE210..HI |
1 | ||
| 90949-01E42 |
NRE210..HI |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01E51 |
NRE210..HI |
1 | ||
| 90949-01E51 |
NRE210..HI |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D92 |
NRE210..HI |
1 | ||
| 90949-01D92 |
NRE210..HI |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01E33 |
NRE210..HI |
1 | ||
| 90949-01E33 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-C0085 | ||||
| 90119-C0098 | ||||
| 90119-C0100 | ||||
| 90119-C0107 | ||||
| 90119-C0158 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

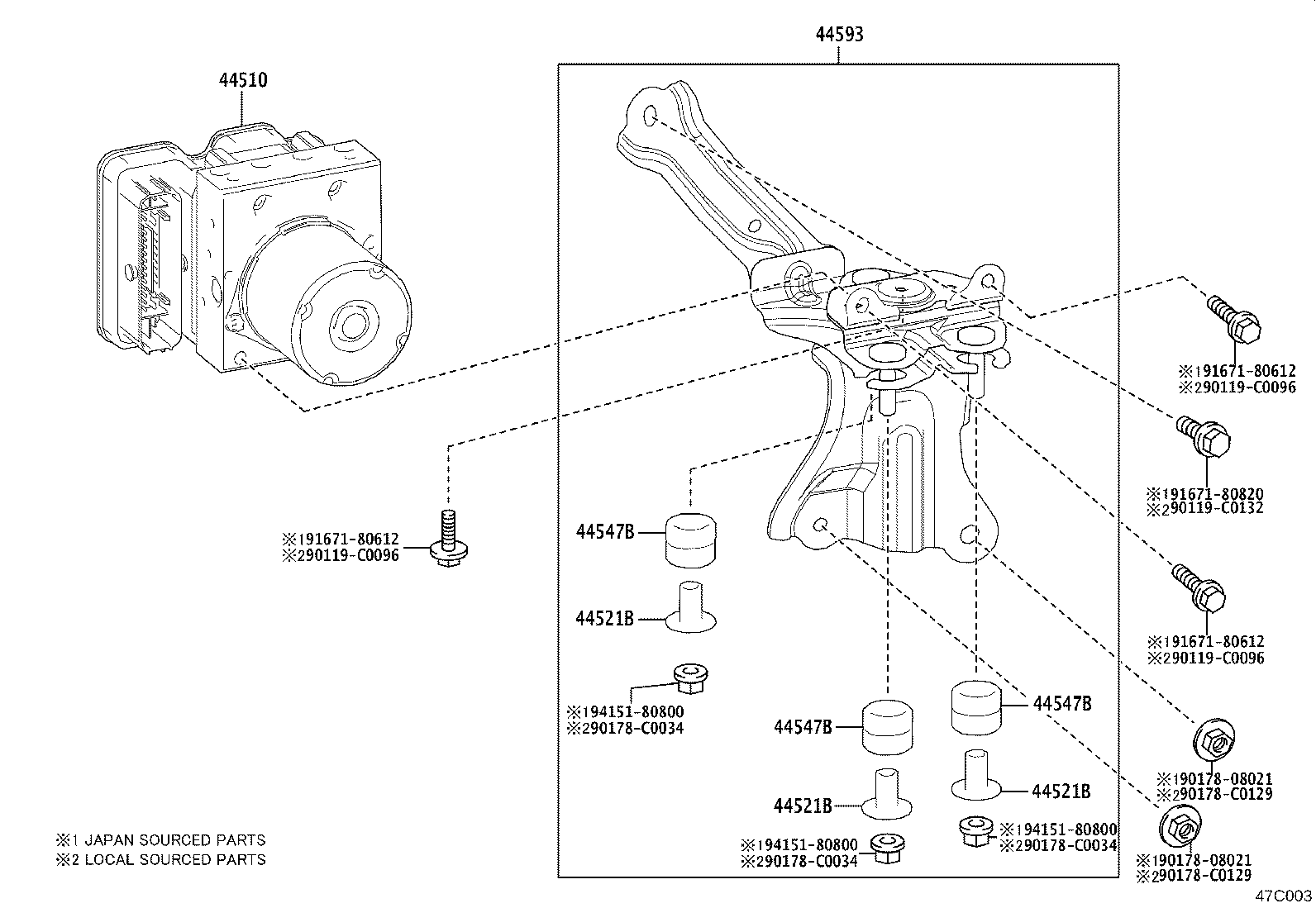

ILLUST NO. 2 OF 2(1908- )MZEA11,NRE210
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-02F50 |
NRE210..HI |
1 | ||
| 44050-02F50 |
NRE210..HI |
1 | ||
| 44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2 | ||||
| 44521-33020 |
NRE210..HI |
3 | ||
| 44521-33020 |
NRE210..HI |
3 | ||
| 44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2 | ||||
| 44521-33020 |
NRE210..HI |
3 | ||
| 44521-33020 |
NRE210..HI |
3 | ||
| 44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2 | ||||
| 44521-33020 |
NRE210..HI |
3 | ||
| 44521-33020 |
NRE210..HI |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-33100 |
NRE210..HI |
3 | ||
| 44547-33100 |
NRE210..HI |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-33100 |
NRE210..HI |
3 | ||
| 44547-33100 |
NRE210..HI |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-33100 |
NRE210..HI |
3 | ||
| 44547-33100 |
NRE210..HI |
3 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44590-02630 |
NRE210..HI |
1 | ||
| 44590-02630 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90119-C0096 | ||||
| 90119-C0132 | ||||
| 90178-08021 | ||||
| 90178-C0034 | ||||
| 90178-C0129 | ||||
| 91671-80612 | ||||
| 91671-80820 | ||||
| 94151-80800 | ||||

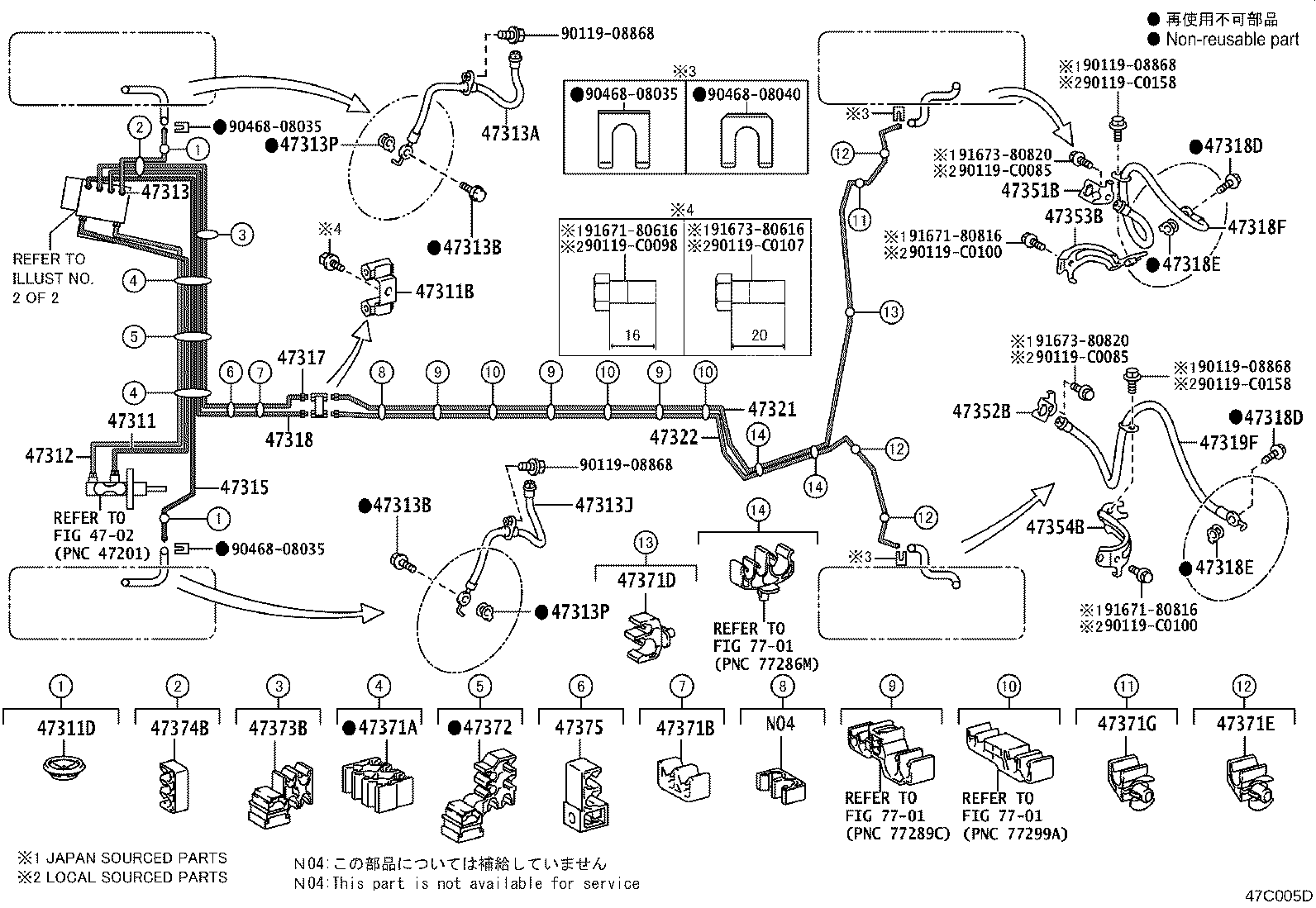

ILLUST NO. 1 OF 2(1908- )MZEA11,NRE210
BRAKE TUBE,ELECTRIC PARKING BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-F4070 |
NRE210..HI |
1 | ||
| 47311-F4070 |
NRE210..HI |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-C0004 |
NRE210..HI (L) |
1 | ||
| 90412-10285 |
NRE210..HI (J) |
1 | ||
| 90412-10285 |
NRE210..HI (J) |
1 | ||
| 90412-C0004 |
NRE210..HI (L) |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-25037 |
NRE210..HI |
2 | ||
| 90480-25037 |
NRE210..HI |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-F4070 |
NRE210..HI |
1 | ||
| 47312-F4070 |
NRE210..HI |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-F4070 |
NRE210..HI |
1 | ||
| 47313-F4070 |
NRE210..HI |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-C2082 |
NRE210..HI |
1 | ||
| 90947-C2082 |
NRE210..HI |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
NRE210..HI |
2 | ||
| 90401-C0001 |
NRE210..HI |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
NRE210..HI |
2 | ||
| 90401-C0001 |
NRE210..HI |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-C2083 |
NRE210..HI |
1 | ||
| 90947-C2083 |
NRE210..HI |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02660 |
NRE210..HI |
1 | ||
| 47315-02660 |
NRE210..HI |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-F4070 |
NRE210..HI |
1 | ||
| 47317-F4070 |
NRE210..HI |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-F4070 |
NRE210..HI |
1 | ||
| 47318-F4070 |
NRE210..HI |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NRE210..HI (J) |
2 | ||
| 90401-C0001 |
NRE210..HI (L) |
2 | ||
| 90401-C0001 |
NRE210..HI (L) |
2 | ||
| 90401-10058 |
NRE210..HI (J) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
NRE210..HI (J) |
2 | ||
| 90401-C0001 |
NRE210..HI (L) |
2 | ||
| 90401-C0001 |
NRE210..HI (L) |
2 | ||
| 90401-10058 |
NRE210..HI (J) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47389-50021 |
NRE210..HI |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-C2086 |
NRE210..HI |
1 | ||
| 90947-C2086 |
NRE210..HI |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-C2087 |
NRE210..HI |
1 | ||
| 90947-C2087 |
NRE210..HI |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-02730 |
NRE210..HI |
1 | ||
| 47321-02730 |
NRE210..HI |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02730 |
NRE210..HI |
1 | ||
| 47322-02730 |
NRE210..HI |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-F4040 |
NRE210..HI |
1 | ||
| 47351-F4040 |
NRE210..HI |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-F4040 |
NRE210..HI |
1 | ||
| 47352-F4040 |
NRE210..HI |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-02260 |
NRE210..HI |
1 | ||
| 47351-02260 |
NRE210..HI |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-02260 |
NRE210..HI |
1 | ||
| 47352-02260 |
NRE210..HI |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01E44 |
NRE210..HI |
2 | ||
| 90949-01E44 |
NRE210..HI |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D91 |
NRE210..HI |
1 | ||
| 90949-01D91 |
NRE210..HI |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 77285-02270 |
NRE210..HI |
1 | ||
| 77285-02270 |
NRE210..HI |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01E10 |
NRE210..HI |
3 | ||
| 90949-01E10 |
NRE210..HI |
3 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90949-01E10 |
NRE210..HI |
1 | ||
| 90949-01E10 |
NRE210..HI |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01E42 |
NRE210..HI |
1 | ||
| 90949-01E42 |
NRE210..HI |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01E51 |
NRE210..HI |
1 | ||
| 90949-01E51 |
NRE210..HI |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D92 |
NRE210..HI |
1 | ||
| 90949-01D92 |
NRE210..HI |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01E33 |
NRE210..HI |
1 | ||
| 90949-01E33 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-C0085 | ||||
| 90119-C0098 | ||||
| 90119-C0100 | ||||
| 90119-C0107 | ||||
| 90119-C0158 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
