NRE210L-GEXGZC (2019)
Toyota Corolla
Production
Aug 2019
-
Sep 9999
Engine
9NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )

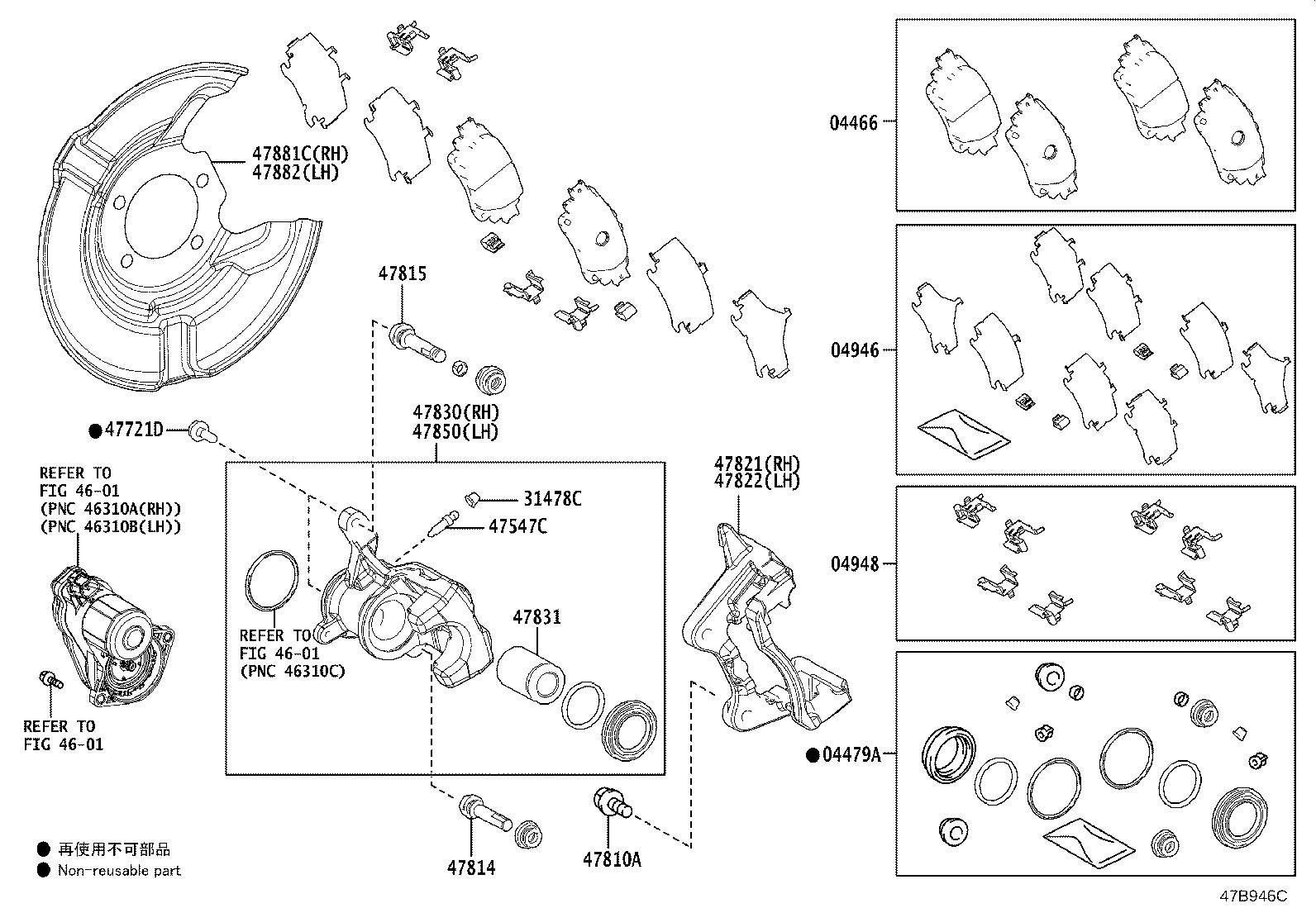

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-02420 |
NRE210..HI MARK NBK D6360-FF |
1 | ||
| 04466-02420 |
NRE210..HI MARK NBK D6360-FF |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-02451 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 04479-02450 |
NRE210..HI |
1 | ||
| 04479-02450 |
NRE210..HI |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-02150 |
NRE210..HI |
1 | ||
| 04946-02150 |
NRE210..HI |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-02171 |
NRE210..HI |
1 | ||
| 04948-02171 |
NRE210..HI |
1 | ||
| 04948-02170 |
NRE210,ZWE211 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-0N010 |
NRE210..HI |
2 | ||
| 31478-0N010 |
NRE210..HI |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
NRE210..HI |
2 | ||
| 47547-20010 |
NRE210..HI |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90016-AA612 |
NRE210..HI |
4 | ||
| 90016-AA612 |
NRE210..HI |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
NRE210..HI (J) |
4 | ||
| 90105-C0255 |
NRE210..HI (L) |
4 | ||
| 90105-C0255 |
NRE210..HI (L) |
4 | ||
| 90105-12174 |
NRE210..HI (J) |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-06180 |
NRE210..HI |
2 | ||
| 47814-06180 |
NRE210..HI |
2 | ||
| 47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-06180 |
NRE210..HI |
2 | ||
| 47815-06180 |
NRE210..HI |
2 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-02390 |
NRE210..HI |
1 | ||
| 47821-02390 |
NRE210..HI |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-02380 |
NRE210..HI |
1 | ||
| 47822-02380 |
NRE210..HI |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-02390 |
NRE210..HI |
1 | ||
| 47830-02390 |
NRE210..HI |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-02400 |
NRE210..HI |
2 | ||
| 47831-02400 |
NRE210..HI |
2 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-02380 |
NRE210..HI |
1 | ||
| 47850-02380 |
NRE210..HI |
1 | ||
| 47881C - COVER, DISC BRAKE DUST, REAR RH | ||||
| 47881-02300 |
NRE210..HI |
1 | ||
| 47881-02300 |
NRE210..HI |
1 | ||
| 47882 - COVER, DISC BRAKE DUST, REAR LH | ||||
| 47882-02300 |
NRE210..HI |
1 | ||
| 47882-02300 |
NRE210..HI |
1 | ||
| Linked diagrams | ||||
| 4601 | ||||
