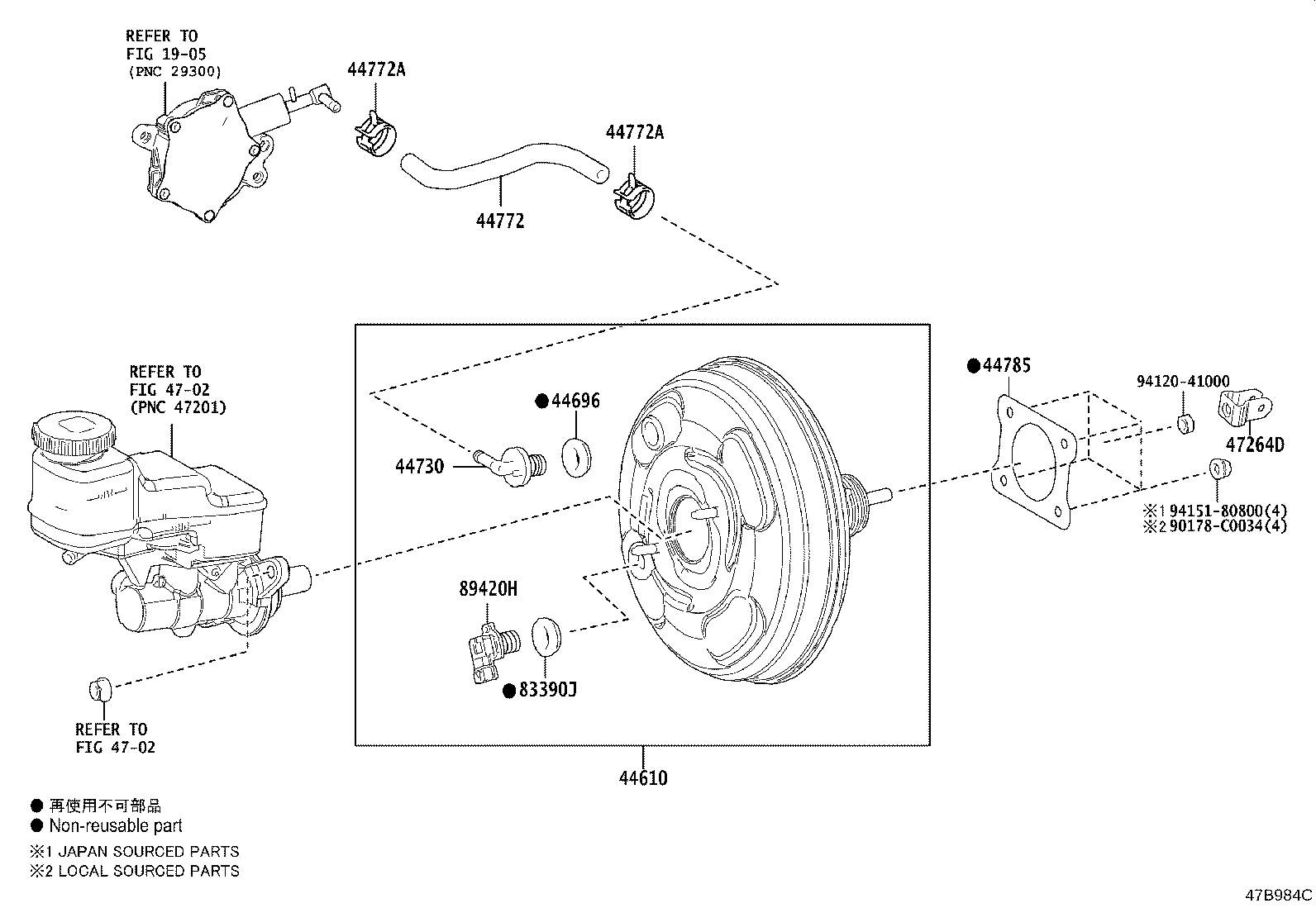

Toyota Corolla NRE210 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-02K30	NRE210..HI	07/2020 - 12/2999	1
44610-02K30	NRE210..HI	08/2019 - 06/2020	1
44696 - GROMMET, CHECK VALVE
90080-48071	NRE210..HI	08/2019 - 06/2020	1
90080-48071	NRE210..HI	07/2020 - 12/2999	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-52010	NRE210..HI	08/2019 - 06/2020	1
44730-52010	NRE210..HI	07/2020 - 12/2999	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-02320	NRE210..HI	08/2019 - 06/2020	1
44772-02320	NRE210..HI	07/2020 - 12/2999	1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90466-C0034	NRE210..HI (L)	08/2019 - 06/2020	2
90467-16014	NRE210..HI (J)	08/2019 - 06/2020	2
90466-C0034	NRE210..HI (L)	07/2020 - 12/2999	2
90467-16014	NRE210..HI (J)	07/2020 - 12/2999	2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90466-C0034	NRE210..HI (L)	08/2019 - 06/2020	2
90467-16014	NRE210..HI (J)	08/2019 - 06/2020	2
90466-C0034	NRE210..HI (L)	07/2020 - 12/2999	2
90467-16014	NRE210..HI (J)	07/2020 - 12/2999	2
44785 - GASKET, BRAKE BOOSTER
44785-02050	NRE210..HI	08/2019 - 06/2020	1
44785-02050	NRE210..HI	07/2020 - 12/2999	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0P010	NRE210..HI	08/2019 - 06/2020	1
47264-0P010	NRE210..HI	07/2020 - 12/2999	1
83390J - GROMMET, VACUUM WARNING SWITCH
90080-48071	NRE210..HI	08/2019 - 06/2020	1
90080-48071	NRE210..HI	07/2020 - 12/2999	1
89420H - SENSOR ASSY, VACUUM
89421-52020	NRE210..HI	07/2020 - 12/2999	1
89421-52020	NRE210..HI	08/2019 - 06/2020	1
Common parts
90178-C0034
94120-41000
94151-80800
Linked diagrams
1905
4702

NRE210L-GEXGZC (2019)
