NRE210L-GEXGZC (2019)
Toyota Corolla
Production
Aug 2019
-
Sep 9999
Engine
9NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )MZEA11,NRE210

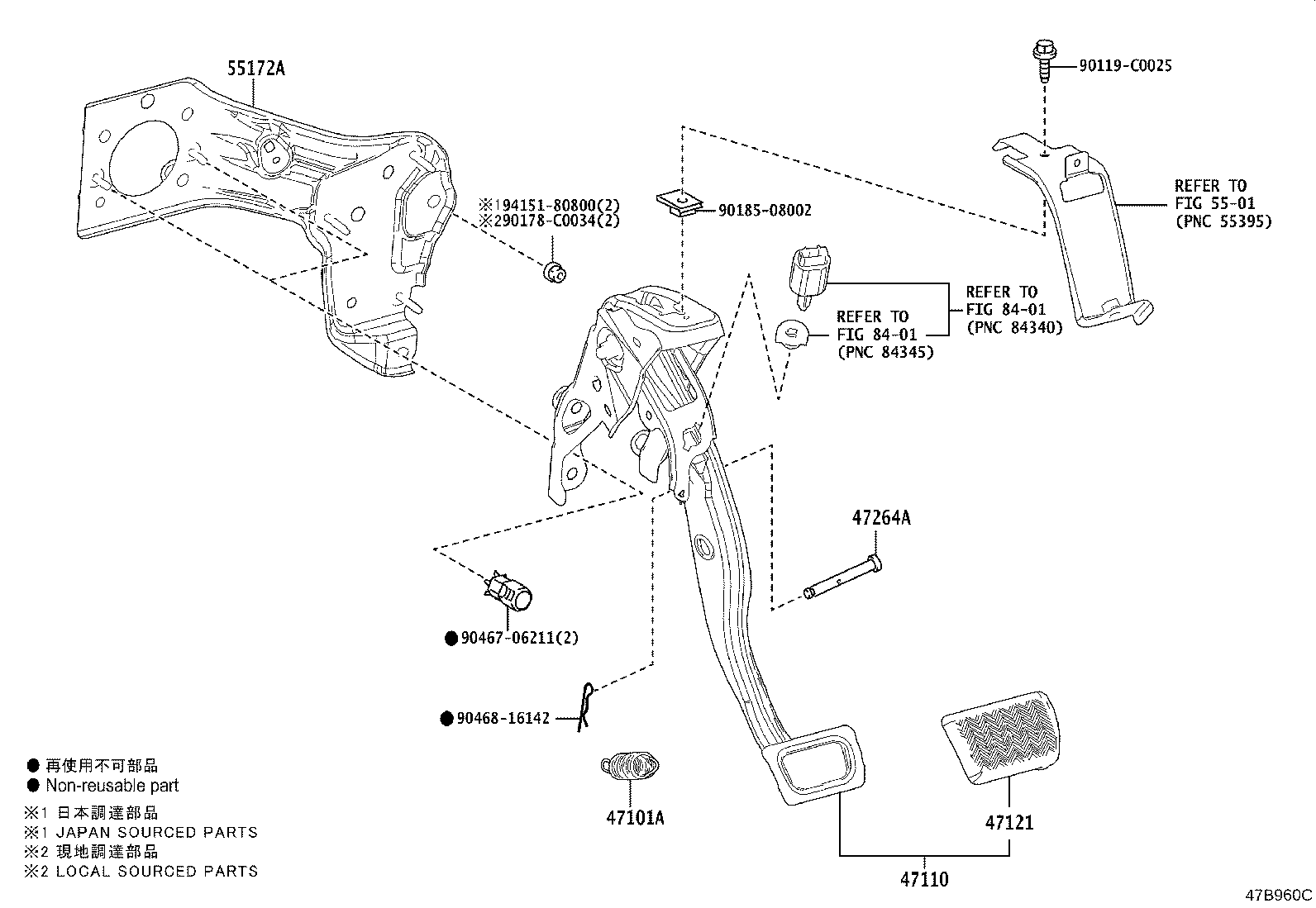

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-15010 |
NRE210..HI |
1 | ||
| 90507-15010 |
NRE210..HI |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-02860 |
NRE210..HI |
1 | ||
| 47110-02860 |
NRE210..HI |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-02180 |
NRE210..HI |
1 | ||
| 47121-02180 |
NRE210..HI |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08221 |
NRE210..HI |
1 | ||
| 90249-08221 |
NRE210..HI |
1 | ||
| 55172A - BASE, BRAKE PEDAL SUPPORT | ||||
| 55172-02210 |
NRE210..HI |
1 | ||
| 55172-02210 |
NRE210..HI |
1 | ||
| Common parts | ||||
| 90119-C0025 | ||||
| 90178-C0034 | ||||
| 90185-08002 | ||||
| 90467-06211 | ||||
| 90468-16142 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8401 | ||||
