NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

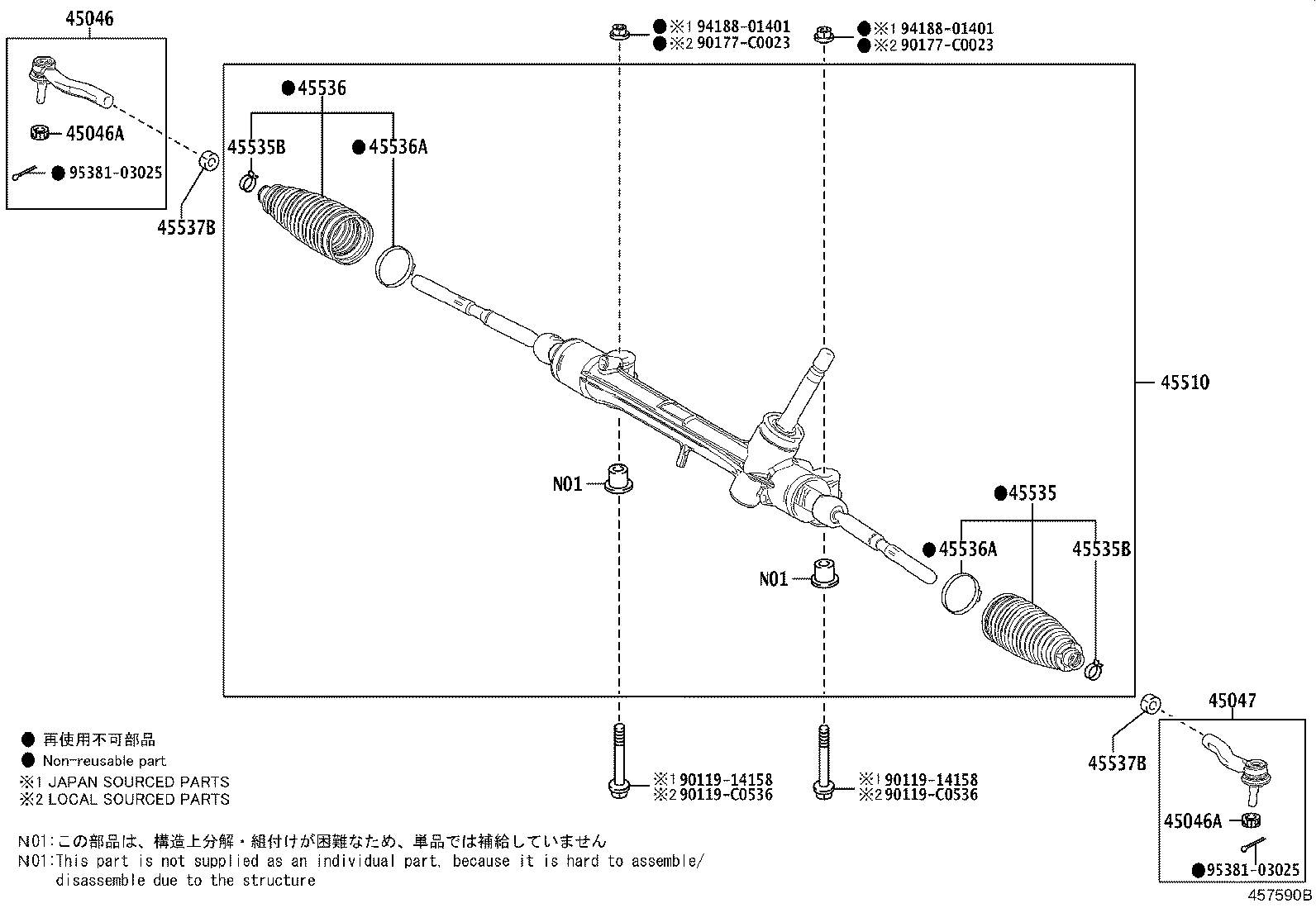

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45510 45535 45535B 45535B 45536 45536A 45536A 45537B 45537B 9011914158 9011914158 90119C0536 90119C0536 90177C0023 90177C0023 9418801401 9418801401 9538103025 9538103025
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-49265

NRE210..HI

 1
45046-49265

NRE210..HI

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-C0001

NRE210..HI

(L)

 2
90171-12028

NRE210..HI

(J)

 2
90171-12028

NRE210..HI

(J)

 2
90171-C0001

NRE210..HI

(L)

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-C0001

NRE210..HI

(L)

 2
90171-12028

NRE210..HI

(J)

 2
90171-12028

NRE210..HI

(J)

 2
90171-C0001

NRE210..HI

(L)

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-49205

NRE210..HI

 1
45047-49205

NRE210..HI

 1
45510 - GEAR ASSY, STEERING
45510-02820

NRE210..HI

 1
45510-02820

NRE210..HI

 1
45535 - BOOT, STEERING RACK, NO.1
45535-59105

NRE210..HI

 1
45535-59105

NRE210..HI

 1
45535B - CLIP(FOR STEERING RACK BOOT)
45537-0D030

NRE210..HI

 2
45537-0D030

NRE210..HI

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-0D030

NRE210..HI

 2
45537-0D030

NRE210..HI

 2
45536 - BOOT, STEERING RACK, NO.2
45535-59105

NRE210..HI

 1
45535-59105

NRE210..HI

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-0D070

NRE210..HI

 2
45538-0D070

NRE210..HI

 2
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-0D070

NRE210..HI

 2
45538-0D070

NRE210..HI

 2
45537B - NUT, RACK END LOCK
90178-16001

NRE210..HI

(J)

 2
90178-C0015

NRE210..HI

(L)

 2
90178-C0015

NRE210..HI

(L)

 2
90178-16001

NRE210..HI

(J)

 2
45537B - NUT, RACK END LOCK
90178-C0015

NRE210..HI

(L)

 2
90178-16001

NRE210..HI

(J)

 2
90178-C0015

NRE210..HI

(L)

 2
90178-16001

NRE210..HI

(J)

 2
Common parts
90119-14158
90119-C0536
90177-C0023
94188-01401
95381-03025
