NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

Click highlighted areas on diagram

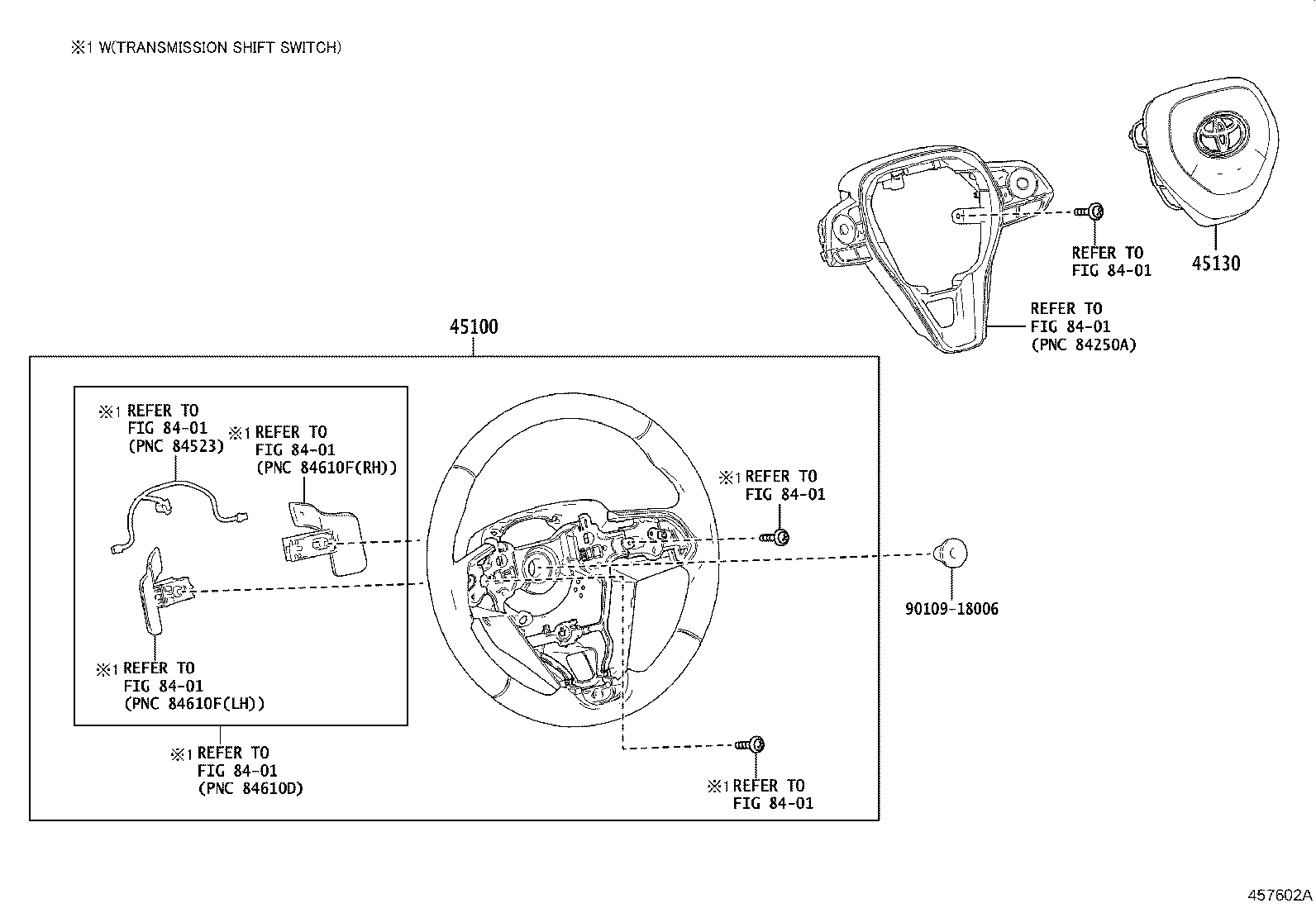

diagram 45100 45130 8401 8401 8401 8401 8401 8401 8401 8401 9010918006
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-0Z330C1

NRE210..HI

3-SPOKE,LEATHER,BLACK,TRIM0#,2#

 1
45100-0Z330C1

NRE210..HI

3-SPOKE,LEATHER,BLACK,TRIM0#,2#

 1
45130 - BUTTON ASSY, HORN
45130-02850C0

NRE210..HI

BLACK,TRIM0#,2#

 1
45130-02850C0

NRE210..HI

BLACK,TRIM0#,2#

 1
Common parts
90109-18006
Linked diagrams
8401
