NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

Click highlighted areas on diagram

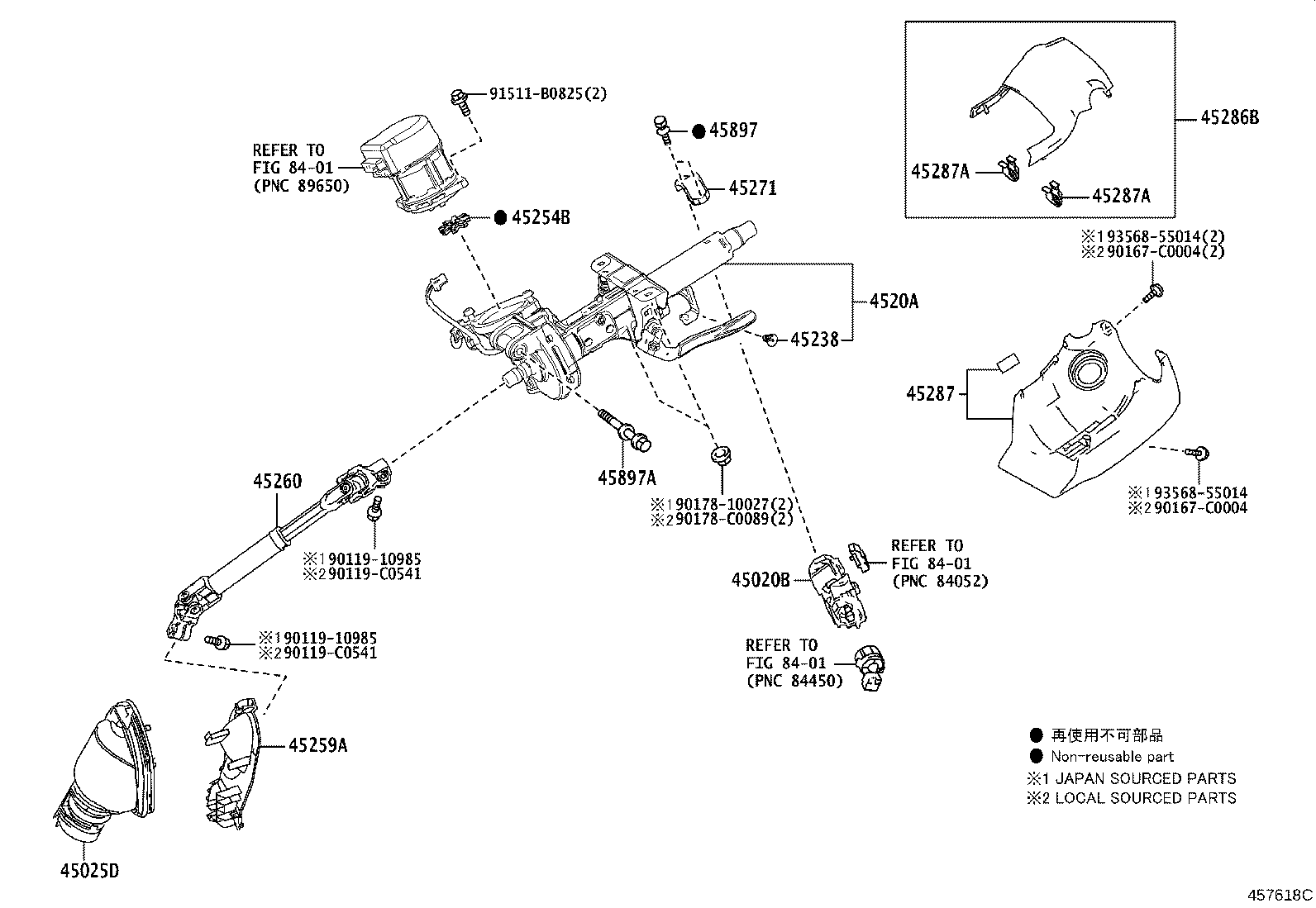

W(PUSH START SWITCH)

diagram 45020B 45025D 4520A 45238 45254B 45259A 45260 45271 45286B 45287 45287A 45287A 45897 45897A 8401 9011910985 9011910985 90119C0541 90119C0541 90167C0004 90167C0004 9017810027 90178C0089 91511B0825 9356855014 9356855014
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-02A10

NRE210..HI

 1
45020-02A10

NRE210..HI

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-02350

NRE210..HI

 1
45025-02350

NRE210..HI

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-02500

NRE210..HI

 1
4520A-02500

NRE210..HI

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010

NRE210..HI

 1
45238-52010

NRE210..HI

 1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040

NRE210..HI

 1
45254-28040

NRE210..HI

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02360

NRE210..HI

 1
45259-02360

NRE210..HI

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02330

NRE210..HI

 1
45260-02330

NRE210..HI

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030

NRE210..HI

 1
45271-52030

NRE210..HI

 1
45286B - COVER, STEERING COLUMN, UPR
45286-02760C0

NRE210..HI

BLACK,TRIM0#,2#

 1
45286-02760C0

NRE210..HI

BLACK,TRIM0#,2#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-02760C0

NRE210..HI

BLACK,TRIM0#,2#

 1
45287-02760C0

NRE210..HI

BLACK,TRIM0#,2#

 1
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171

NRE210..HI

 2
90467-05171

NRE210..HI

 2
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171

NRE210..HI

 2
90467-05171

NRE210..HI

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

NRE210..HI

 2
45897-12020

NRE210..HI

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-10981

NRE210..HI

(J)

 1
90119-C0427

NRE210..HI

(L)

 1
90119-10981

NRE210..HI

(J)

 1
90119-C0427

NRE210..HI

(L)

 1
Common parts
90119-10985
90119-C0541
90167-C0004
90178-10027
90178-C0089
91511-B0825
93568-55014
Linked diagrams
8401

(1908- )

Click highlighted areas on diagram

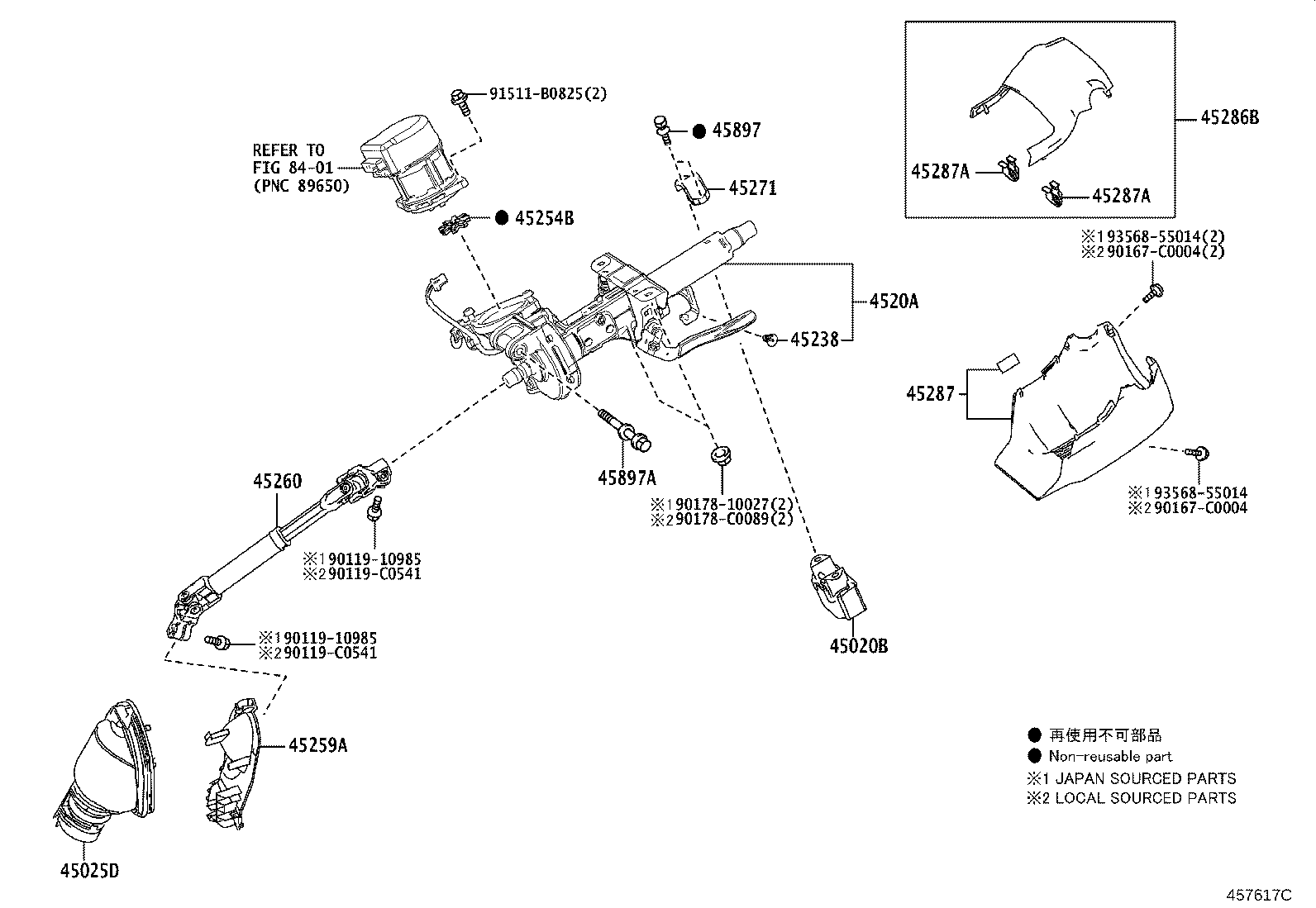

W/O(PUSH START SWITCH)

diagram 45020B 45025D 4520A 45238 45254B 45259A 45260 45271 45286B 45287 45287A 45287A 45897 45897A 8401 8401 8401 9011910985 9011910985 90119C0541 90119C0541 90167C0004 90167C0004 9017810027 90178C0089 91511B0825 9356855014 9356855014
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-02A10

NRE210..HI

 1
45020-02A10

NRE210..HI

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-02350

NRE210..HI

 1
45025-02350

NRE210..HI

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-02500

NRE210..HI

 1
4520A-02500

NRE210..HI

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010

NRE210..HI

 1
45238-52010

NRE210..HI

 1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040

NRE210..HI

 1
45254-28040

NRE210..HI

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02360

NRE210..HI

 1
45259-02360

NRE210..HI

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02330

NRE210..HI

 1
45260-02330

NRE210..HI

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030

NRE210..HI

 1
45271-52030

NRE210..HI

 1
45286B - COVER, STEERING COLUMN, UPR
45286-02760C0

NRE210..HI

BLACK,TRIM0#,2#

 1
45286-02760C0

NRE210..HI

BLACK,TRIM0#,2#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-02760C0

NRE210..HI

BLACK,TRIM0#,2#

 1
45287-02760C0

NRE210..HI

BLACK,TRIM0#,2#

 1
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171

NRE210..HI

 2
90467-05171

NRE210..HI

 2
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171

NRE210..HI

 2
90467-05171

NRE210..HI

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

NRE210..HI

 2
45897-12020

NRE210..HI

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-10981

NRE210..HI

(J)

 1
90119-C0427

NRE210..HI

(L)

 1
90119-10981

NRE210..HI

(J)

 1
90119-C0427

NRE210..HI

(L)

 1
Common parts
90119-10985
90119-C0541
90167-C0004
90178-10027
90178-C0089
91511-B0825
93568-55014
Linked diagrams
8401
