NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

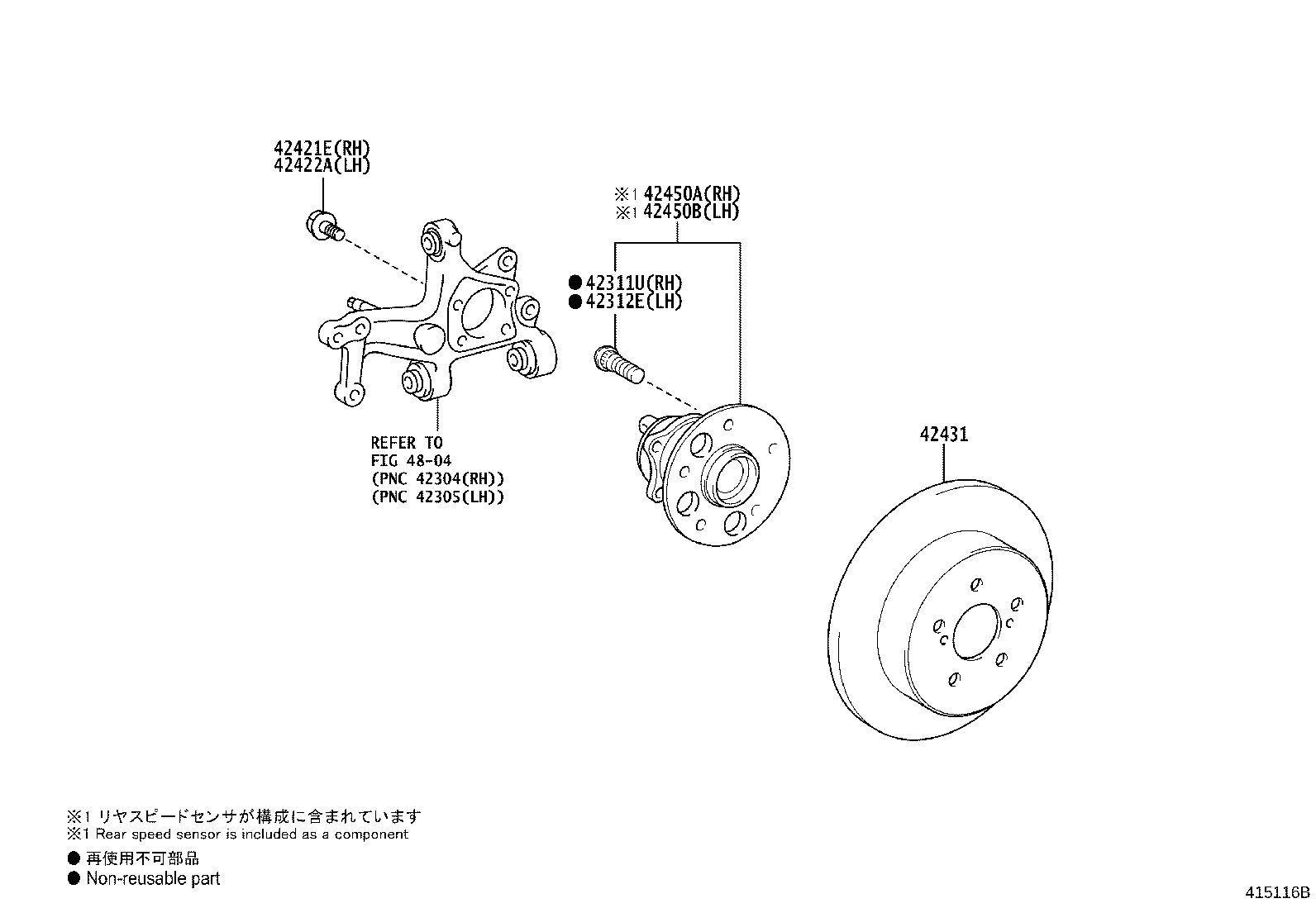

Click highlighted areas on diagram

diagram 42311U 42312E 42421E 42422A 42431 42450A 42450B 4804
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

NRE210..HI

 5
90942-02049

NRE210..HI

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

NRE210..HI

 5
90942-02049

NRE210..HI

 5
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-12406

NRE210..HI

(J)

 4
90105-C0328

NRE210..HI

(L)

 4
90105-12406

NRE210..HI

(J)

 4
90105-C0328

NRE210..HI

(L)

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-C0328

NRE210..HI

(L)

 4
90105-12406

NRE210..HI

(J)

 4
90105-12406

NRE210..HI

(J)

 4
90105-C0328

NRE210..HI

(L)

 4
42431 - DISC, REAR
42431-02360

NRE210..HI

 2
42431-02360

NRE210..HI

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-02340

NRE210..HI

 1
42450-02340

NRE210..HI

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-02340

NRE210..HI

 1
42450-02340

NRE210..HI

 1
Linked diagrams
4804
