NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )NRE210

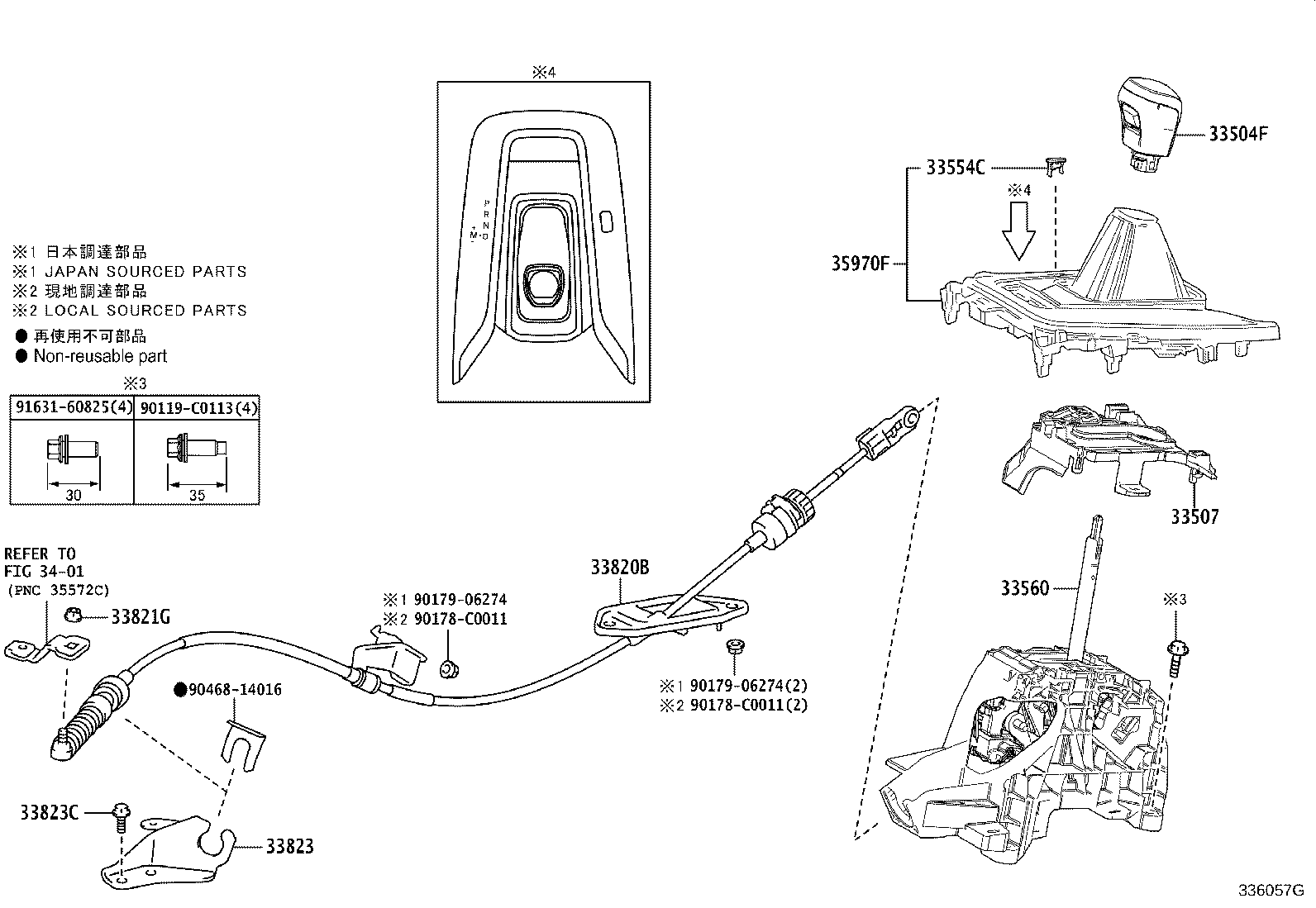

Click highlighted areas on diagram

diagram 33504F 33507 33554C 33560 33820B 33821G 33823 33823C 3401 35970F 90119C0113 90178C0011 90178C0011 9017906274 9017906274 9046814016 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-02880C0

NRE210..HI

BLACK,TRIM0#,2#

 1
33504-02880C0

NRE210..HI

BLACK,TRIM0#,2#

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-02080

NRE210..HI

 1
33507-02080

NRE210..HI

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-02220

NRE210..HI

 1
33554-02220

NRE210..HI

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-F4110

NRE210..HI

 1
33560-F4110

NRE210..HI

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-02C70

NRE210..HI

 1
33820-02C70

NRE210..HI

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90178-C0034

NRE210..HI

(L)

 1
94151-80800

NRE210..HI

(J)

 1
90178-C0034

NRE210..HI

(L)

 1
94151-80800

NRE210..HI

(J)

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-02250

NRE210..HI

 1
33823-02250

NRE210..HI

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-08079

NRE210..HI

(J)

 2
90119-C0212

NRE210..HI

(L)

 2
90119-C0212

NRE210..HI

(L)

 2
90119-08079

NRE210..HI

(J)

 2
35970F - HOUSING ASSY, POSITION INDICATOR
35970-02260C1

NRE210..HI

BLACK & SILVER,TRIM0#,2#

 1
35970-02260C1

NRE210..HI

BLACK & SILVER,TRIM0#,2#

 1
Common parts
90119-C0113
90178-C0011
90179-06274
90468-14016
91631-60825
Linked diagrams
3401
