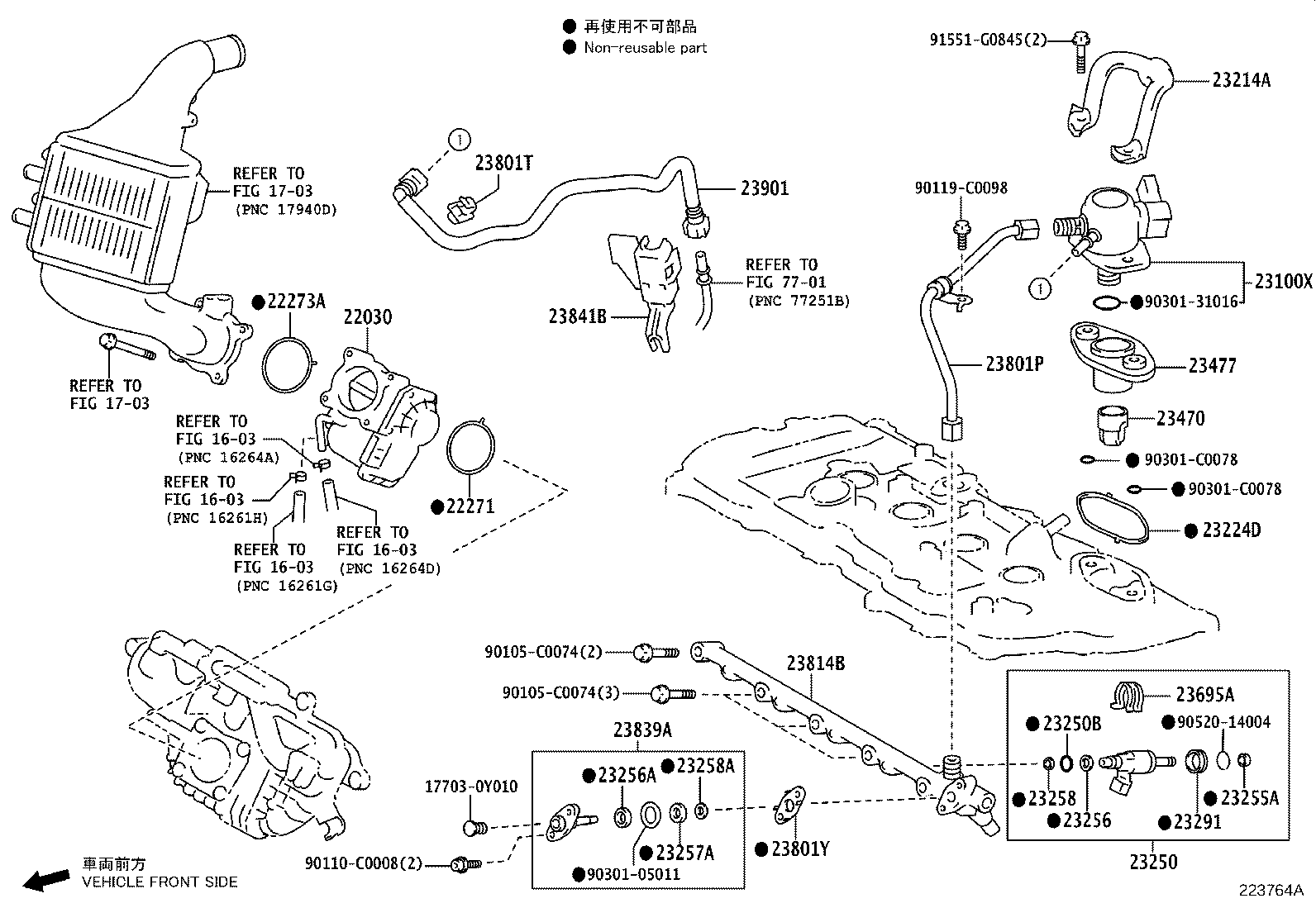

NRE210L-GEXGZC (2019)
Toyota Corolla
(1908- )9NRFTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-0Y070 |
9NRFTS..NRE210 *662 |
1 | ||
| 22030-47080 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 22030-47080 |
9NRFTS..NRE210 *602 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-47060 |
9NRFTS..NRE210 *602 |
1 | ||
| 22271-47060 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 22271-0Y050 |
9NRFTS..NRE210 (L),*662 |
1 | ||
| 22271-0Y050 |
9NRFTS..NRE210 *662 |
1 | ||
| 22273A - GASKET, THROTTLE BODY, NO.2 | ||||
| 22271-0Y050 |
9NRFTS..NRE210 *662 |
1 | ||
| 22271-47060 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 22271-47060 |
9NRFTS..NRE210 *602 |
1 | ||
| 23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE) | ||||
| 23101-0Y020 |
9NRFTS..NRE210 *662 |
1 | ||
| 23101-47020 |
9NRFTS..NRE210 *602 |
1 | ||
| 23101-47020 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23214A - PROTECTOR, FUEL PUMP | ||||
| 23214-0Y010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23214-47010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23214-47010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23224D - GASKET, FUEL PUMP SPACER | ||||
| 23224-47010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23224-0Y010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23224-47010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-4710002 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 2,*602,*RRM |
4 | ||
| 23209-4710003 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 3,*602,*RRM |
4 | ||
| 23209-0Y10001 |
9NRFTS..NRE210 MARK 1,*662,*RRM |
4 | ||
| 23209-4710009 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 9,*602,*RRM |
4 | ||
| 23209-4710004 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 4,*602,*RRM |
4 | ||
| 23209-0Y10007 |
9NRFTS..NRE210 MARK 7,*662,*RRM |
4 | ||
| 23209-0Y10005 |
9NRFTS..NRE210 MARK 5,*662,*RRM |
4 | ||
| 23209-4710008 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 8,*602,*RRM |
4 | ||
| 23209-4710007 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 7,*602,*RRM |
4 | ||
| 23209-4710006 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 6,*602,*RRM |
4 | ||
| 23209-0Y10006 |
9NRFTS..NRE210 MARK 6,*662,*RRM |
4 | ||
| 23209-4710001 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 1,*602,*RRM |
4 | ||
| 23209-0Y10004 |
9NRFTS..NRE210 MARK 4,*662,*RRM |
4 | ||
| 23209-0Y10003 |
9NRFTS..NRE210 MARK 3,*662,*RRM |
4 | ||
| 23209-0Y10008 |
9NRFTS..NRE210 MARK 8,*662,*RRM |
4 | ||
| 23209-4710003 |
9NRFTS..NRE210 MARK 3,*602,*RRM |
4 | ||
| 23209-4710005 |
9NRFTS..NRE210 MARK 5,*602,*RRM |
4 | ||
| 23209-4710006 |
9NRFTS..NRE210 MARK 6,*602,*RRM |
4 | ||
| 23209-0Y10002 |
9NRFTS..NRE210 MARK 2,*662,*RRM |
4 | ||
| 23209-4710009 |
9NRFTS..NRE210 MARK 9,*602,*RRM |
4 | ||
| 23209-4710002 |
9NRFTS..NRE210 MARK 2,*602,*RRM |
4 | ||
| 23209-4710007 |
9NRFTS..NRE210 MARK 7,*602,*RRM |
4 | ||
| 23209-0Y10009 |
9NRFTS..NRE210 MARK 9,*662,*RRM |
4 | ||
| 23209-4710008 |
9NRFTS..NRE210 MARK 8,*602,*RRM |
4 | ||
| 23209-4710004 |
9NRFTS..NRE210 MARK 4,*602,*RRM |
4 | ||
| 23209-4710005 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 5,*602,*RRM |
4 | ||
| 23209-4710001 |
9NRFTS..NRE210 MARK 1,*602,*RRM |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-05013 |
9NRFTS..NRE210 *662 |
4 | ||
| 90301-05013 |
9NRFTS..NRE210 *602 |
4 | ||
| 90301-05013 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
4 | ||
| 23255A - SEAL, FUEL INJECTOR | ||||
| 23255-31030 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
4 | ||
| 23255-31030 |
9NRFTS..NRE210 *662 |
4 | ||
| 23255-31030 |
9NRFTS..NRE210 *602 |
4 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-25010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
4 | ||
| 23256-25010 |
9NRFTS..NRE210 *662 |
4 | ||
| 23256-25010 |
9NRFTS..NRE210 *602 |
4 | ||
| 23256A - RING, FUEL PIPE, NO.1 | ||||
| 23256-31010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23256-31010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23256-31010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23257A - RING, FUEL PIPE, NO.2 | ||||
| 23257-47010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23257-47010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23257-47010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-47040 |
9NRFTS..NRE210 *662 |
4 | ||
| 23258-36010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
4 | ||
| 23258-36010 |
9NRFTS..NRE210 *602 |
4 | ||
| 23258A - RING, FUEL PIPE, NO.3 | ||||
| 23258-31010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23258-31010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23258-31010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-31020 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
4 | ||
| 23291-31020 |
9NRFTS..NRE210 *662 |
4 | ||
| 23291-31020 |
9NRFTS..NRE210 *602 |
4 | ||
| 23470 - LIFTER ASSY, FUEL PUMP | ||||
| 23470-36020 |
9NRFTS..NRE210 *602 |
1 | ||
| 23470-36020 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23470-0Y010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23477 - GUIDE, FUEL PUMP LIFTER | ||||
| 23477-0Y010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23477-47010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23477-47010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23695A - CLAMP, NOZZLE HOLDER | ||||
| 23695-70010 |
9NRFTS..NRE210 *662 |
4 | ||
| 23695-70010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
4 | ||
| 23695-70010 |
9NRFTS..NRE210 *602 |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-47030 |
9NRFTS..NRE210 *602 |
1 | ||
| 23801-47030 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23801-0Y010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23801T - CLAMP OR CLIP, FUEL HOSE(FOR EFI) | ||||
| 23841-0Y110 |
9NRFTS..NRE210..HI (L) |
1 | ||
| 23841-37090 |
9NRFTS..NRE210..HI (J) |
1 | ||
| 23841-0Y110 |
9NRFTS..NRE210..HI (L) |
1 | ||
| 23841-37090 |
9NRFTS..NRE210..HI (J) |
1 | ||
| 23801Y - GASKET | ||||
| 23893-47010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23893-47010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23893-0Y010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23800-0Y020 |
9NRFTS..NRE210 *662 |
1 | ||
| 23800-0Y020 |
9NRFTS..NRE210 (L),*662 |
1 | ||
| 23800-47030 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23800-47030 |
9NRFTS..NRE210 (J),*662,*602 |
1 | ||
| 23839A - PLUG, FUEL PIPE, NO.1 | ||||
| 23809-47010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23809-47010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23809-47010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-47050 |
9NRFTS..NRE210..HI |
1 | ||
| 23841-47050 |
9NRFTS..NRE210..HI |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-0Y300 |
9NRFTS..NRE210..HI |
1 | ||
| 23901-0Y300 |
9NRFTS..NRE210..HI |
1 | ||
| Common parts | ||||
| 17703-0Y010 | ||||
| 90105-C0074 | ||||
| 90110-C0008 | ||||
| 90119-C0098 | ||||
| 90301-05011 | ||||
| 90301-31016 | ||||
| 90301-C0078 | ||||
| 90520-14004 | ||||
| 91551-G0845 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1703 | ||||
| 7701 | ||||

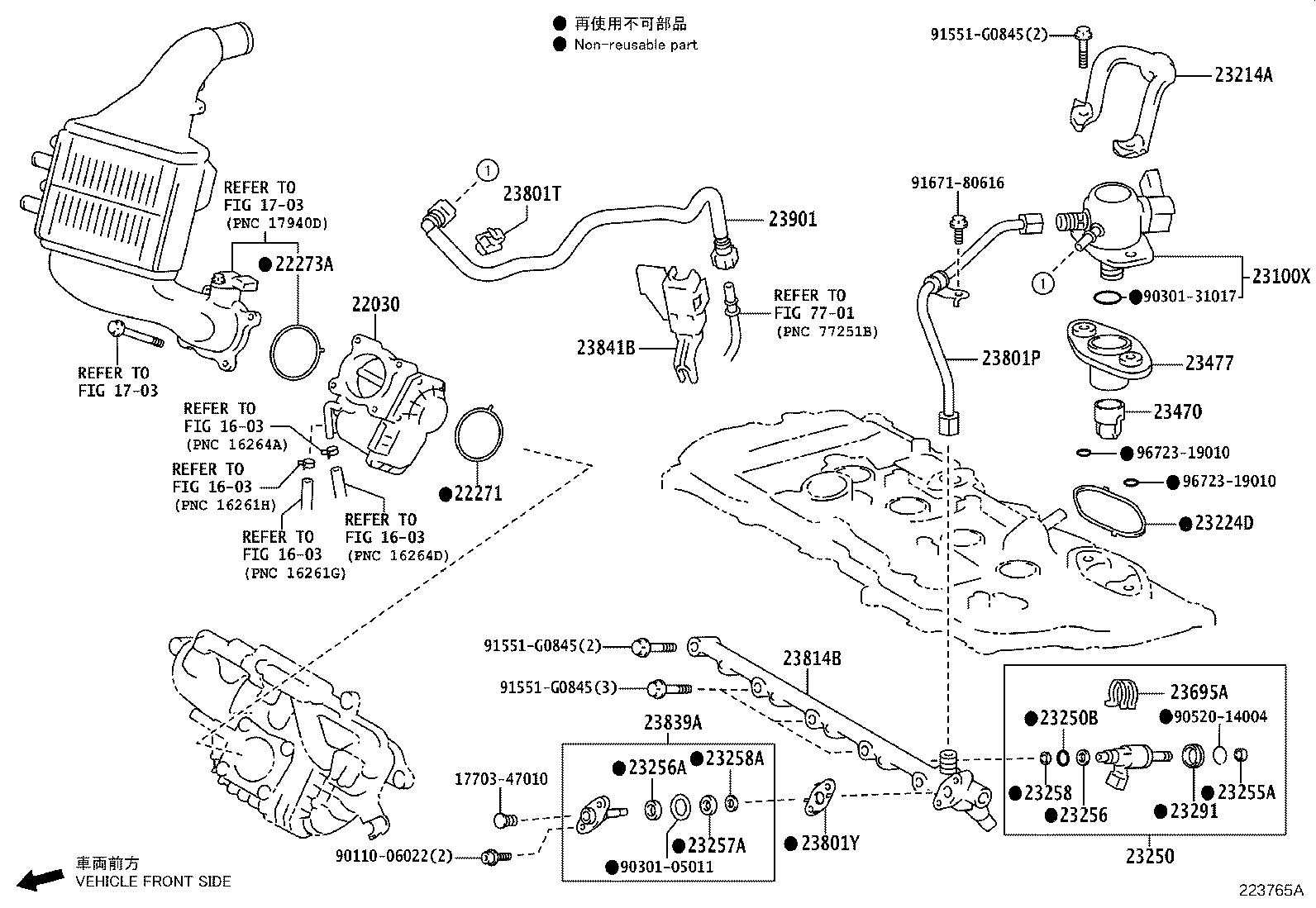

(1908- )9NRFTS
EXHAUST EMISSION CONTROL-CHINA 6B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-0Y070 |
9NRFTS..NRE210 *662 |
1 | ||
| 22030-47080 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 22030-47080 |
9NRFTS..NRE210 *602 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-47060 |
9NRFTS..NRE210 *602 |
1 | ||
| 22271-47060 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 22271-0Y050 |
9NRFTS..NRE210 (L),*662 |
1 | ||
| 22271-0Y050 |
9NRFTS..NRE210 *662 |
1 | ||
| 22273A - GASKET, THROTTLE BODY, NO.2 | ||||
| 22271-0Y050 |
9NRFTS..NRE210 *662 |
1 | ||
| 22271-47060 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 22271-47060 |
9NRFTS..NRE210 *602 |
1 | ||
| 23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE) | ||||
| 23101-0Y020 |
9NRFTS..NRE210 *662 |
1 | ||
| 23101-47020 |
9NRFTS..NRE210 *602 |
1 | ||
| 23101-47020 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23214A - PROTECTOR, FUEL PUMP | ||||
| 23214-0Y010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23214-47010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23214-47010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23224D - GASKET, FUEL PUMP SPACER | ||||
| 23224-47010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23224-0Y010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23224-47010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-4710002 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 2,*602,*RRM |
4 | ||
| 23209-4710003 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 3,*602,*RRM |
4 | ||
| 23209-0Y10001 |
9NRFTS..NRE210 MARK 1,*662,*RRM |
4 | ||
| 23209-4710009 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 9,*602,*RRM |
4 | ||
| 23209-4710004 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 4,*602,*RRM |
4 | ||
| 23209-0Y10007 |
9NRFTS..NRE210 MARK 7,*662,*RRM |
4 | ||
| 23209-0Y10005 |
9NRFTS..NRE210 MARK 5,*662,*RRM |
4 | ||
| 23209-4710008 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 8,*602,*RRM |
4 | ||
| 23209-4710007 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 7,*602,*RRM |
4 | ||
| 23209-4710006 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 6,*602,*RRM |
4 | ||
| 23209-0Y10006 |
9NRFTS..NRE210 MARK 6,*662,*RRM |
4 | ||
| 23209-4710001 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 1,*602,*RRM |
4 | ||
| 23209-0Y10004 |
9NRFTS..NRE210 MARK 4,*662,*RRM |
4 | ||
| 23209-0Y10003 |
9NRFTS..NRE210 MARK 3,*662,*RRM |
4 | ||
| 23209-0Y10008 |
9NRFTS..NRE210 MARK 8,*662,*RRM |
4 | ||
| 23209-4710003 |
9NRFTS..NRE210 MARK 3,*602,*RRM |
4 | ||
| 23209-4710005 |
9NRFTS..NRE210 MARK 5,*602,*RRM |
4 | ||
| 23209-4710006 |
9NRFTS..NRE210 MARK 6,*602,*RRM |
4 | ||
| 23209-0Y10002 |
9NRFTS..NRE210 MARK 2,*662,*RRM |
4 | ||
| 23209-4710009 |
9NRFTS..NRE210 MARK 9,*602,*RRM |
4 | ||
| 23209-4710002 |
9NRFTS..NRE210 MARK 2,*602,*RRM |
4 | ||
| 23209-4710007 |
9NRFTS..NRE210 MARK 7,*602,*RRM |
4 | ||
| 23209-0Y10009 |
9NRFTS..NRE210 MARK 9,*662,*RRM |
4 | ||
| 23209-4710008 |
9NRFTS..NRE210 MARK 8,*602,*RRM |
4 | ||
| 23209-4710004 |
9NRFTS..NRE210 MARK 4,*602,*RRM |
4 | ||
| 23209-4710005 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,MARK 5,*602,*RRM |
4 | ||
| 23209-4710001 |
9NRFTS..NRE210 MARK 1,*602,*RRM |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-05013 |
9NRFTS..NRE210 *662 |
4 | ||
| 90301-05013 |
9NRFTS..NRE210 *602 |
4 | ||
| 90301-05013 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
4 | ||
| 23255A - SEAL, FUEL INJECTOR | ||||
| 23255-31030 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
4 | ||
| 23255-31030 |
9NRFTS..NRE210 *662 |
4 | ||
| 23255-31030 |
9NRFTS..NRE210 *602 |
4 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-25010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
4 | ||
| 23256-25010 |
9NRFTS..NRE210 *662 |
4 | ||
| 23256-25010 |
9NRFTS..NRE210 *602 |
4 | ||
| 23256A - RING, FUEL PIPE, NO.1 | ||||
| 23256-31010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23256-31010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23256-31010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23257A - RING, FUEL PIPE, NO.2 | ||||
| 23257-47010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23257-47010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23257-47010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-47040 |
9NRFTS..NRE210 *662 |
4 | ||
| 23258-36010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
4 | ||
| 23258-36010 |
9NRFTS..NRE210 *602 |
4 | ||
| 23258A - RING, FUEL PIPE, NO.3 | ||||
| 23258-31010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23258-31010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23258-31010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-31020 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
4 | ||
| 23291-31020 |
9NRFTS..NRE210 *662 |
4 | ||
| 23291-31020 |
9NRFTS..NRE210 *602 |
4 | ||
| 23470 - LIFTER ASSY, FUEL PUMP | ||||
| 23470-36020 |
9NRFTS..NRE210 *602 |
1 | ||
| 23470-36020 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23470-0Y010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23477 - GUIDE, FUEL PUMP LIFTER | ||||
| 23477-0Y010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23477-47010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23477-47010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23695A - CLAMP, NOZZLE HOLDER | ||||
| 23695-70010 |
9NRFTS..NRE210 *662 |
4 | ||
| 23695-70010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
4 | ||
| 23695-70010 |
9NRFTS..NRE210 *602 |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-47030 |
9NRFTS..NRE210 *602 |
1 | ||
| 23801-47030 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23801-0Y010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23801T - CLAMP OR CLIP, FUEL HOSE(FOR EFI) | ||||
| 23841-0Y110 |
9NRFTS..NRE210..HI (L) |
1 | ||
| 23841-37090 |
9NRFTS..NRE210..HI (J) |
1 | ||
| 23841-0Y110 |
9NRFTS..NRE210..HI (L) |
1 | ||
| 23841-37090 |
9NRFTS..NRE210..HI (J) |
1 | ||
| 23801Y - GASKET | ||||
| 23893-47010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23893-47010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23893-0Y010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23800-0Y020 |
9NRFTS..NRE210 *662 |
1 | ||
| 23800-0Y020 |
9NRFTS..NRE210 (L),*662 |
1 | ||
| 23800-47030 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23800-47030 |
9NRFTS..NRE210 (J),*662,*602 |
1 | ||
| 23839A - PLUG, FUEL PIPE, NO.1 | ||||
| 23809-47010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 23809-47010 |
9NRFTS..NRE210 *662 |
1 | ||
| 23809-47010 |
9NRFTS..NRE210 *602 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-47050 |
9NRFTS..NRE210..HI |
1 | ||
| 23841-47050 |
9NRFTS..NRE210..HI |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-0Y300 |
9NRFTS..NRE210..HI |
1 | ||
| 23901-0Y300 |
9NRFTS..NRE210..HI |
1 | ||
| Common parts | ||||
| 17703-47010 | ||||
| 90110-06022 | ||||
| 90301-05011 | ||||
| 90301-31017 | ||||
| 90520-14004 | ||||
| 91551-G0845 | ||||
| 91671-80616 | ||||
| 96723-19010 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1703 | ||||
| 7701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
