NRE210L-GEXGZC (2019)
Toyota Corolla
Production
Aug 2019
-
Sep 9999
Engine
9NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )9NRFTS

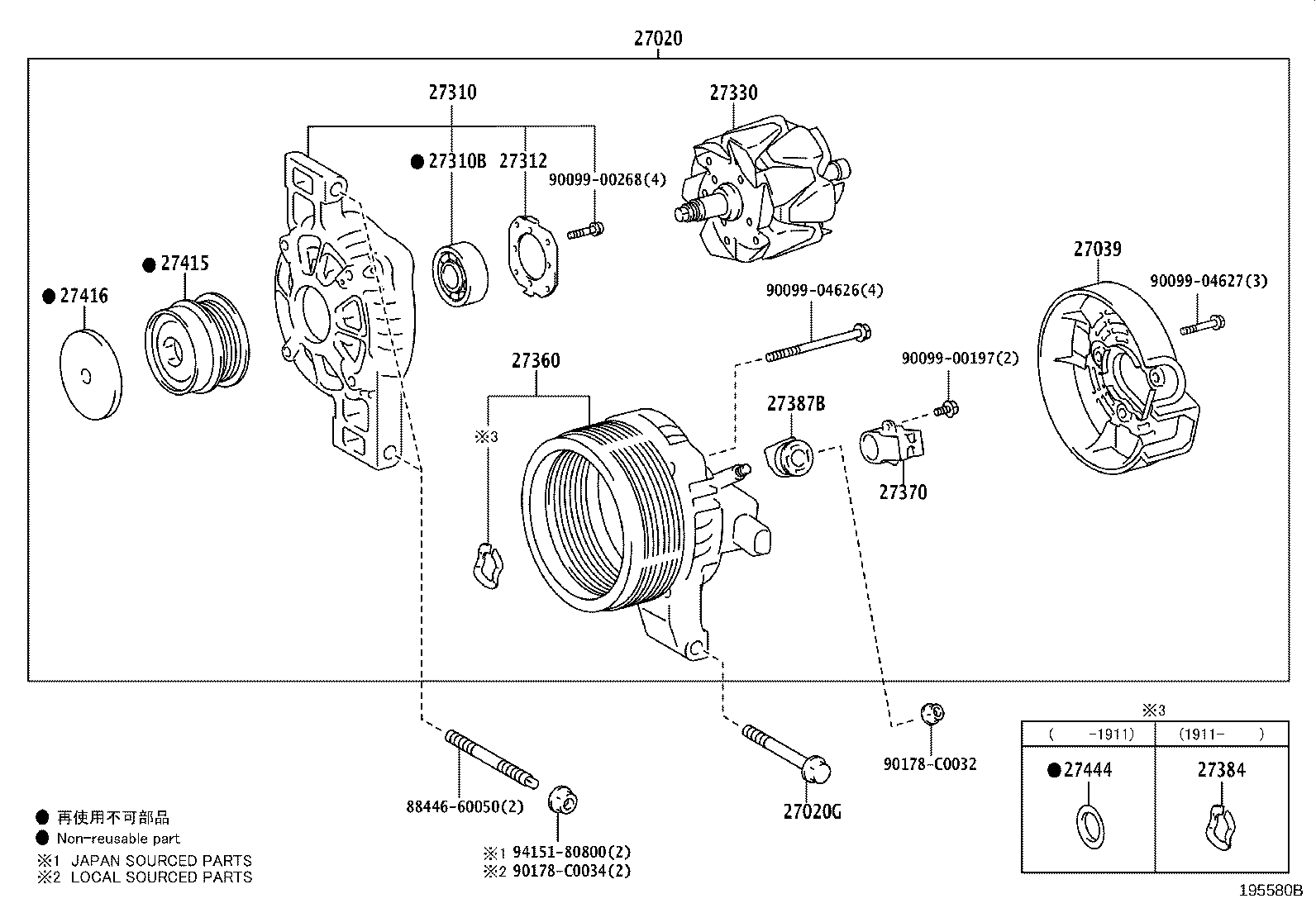

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0Y350 |
9NRFTS..NRE210..HI 12V 100A |
1 | ||
| 27060-0Y350 |
9NRFTS..NRE210..HI 12V 100A |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 90119-08C78 |
9NRFTS..NRE210..HI |
1 | ||
| 90119-08C78 |
9NRFTS..NRE210..HI |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0C180 |
9NRFTS..NRE210..HI |
1 | ||
| 27039-0C180 |
9NRFTS..NRE210..HI |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0Y330 |
9NRFTS..NRE210..HI |
1 | ||
| 27310-0Y330 |
9NRFTS..NRE210..HI |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10051 |
9NRFTS..NRE210..HI |
1 | ||
| 90068-10051 |
9NRFTS..NRE210..HI |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0M070 |
9NRFTS..NRE210..HI |
1 | ||
| 27312-0M070 |
9NRFTS..NRE210..HI |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0T260 |
9NRFTS..NRE210..HI |
1 | ||
| 27330-0T260 |
9NRFTS..NRE210..HI |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0Y330 |
9NRFTS..NRE210..HI |
1 | ||
| 27360-0Y330 |
9NRFTS..NRE210..HI |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0T030 |
9NRFTS..NRE210..HI |
1 | ||
| 27370-0T030 |
9NRFTS..NRE210..HI |
1 | ||
| 27384 - WASHER | ||||
| 27384-0V170 |
9NRFTS..NRE210..HI |
1 | ||
| 27384-0V170 |
9NRFTS..NRE210..HI |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-0H110 |
9NRFTS..NRE210..HI |
1 | ||
| 27387-0H110 |
9NRFTS..NRE210..HI |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0Y100 |
9NRFTS..NRE210..HI |
1 | ||
| 27415-0Y100 |
9NRFTS..NRE210..HI |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0Y010 |
9NRFTS..NRE210..HI |
1 | ||
| 27416-0Y010 |
9NRFTS..NRE210..HI |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-0Y180 |
9NRFTS..NRE210 |
1 | ||
| Common parts | ||||
| 88446-60050 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04626 | ||||
| 90099-04627 | ||||
| 90178-C0032 | ||||
| 90178-C0034 | ||||
| 94151-80800 | ||||
