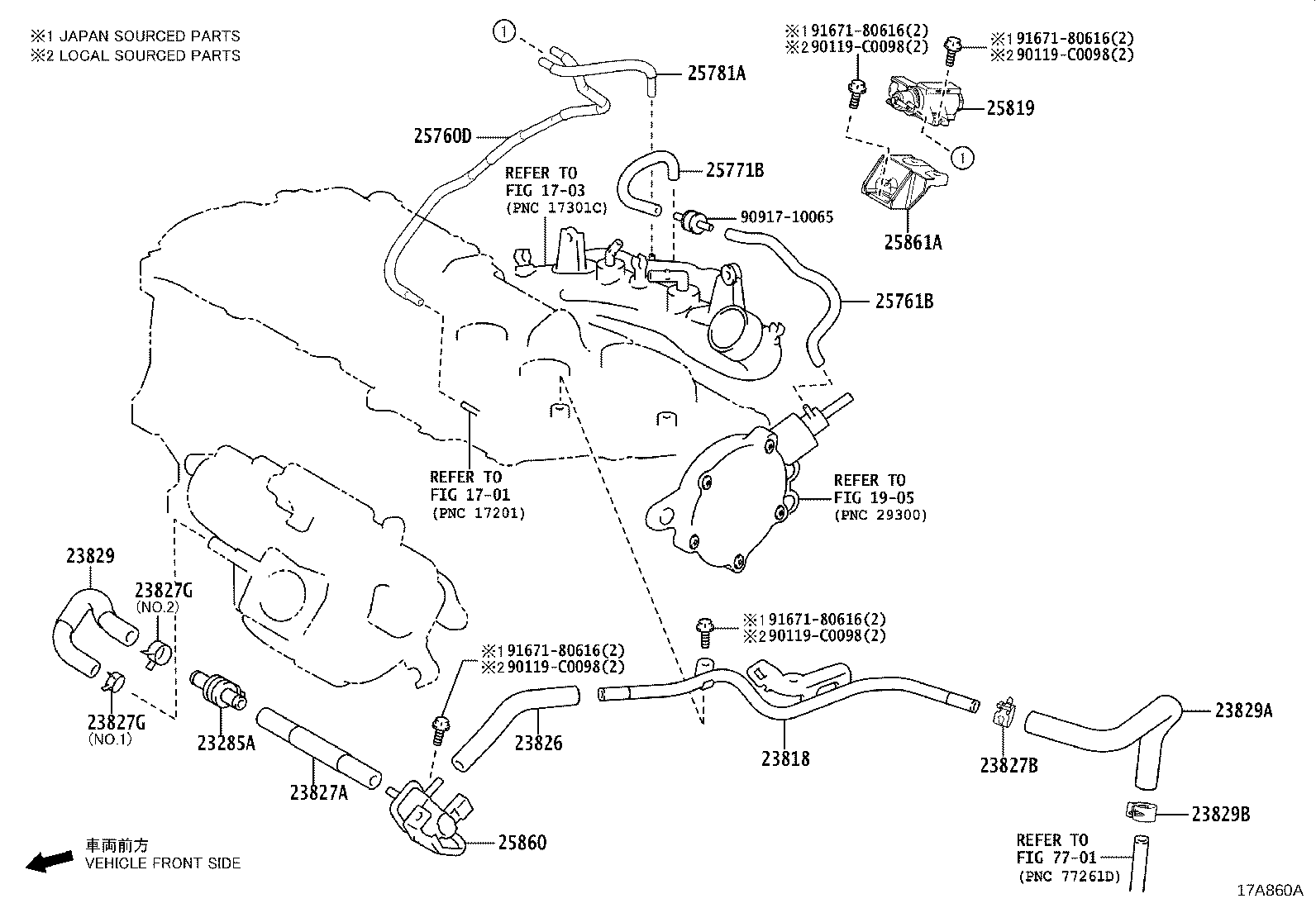

Toyota Corolla NRE210 VACUUM PIPING

Part #	Description	Period	Qty
23285A - VALVE, CHECK, NO.1
25748-0Y010	9NRFTS..NRE210 *662	08/2019 - 12/2999	1
25748-36010	9NRFTS..NRE210 *602	07/2020 - 12/2999	1
25748-36010	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602	08/2019 - 07/2020	1
23818 - PIPE, FUEL VAPOR FEED
23818-47020	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602	08/2019 - 07/2020	1
23818-47020	9NRFTS..NRE210 *602	07/2020 - 12/2999	1
23818-0Y010	9NRFTS..NRE210 *662	08/2019 - 12/2999	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0Y260	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602	08/2019 - 07/2020	1
23826-0Y260	9NRFTS..NRE210 *662	08/2019 - 02/2021	1
23826-0Y260	9NRFTS..NRE210 *602	07/2020 - 02/2021	1
23826-0Y261	9NRFTS..NRE210 602,662	03/2021 - 12/2999	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-0Y220	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602	08/2019 - 07/2020	1
23827-0Y220	9NRFTS..NRE210 *602	07/2020 - 12/2999	1
23827-0Y220	9NRFTS..NRE210 *662	08/2019 - 12/2999	1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
90466-C0039	9NRFTS..NRE210..HI (L)	07/2020 - 12/2999	1
90466-C0039	9NRFTS..NRE210..HI (L)	08/2019 - 06/2020	1
96136-41901	9NRFTS..NRE210..HI (J)	08/2019 - 06/2020	1
96136-41901	9NRFTS..NRE210..HI (J)	07/2020 - 12/2999	1
23827G - CLIP(FOR FUEL VAPOR FEED HOSE, NO.3)
96136-42201	9NRFTS..NRE210 *602,NO.2:SEE ILLUST	07/2020 - 12/2999	1
96136-42201	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.2:SEE ILLUST	08/2019 - 07/2020	1
96136-41901	9NRFTS..NRE210 *602,NO.1:SEE ILLUST	07/2020 - 12/2999	1
90466-C0039	9NRFTS..NRE210 *662,NO.1:REFER ILL.	08/2019 - 12/2999	1
96136-41901	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.1:SEE ILLUST	08/2019 - 07/2020	1
90466-C0031	9NRFTS..NRE210 *662,NO.2:REFER ILL.	08/2019 - 12/2999	1
23827G - CLIP(FOR FUEL VAPOR FEED HOSE, NO.3)
96136-42201	9NRFTS..NRE210 *602,NO.2:SEE ILLUST	07/2020 - 12/2999	1
96136-42201	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.2:SEE ILLUST	08/2019 - 07/2020	1
96136-41901	9NRFTS..NRE210 *602,NO.1:SEE ILLUST	07/2020 - 12/2999	1
90466-C0039	9NRFTS..NRE210 *662,NO.1:REFER ILL.	08/2019 - 12/2999	1
96136-41901	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.1:SEE ILLUST	08/2019 - 07/2020	1
90466-C0031	9NRFTS..NRE210 *662,NO.2:REFER ILL.	08/2019 - 12/2999	1
23829 - HOSE, FUEL VAPOR FEED, NO.3
23829-0Y010	9NRFTS..NRE210 *662	08/2019 - 12/2999	1
23829-47010	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602	08/2019 - 07/2020	1
23829-47010	9NRFTS..NRE210 *602	07/2020 - 12/2999	1
23829A - HOSE, FUEL VAPOR FEED
23826-0Y320	9NRFTS..NRE210..HI	08/2019 - 06/2020	1
23826-0Y320	9NRFTS..NRE210..HI	07/2020 - 12/2999	1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-C0039	9NRFTS..NRE210..HI (L)	08/2019 - 06/2020	1
96136-41901	9NRFTS..NRE210..HI (J)	08/2019 - 06/2020	1
96136-41901	9NRFTS..NRE210..HI (J)	07/2020 - 12/2999	1
90466-C0039	9NRFTS..NRE210..HI (L)	07/2020 - 12/2999	1
25760D - HOSE ASSY, VACUUM TRANSMITTING, NO.4
25781-47050	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602	08/2019 - 07/2020	1
25781-47050	9NRFTS..NRE210 *602	07/2020 - 12/2999	1
25791-0Y040	9NRFTS..NRE210 *662	08/2019 - 12/2999	1
25761B - HOSE, VACCUM TRANSMITTING, NO.1
25761-0Y011	9NRFTS..NRE210 *662	08/2019 - 12/2999	1
25761-0Y011	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602	08/2019 - 07/2020	1
25761-0Y011	9NRFTS..NRE210 *602	07/2020 - 12/2999	1
25771B - HOSE, VACCUM TRANSMITTING, NO.2
25771-47010	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602	08/2019 - 07/2020	1
25771-47010	9NRFTS..NRE210 *602	07/2020 - 12/2999	1
25771-0Y010	9NRFTS..NRE210 *662	08/2019 - 12/2999	1
25781A - HOSE, VACUUM TRANSMITTING, NO.3
25791-47020	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602	08/2019 - 07/2020	1
25791-47020	9NRFTS..NRE210 *602	07/2020 - 12/2999	1
25781-0Y020	9NRFTS..NRE210 *662	08/2019 - 12/2999	1
25819 - VALVE ASSY, VACUUM REGULATING
25819-0W020	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602	08/2019 - 07/2020	1
25819-0W020	9NRFTS..NRE210 *662	08/2019 - 12/2999	1
25819-0W020	9NRFTS..NRE210 *602	07/2020 - 12/2999	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-47080	9NRFTS..NRE210 *662	08/2019 - 06/2020	1
25860-47080	9NRFTS..NRE210 *602	07/2020 - 12/2999	1
25860-47080	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602	08/2019 - 07/2020	1
25860-0Y210	9NRFTS..NRE210 *662	07/2020 - 12/2999	1
25861A - BRACKET, VACUUM SWITCHING VALVE, NO.2
25862-47020	9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602	08/2019 - 07/2020	1
25862-47020	9NRFTS..NRE210 *602	07/2020 - 12/2999	1
25862-0Y020	9NRFTS..NRE210 *662	08/2019 - 12/2999	1
Common parts
90119-C0098
90917-10065
91671-80616
Linked diagrams
1701
1703
1905
7701

NRE210L-GEXGZC (2019)

(1908- )9NRFTS
