NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )9NRFTS

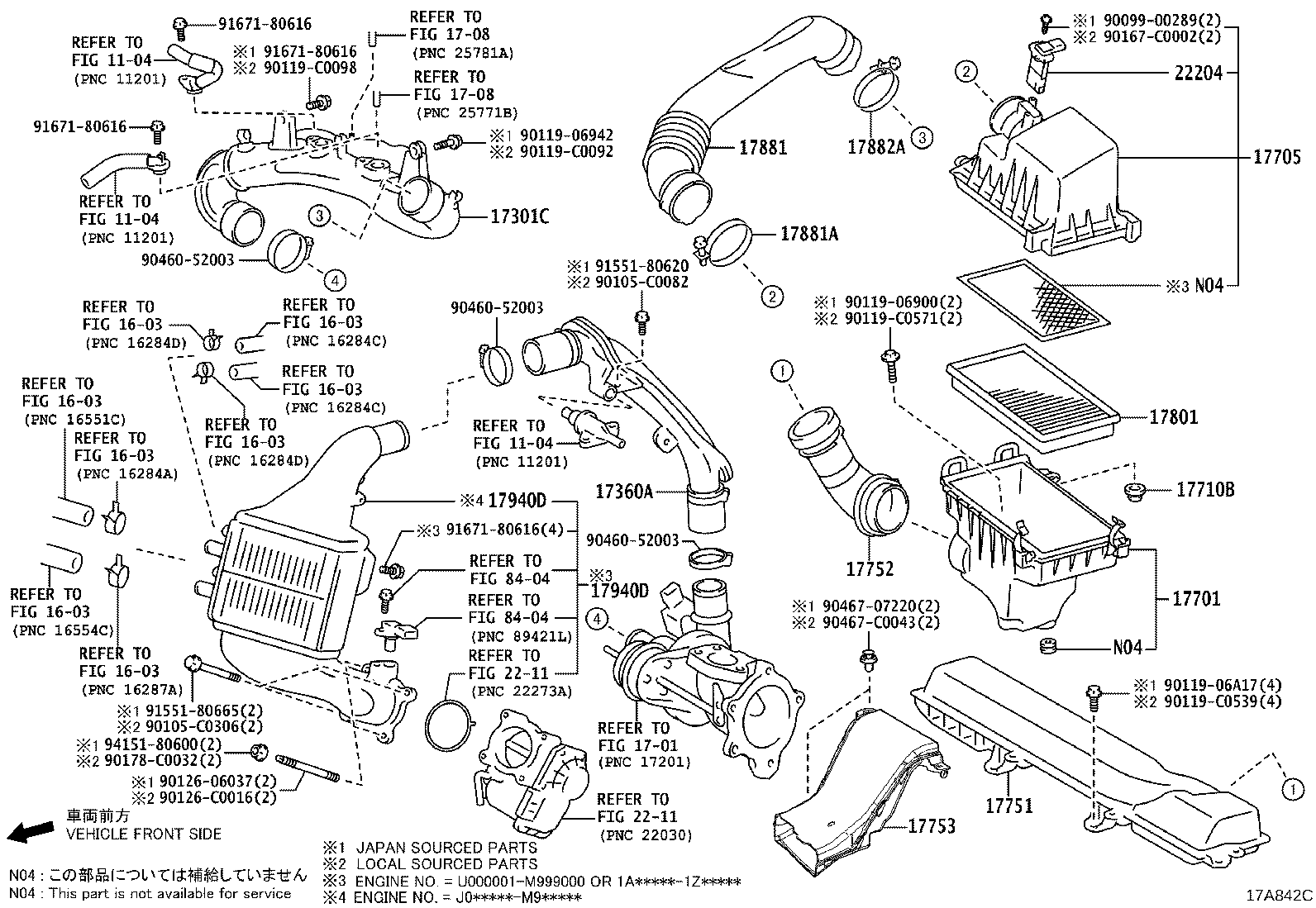

Click highlighted areas on diagram

diagram 1104 1104 1104 1603 1603 1603 1603 1603 1603 1603 1603 1701 1708 1708 17301C 17360A 17701 17705 17710B 17751 17752 17753 17801 17881 17881A 17882A 17940D 17940D 2211 2211 22204 8404 8404 9009900289 90105C0082 90105C0306 9011906900 9011906942 9011906A17 90119C0092 90119C0098 90119C0539 90119C0571 9012606037 90126C0016 90167C0002 90178C0032 9046052003 9046052003 9046052003 9046707220 90467C0043 9155180620 9155180665 9167180616 9167180616 9167180616 9167180616 9415180600
Part # Description Qty Price
17301C - DUCT SUB-ASSY, AIR INLET, NO.1
17301-0Y021

9NRFTS..NRE210

*662

 1
17301-0Y021

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
17301-0Y021

9NRFTS..NRE210

*602

 1
17360A - TUBE ASSY, AIR
17360-47011

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
17360-0Y020

9NRFTS..NRE210

*662

 1
17360-47011

9NRFTS..NRE210

*602

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0Y250

9NRFTS..NRE210

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0Y380

9NRFTS..NRE210

 1
17705-0Y370

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6

 1
17705-0Y370

9NRFTS..NRE210

 1
17710B - GROMMET
90480-18006

9NRFTS..NRE210..HI

 1
90480-18006

9NRFTS..NRE210..HI

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0Y290

9NRFTS..NRE210..HI

 1
17751-0Y290

9NRFTS..NRE210..HI

 1
17752 - INLET, AIR CLEANER, NO.2
17752-0Y030

9NRFTS..NRE210..HI

 1
17752-0Y030

9NRFTS..NRE210..HI

 1
17753 - INLET, AIR CLEANER, NO.3
17753-0Y030

9NRFTS..NRE210..HI

 1
17753-0Y030

9NRFTS..NRE210..HI

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-F2010

9NRFTS..NRE210

(L)

 1
17801-77050

9NRFTS..NRE210

(J)

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0Y290

9NRFTS..NRE210..HI

 1
17881-0Y290

9NRFTS..NRE210..HI

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730

9NRFTS..NRE210..HI

 1
96111-10730

9NRFTS..NRE210..HI

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

9NRFTS..NRE210..HI

 1
96111-10670

9NRFTS..NRE210..HI

 1
17940D - INTERCOOLER ASSY
17940-0Y010

9NRFTS..NRE210

*662

 1
17940-47021

9NRFTS..NRE210

*602

 1
17940-47021

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
17940D - INTERCOOLER ASSY
17940-0Y010

9NRFTS..NRE210

*662

 1
17940-47021

9NRFTS..NRE210

*602

 1
17940-47021

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0Y020

9NRFTS..NRE210

(L)

 1
22204-75030

9NRFTS..NRE210

(J)

 1
Common parts
90099-00289
90105-C0082
90105-C0306
90119-06900
90119-06942
90119-06A17
90119-C0092
90119-C0098
90119-C0539
90119-C0571
90126-06037
90126-C0016
90167-C0002
90178-C0032
90460-52003
90467-07220
90467-C0043
91551-80620
91551-80665
91671-80616
94151-80600
Linked diagrams
1104
1603
1701
1708
2211
8404
