NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )9NRFTS

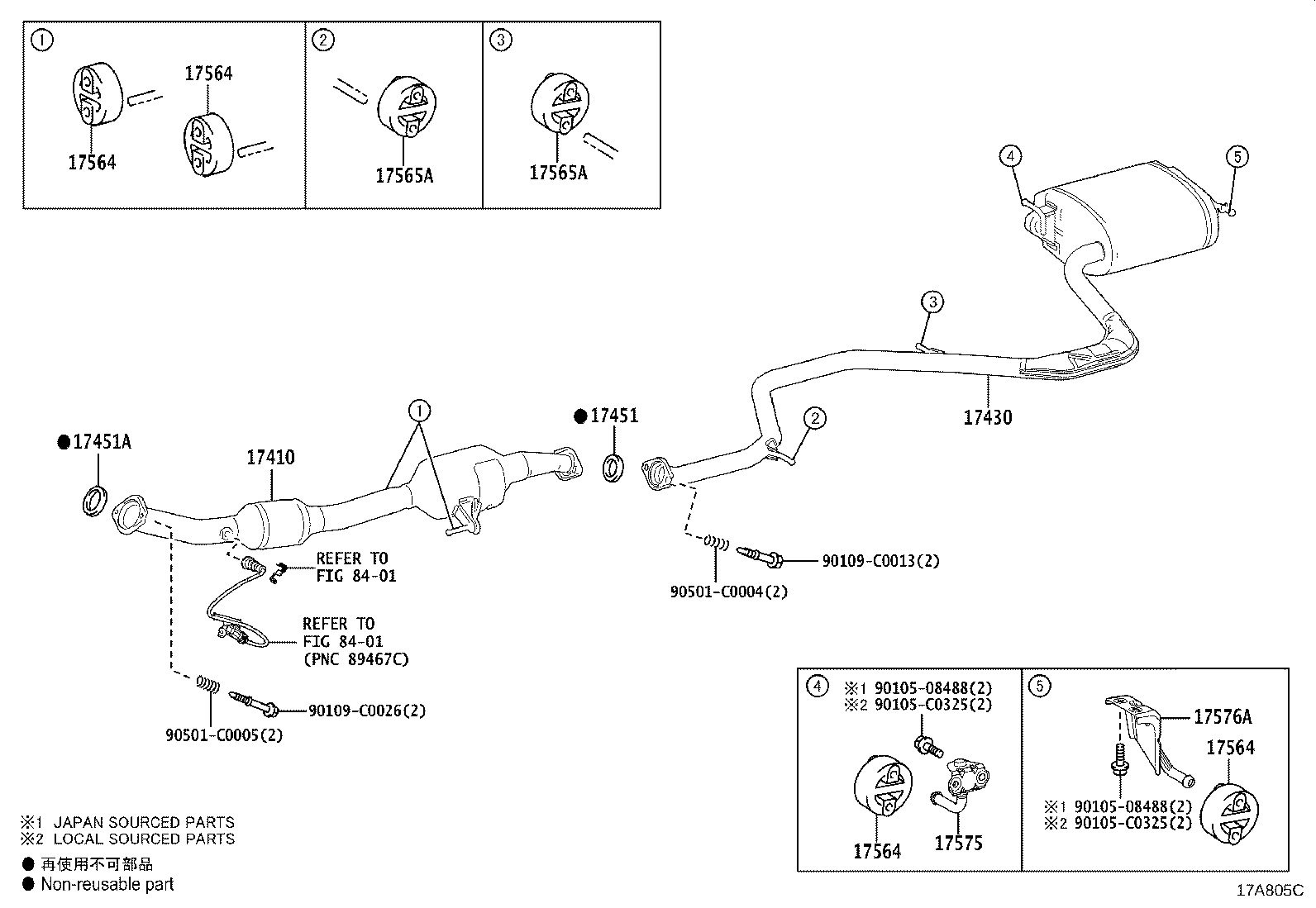

Click highlighted areas on diagram

diagram 17410 17430 17451 17451A 17564 17564 17564 17564 17565A 17565A 17575 17576A 8401 8401 9010508488 9010508488 90105C0325 90105C0325 90109C0013 90109C0026 90501C0004 90501C0005
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0YA40

9NRFTS..NRE210..HI

 1
17410-0YA40

9NRFTS..NRE210..HI

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0Y460

9NRFTS..NRE210..HI

 1
17430-0Y460

9NRFTS..NRE210..HI

 1
17451 - GASKET, EXHAUST PIPE
17451-0T031

9NRFTS..NRE210..HI

 1
17451-0T031

9NRFTS..NRE210..HI

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-0T010

9NRFTS..NRE210..HI

 1
17451-0T010

9NRFTS..NRE210..HI

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0T011

9NRFTS..NRE210..HI

 4
17565-0T011

9NRFTS..NRE210..HI

 4
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0T011

9NRFTS..NRE210..HI

 4
17565-0T011

9NRFTS..NRE210..HI

 4
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0T011

9NRFTS..NRE210..HI

 4
17565-0T011

9NRFTS..NRE210..HI

 4
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0T011

9NRFTS..NRE210..HI

 4
17565-0T011

9NRFTS..NRE210..HI

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0D080

9NRFTS..NRE210..HI

 2
17565-0D080

9NRFTS..NRE210..HI

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0D080

9NRFTS..NRE210..HI

 2
17565-0D080

9NRFTS..NRE210..HI

 2
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-0T150

9NRFTS..NRE210..HI

 1
17575-0T150

9NRFTS..NRE210..HI

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
17576-0T100

9NRFTS..NRE210..HI

 1
17576-0T100

9NRFTS..NRE210..HI

 1
Common parts
90105-08488
90105-C0325
90109-C0013
90109-C0026
90501-C0004
90501-C0005
Linked diagrams
8401
