NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )9NRFTS

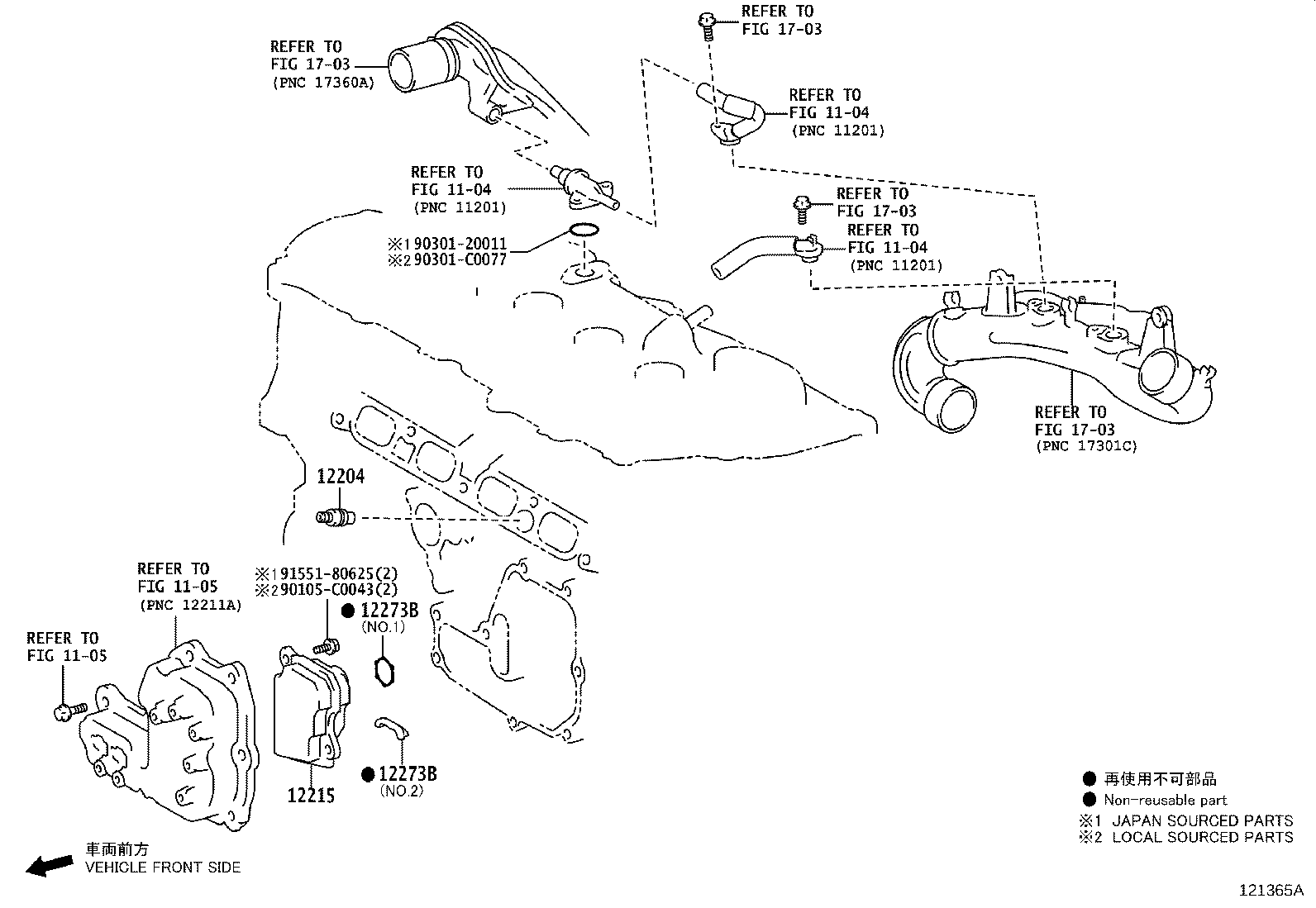

Click highlighted areas on diagram

diagram 1104 1104 1104 1105 1105 12204 12215 12273B 12273B 1703 1703 1703 1703 90105C0043 9030120011 90301C0077 9155180625
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-47080

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
12204-47080

9NRFTS..NRE210

*602

 1
12204-0Y030

9NRFTS..NRE210

*662

 1
12215 - SEPARATOR, CASE
12215-47010

9NRFTS..NRE210

*602

 1
12215-0Y010

9NRFTS..NRE210

*662

 1
12215-47010

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
12273B - GASKET, OIL SEPARATOR
12273-47010

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.1:SEE ILLUST

 1
12273-47020

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.2:SEE ILLUST

 1
12273-47010

9NRFTS..NRE210

*602,NO.1:SEE ILLUST

 1
12273-47020

9NRFTS..NRE210

*602,NO.2:SEE ILLUST

 1
12273-0Y010

9NRFTS..NRE210

*662,NO.1:REFER ILL.

 1
12273-0Y020

9NRFTS..NRE210

*662,NO.2:REFER ILL.

 1
12273B - GASKET, OIL SEPARATOR
12273-47010

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.1:SEE ILLUST

 1
12273-47020

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.2:SEE ILLUST

 1
12273-47010

9NRFTS..NRE210

*602,NO.1:SEE ILLUST

 1
12273-47020

9NRFTS..NRE210

*602,NO.2:SEE ILLUST

 1
12273-0Y010

9NRFTS..NRE210

*662,NO.1:REFER ILL.

 1
12273-0Y020

9NRFTS..NRE210

*662,NO.2:REFER ILL.

 1
Common parts
90105-C0043
90301-20011
90301-C0077
91551-80625
Linked diagrams
1104
1105
1703
