NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )9NRFTS

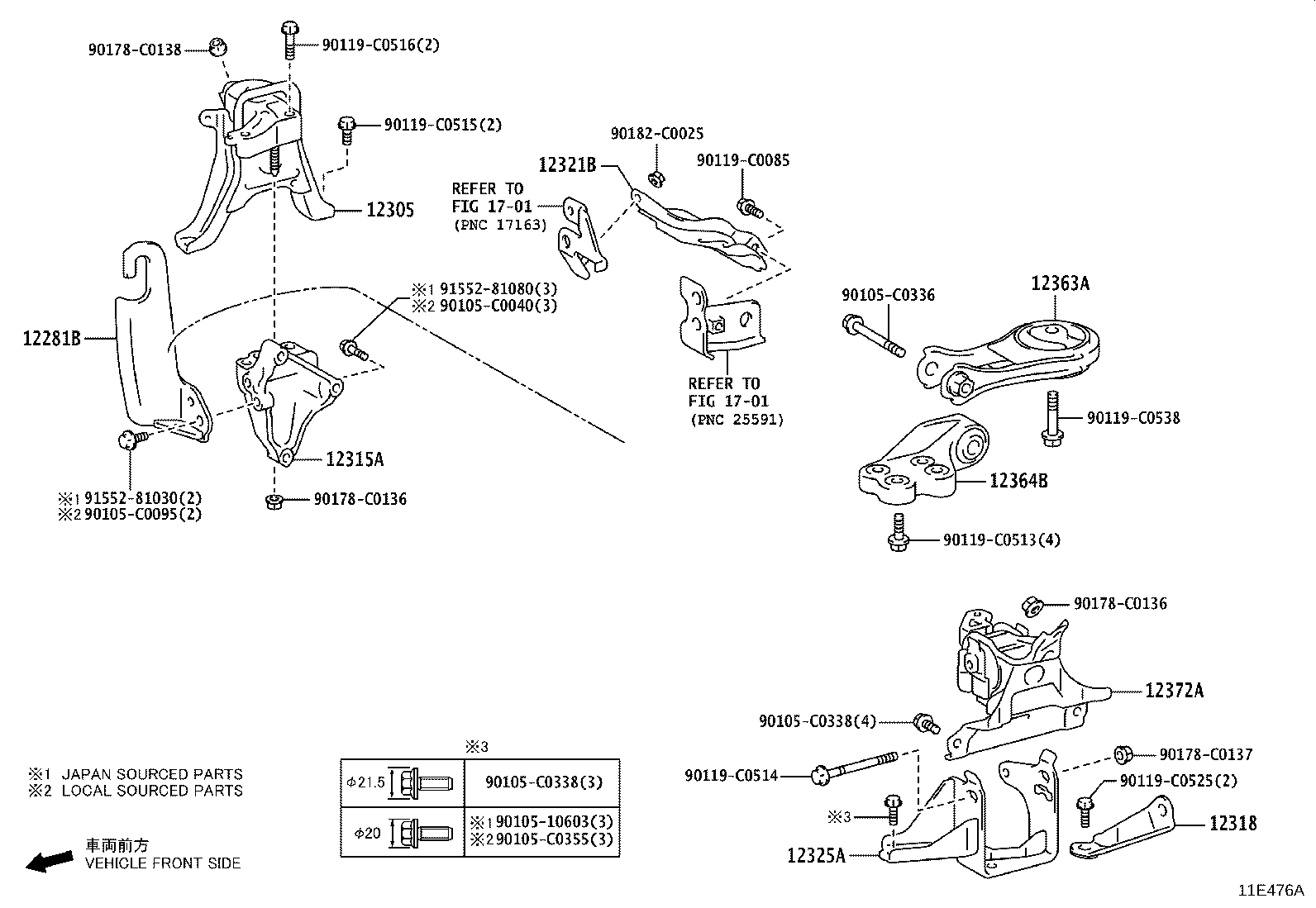

Click highlighted areas on diagram

diagram 12281B 12305 12315A 12318 12321B 12325A 12363A 12364B 12372A 1701 1701 9010510603 90105C0040 90105C0095 90105C0336 90105C0338 90105C0338 90105C0355 90119C0085 90119C0513 90119C0514 90119C0515 90119C0516 90119C0525 90119C0538 90178C0136 90178C0136 90178C0137 90178C0138 90182C0025 9155281030 9155281080
Part # Description Qty Price
12281B - HANGER, ENGINE, NO.1
12281-47060

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
12281-0Y090

9NRFTS..NRE210

*662

 1
12281-47060

9NRFTS..NRE210

*602

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0Y260

9NRFTS..NRE210..HI

 1
12305-0Y260

9NRFTS..NRE210..HI

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0Y080

9NRFTS..NRE210

*662

 1
12315-47081

9NRFTS..NRE210

*602

 1
12315-47081

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-0Y030

9NRFTS..NRE210..HI

 1
12318-0Y030

9NRFTS..NRE210..HI

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-02090

9NRFTS..NRE210..HI

 1
43409-02090

9NRFTS..NRE210..HI

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0Y420

9NRFTS..NRE210..HI

 1
12325-0Y420

9NRFTS..NRE210..HI

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0Y280

9NRFTS..NRE210..HI

 1
12363-0Y280

9NRFTS..NRE210..HI

 1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-0Y200

9NRFTS..NRE210..HI

 1
12364-0Y200

9NRFTS..NRE210..HI

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0Y380

9NRFTS..NRE210..HI

 1
12372-0Y380

9NRFTS..NRE210..HI

 1
Common parts
90105-10603
90105-C0040
90105-C0095
90105-C0336
90105-C0338
90105-C0355
90119-C0085
90119-C0513
90119-C0514
90119-C0515
90119-C0516
90119-C0525
90119-C0538
90178-C0136
90178-C0137
90178-C0138
90182-C0025
91552-81030
91552-81080
Linked diagrams
1701
