NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )9NRFTS

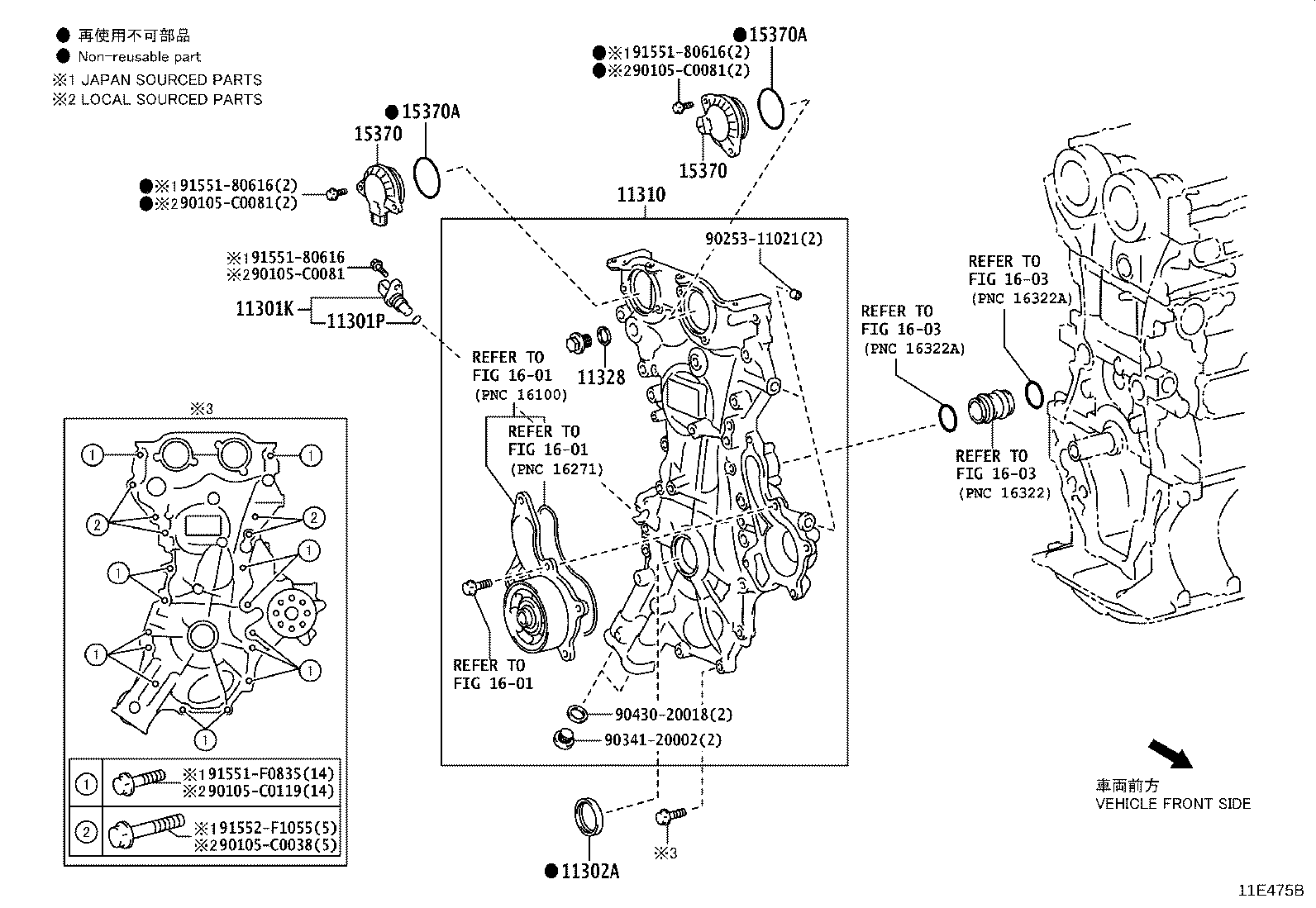

Click highlighted areas on diagram

diagram 11301K 11301P 11302A 11310 11328 15370 15370 15370A 15370A 1601 1601 1601 1603 1603 1603 90105C0038 90105C0081 90105C0081 90105C0081 90105C0119 9025311021 9034120002 9043020018 9155180616 9155180616 9155180616 91551F0835 91552F1055
Part # Description Qty Price
11301K - SENSOR, CRANK POSITION
90919-C5003

9NRFTS..NRE210

*662

 1
90919-05079

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
90919-05079

9NRFTS..NRE210

*602

 1
11301P - O RING, CRANK POSITION SENSOR
90301-14016

9NRFTS..NRE210

*662

 1
90301-14016

9NRFTS..NRE210..HI

*602

 1
90301-14016

9NRFTS..NRE210..HI

*602

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-C0020

9NRFTS..NRE210

*662

 1
90311-36007

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
90311-36007

9NRFTS..NRE210

*602

 1
11310 - COVER ASSY, TIMING CHAIN
11310-47081

9NRFTS..NRE210

*602

 1
11310-0Y091

9NRFTS..NRE210

*662

 1
11310-47081

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-47010

9NRFTS..NRE210

*602

 1
11328-0Y010

9NRFTS..NRE210

*662

 1
11328-47010

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
15370 - SOLENOID ASSY, CAM TIMING OIL CONTROL
15370-47010

9NRFTS..NRE210

*602

 2
15370-47010

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 2
15370-0Y010

9NRFTS..NRE210

*662

 2
15370 - SOLENOID ASSY, CAM TIMING OIL CONTROL
15370-47010

9NRFTS..NRE210

*602

 2
15370-47010

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 2
15370-0Y010

9NRFTS..NRE210

*662

 2
15370A - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
90301-50003

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 2
90301-50003

9NRFTS..NRE210

*602

 2
90301-C0080

9NRFTS..NRE210

*662

 2
15370A - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
90301-50003

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 2
90301-50003

9NRFTS..NRE210

*602

 2
90301-C0080

9NRFTS..NRE210

*662

 2
Common parts
90105-C0038
90105-C0081
90105-C0119
90253-11021
90341-20002
90430-20018
91551-80616
91551-F0835
91552-F1055
Linked diagrams
1601
1603
