NRE210L-GEXGZC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

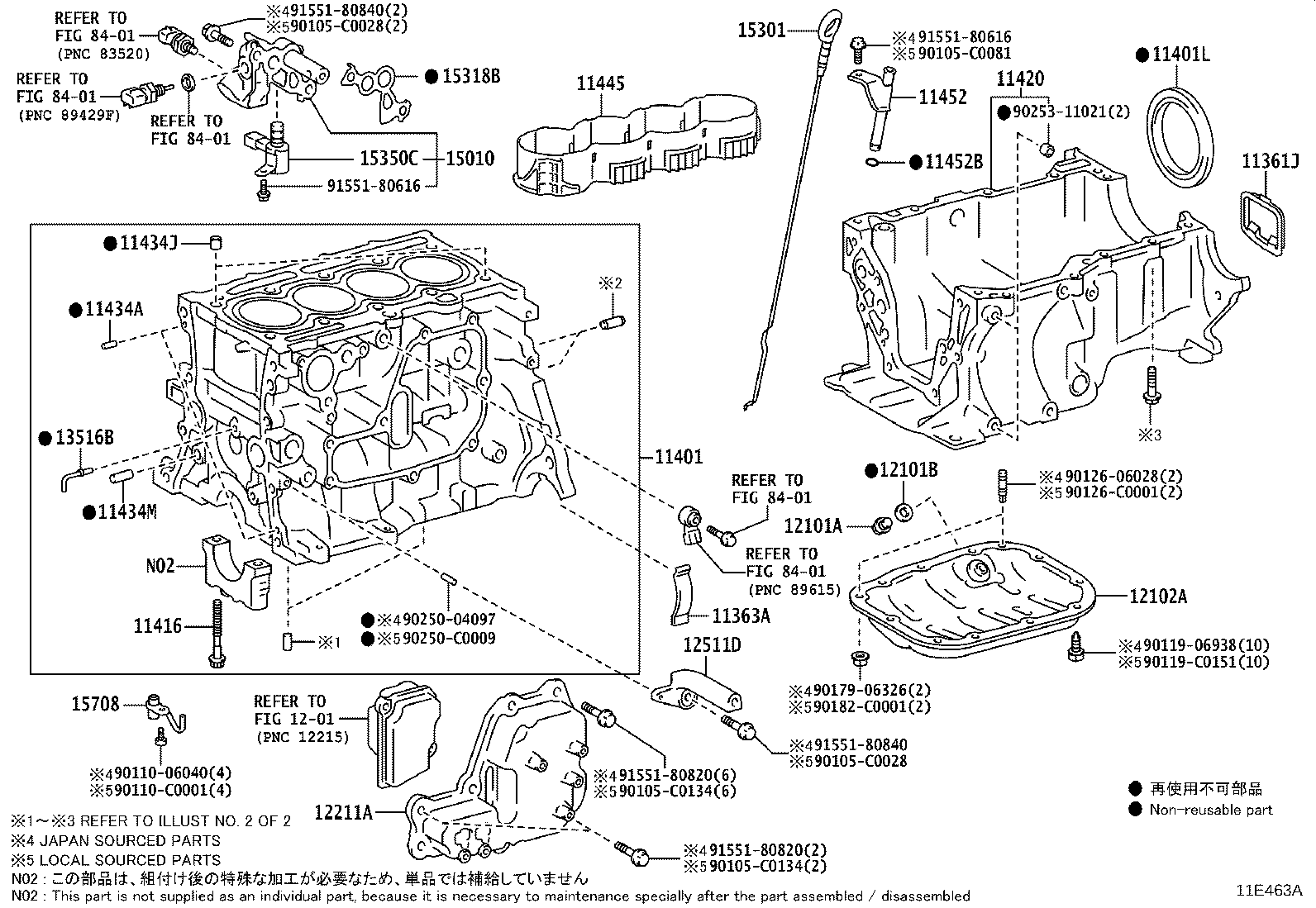

ILLUST NO. 1 OF 2(1908- )9NRFTS

Click highlighted areas on diagram

diagram 11361J 11363A 11401 11401L 11416 11420 11434A 11434J 11434M 11445 11452 11452B 1201 12101A 12101B 12102A 12211A 12511D 13516B 15010 15301 15318B 15350C 15708 8401 8401 8401 8401 8401 90105C0028 90105C0028 90105C0081 90105C0134 90105C0134 9011006040 90110C0001 9011906938 90119C0151 9012606028 90126C0001 9017906326 90182C0001 9025004097 90250C0009 9025311021 9155180616 9155180616 9155180820 9155180820 9155180840 9155180840
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-0T020

9NRFTS..NRE210..HI

 1
11361-0T020

9NRFTS..NRE210..HI

 1
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-33010

9NRFTS..NRE210..HI

 1
11363-33010

9NRFTS..NRE210..HI

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-09780

9NRFTS..NRE210

*662

 1
11410-49065

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
11410-49065

9NRFTS..NRE210

*602

 1
11401L - SEAL, ENGINE REAR OIL
90311-78002

9NRFTS..NRE210

*602

 1
90311-C0007

9NRFTS..NRE210

*662

 1
90311-78002

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-C2001

9NRFTS..NRE210

*662

 10
90910-02163

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 10
90910-02163

9NRFTS..NRE210

*602

 10
11420 - CRANKCASE ASSY, STIFFENING
11420-47010

9NRFTS..NRE210

*602

 1
11420-47010

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
11420-0Y010

9NRFTS..NRE210

*662

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-C0009

9NRFTS..NRE210

L=12,OD=4.0,*662

 1
90250-04097

9NRFTS..NRE210

L=12,OD=4.0,*602

 2
90250-04097

9NRFTS..NRE210

L=12,OD=4.0,EXHAUST EMISSION CONTROL-CHINA 6,*602

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-14003

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 2
90253-C0007

9NRFTS..NRE210

*662

 2
90253-14003

9NRFTS..NRE210

*602

 2
11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER)
90250-C0006

9NRFTS..NRE210

*662

 1
90250-10030

9NRFTS..NRE210

*602

 1
90250-10030

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-47040

9NRFTS..NRE210

*602

 1
11445-47040

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
11445-0Y030

9NRFTS..NRE210

*662

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-47030

9NRFTS..NRE210

*602

 1
11452-47030

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
11452-0Y040

9NRFTS..NRE210

*662

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
96721-19010

9NRFTS..NRE210

*602

 1
90301-C0037

9NRFTS..NRE210

*662

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

9NRFTS..NRE210

*602

 1
90341-C0013

9NRFTS..NRE210

*662

 1
90341-12012

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-C0005

9NRFTS..NRE210

*662

 1
90430-12031

9NRFTS..NRE210

*602

 1
90430-12031

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-47030

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
12102-47030

9NRFTS..NRE210

*602

 1
12102-0Y010

9NRFTS..NRE210

*662

 1
12211A - CASE, VENTILATION, NO.1
12211-47010

9NRFTS..NRE210

*602

 1
12211-47010

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
12211-0Y010

9NRFTS..NRE210

*662

 1
12511D - BRACKET, ALTERNATOR
12511-0Y010

9NRFTS..NRE210

*662

 1
12511-47010

9NRFTS..NRE210

*602

 1
12511-47010

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
13516B - JET, OIL
13516-40010

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
13516-40010

9NRFTS..NRE210

*602

 1
13516-0Y010

9NRFTS..NRE210

*662

 1
15010 - HOUSING ASSY, OIL PUMP RELIEF VALVE
15010-0Y010

9NRFTS..NRE210

(L),*662

 1
15010-47010

9NRFTS..NRE210

*602

 1
15010-47010

9NRFTS..NRE210

(J),*662

 1
15010-47010

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
15010-0Y010

9NRFTS..NRE210

*662

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-47070

9NRFTS..NRE210

*602

 1
15301-0Y060

9NRFTS..NRE210

*662

 1
15301-47070

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
15318B - GASKET, OIL REGULATOR BODY
15318-47010

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
15318-47010

9NRFTS..NRE210

*602

 1
15318-0Y010

9NRFTS..NRE210

*662

 1
15350C - VALVE ASSY, OIL PRESSURE SWITCHING
15350-47010

9NRFTS..NRE210

*662

 1
15350-47010

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 1
15350-47010

9NRFTS..NRE210

*602

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-47070

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 4
15708-0Y050

9NRFTS..NRE210

*662

 4
15708-47070

9NRFTS..NRE210

*602

 4
Common parts
90105-C0028
90105-C0081
90105-C0134
90110-06040
90110-C0001
90119-06938
90119-C0151
90126-06028
90126-C0001
90179-06326
90182-C0001
90250-04097
90250-C0009
90253-11021
91551-80616
91551-80820
91551-80840
Linked diagrams
1201
8401

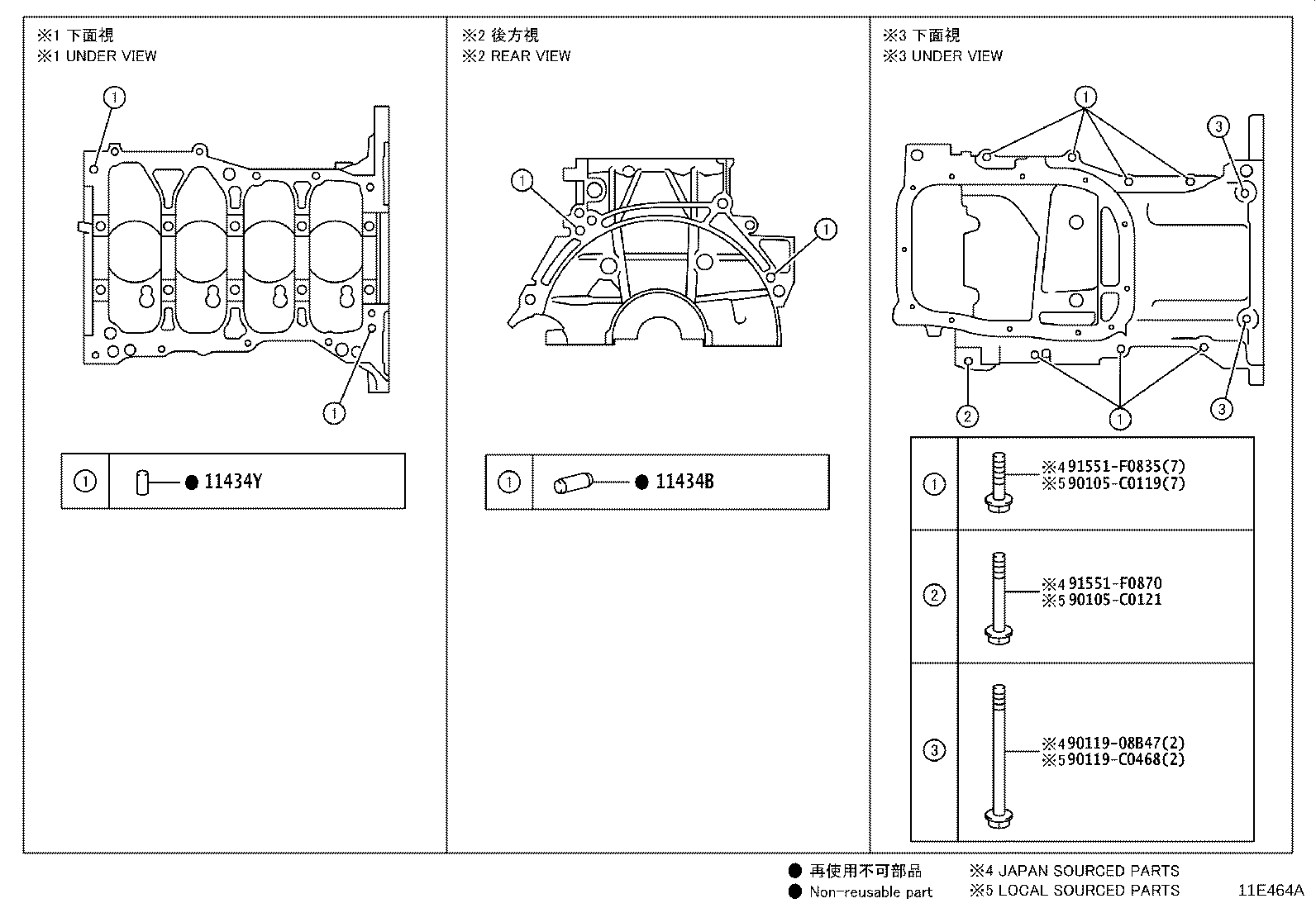

ILLUST NO. 2 OF 2(1908- )9NRFTS

Click highlighted areas on diagram

diagram 11434B 11434Y 90105C0119 90105C0121 9011908B47 90119C0468 91551F0835 91551F0870
Part # Description Qty Price
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

9NRFTS..NRE210

L=22,OD=10,EXHAUST EMISSION CONTROL-CHINA 6,*602

 2
90250-10113

9NRFTS..NRE210

L=22,OD=10,*602

 2
90250-C0012

9NRFTS..NRE210

L=22,OD=10,*662

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-C0011

9NRFTS..NRE210

*662

 2
90250-08120

9NRFTS..NRE210

EXHAUST EMISSION CONTROL-CHINA 6,*602

 2
90250-08120

9NRFTS..NRE210

*602

 2
Common parts
90105-C0119
90105-C0121
90119-08B47
90119-C0468
91551-F0835
91551-F0870
