NRE210L-GEXGZC (2019)
Toyota Corolla

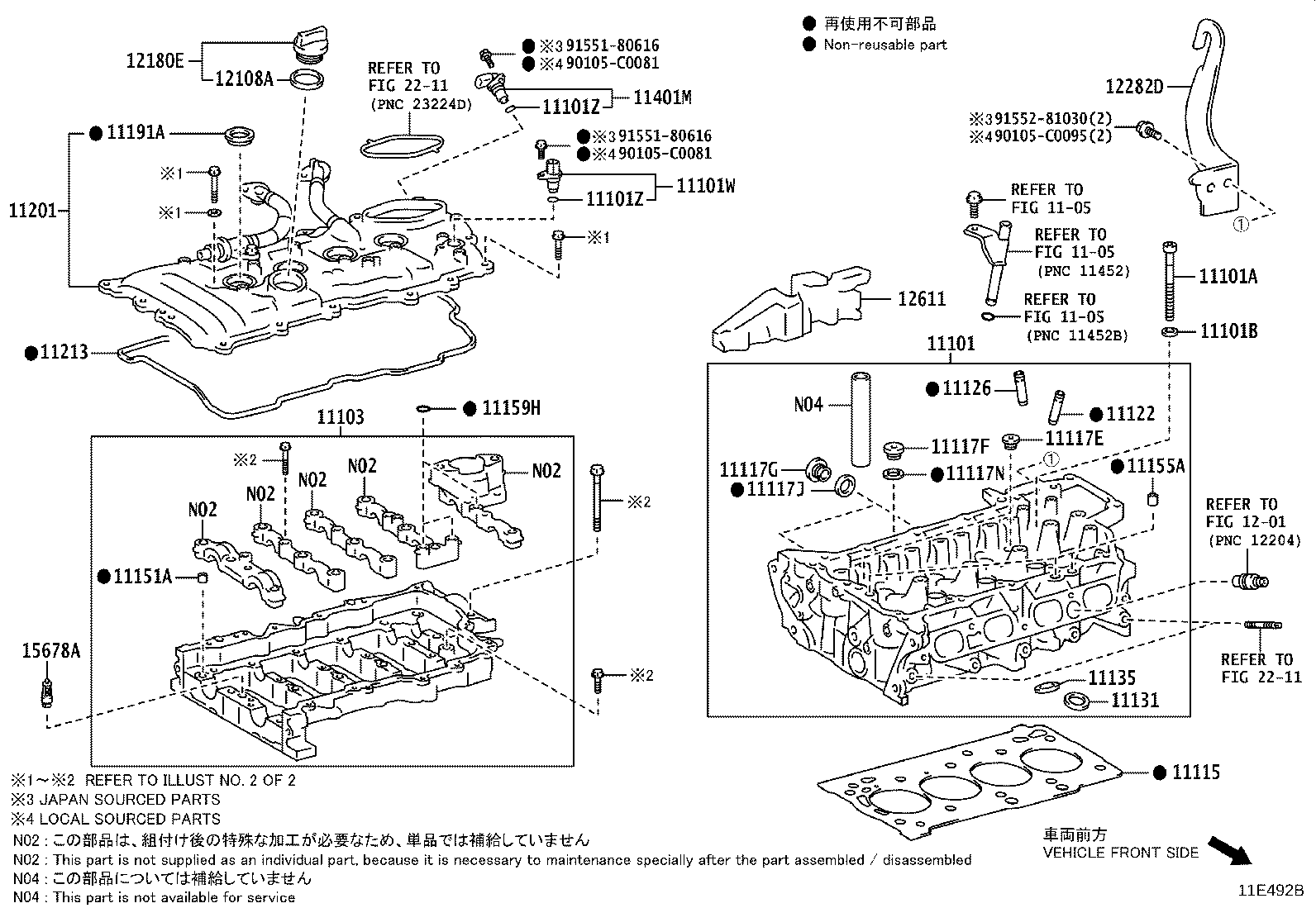

ILLUST NO. 1 OF 2(1908- )9NRFTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-49516 |
9NRFTS..NRE210 *602 |
1 | ||
| 11101-49516 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 11101-09661 |
9NRFTS..NRE210 *662 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-C2002 |
9NRFTS..NRE210 *662 |
10 | ||
| 90910-02190 |
9NRFTS..NRE210 *602 |
10 | ||
| 90910-02190 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
9NRFTS..NRE210 *602 |
10 | ||
| 90201-11034 |
9NRFTS..NRE210 *662 |
10 | ||
| 90201-11034 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
10 | ||
| 11101W - SENSOR, CRANK POSITION, NO.1 | ||||
| 90919-05060 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 90919-C5001 |
9NRFTS..NRE210 *662 |
1 | ||
| 90919-05060 |
9NRFTS..NRE210 *602 |
1 | ||
| 11101Z - O RING, CAM POSITION SENSOR | ||||
| 90301-14016 |
9NRFTS..NRE210..HI *602 |
2 | ||
| 90301-14016 |
9NRFTS..NRE210..HI *602 |
2 | ||
| 90301-14016 |
9NRFTS..NRE210 *662 |
2 | ||
| 11101Z - O RING, CAM POSITION SENSOR | ||||
| 90301-14016 |
9NRFTS..NRE210..HI *602 |
2 | ||
| 90301-14016 |
9NRFTS..NRE210..HI *602 |
2 | ||
| 90301-14016 |
9NRFTS..NRE210 *662 |
2 | ||
| 11103 - HOUSING SUB-ASSY, CAMSHAFT | ||||
| 11103-47050 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 11103-47050 |
9NRFTS..NRE210 *602 |
1 | ||
| 11103-0Y090 |
9NRFTS..NRE210 *662 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-47090 |
9NRFTS..NRE210 *602 |
1 | ||
| 11115-47090 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 11115-0Y050 |
9NRFTS..NRE210 *662 |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-14015 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
2 | ||
| 90341-14015 |
9NRFTS..NRE210 *602 |
2 | ||
| 90341-C0012 |
9NRFTS..NRE210 *662 |
2 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-20002 |
9NRFTS..NRE210 *662 |
1 | ||
| 90341-20002 |
9NRFTS..NRE210 *602 |
1 | ||
| 90341-20002 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 11117G - PLUG, W/HEAD STRAIGHT SCREW, NO.3 | ||||
| 90341-27006 |
9NRFTS..NRE210 *602 |
2 | ||
| 90341-27006 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
2 | ||
| 90341-C0017 |
9NRFTS..NRE210 *662 |
2 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-27005 |
9NRFTS..NRE210 *602 |
2 | ||
| 90430-C0009 |
9NRFTS..NRE210 *662 |
2 | ||
| 90430-27005 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
2 | ||
| 11117N - GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2) | ||||
| 90430-20004 |
9NRFTS..NRE210 *602 |
1 | ||
| 90430-C0001 |
9NRFTS..NRE210 *662 |
1 | ||
| 90430-20004 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-47010 |
9NRFTS..NRE210 STD,EXHAUST EMISSION CONTROL-CHINA 6,*602 |
8 | ||
| 11122-47010 |
9NRFTS..NRE210 STD,*602 |
8 | ||
| 11122-47010 |
9NRFTS..NRE210 STD,*662 |
8 | ||
| 11123-47010 |
9NRFTS..NRE210 O/S 0.05,EXHAUST EMISSION CONTROL-CHINA 6,*602 |
8 | ||
| 11123-47010 |
9NRFTS..NRE210 O/S 0.05,*602 |
8 | ||
| 11123-47010 |
9NRFTS..NRE210 O/S 0.05,*662 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-47010 |
9NRFTS..NRE210 STD,EXHAUST EMISSION CONTROL-CHINA 6,*602 |
8 | ||
| 11123-47010 |
9NRFTS..NRE210 O/S 0.05,EXHAUST EMISSION CONTROL-CHINA 6,*602 |
8 | ||
| 11122-47010 |
9NRFTS..NRE210 STD,*662 |
8 | ||
| 11123-47010 |
9NRFTS..NRE210 O/S 0.05,*662 |
8 | ||
| 11122-47010 |
9NRFTS..NRE210 STD,*602 |
8 | ||
| 11123-47010 |
9NRFTS..NRE210 O/S 0.05,*602 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-47040 |
9NRFTS..NRE210 STD,EXHAUST EMISSION CONTROL-CHINA 6,*602 |
8 | ||
| 11131-47040 |
9NRFTS..NRE210 STD,*602 |
8 | ||
| 11132-47040 |
9NRFTS..NRE210 O/S 0.03,*662 |
8 | ||
| 11132-47040 |
9NRFTS..NRE210 O/S 0.03,EXHAUST EMISSION CONTROL-CHINA 6,*602 |
8 | ||
| 11132-47040 |
9NRFTS..NRE210 O/S 0.03,*602 |
8 | ||
| 11131-0Y090 |
9NRFTS..NRE210 STD,*662 |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-47050 |
9NRFTS..NRE210 STD,EXHAUST EMISSION CONTROL-CHINA 6,*602 |
8 | ||
| 11135-0Y060 |
9NRFTS..NRE210 STD,*662 |
8 | ||
| 11136-47050 |
9NRFTS..NRE210 O/S 0.03,EXHAUST EMISSION CONTROL-CHINA 6,*602 |
8 | ||
| 11135-47050 |
9NRFTS..NRE210 STD,*602 |
8 | ||
| 11136-47010 |
9NRFTS..NRE210 O/S 0.03,*662 |
8 | ||
| 11136-47050 |
9NRFTS..NRE210 O/S 0.03,*602 |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-13005 |
9NRFTS..NRE210 L=12.5,OD=8,EXHAUST EMISSION CONTROL-CHINA 6,*602 |
10 | ||
| 90253-13005 |
9NRFTS..NRE210 L=12.5,OD=8,*602 |
10 | ||
| 90253-C0004 |
9NRFTS..NRE210 L=12.5,OD=8,*662 |
10 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-12002 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
3 | ||
| 90253-C0002 |
9NRFTS..NRE210 *662 |
3 | ||
| 90253-12002 |
9NRFTS..NRE210 *602 |
3 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 90430-C0006 |
9NRFTS..NRE210 *662 |
3 | ||
| 90430-10024 |
9NRFTS..NRE210 *602 |
3 | ||
| 90430-10024 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
3 | ||
| 11191A - GASKET(FOR SPARK PLUG TUBE) | ||||
| 11193-47020 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
4 | ||
| 11193-0Y020 |
9NRFTS..NRE210 *662 |
4 | ||
| 11193-47020 |
9NRFTS..NRE210 *602 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-47161 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 11201-47161 |
9NRFTS..NRE210 *602 |
1 | ||
| 11210-0Y010 |
9NRFTS..NRE210 *662 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-47050 |
9NRFTS..NRE210 *602 |
1 | ||
| 11213-47050 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 11213-0Y040 |
9NRFTS..NRE210 *662 |
1 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05061 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 90919-05061 |
9NRFTS..NRE210 *602 |
1 | ||
| 90919-C5002 |
9NRFTS..NRE210 *662 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
9NRFTS..NRE210 *602 |
1 | ||
| 90430-35001 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 90430-35001 |
9NRFTS..NRE210 *662 |
1 | ||
| 12180E - CAP ASSY, OIL FILLER | ||||
| 12180-38010 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 12180-38010 |
9NRFTS..NRE210 *602 |
1 | ||
| 12180-0T010 |
9NRFTS..NRE210 *662 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-47030 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 12282-47030 |
9NRFTS..NRE210 *602 |
1 | ||
| 12282-0Y070 |
9NRFTS..NRE210 *662 |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-47110 |
9NRFTS..NRE210 *662 |
1 | ||
| 12611-47110 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 12611-47110 |
9NRFTS..NRE210 *602 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-0Y020 |
9NRFTS..NRE210 *662 |
1 | ||
| 15678-46020 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
1 | ||
| 15678-46020 |
9NRFTS..NRE210 *602 |
1 | ||
| Common parts | ||||
| 90105-C0081 | ||||
| 90105-C0095 | ||||
| 91551-80616 | ||||
| 91552-81030 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1201 | ||||
| 2211 | ||||

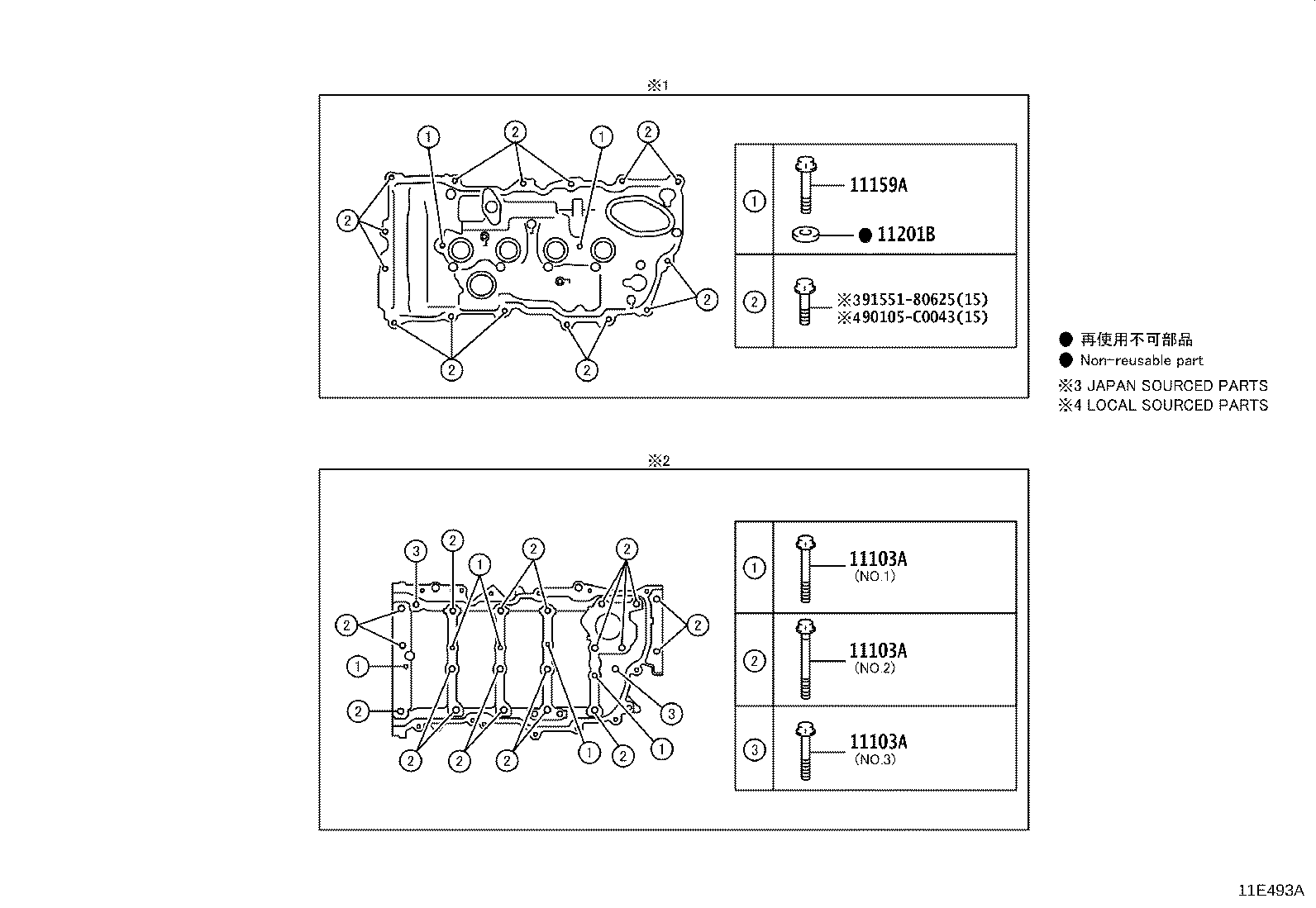

ILLUST NO. 2 OF 2(1908- )9NRFTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90119-07009 |
9NRFTS..NRE210 *602,NO.1:SEE ILLUST |
5 | ||
| 91551-G0845 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.3:SEE ILLUST |
2 | ||
| 90119-07009 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.1:SEE ILLUST |
5 | ||
| 90105-C0167 |
9NRFTS..NRE210 *662,NO.2:REFER ILL. |
19 | ||
| 90105-C0074 |
9NRFTS..NRE210 *662,NO.3:REFER ILL. |
2 | ||
| 90119-C0469 |
9NRFTS..NRE210 *662,NO.1:REFER ILL. |
5 | ||
| 90105-08455 |
9NRFTS..NRE210 *602,NO.2:SEE ILLUST |
19 | ||
| 91551-G0845 |
9NRFTS..NRE210 *602,NO.3:SEE ILLUST |
2 | ||
| 90105-08455 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.2:SEE ILLUST |
19 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90119-07009 |
9NRFTS..NRE210 *602,NO.1:SEE ILLUST |
5 | ||
| 91551-G0845 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.3:SEE ILLUST |
2 | ||
| 90119-07009 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.1:SEE ILLUST |
5 | ||
| 90105-C0167 |
9NRFTS..NRE210 *662,NO.2:REFER ILL. |
19 | ||
| 90105-C0074 |
9NRFTS..NRE210 *662,NO.3:REFER ILL. |
2 | ||
| 90119-C0469 |
9NRFTS..NRE210 *662,NO.1:REFER ILL. |
5 | ||
| 90105-08455 |
9NRFTS..NRE210 *602,NO.2:SEE ILLUST |
19 | ||
| 91551-G0845 |
9NRFTS..NRE210 *602,NO.3:SEE ILLUST |
2 | ||
| 90105-08455 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.2:SEE ILLUST |
19 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90119-07009 |
9NRFTS..NRE210 *602,NO.1:SEE ILLUST |
5 | ||
| 91551-G0845 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.3:SEE ILLUST |
2 | ||
| 90119-07009 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.1:SEE ILLUST |
5 | ||
| 90105-C0167 |
9NRFTS..NRE210 *662,NO.2:REFER ILL. |
19 | ||
| 90105-C0074 |
9NRFTS..NRE210 *662,NO.3:REFER ILL. |
2 | ||
| 90119-C0469 |
9NRFTS..NRE210 *662,NO.1:REFER ILL. |
5 | ||
| 90105-08455 |
9NRFTS..NRE210 *602,NO.2:SEE ILLUST |
19 | ||
| 91551-G0845 |
9NRFTS..NRE210 *602,NO.3:SEE ILLUST |
2 | ||
| 90105-08455 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602,NO.2:SEE ILLUST |
19 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 91551-80635 |
9NRFTS..NRE210 *602 |
2 | ||
| 91551-80635 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
2 | ||
| 90105-C0084 |
9NRFTS..NRE210 *662 |
2 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-C0003 |
9NRFTS..NRE210 *662 |
2 | ||
| 90210-05008 |
9NRFTS..NRE210 *602 |
2 | ||
| 90210-05008 |
9NRFTS..NRE210 EXHAUST EMISSION CONTROL-CHINA 6,*602 |
2 | ||
| Common parts | ||||
| 90105-C0043 | ||||
| 91551-80625 | ||||
