NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )NRE180

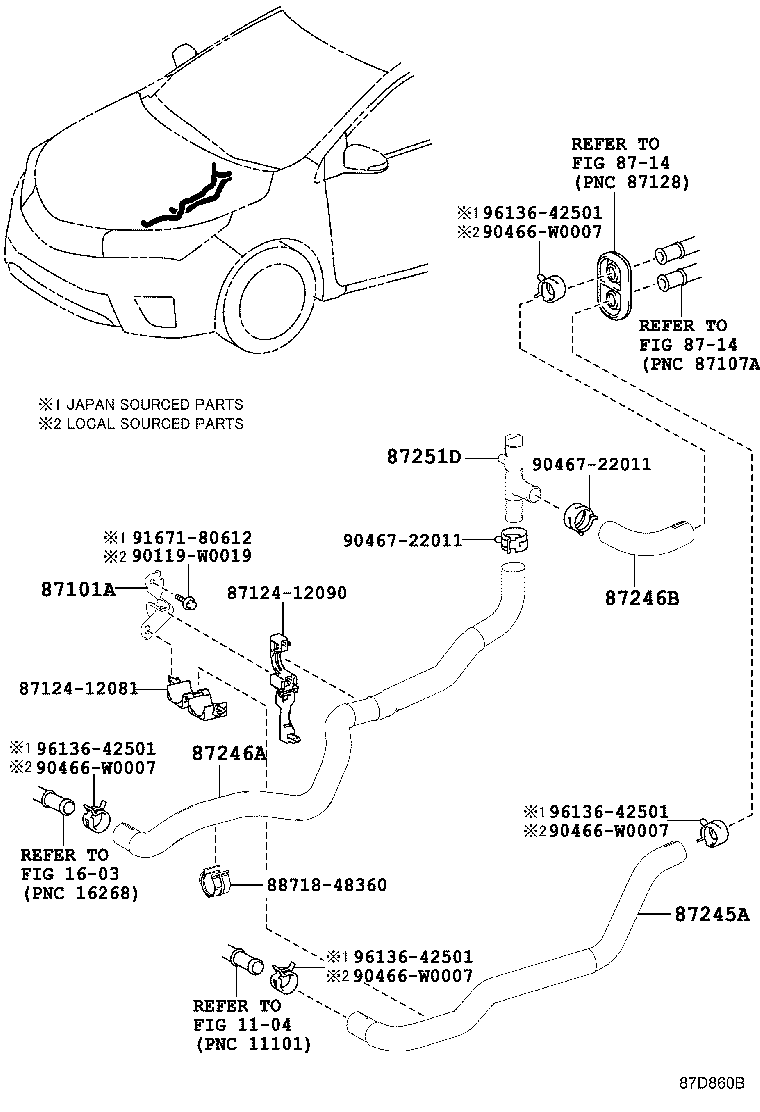

Click highlighted areas on diagram

diagram 1104 1603 87101A 8712412081 8712412090 8714 8714 87245A 87246A 87246B 87251D 8871848360 90119W0019 90466W0007 90466W0007 90466W0007 90466W0007 9046722011 9046722011 9167180612 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87101A - BRACKET SUB-ASSY, HEATER NO.1
87101-02110

NRE180..SAP

 1
87245A - HOSE, HEATER WATER, INLET A
87245-02640

NRE180..SAP

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-02870

NRE180..SAP

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-02G00

NRE180..SAP

 1
87251D - JOINT, WATER, NO.1
87251-12040

NRE180..SAP

 1
Common parts
87124-12081
87124-12090
88718-48360
90119-W0019
90466-W0007
90467-22011
91671-80612
96136-42501
Linked diagrams
1104
1603
8714
