NRE180R-GEFNKN (2014)
Toyota Corolla
ILLUST NO. 1 OF 3(1401-1701)SA

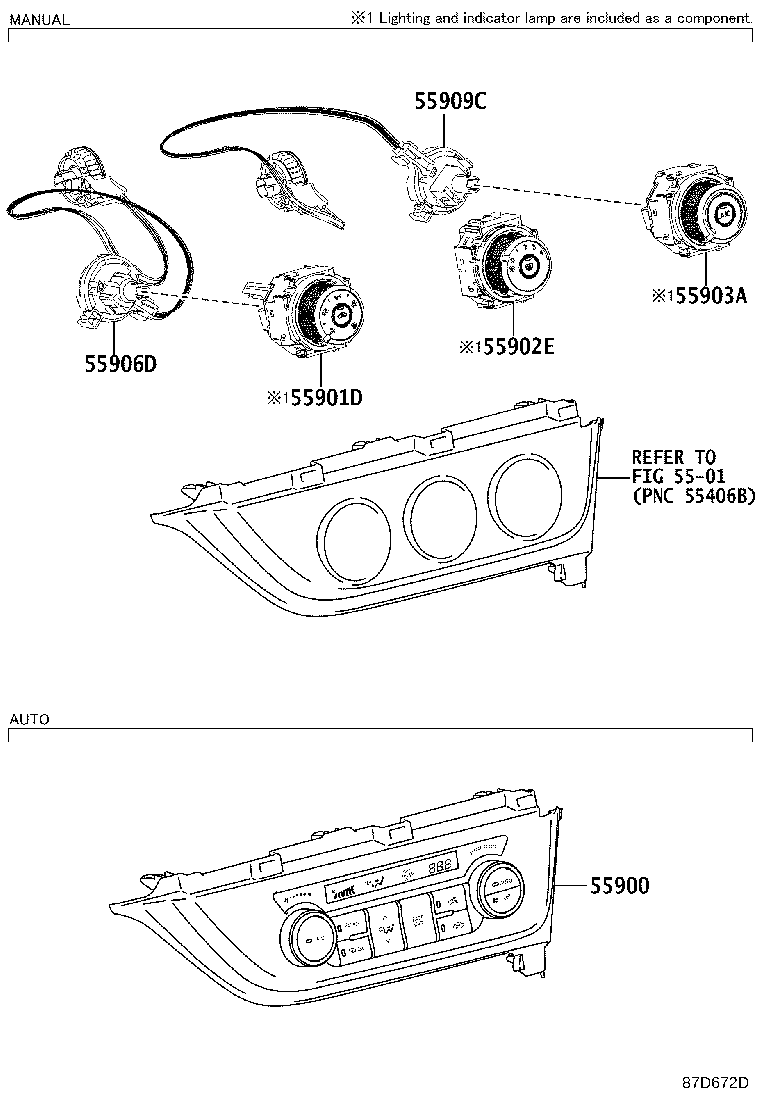

HEATER CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-02520C0 |
NDE180,NRE180,ZRE18#..N..SA OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & WITH(HEATER)&AIR CONDITIONER-AUTOAIR CONDITIONER,BLACK,TRIM2# |
1 | ||
| 55900-02610C0 |
NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER,BLACK,TRIM2# |
1 | ||
| 55900-02610 |
NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 55900-02520 |
NDE180,NRE180,ZRE18#..N..SA OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & WITH(HEATER)&AIR CONDITIONER-AUTOAIR CONDITIONER |
1 | ||
| 55901D - CONTROL SUB-ASSY, HEATER, NO.1 | ||||
| 55901-42040 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55901-42040 |
NDE180,NRE180,ZRE18#..N..SAP AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 55902E - CONTROL SUB-ASSY, HEATER, NO.2 | ||||
| 55902-42160 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55902-42160 |
NDE180,NRE180,ZRE18#..N..SAP AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-12270 |
NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT |
1 | ||
| 55903-42090 |
NRE180,ZRE18#..N..SAP AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 55903-42090 |
NRE180,ZRE18#..SAP |
1 | ||
| 55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2 | ||||
| 55906-0K010 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55906-0K010 |
NDE180,NRE180,ZRE18#..N..SAP AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-0K010 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55909-0K010 |
NDE180,NRE180,ZRE18#..N..SAP AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 2 OF 3(1401- )SA

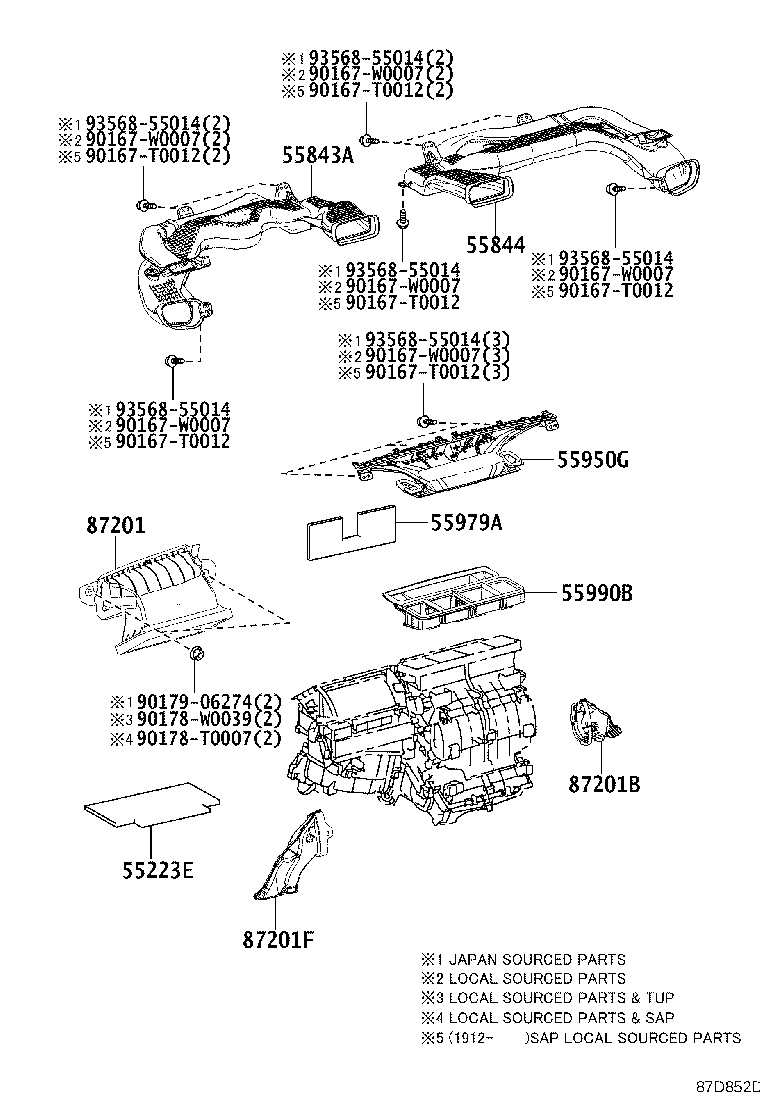

AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55223E - INSULATOR, DASH PANEL HEAT, NO.1 | ||||
| 55223-02310 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55086-02260 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55084-02240 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-02300 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55979A - CUSHION, DEFROSTER NOZZLE | ||||
| 55979-02080 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-02180 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87220-02170 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87211-02261 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87211-02270 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| Common parts | ||||
| 90167-T0012 | ||||
| 90167-W0007 | ||||
| 90178-T0007 | ||||
| 90178-W0039 | ||||
| 90179-06274 | ||||
| 93568-55014 | ||||
ILLUST NO. 3 OF 3(1401- )SA

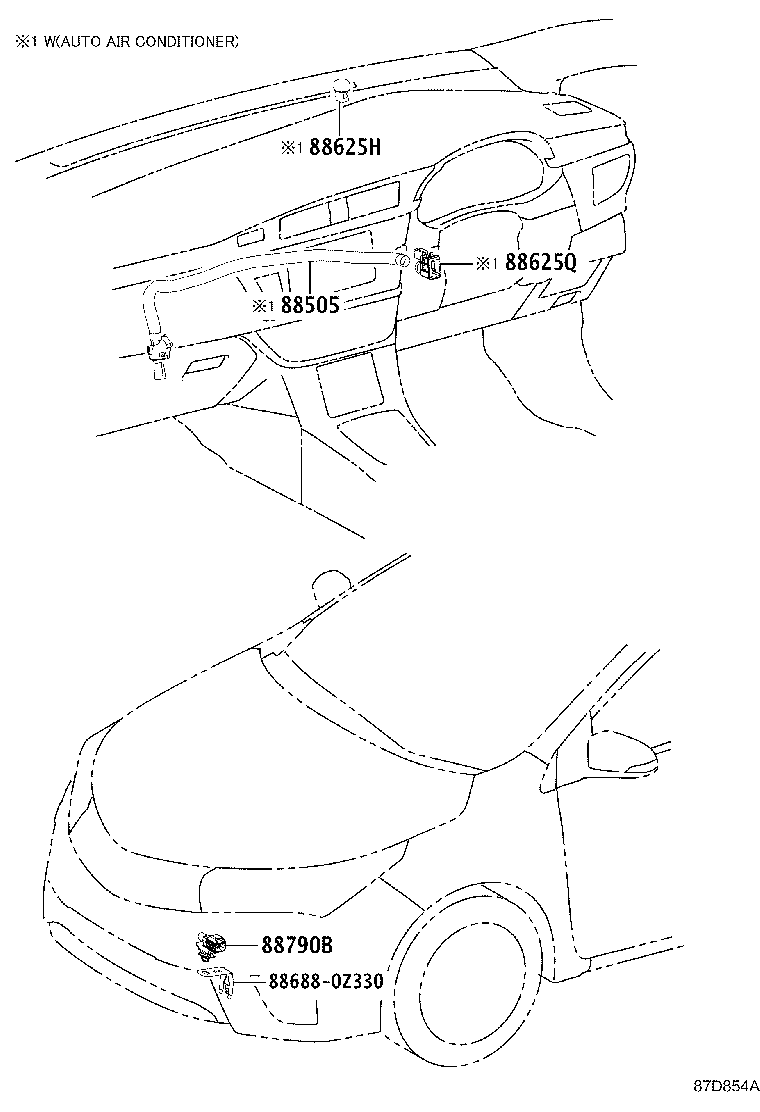

SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88505 - DUCT SUB-ASSY,AIR CONDITIONER | ||||
| 88505-02170 |
NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88790-35070 |
NDE180,NRE180,ZRE18#..N..SAP AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
NDE180,NRE180,ZRE18#..N..SAP AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| Common parts | ||||
| 88688-0Z330 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
