Toyota Corolla NRE180 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
COROLLA
NRE180R-GEFNKN (2014)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017

Engine 1NRFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1401- )SA

Click highlighted areas on diagram

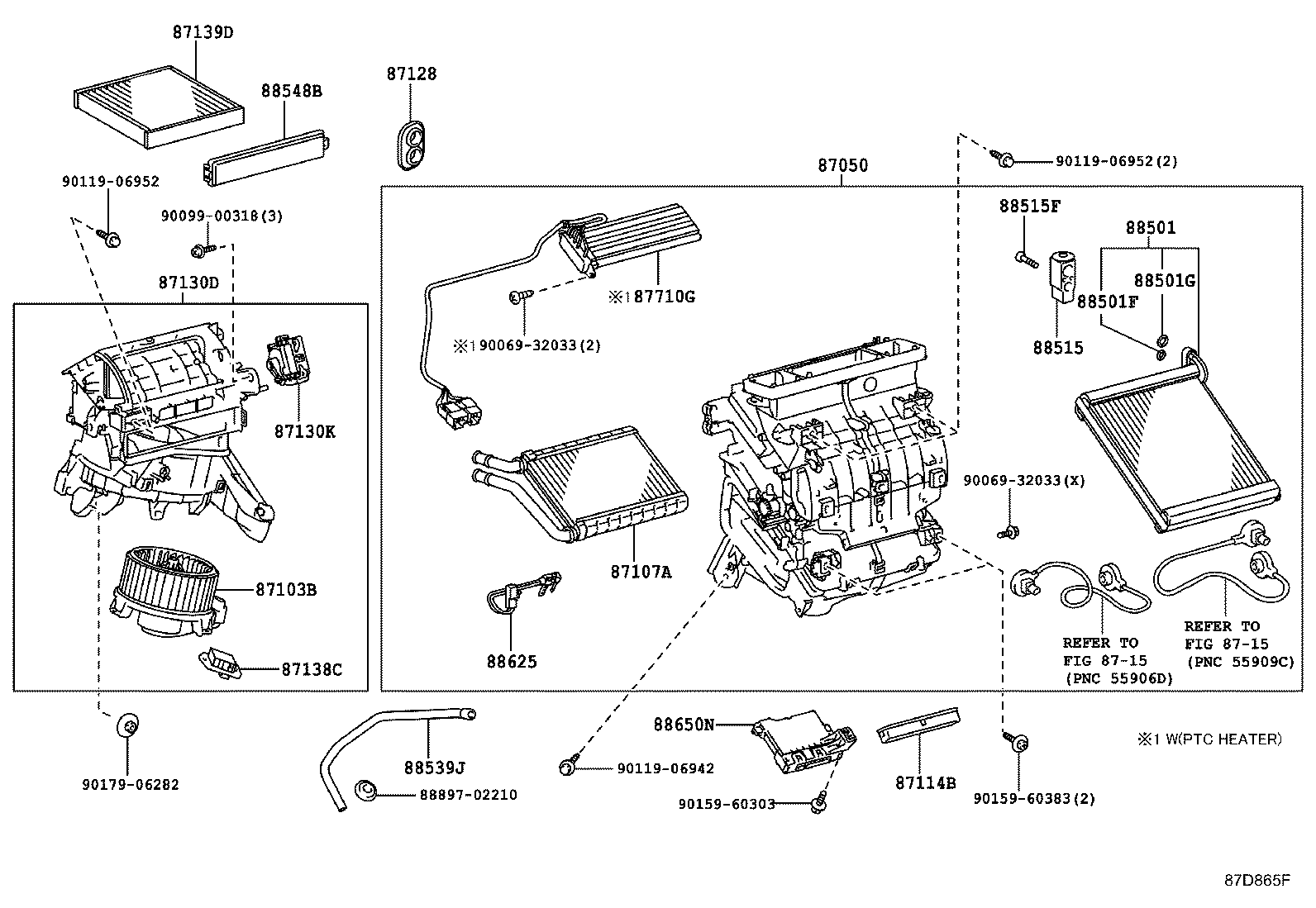

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-02A30	NRE180,ZRE18#..SA	01/2014 - 01/2017	1
87050-02A70	NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT	01/2014 - 01/2017	1
87050-02A50	NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02460	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
87103-02300	NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02210	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
87114B - COVER, HEATER
87114-0K010	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
87128 - GROMMET, HEATER
87128-02140	NDE180,NRE180,ZRE18#..SAP	10/2016 - 01/2017	1
87128-42010	NDE180,NRE180,ZRE18#..SAP	01/2014 - 09/2016	1
87130D - BLOWER ASSY
87130-02392	NRE180,ZRE18#..SA	01/2014 - 01/2017	1
87130-02411	NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-02350	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
87106-02380	NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87138C - RESISTOR, BLOWER
87138-0K090	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
87139D - ELEMENT, AIR REFINER
87139-52040	NDE180,NRE180,ZRE18#..SAP POLLEN FILTER	01/2014 - 01/2017	1
87139-50100	NDE180,NRE180,ZRE18#..SAP *DPF	06/2013 - 01/2017	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12510	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90068-14022	NDE180,NRE180,ZRE18#..SAP ID=10.8,OD=15.6	01/2014 - 01/2017	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90068-14024	NDE180,NRE180,ZRE18#..SAP ID=13.4,OD=18.2	01/2014 - 01/2017	1
88515 - VALVE, COOLER EXPANSION
88515-02600	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04597	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	2
88539J - HOSE, DRAIN COOLER
88539-02280	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
88548B - CASE, AIR FILTER
88548-02080	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
88625 - THERMISTOR, COOLER, NO.1
88625-02110	NDE180,NRE180,ZRE18#..SAP	06/2013 - 01/2017	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-02D70	NDE180,NRE180,ZRE18#..N..SAP AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
88650-0D360	NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT	01/2014 - 01/2017	1
88650-02E30	NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
Common parts
88897-02210
90069-32033
90099-00318
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282
Linked diagrams
8715

(1401- )SA

Click highlighted areas on diagram

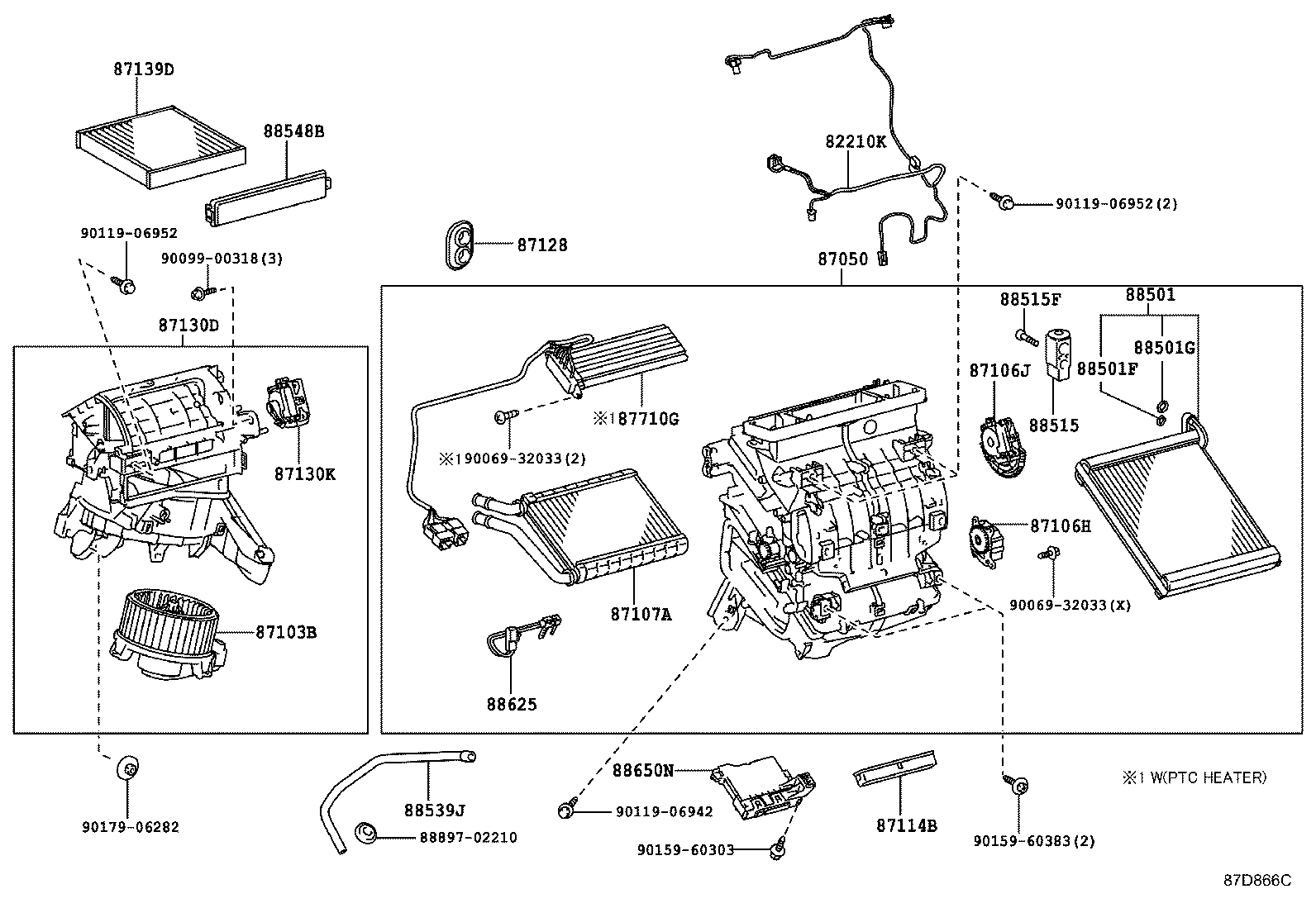

AUTO AIR CONDITIONER

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-02060	NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-02A30	NRE180,ZRE18#..SA	01/2014 - 01/2017	1
87050-02A70	NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT	01/2014 - 01/2017	1
87050-02A50	NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02460	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
87103-02300	NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-02360	NDE180,NRE180,ZRE18#..N..SAP AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-02370	NDE180,NRE180,ZRE18#..N..SAP AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02210	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
87114B - COVER, HEATER
87114-0K010	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
87128 - GROMMET, HEATER
87128-02140	NDE180,NRE180,ZRE18#..SAP	10/2016 - 01/2017	1
87128-42010	NDE180,NRE180,ZRE18#..SAP	01/2014 - 09/2016	1
87130D - BLOWER ASSY
87130-02392	NRE180,ZRE18#..SA	01/2014 - 01/2017	1
87130-02411	NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-02350	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
87106-02380	NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87139D - ELEMENT, AIR REFINER
87139-52040	NDE180,NRE180,ZRE18#..SAP POLLEN FILTER	01/2014 - 01/2017	1
87139-50100	NDE180,NRE180,ZRE18#..SAP *DPF	06/2013 - 01/2017	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12510	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90068-14022	NDE180,NRE180,ZRE18#..SAP ID=10.8,OD=15.6	01/2014 - 01/2017	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90068-14024	NDE180,NRE180,ZRE18#..SAP ID=13.4,OD=18.2	01/2014 - 01/2017	1
88515 - VALVE, COOLER EXPANSION
88515-02600	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04597	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	2
88539J - HOSE, DRAIN COOLER
88539-02280	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
88548B - CASE, AIR FILTER
88548-02080	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
88625 - THERMISTOR, COOLER, NO.1
88625-02110	NDE180,NRE180,ZRE18#..SAP	06/2013 - 01/2017	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-02D70	NDE180,NRE180,ZRE18#..N..SAP AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
88650-0D360	NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT	01/2014 - 01/2017	1
88650-02E30	NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
Common parts
88897-02210
90069-32033
90099-00318
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282

(1401- )ZRE182..N..SA ; (1401- )NDE180,NRE180,ZRE181..SA

Click highlighted areas on diagram

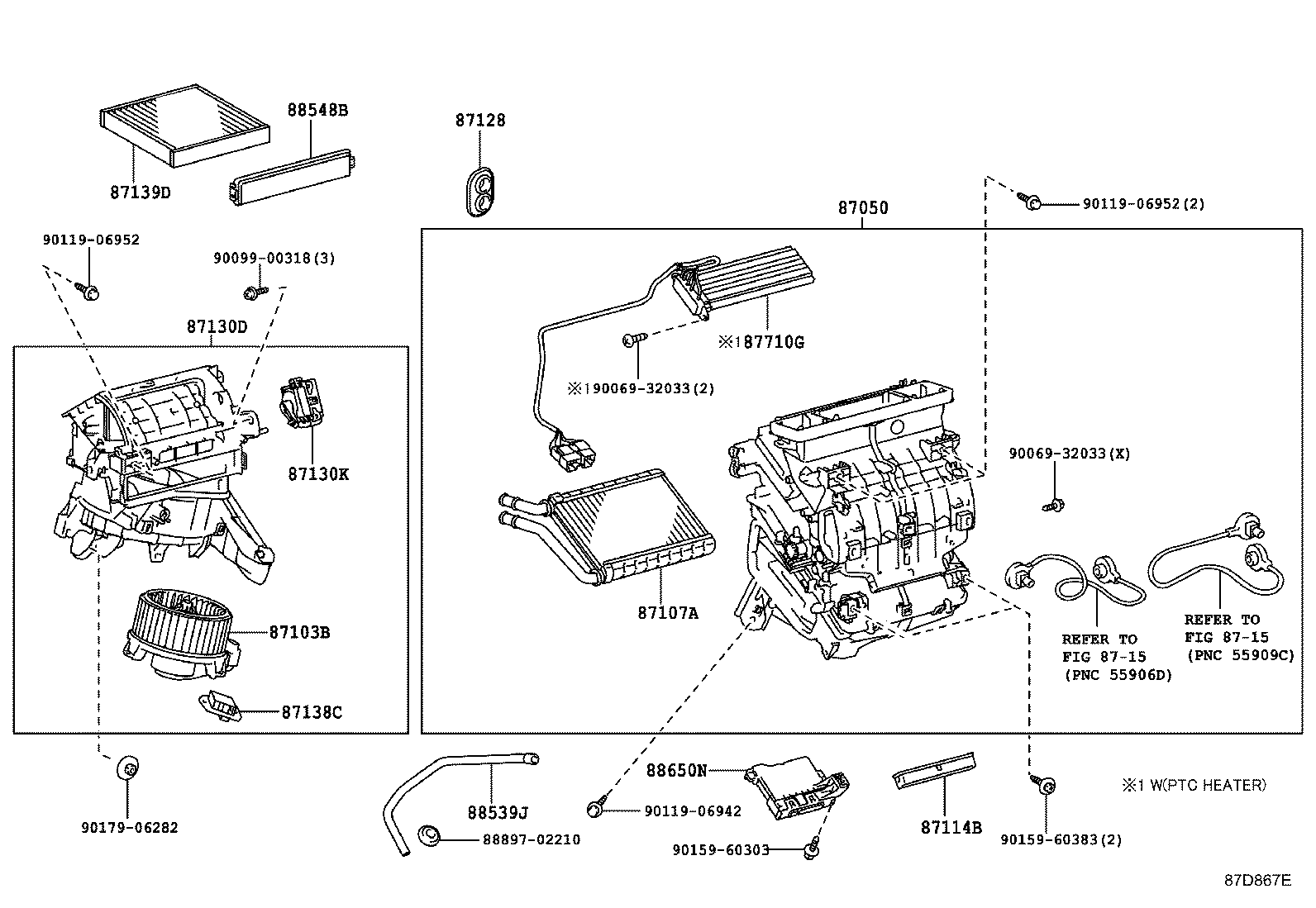

MANUAL HEATER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-02A30	NRE180,ZRE18#..SA	01/2014 - 01/2017	1
87050-02A70	NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT	01/2014 - 01/2017	1
87050-02A50	NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02460	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
87103-02300	NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02210	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
87114B - COVER, HEATER
87114-0K010	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
87128 - GROMMET, HEATER
87128-02140	NDE180,NRE180,ZRE18#..SAP	10/2016 - 01/2017	1
87128-42010	NDE180,NRE180,ZRE18#..SAP	01/2014 - 09/2016	1
87130D - BLOWER ASSY
87130-02392	NRE180,ZRE18#..SA	01/2014 - 01/2017	1
87130-02411	NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-02350	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
87106-02380	NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
87138C - RESISTOR, BLOWER
87138-0K090	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
87139D - ELEMENT, AIR REFINER
87139-52040	NDE180,NRE180,ZRE18#..SAP POLLEN FILTER	01/2014 - 01/2017	1
87139-50100	NDE180,NRE180,ZRE18#..SAP *DPF	06/2013 - 01/2017	1
88539J - HOSE, DRAIN COOLER
88539-02280	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
88548B - CASE, AIR FILTER
88548-02080	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-02D70	NDE180,NRE180,ZRE18#..N..SAP AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
88650-0D360	NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT	01/2014 - 01/2017	1
88650-02E30	NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
Common parts
88897-02210
90069-32033
90099-00318
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282
Linked diagrams
8715
