NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1306-1605)TUP ; (1306-1701)SAP

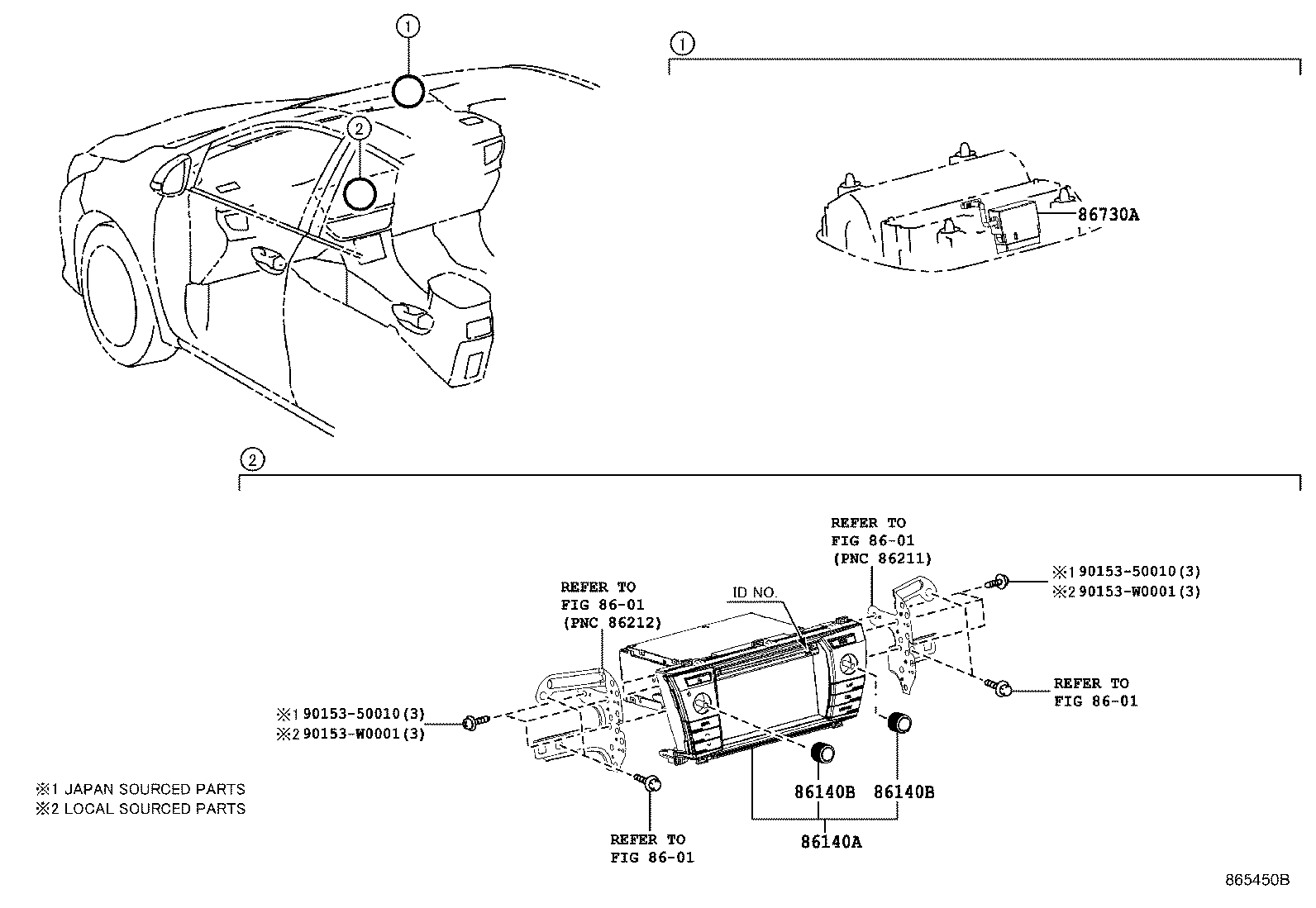

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86140A 86140B 86140B 86730A 9015350010 9015350010 90153W0001 90153W0001
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-02450

NDE180,NRE180,ZRE18#..N..SA

PIONEER,ID=P11102,EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
86140-02270

NDE180,NRE180,ZRE18#..N..SA

PIONEER,ID=P10518,EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
86140-02250

NDE180,NRE180,ZRE18#..N..SA

PIONEER,ID=P10517,AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
86140-02430

NDE180,NRE180,ZRE18#..N..SA

PIONEER,ID=P11103,AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25256

NDE180,NRE180,ZRE18#..N..SA

EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 2
90011-25256

NDE180,NRE180,ZRE18#..N..SA

AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 2
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25256

NDE180,NRE180,ZRE18#..N..SA

EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 2
90011-25256

NDE180,NRE180,ZRE18#..N..SA

AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 2
86730A - MICROPHONE ASSY, TELEPHONE
86730-02020

NDE180,NRE180,ZRE181..D..SA

AUDIO-RADIOLESS 4SPEAKER

 1
86730-02020

NDE180,NRE180,ZRE18#..SA

 1
86730-02020

NDE180,NRE180,ZRE18#..N..SA

AUDIO-RADIOLESS 6SPEAKER

 1
86730-02020

NDE180,NRE180,ZRE18#..SA

AUDIO-EXTRA & CD & USB & 6SPEAKER

 1
Common parts
90153-50010
90153-W0001
Linked diagrams
8601

(1606- )TUP ; (1701- )SAP

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86140A 86730A 9015350010 9015350010 90153W0001 90153W0001
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-02450

NDE180,NRE180,ZRE18#..N..SA

PIONEER,ID=P11102,EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
86140-02270

NDE180,NRE180,ZRE18#..N..SA

PIONEER,ID=P10518,EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
86140-02250

NDE180,NRE180,ZRE18#..N..SA

PIONEER,ID=P10517,AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
86140-02430

NDE180,NRE180,ZRE18#..N..SA

PIONEER,ID=P11103,AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-02020

NDE180,NRE180,ZRE181..D..SA

AUDIO-RADIOLESS 4SPEAKER

 1
86730-02020

NDE180,NRE180,ZRE18#..SA

 1
86730-02020

NDE180,NRE180,ZRE18#..N..SA

AUDIO-RADIOLESS 6SPEAKER

 1
86730-02020

NDE180,NRE180,ZRE18#..SA

AUDIO-EXTRA & CD & USB & 6SPEAKER

 1
Common parts
90153-50010
90153-W0001
Linked diagrams
8601
