NRE180R-GEFNKN (2014)
Toyota Corolla
(1401- )D,N..SAP

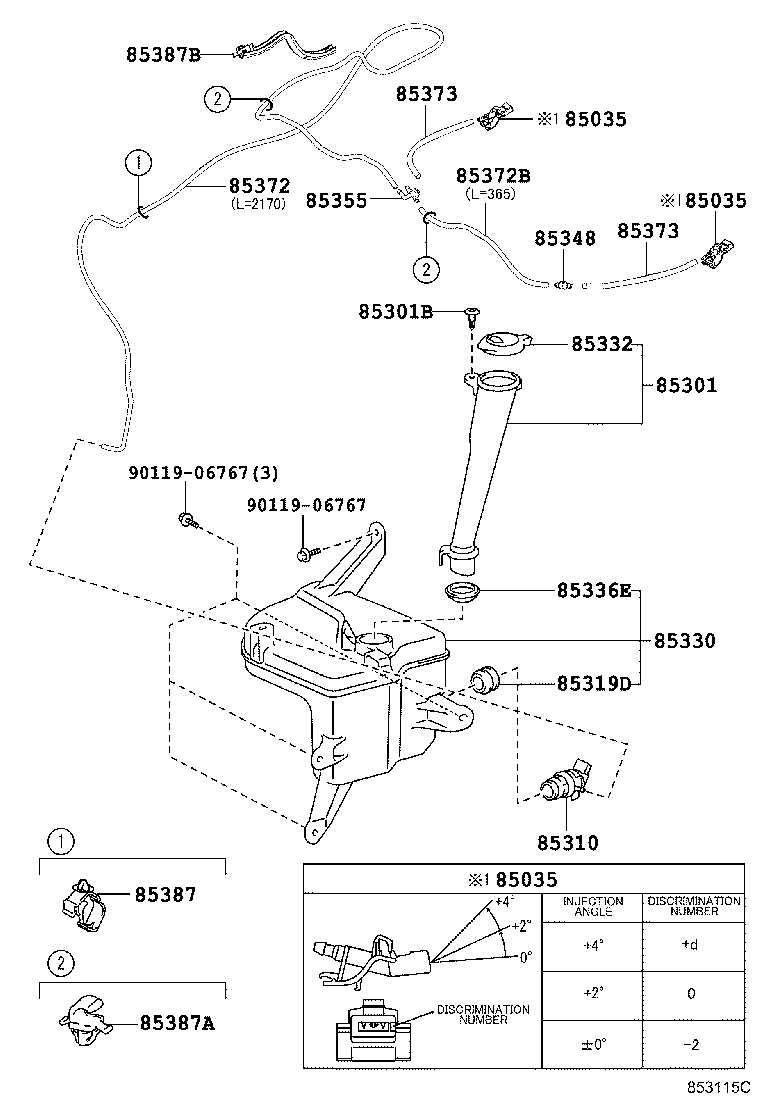

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
NDE180,NRE180,ZRE18#..SAP ANGLE 0 |
2 | ||
| 85381-12420 |
NDE180,NRE180,ZRE18#..SAP ANGLE +2 |
2 | ||
| 85381-12430 |
NDE180,NRE180,ZRE18#..SAP ANGLE +4 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
NDE180,NRE180,ZRE18#..SAP ANGLE 0 |
2 | ||
| 85381-12420 |
NDE180,NRE180,ZRE18#..SAP ANGLE +2 |
2 | ||
| 85381-12430 |
NDE180,NRE180,ZRE18#..SAP ANGLE +4 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
NDE180,NRE180,ZRE18#..SAP ANGLE 0 |
2 | ||
| 85381-12420 |
NDE180,NRE180,ZRE18#..SAP ANGLE +2 |
2 | ||
| 85381-12430 |
NDE180,NRE180,ZRE18#..SAP ANGLE +4 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-02040 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85301-02020 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH |
1 | ||
| 85301B - CLIP, WASHER | ||||
| 90467-07076C0 |
NDE180,NRE180,ZRE18#..SAP BLACK |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-21010 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85330-02030 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85336-60300 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85355-02230 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH |
1 | ||
| 85315-02570 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-16070 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85316-0D010 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 90069-38005 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH |
1 | ||
| 85336-30160 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-05050 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85376-02240 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90069-16010 |
NDE180,NRE180,ZRE18#..SAP *318:REFER ILLUST. |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90069-16009 |
NDE180,NRE180,ZRE18#..SAP *318:REFER ILLUST. |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-62080 |
NDE180,NRE180,ZRE18#..SAP L=170 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-62080 |
NDE180,NRE180,ZRE18#..SAP L=170 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-1E350 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85371-12040 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 85387-02450 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||

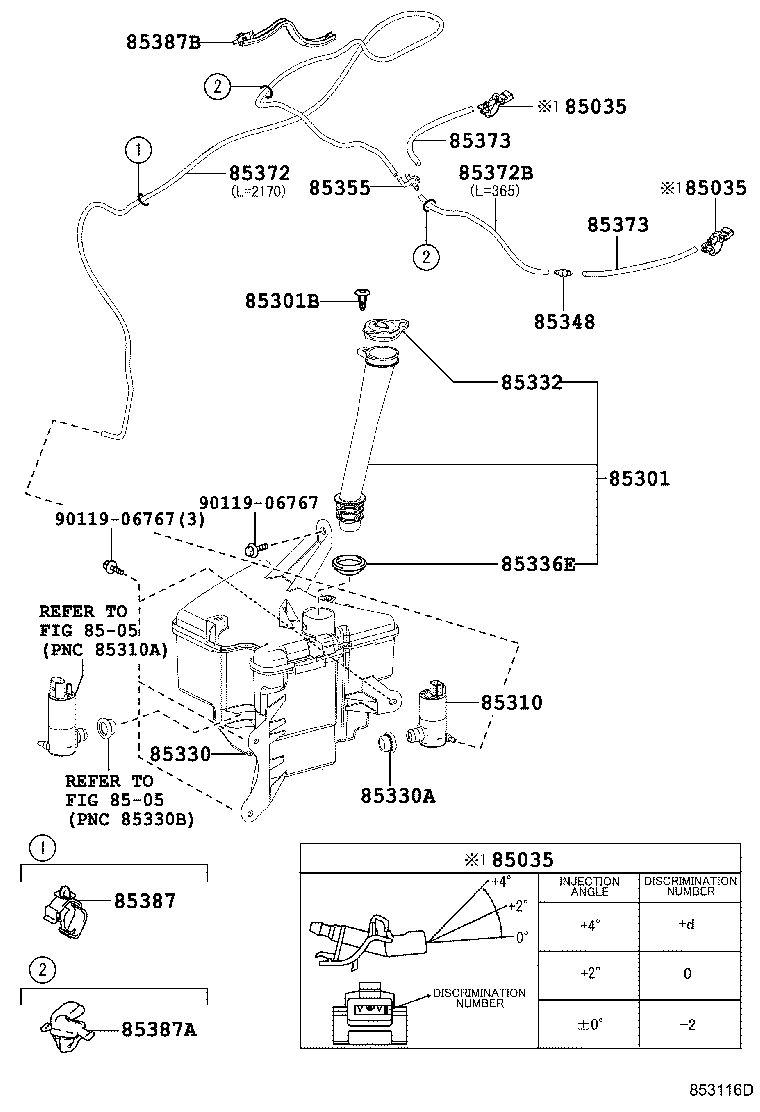

(1401-1701)NRE180..SAP ; (1401-1701)NDE180,ZRE18#..N..SAP
W(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
NDE180,NRE180,ZRE18#..SAP ANGLE 0 |
2 | ||
| 85381-12420 |
NDE180,NRE180,ZRE18#..SAP ANGLE +2 |
2 | ||
| 85381-12430 |
NDE180,NRE180,ZRE18#..SAP ANGLE +4 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
NDE180,NRE180,ZRE18#..SAP ANGLE 0 |
2 | ||
| 85381-12420 |
NDE180,NRE180,ZRE18#..SAP ANGLE +2 |
2 | ||
| 85381-12430 |
NDE180,NRE180,ZRE18#..SAP ANGLE +4 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
NDE180,NRE180,ZRE18#..SAP ANGLE 0 |
2 | ||
| 85381-12420 |
NDE180,NRE180,ZRE18#..SAP ANGLE +2 |
2 | ||
| 85381-12430 |
NDE180,NRE180,ZRE18#..SAP ANGLE +4 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-02040 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85301-02020 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH |
1 | ||
| 85301B - CLIP, WASHER | ||||
| 90467-07076C0 |
NDE180,NRE180,ZRE18#..SAP BLACK |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-21010 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85330-02030 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85355-02230 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH |
1 | ||
| 85315-02570 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90069-20005 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-16070 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85316-0D010 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 90069-38005 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH |
1 | ||
| 85336-30160 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-05050 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85376-02240 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90069-16010 |
NDE180,NRE180,ZRE18#..SAP *318:REFER ILLUST. |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90069-16009 |
NDE180,NRE180,ZRE18#..SAP *318:REFER ILLUST. |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-62080 |
NDE180,NRE180,ZRE18#..SAP L=170 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-62080 |
NDE180,NRE180,ZRE18#..SAP L=170 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-1E350 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85371-12040 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 85387-02450 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8505 | ||||
