NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )SA

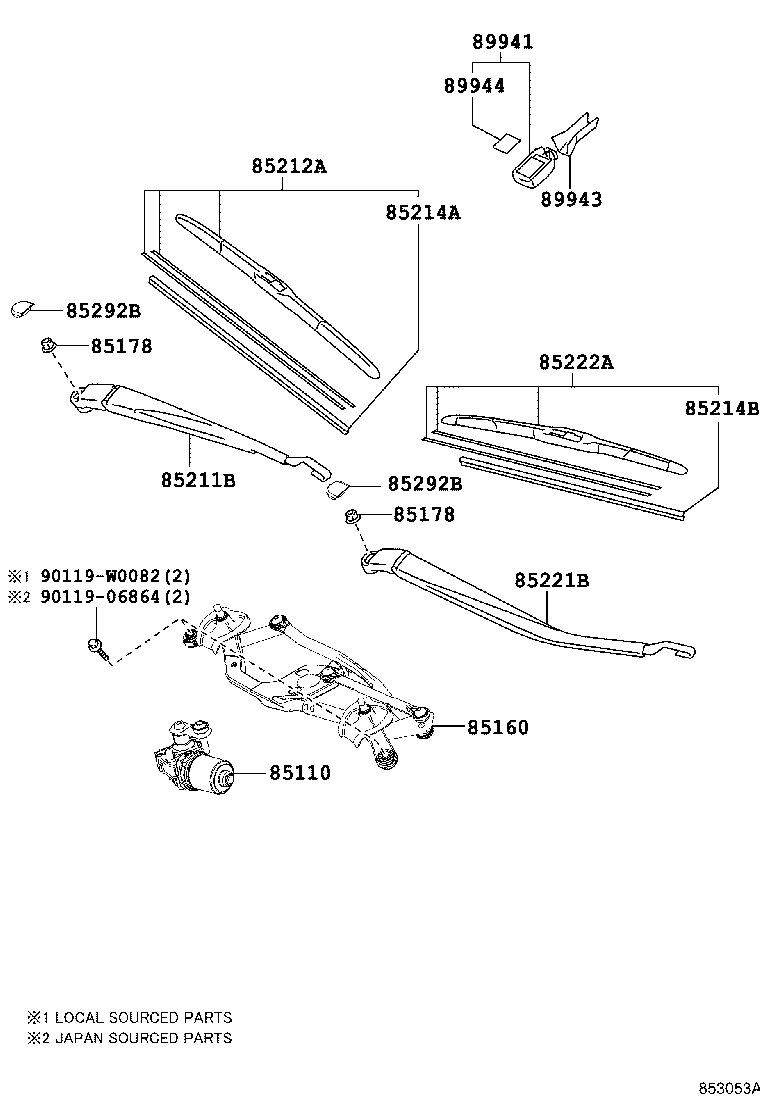

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 89941 89943 89944 9011906864 90119W0082
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-02330

NDE180,NRE180,ZRE18#..SA

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-02350

NDE180,NRE180,ZRE18#..SA

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

NDE180,NRE180,ZRE18#..SAP

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

NDE180,NRE180,ZRE18#..SAP

 2
85211B - ARM, FRONT WIPER, RH
85211-02290

NDE180,NRE180,ZRE18#..SA

 1
85212A - BLADE, FR WIPER, RH
85212-02290

NDE180,NRE180,ZRE18#..SA

 1
85214A - RUBBER, WIPER, RH
85214-02340

NDE180,NRE180,ZRE18#..SA

 1
85214B - RUBBER, WIPER, LH
85214-02260

NDE180,NRE180,ZRE18#..SA

 1
85221B - ARM, FRONT WIPER, LH
85221-02300

NDE180,NRE180,ZRE18#..SA

 1
85222A - BLADE, FR WIPER, LH
85222-02260

NDE180,NRE180,ZRE18#..SA

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-0F010

NDE180,NRE180,ZRE18#..SAP

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-0F010

NDE180,NRE180,ZRE18#..SAP

 2
89941 - SENSOR, RAIN
89941-52010

NDE180,NRE180,ZRE18#..N..SA

INTERMITTENT WIPER-WITH(AUTO)

 1
89943 - COVER, RAIN SENSOR
89943-47010

NDE180,NRE180,ZRE18#..N..SA

INTERMITTENT WIPER-WITH(AUTO)

 1
89944 - TAPE, RAIN SENSOR
89944-42010

NDE180,NRE180,ZRE18#..N..SA

INTERMITTENT WIPER-WITH(AUTO)

 1
Common parts
90119-06864
90119-W0082
