NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )ZRE182..SA ; (1401- )NDE180,NRE180,ZRE181..N..SA

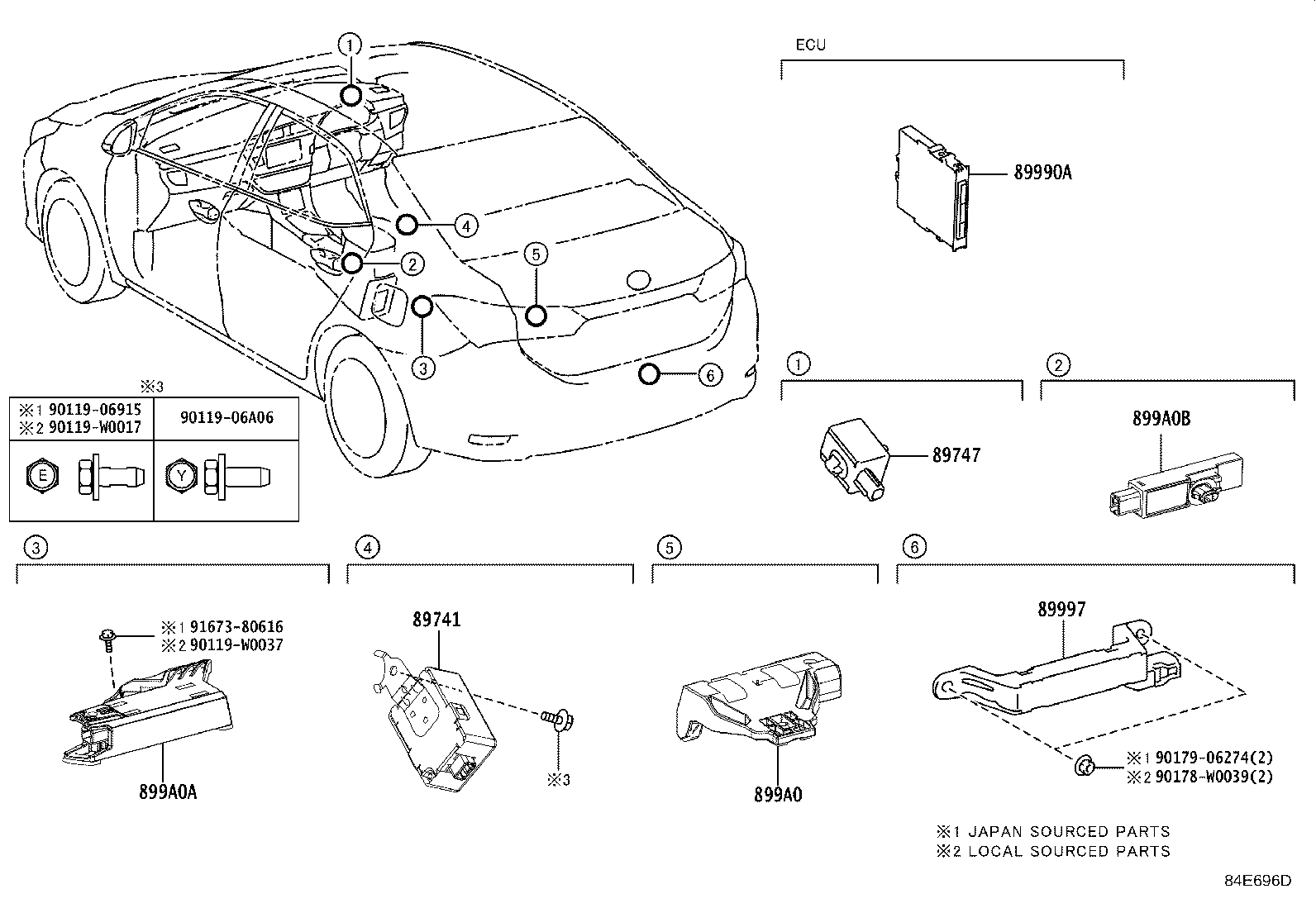

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 89741 89747 89990A 89997 899A0 899A0A 899A0B 9011906915 9011906A06 90119W0017 90119W0037 90178W0039 9017906274 9167380616
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89740-02130

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
89741-02270

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
89741-02270

NDE180,NRE180,ZRE18#..SA

 1
89741-02270

NDE180,NRE180,ZRE18#..N..SA

EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 1
89741-02270

NDE180,NRE180,ZRE18#..N..SA

W/O(DESTINATION PACKAGE)&WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
89741-02260

NDE180,NRE180,ZRE181..D..SA

EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK)

 1
89741-02270

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&SRS AIR BAG-WITH(*DRS & *PAS & SIDE &*CUSA & KNEE)

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),P/N LABEL=8974730040

 1
89747-05010

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),P/N LABEL=8974705010

 1
89990A - COMPUTER ASSY, SMART KEY
89990-02240

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
89990-02241

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30070

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-02030

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-02020

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-0F040

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
Common parts
90119-06915
90119-06A06
90119-W0017
90119-W0037
90178-W0039
90179-06274
91673-80616
