NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )NRE180

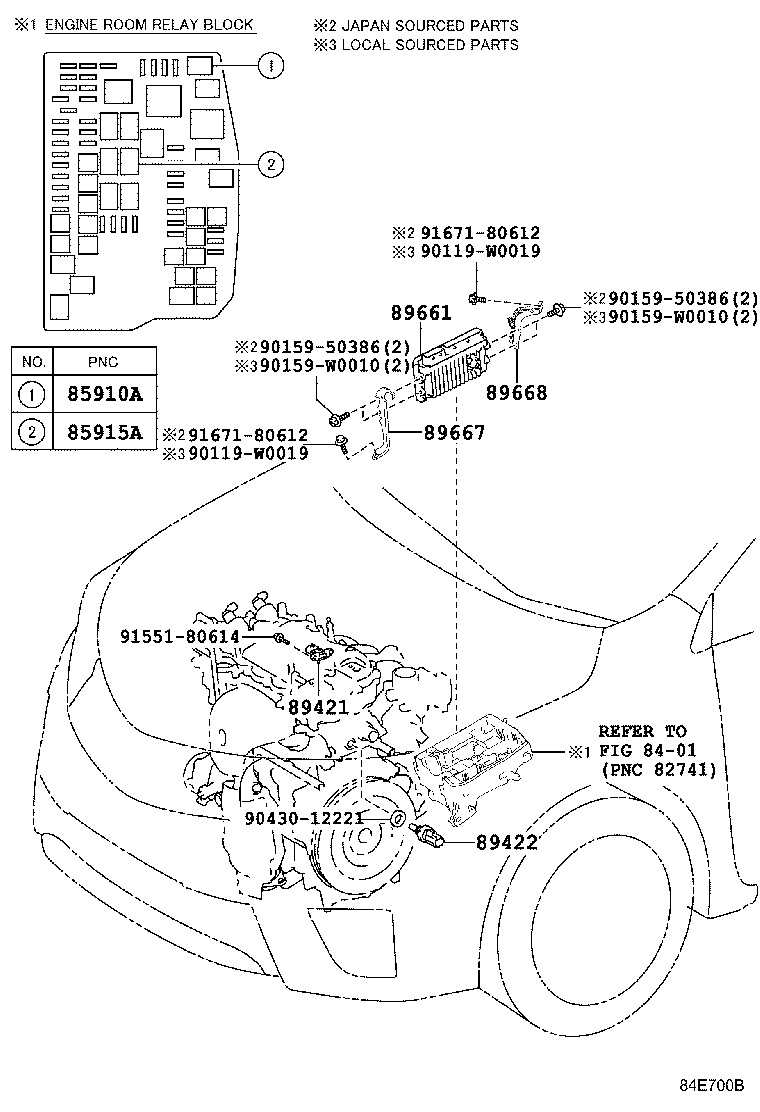

Click highlighted areas on diagram

diagram 8401 85910A 85915A 89421 89422 89661 89667 89668 90119W0019 90119W0019 9015950386 9015950386 90159W0010 90159W0010 9043012221 9155180614 9167180612 9167180612
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87021

NRE180,ZRE18#..SAP

 1
85915A - RELAY, MAIN
90080-87021

NRE180,ZRE18#..SAP

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

NRE180..SAP

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

NRE180,ZRE18#..SAP

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0ZD10

NRE180

 1
89661-0ZN80

NRE180..SAP

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-02300

NRE180,ZRE18#..SAP

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-02280

NRE180,ZRE18#..SAP

 1
Common parts
90119-W0019
90159-50386
90159-W0010
90430-12221
91551-80614
91671-80612
Linked diagrams
8401
