8401 - SWITCH & RELAY & COMPUTER

NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017

Engine 1NRFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 5 OF 7(1401-1701)SA

Click highlighted areas on diagram

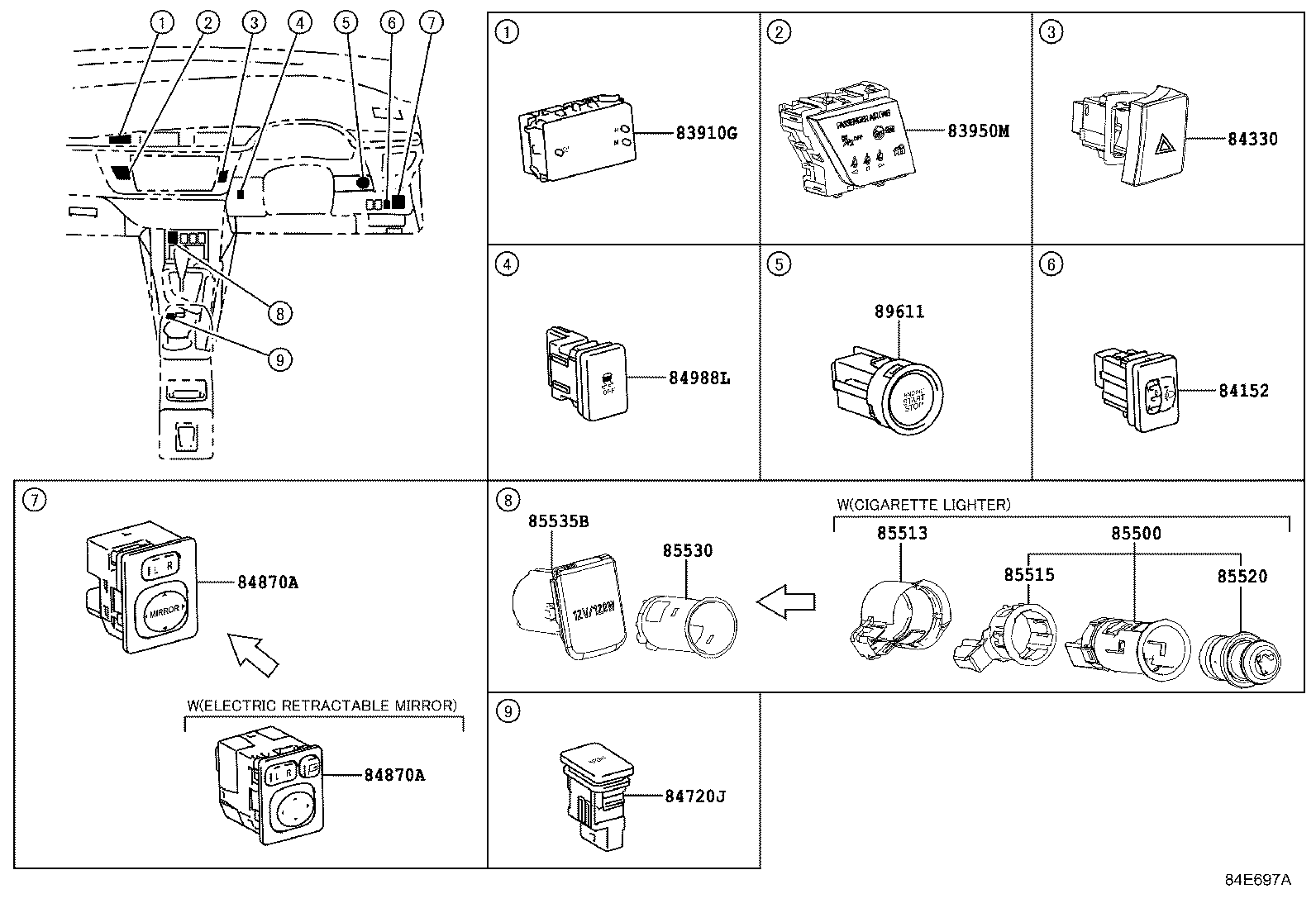

INSTRUMENT PANEL

Part #	Description	Period	Qty
83910G - CLOCK ASSY
83910-12630	NDE180,NRE180,ZRE18#..SAP	06/2013 - 01/2017	1
83950M - LAMP ASSY, TELLTALE
83950-02320	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
84152 - SWITCH, HEADLAMP LEVELING
84152-02080	NDE180,NRE180,ZRE18#..SAP	06/2013 - 01/2017	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-02220	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-12250	NDE180,NRE180,ZRE18#..N..SAP OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & WITH(HEATER)	01/2014 - 01/2017	1
84870-12240	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-12250	NDE180,NRE180,ZRE18#..N..SAP OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & WITH(HEATER)	01/2014 - 01/2017	1
84870-12240	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
85500 - LIGHTER ASSY, CIGARETTE
85500-59015	NDE180,NRE180,ZRE18#..SAP ASH TRAY-WITH	01/2014 - 01/2017	1
85513 - COVER, CIGARETTE LIGHTER
85513-12030	NDE180,NRE180,ZRE18#..SAP ASH TRAY-WITH	01/2014 - 01/2017	1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-12140	NDE180,NRE180,ZRE18#..SAP ASH TRAY-WITH	01/2014 - 01/2017	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010	NDE180,NRE180,ZRE18#..SAP ASH TRAY-WITH	01/2014 - 01/2017	1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-42010	NDE180,NRE180,ZRE18#..SAP	06/2013 - 01/2017	1
85530-42010	NDE180,NRE180,ZRE18#..SAP ASH TRAY-WITH	06/2013 - 01/2017	1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-12090C0	NDE180,NRE180,ZRE18#..SAP BLACK,TRIM2#	01/2014 - 01/2017	1
85535-12090C0	NDE180,NRE180,ZRE18#..SAP ASH TRAY-WITH,BLACK,TRIM2#	01/2014 - 01/2017	1
89611 - SWITCH, PUSH START
89611-02100	ZRE18#..N..SA;NDE180,NRE180..N WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)	06/2013 - 08/2015	1
89611-02101	ZRE18#..N..SA;NDE180,NRE180..N WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)	09/2015 - 05/2016	1
89611-02102	NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)	06/2016 - 01/2017	1

ILLUST NO. 4 OF 7(1401- )SA

Click highlighted areas on diagram

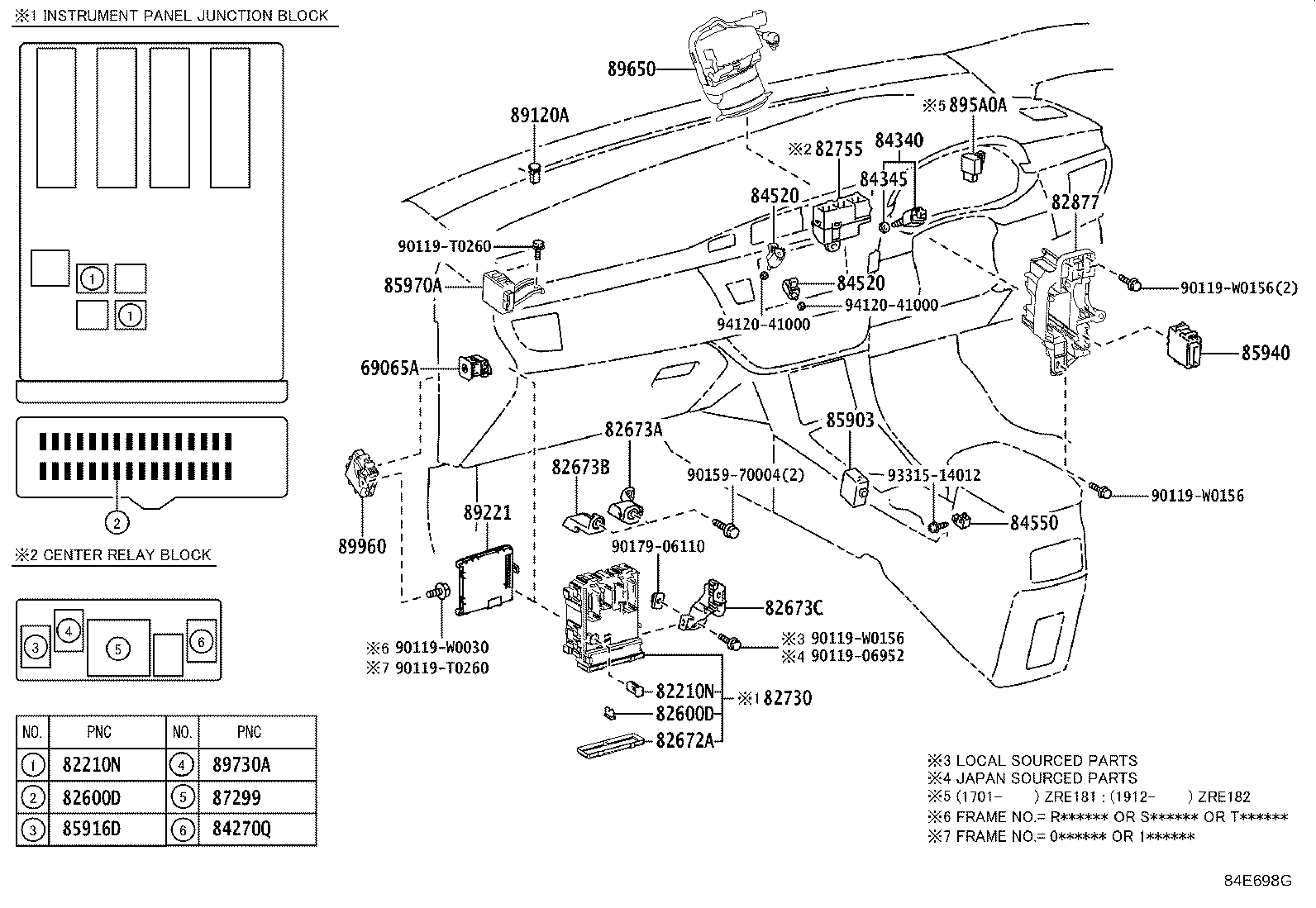

COWL

Part #	Description	Period	Qty
69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH
69065-02010	NDE180,NRE180,ZRE18#..SAP	06/2013 - 01/2017	1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08306	NDE180,NRE180,ZRE18#..SAP 30A,TERM.:FEMALE,PNK	06/2013 - 01/2017	1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08306	NDE180,NRE180,ZRE18#..SAP 30A,TERM.:FEMALE,PNK	06/2013 - 01/2017	1
82600D - INSTRUMENT PANEL FUSE
90982-09020	NDE180,NRE180,ZRE18#..SAP 7.5A,MINI FUSE,BROWN	06/2013 - 01/2017	1
90982-09021	NDE180,NRE180,ZRE18#..SAP 10A,MINI FUSE,RED	06/2013 - 01/2017	1
90982-09019	NDE180,NRE180,ZRE18#..SAP 5A,MINI FUSE,TAN	06/2013 - 01/2017	1
90982-09023	NDE180,NRE180,ZRE18#..SAP 20A,MINI FUSE,YELLOW	06/2013 - 01/2017	1
90982-09022	NDE180,NRE180,ZRE18#..SAP 15A,MINI FUSE,BLUE	06/2013 - 01/2017	1
90982-09024	NDE180,NRE180,ZRE18#..SAP 25A,MINI FUSE	06/2013 - 01/2017	1
82600D - INSTRUMENT PANEL FUSE
90982-09020	NDE180,NRE180,ZRE18#..SAP 7.5A,MINI FUSE,BROWN	06/2013 - 01/2017	1
90982-09021	NDE180,NRE180,ZRE18#..SAP 10A,MINI FUSE,RED	06/2013 - 01/2017	1
90982-09019	NDE180,NRE180,ZRE18#..SAP 5A,MINI FUSE,TAN	06/2013 - 01/2017	1
90982-09023	NDE180,NRE180,ZRE18#..SAP 20A,MINI FUSE,YELLOW	06/2013 - 01/2017	1
90982-09022	NDE180,NRE180,ZRE18#..SAP 15A,MINI FUSE,BLUE	06/2013 - 01/2017	1
90982-09024	NDE180,NRE180,ZRE18#..SAP 25A,MINI FUSE	06/2013 - 01/2017	1
82672A - COVER, JUNCTION BLOCK
82672-12450	NDE180,NRE180,ZRE18#..N..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK)&WIRELESS DOORLOCK-WITH(SMART ENTRY SYSTEM)&SRS AIR BAG-WITH(DRS & PAS & SIDE & *CUSA & KNEE)	01/2014 - 01/2017	1
82672-12450	NDE180,NRE180,ZRE181..D..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK)	01/2014 - 01/2017	1
82672-12570	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
82673A - BRACKET, JUNCTION BLOCK
82673-12310	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
82673B - BRACKET, JUNCTION BLOCK
82673-12320	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
82673C - BRACKET, JUNCTION BLOCK
82673-12330	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-12X70	NDE180,NRE180,ZRE181..D..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK)	01/2014 - 05/2016	1
82730-12Y50	NDE180,NRE180,ZRE18#..SA	01/2014 - 05/2016	1
82730-12X71	NDE180,NRE180,ZRE181..D..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK)	06/2016 - 01/2017	1
82730-12X71	NDE180,NRE180,ZRE18#..N..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK)&WIRELESS DOORLOCK-WITH(SMART ENTRY SYSTEM)&SRS AIR BAG-WITH(DRS & PAS & SIDE & *CUSA & KNEE)	06/2016 - 01/2017	1
82730-12Y51	NDE180,NRE180,ZRE18#..SA	06/2016 - 01/2017	1
82730-12X70	NDE180,NRE180,ZRE18#..N..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK)&WIRELESS DOORLOCK-WITH(SMART ENTRY SYSTEM)&SRS AIR BAG-WITH(DRS & PAS & SIDE & *CUSA & KNEE)	01/2014 - 05/2016	1
82755 - BLOCK, CENTER RELAY
82755-12030	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
82877 - BOX, COMPUTER INTEGRATION, RH
82877-02040	NDE180,NRE180,ZRE18#..N..SA INTERMITTENT WIPER-WITH(AUTO)	01/2014 - 01/2017	1
84270Q - RELAY, LAMP CUT
90080-87021	NDE180,NRE180,ZRE18#..SAP	06/2013 - 01/2017	1
84340 - SWITCH ASSY, STOP LAMP
84340-09040	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-51010	NDE180,NRE180,ZRE18#..SAP	06/2013 - 01/2017	1
84520 - SWITCH ASSY, CLUTCH START
84520-42010	NDE180,NRE180,ZRE18#..6F..SAP	06/2013 - 01/2017	2
84520 - SWITCH ASSY, CLUTCH START
84520-42010	NDE180,NRE180,ZRE18#..6F..SAP	06/2013 - 01/2017	2
84550 - SWITCH ASSY, PARKING BRAKE
84550-16060	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
85916D - RELAY, FOG LAMP
90987-02027	NDE180,NRE180,ZRE18#..N..SAP FRONT FOG LAMP-WITH	06/2013 - 01/2017	1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-42030	NDE180,NRE180,ZRE18#..N..SA INTERMITTENT WIPER-WITH(AUTO)	01/2014 - 01/2017	1
85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL
85970-12030	NDE180,NRE180,ZRE18#..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC	01/2014 - 01/2017	1
85970-12030	NDE180,NRE180,ZRE18#..N..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&SRS AIR BAG-WITH(DRS & PAS & SIDE & *CUSA & KNEE)	01/2014 - 01/2017	1
85970-12030	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
85970-12030	NDE180,NRE180,ZRE18#..N..SA DOOR LOCK-WITHOUT(DOUBLE-LOCK)	01/2014 - 01/2017	1
87299 - RELAY, HEATER
90987-T2002	NDE180,NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
90987-T2002	NRE180,ZRE18#..N..SAP AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
89120A - SENSOR, AUTOMATIC LIGHT CONTROL
89121-12010	NDE180,NRE180,ZRE18#..N..SAP INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER	01/2014 - 01/2017	1
89221 - COMPUTER, MULTIPLEX NETWORK BODY
89220-02150	NDE180,NRE180,ZRE18#..6F..SA	01/2014 - 01/2017	1
89220-02490	NDE180,NRE180,ZRE181..D..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK)&DAYTIME RUNNING LIGHT SYSTEM-WITH(LED)	05/2015 - 01/2017	1
89220-02490	NDE180,NRE180,ZRE18#..N..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK)&WIRELESS DOORLOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&DAYTIME RUNNING LIGHTSYSTEM-WITH(LED)&SRS AIR BAG-WITH(DRS & PAS & SIDE & *CUSA & KNEE)	05/2015 - 01/2017	1
89220-02140	NDE180,NRE180,ZRE18#..N..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK)&WIRELESS DOORLOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&SRS AIR BAG-WITH(DRS& PAS & SIDE & *CUSA & KNEE)	01/2014 - 01/2017	1
89220-02140	NDE180,NRE180,ZRE181..D..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK)	01/2014 - 01/2017	1
89220-02500	NDE180,NRE180,ZRE18#..6F..SA DAYTIME RUNNING LIGHT SYSTEM-WITH(LED)	05/2015 - 01/2017	1
89650 - COMPUTER ASSY, POWER STEERING
89650-12E90	NDE180,NRE180,ZRE18#..SA	01/2014 - 04/2015	1
89650-12E91	NDE180,NRE180,ZRE18#..SA	05/2015 - 01/2017	1
89730A - RELAY(FOR SECURITY WARNING)
90987-02027	NDE180,NRE180,ZRE18#..N..SA DOOR LOCK-WITHOUT(DOUBLE-LOCK)	01/2014 - 01/2017	1
90987-02027	NDE180,NRE180,ZRE18#..SA	01/2014 - 01/2017	1
Common parts
90119-06952
90119-T0260
90119-W0030
90119-W0156
90159-70004
90179-06110
93315-14012
94120-41000

ILLUST NO. 1 OF 7(1401- )NRE180

Click highlighted areas on diagram

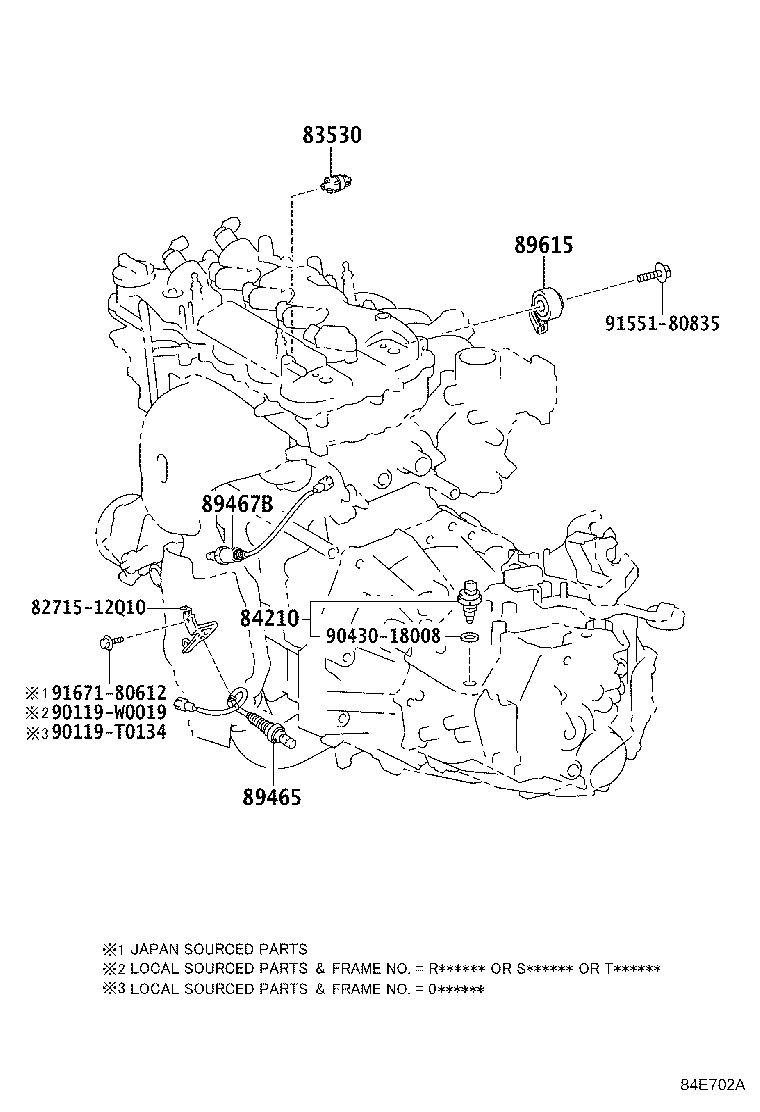

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-05010	NRE180,ZRE18#..SAP	01/2014 - 01/2017	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-52050	NDE180,NRE180,ZRE18#..6F..SAP	06/2013 - 01/2017	1
89465 - SENSOR, OXYGEN
89465-12B70	NRE180..SAP	05/2015 - 01/2017	1
89465-12A50	NRE180	01/2014 - 05/2015	1
89467B - SENSOR, AIR FUEL RATIO
89467-52110	NRE180..SAP	01/2014 - 01/2017	1
89615 - SENSOR, KNOCK CONTROL
89615-20090	NRE180..SAP	01/2014 - 01/2017	1
Common parts
82715-12Q10
90119-T0134
90119-W0019
90430-18008
91551-80835
91671-80612
