NRE180R-GEFNKN (2014)
Toyota Corolla

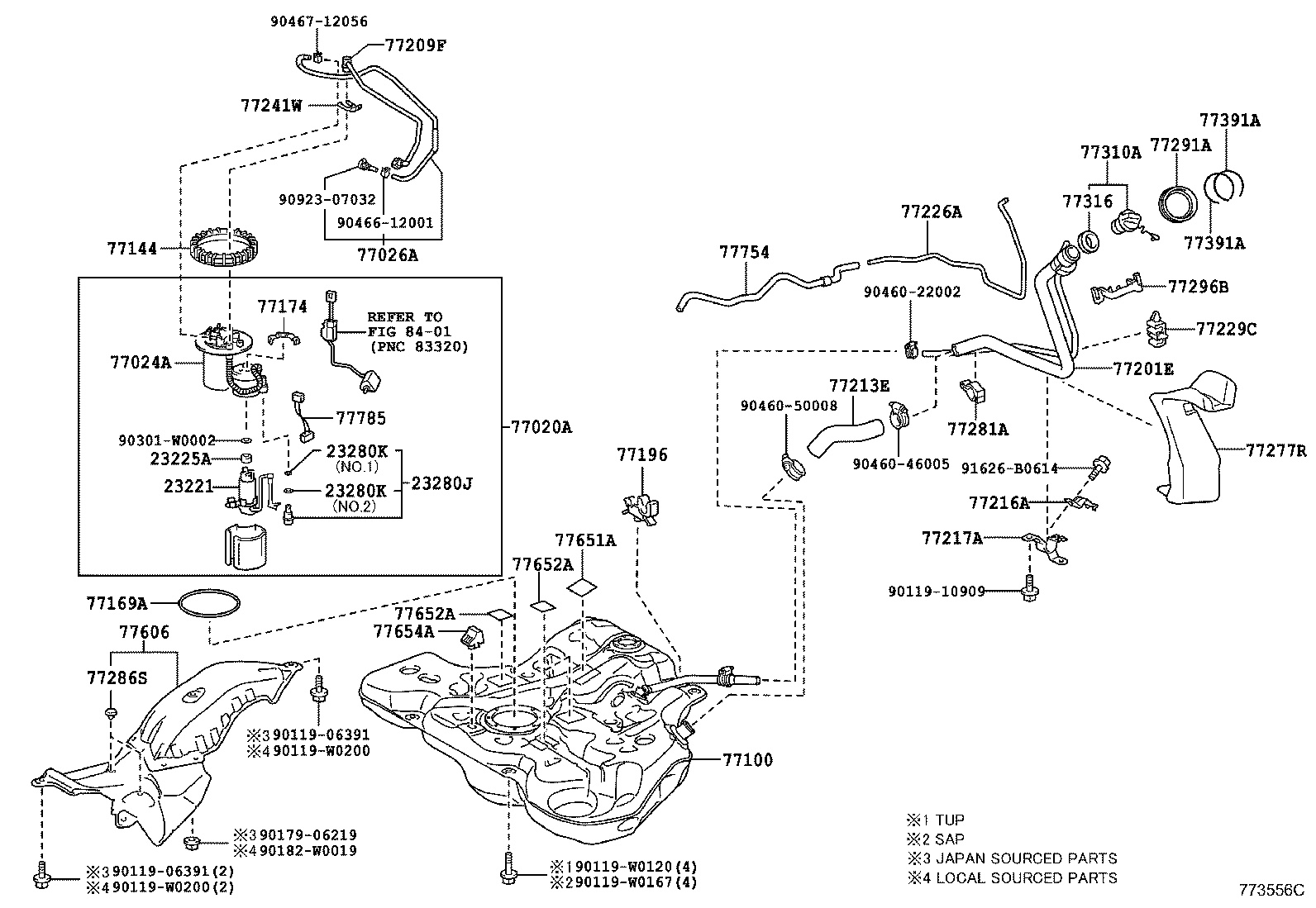

ILLUST NO. 1 OF 3(1401- )NRE180,ZRE18#
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-0Q041 |
1NRFE..NRE180..SAP |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0T010 |
1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..SAP |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..SAP |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..SAP NO.2:REFER ILLUST. |
1 | ||
| 90301-04013 |
1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..SAP NO.1:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..SAP NO.2:REFER ILLUST. |
1 | ||
| 90301-04013 |
1NRFE,1ZRFE,2ZRFE..NRE180,ZRE18#..SAP NO.1:REFER ILLUST. |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02550 |
NRE180 |
1 | ||
| 77020-02551 |
NRE180 |
1 | ||
| 77020-02552 |
NRE180..SAP |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02320 |
NRE180,ZRE18#..SAP |
1 | ||
| 77024-05010 |
NRE180,ZRE18# |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-02050 |
NRE180,ZRE18#..SAP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02291 |
NRE180,ZRE18#..SAP |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-02080 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-02070 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-05010 |
NRE180,ZRE18#..SAP |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-12080 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-12A10 |
NRE180,ZRE18#..SAP |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02140 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-02170 |
NDE180,NRE180,ZRE18#..SAP (L) |
1 | ||
| 77213-02170 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77213-12300 |
NDE180,NRE180,ZRE18#..SAP (J) |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12190 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-47080 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-12060 |
NRE180,ZRE18#..SAP |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-12070 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NRE180,ZRE18#..SAP |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-02160 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12100 |
NRE180,ZRE18#..SAP |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-02070 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02240 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-52030 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
NRE180,ZRE18#..SAP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-02040 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-45020 |
NRE180,ZRE18#..SAP |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-45020 |
NRE180,ZRE18#..SAP |
3 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-12090 |
NRE180,ZRE18#..SAP |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-02080 |
NRE180,ZRE18#..SAP L=538 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-02081 |
NRE180,ZRE18#..SAP |
1 | ||
| Common parts | ||||
| 90119-06391 | ||||
| 90119-10909 | ||||
| 90119-W0120 | ||||
| 90119-W0167 | ||||
| 90119-W0200 | ||||
| 90179-06219 | ||||
| 90182-W0019 | ||||
| 90301-W0002 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90466-12001 | ||||
| 90467-12056 | ||||
| 90923-07032 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

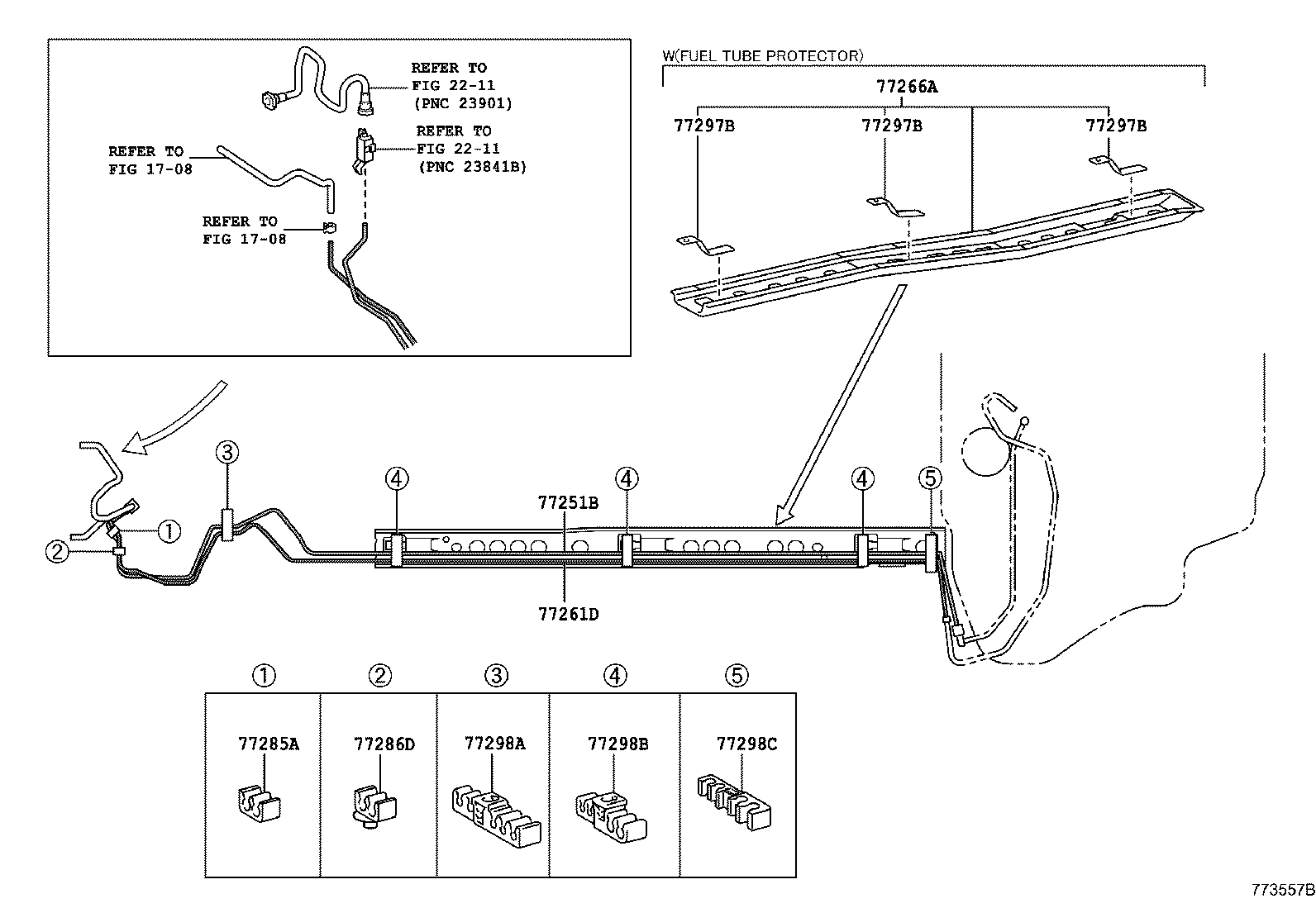

ILLUST NO. 2 OF 3(1401- )NRE180,ZRE18#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02640 |
NRE180,ZRE18#..SAP |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02490 |
NRE180,ZRE18#..SAP |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20150 |
NRE180,ZRE18#..SAP ENGINE UNDER COVER & PROTECTOR-WITH(STEEL) |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-02080 |
NRE180,ZRE18#..SAP |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-02030 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77297B - SUPPORT, FUEL TUBE PROTECTOR, NO.2 | ||||
| 77296-12080 |
NRE180,ZRE18#..SAP ENGINE UNDER COVER & PROTECTOR-WITH(STEEL) |
3 | ||
| 77297B - SUPPORT, FUEL TUBE PROTECTOR, NO.2 | ||||
| 77296-12080 |
NRE180,ZRE18#..SAP ENGINE UNDER COVER & PROTECTOR-WITH(STEEL) |
3 | ||
| 77297B - SUPPORT, FUEL TUBE PROTECTOR, NO.2 | ||||
| 77296-12080 |
NRE180,ZRE18#..SAP ENGINE UNDER COVER & PROTECTOR-WITH(STEEL) |
3 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68010 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02050 |
NDE180,NRE180,ZRE18#..SAP |
3 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02040 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
