NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1410-1701)SAP ; (1701- )ZRE182..CVT..D..GEN..SAP ; (1701- )NDE180,NRE180,ZRE

Click highlighted areas on diagram

W/O(LUGGAGE DOOR OPENING SWITCH)

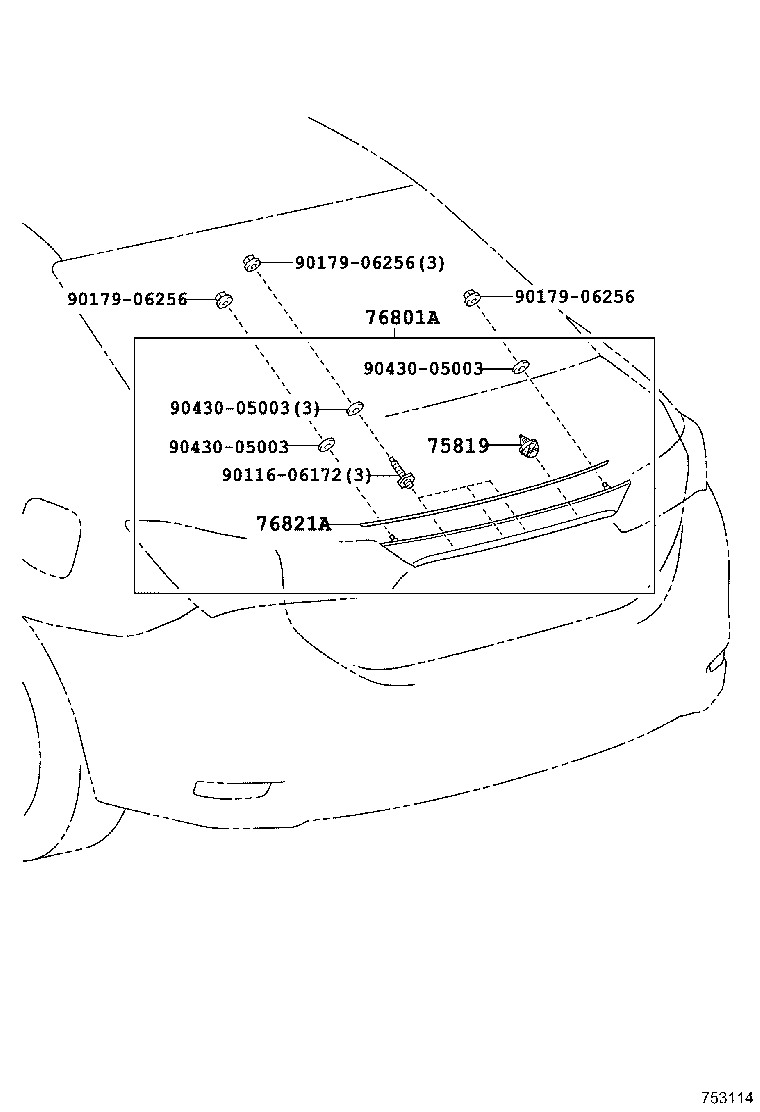

diagram 75819 76801A 76821A 9011606172 9017906256 9017906256 9017906256 9043005003 9043005003 9043005003
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

NDE180,NRE180,ZRE18#..SAP

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02A90

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
76801-02A82

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
76801-02A80

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
76801-02B50

NDE180,NRE180,ZRE18#..N..SAP

PLATED,AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
76801-02B40

NDE180,NRE180,ZRE18#..SAP

PLATED

 1
76801-02A92

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825-02160

NDE180,NRE180,ZRE18#..SAP

 1
Common parts
90116-06172
90179-06256
90430-05003

(1410-1608)D..TUP ; (1410-1701)N..SAP

Click highlighted areas on diagram

W(LUGGAGE DOOR OPENING SWITCH)

diagram 75819 76801A 7681752030 7681752030 7681752050 7681752050 768190D010 768190D010 768190D010 768190D010 76821A 7682912060 7682912060 7682912060 9017906256 9017906256 9017906256 9017906256 9043005003 9043005003 9043005003 9043005003
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

NDE180,NRE180,ZRE18#..SAP

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02A90

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
76801-02A82

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
76801-02A80

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
76801-02B50

NDE180,NRE180,ZRE18#..N..SAP

PLATED,AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
76801-02B40

NDE180,NRE180,ZRE18#..SAP

PLATED

 1
76801-02A92

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825-02160

NDE180,NRE180,ZRE18#..SAP

 1
Common parts
76817-52030
76817-52050
76819-0D010
76829-12060
90179-06256
90430-05003

(1306-1410)

Click highlighted areas on diagram

diagram 75819 76801A 76821A 9011606172 9017906256 9017906256 9017906256 9043005003 9043005003 9043005003
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

NDE180,NRE180,ZRE18#..SAP

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02A82

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
76801-02A90

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
76801-02A80

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
76801-02B50

NDE180,NRE180,ZRE18#..N..SAP

PLATED,AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
76801-02B40

NDE180,NRE180,ZRE18#..SAP

PLATED

 1
76801-02A92

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825-02160

NDE180,NRE180,ZRE18#..SAP

 1
Common parts
90116-06172
90179-06256
90430-05003

(1608- )D..TUP ; (1701- )NDE180,NRE180,ZRE181..N..SAP

Click highlighted areas on diagram

diagram 75819 76801A 76821A 9010906391 9011406026 9011406026 9017906256 9017906256 9017906256
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

NDE180,NRE180,ZRE18#..SAP

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02A90

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
76801-02A82

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
76801-02A80

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
76801-02B50

NDE180,NRE180,ZRE18#..N..SAP

PLATED,AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
76801-02B40

NDE180,NRE180,ZRE18#..SAP

PLATED

 1
76801-02A92

NDE180,NRE180,ZRE18#..N..SA

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825-02160

NDE180,NRE180,ZRE18#..SAP

 1
Common parts
90109-06391
90114-06026
90179-06256
