NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )SAP

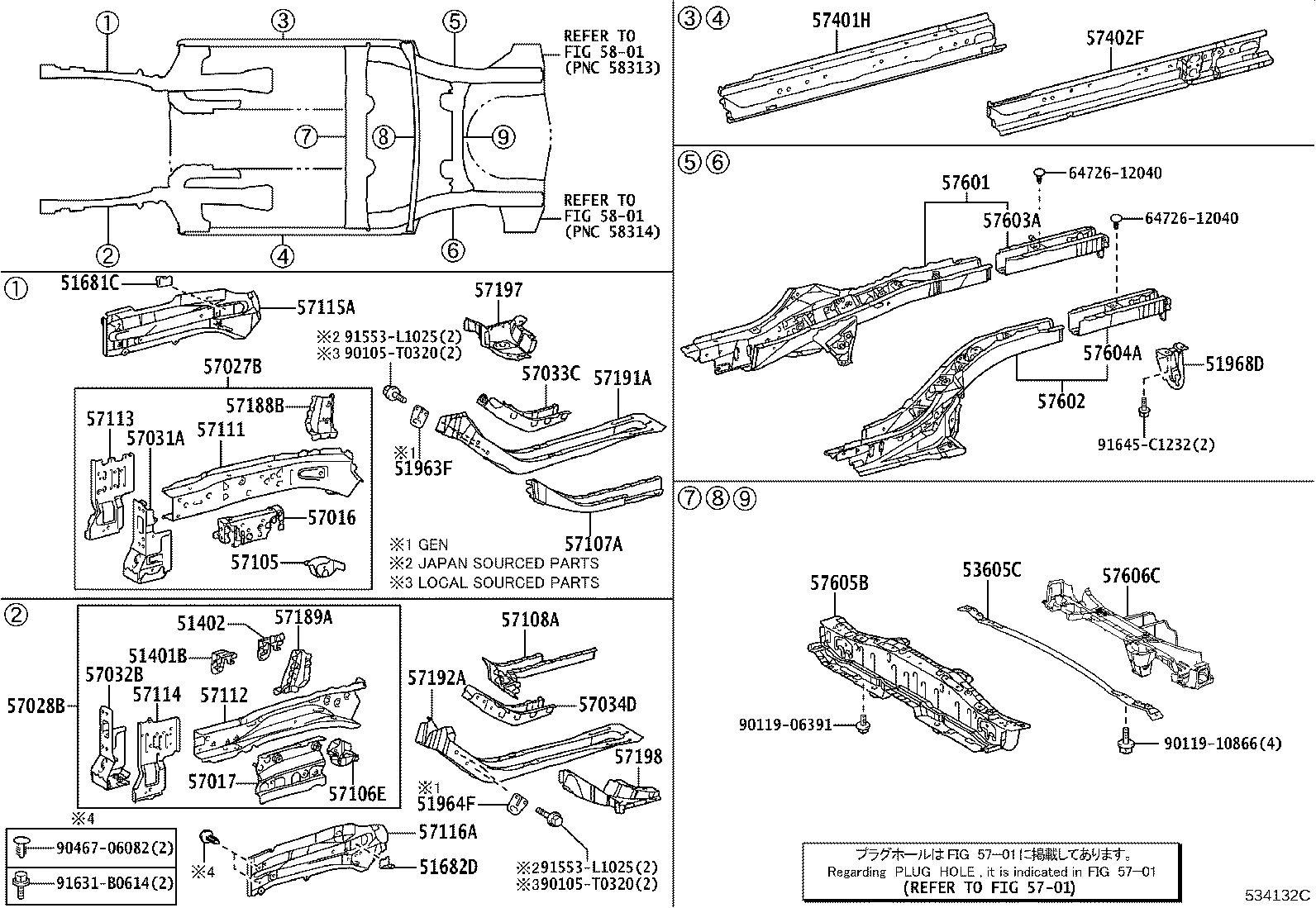

Click highlighted areas on diagram

diagram 51401B 51402 51681C 51682D 51963F 51964F 51968D 53605C 5701 57016 57017 57027B 57028B 57031A 57032B 57033C 57034D 57105 57106E 57107A 57108A 57111 57112 57113 57114 57115A 57116A 57188B 57189A 57191A 57192A 57197 57198 57401H 57402F 57601 57602 57603A 57604A 57605B 57606C 5801 5801 6472612040 6472612040 90105T0320 90105T0320 9011906391 9011910866 9046706082 91553L1025 91553L1025 91631B0614 91645C1232
Part # Description Qty Price
51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING
51401-12020

NDE180,NRE180,ZRE18#..SAP

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-12020

NDE180,NRE180,ZRE18#..SAP

 1
51681C - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
51681-12080

NDE180,NRE180,ZRE18#..SAP

 1
51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
51682-12080

NDE180,NRE180,ZRE18#..SAP

 1
51968D - HOOK, TRANSPORT, REAR LH
51968-02100

NDE180,NRE180,ZRE18#..SAP

 1
53605C - BRACE SUB-ASSY, REAR FLOOR SIDE MEMBER
53605-12021

NDE180,NRE180,ZRE18#..SAP

 1
57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-12110

NDE180,NRE180,ZRE18#..SAP

 1
57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-12070

NDE180,NRE180,ZRE18#..SAP

 1
57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH
57027-02040

NDE180,NRE180,ZRE18#..SAP

 1
57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH
57028-02030

NDE180,NRE180,ZRE18#..SAP

 1
57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57031-12010

NDE180,NRE180,ZRE18#..SAP

 1
57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57032-12010

NDE180,NRE180,ZRE18#..SAP

 1
57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH
57033-12010

NDE180,NRE180,ZRE18#..SAP

 1
57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH
57034-12010

NDE180,NRE180,ZRE18#..SAP

 1
57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57105-12160

NDE180,NRE180,ZRE18#..SAP

 1
57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57106-12150

NDE180,NRE180,ZRE18#..SAP

 1
57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57107-12120

NDE180,NRE180,ZRE18#..SAP

 1
57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57108-12140

NDE180,NRE180,ZRE18#..SAP

 1
57111 - MEMBER, FRONT SIDE, RH
57111-02120

NDE180,NRE180,ZRE18#..SAP

 1
57112 - MEMBER, FRONT SIDE, LH
57112-02110

NDE180,NRE180,ZRE18#..SAP

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-02080

NDE180,NRE180,ZRE18#..SAP

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-02080

NDE180,NRE180,ZRE18#..SAP

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-02050

NDE180,NRE180,ZRE18#..SAP

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-02050

NDE180,NRE180,ZRE18#..SAP

 1
57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH
57188-12030

NDE180,NRE180,ZRE18#..SAP

 1
57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH
57189-12010

NDE180,NRE180,ZRE18#..SAP

 1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57191-02110

NDE180,NRE180,ZRE18#..SAP

 1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57192-02110

NDE180,NRE180,ZRE18#..SAP

 1
57197 - BOX, TORQUE, FRONT RH
57197-12040

NDE180,NRE180,ZRE18#..SAP

 1
57198 - BOX, TORQUE, FRONT LH
57198-12040

NDE180,NRE180,ZRE18#..SAP

 1
57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-02240

NDE180,NRE180,ZRE18#..SAP

 1
57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-02240

NDE180,NRE180,ZRE18#..SAP

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-02929

NDE180,NRE180,ZRE18#..SAP

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-02928

NDE180,NRE180,ZRE18#..SAP

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57603-02070

NDE180,NRE180,ZRE18#..SAP

 1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57604-02040

NDE180,NRE180,ZRE18#..SAP

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-02140

NDE180,NRE180,ZRE18#..SAP

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-02100

NDE180,NRE180,ZRE18#..SAP

 1
Common parts
64726-12040
90105-T0320
90119-06391
90119-10866
90467-06082
91553-L1025
91631-B0614
91645-C1232
Linked diagrams
5701
5801
