NRE180R-GEFNKN (2014)
Toyota Corolla
(1401-1701)SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53117E - BRACKET, RADIATOR GRILLE, LOWER | ||||
| 53117-02020 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53141F - COVER, RADIATOR | ||||
| 53141-02090 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53187A - STAY, RADIATOR SUPPORT, RH | ||||
| 53187-12030 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53188B - STAY, RADIATOR SUPPORT, LH | ||||
| 53188-12030 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-02140 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 90541-09117 |
NDE180,NRE180,ZRE18# |
2 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 90541-09117 |
NDE180,NRE180,ZRE18# |
2 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-02150 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-02230 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT | ||||
| 53209-02081 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53107-02030 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-02120 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53218-12030 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-02070 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-02070 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53281A - REINFORCEMENT, FRONT BODY MOUNTING, RH | ||||
| 53281-12020 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53282 - REINFORCEMENT, FRONT BODY MOUNTING, LH | ||||
| 53282-12020 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-02160 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-02160 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 53384-50010 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 53384-50010 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-02310 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-02230 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-02070 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-02120 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-12160 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53717D - GUSSET, FENDER APRON, RH | ||||
| 53717-12070 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53718E - STAY, FRONT FENDER APRON, FRONT | ||||
| 53718-12060 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53725D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH | ||||
| 53725-12040 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53726B - REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH | ||||
| 53726-12040 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-12170 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-12150 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53733C - PATCH, FRONT FENDER APRON | ||||
| 53736-12070 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-12070 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-12070 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53735J - PATCH, FRONT FENDER APRON, NO.5 | ||||
| 53735-12070 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-02140 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-02110 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-02120 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-02120 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-02800 |
NDE180,NRE180,ZRE18#..6F..SA |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-02110 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-02100 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-02480 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
NDE180,NRE180,ZRE18#..SAP |
6 | ||
| 55210C - CLIP | ||||
| 90467-11127 |
NDE180,NRE180,ZRE18#..SAP |
3 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-02190 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55226A - CLIP | ||||
| 90467-08186C3 |
NDE180,NRE180,ZRE18#..SAP BLACK |
4 | ||
| 90467-08186C0 |
NDE180,NRE180,ZRE18#..SAP BLACK |
4 | ||
| 55226A - CLIP | ||||
| 90467-08186C3 |
NDE180,NRE180,ZRE18#..SAP BLACK |
4 | ||
| 90467-08186C0 |
NDE180,NRE180,ZRE18#..SAP BLACK |
4 | ||
| Common parts | ||||
| 52161-0K040 | ||||
| 52161-16010 | ||||
| 82817-1A810 | ||||
| 90109-06328 | ||||
| 90109-06380 | ||||
| 90119-06786 | ||||
| 90119-08B13 | ||||
| 90541-15022 | ||||
| 91515-80818 | ||||
| 94151-80840 | ||||

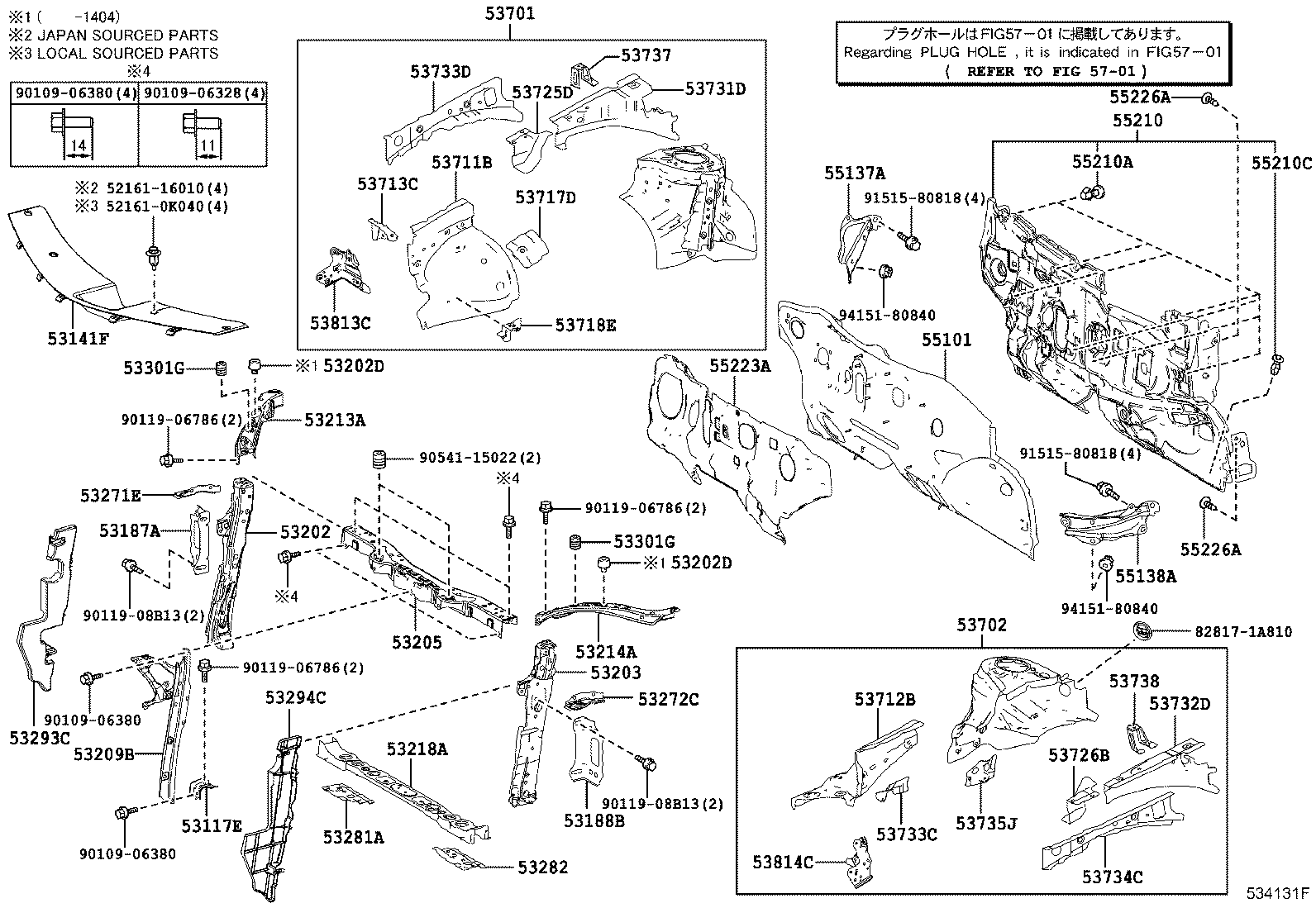

| Linked diagrams | ||||
| 5701 | ||||
