NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

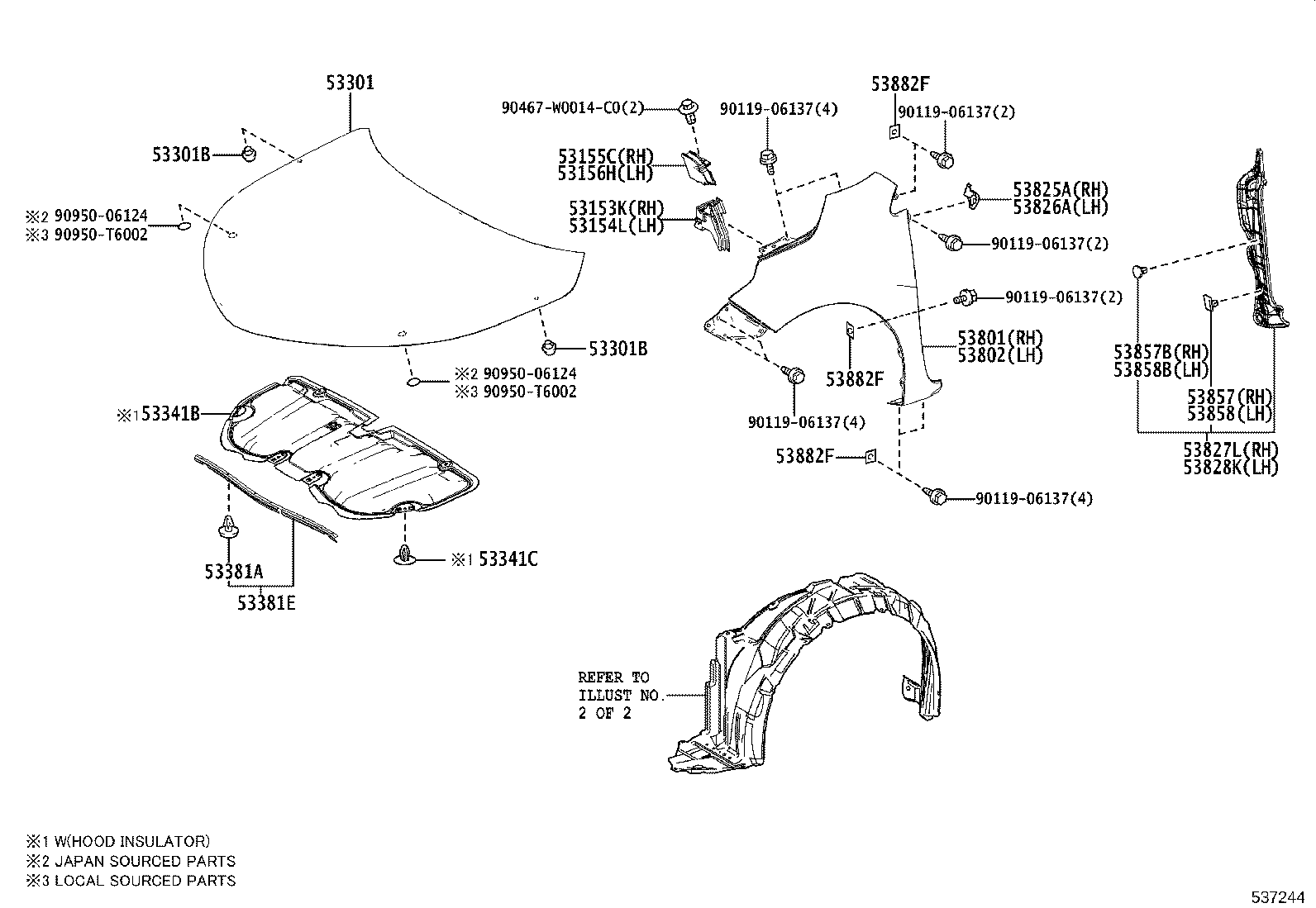

ILLUST NO. 1 OF 2(1401- )SAP

Click highlighted areas on diagram

diagram 53153K 53154L 53155C 53156H 53301 53301B 53301B 53341B 53341C 53381A 53381E 53801 53802 53825A 53826A 53827L 53828K 53857 53857B 53858 53858B 53882F 53882F 53882F 9011906137 9011906137 9011906137 9011906137 9011906137 9011906137 90467W0014C0 9095006124 9095006124 90950T6002 90950T6002
Part # Description Qty Price
53153K - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-02040

NDE180,NRE180,ZRE18#..SAP

 1
53154L - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-02040

NDE180,NRE180,ZRE18#..SAP

 1
53155C - SEAL, RADIATOR GRILLE, NO.1
53155-02060

NDE180,NRE180,ZRE18#..SAP

 1
53156H - SEAL, RADIATOR GRILLE, NO.2
53156-02050

NDE180,NRE180,ZRE18#..SAP

 1
53301 - HOOD SUB-ASSY
53301-02290

NDE180,NRE180,ZRE18#..SAP

 1
53301B - CUSHION, HOOD BUMPER
90541-09117

NDE180,NRE180,ZRE18#..SAP

 2
53301B - CUSHION, HOOD BUMPER
90541-09117

NDE180,NRE180,ZRE18#..SAP

 2
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

NDE180,NRE180,ZRE18#..SAP

 6
53381E - SEAL, HOOD TO RADIATOR SUPPORT
53381-02200

NDE180,NRE180,ZRE18#..SAP

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-02220

NDE180,NRE180,ZRE18#..SAP

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-02200

NDE180,NRE180,ZRE18#..SAP

 1
53825A - PROTECTOR, FRONT FENDER, UPPER RH
53825-02120

NDE180,NRE180,ZRE18#..SAP

 1
53826A - PROTECTOR, FRONT FENDER, UPPER LH
53826-02120

NDE180,NRE180,ZRE18#..SAP

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-02210

NDE180,NRE180,ZRE18#..SAP

 1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-02200

NDE180,NRE180,ZRE18#..SAP

 1
53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-12010

NDE180,NRE180,ZRE18#..SAP

 1
53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-47011

NDE180,NRE180,ZRE18#..SAP

 1
53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-12010

NDE180,NRE180,ZRE18#..SAP

 1
53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-47011

NDE180,NRE180,ZRE18#..SAP

 1
53882F - SEAL, FRONT FENDER
53882-33060

NDE180,NRE180,ZRE18#..SAP

 8
53882F - SEAL, FRONT FENDER
53882-33060

NDE180,NRE180,ZRE18#..SAP

 8
53882F - SEAL, FRONT FENDER
53882-33060

NDE180,NRE180,ZRE18#..SAP

 8
Common parts
90119-06137
90467-W0014C0
90950-06124
90950-T6002

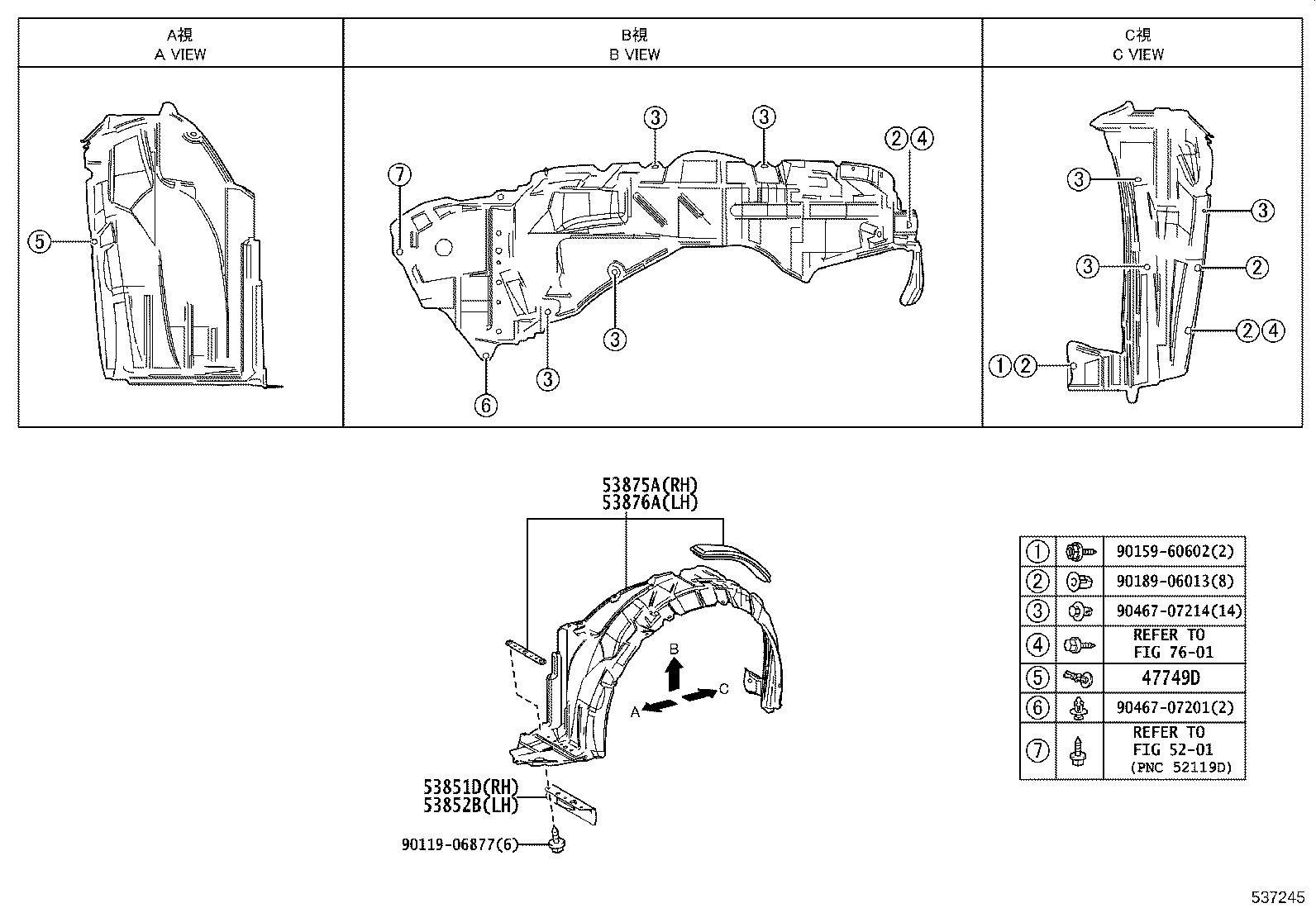

ILLUST NO. 2 OF 2(1401- )SAP

Click highlighted areas on diagram

FENDER LINER

diagram 47749D 5201 53851D 53852B 53875A 53876A 7601 9011906877 9015960602 9018906013 9046707201 9046707214
Part # Description Qty Price
47749D - CLIP, PIN HOLD
47749-58010

NDE180,NRE180,ZRE18#..SAP

 2
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-02160

NDE180,NRE180,ZRE18#..SAP

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-02140

NDE180,NRE180,ZRE18#..SAP

 1
53875A - LINER, FRONT FENDER, RH
53875-02470

NRE180,ZRE18#

 1
53875-02471

NRE180,ZRE18#..SAP

 1
53876A - LINER, FRONT FENDER, LH
53876-02490

NRE180,ZRE18#

 1
53876-02491

NRE180,ZRE18#..SAP

 1
Common parts
90119-06877
90159-60602
90189-06013
90467-07201
90467-07214
Linked diagrams
5201
7601
