NRE180R-GEFNKN (2014)
Toyota Corolla
(1306-1603)TUP ; (1306-1701)SAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-02250 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-02250 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0Z932 |
NDE180,NRE180,ZRE18#..N..SAP PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52119-0Z931 |
NDE180,NRE180,ZRE18#..SAP PAINT REQ. |
1 | ||
| 52119-0Z932 |
NDE180,NRE180,ZRE18#..N..SAP PAINT REQ.,HEADLAMP CLEANER-WITH |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
NDE180;NRE180,ZRE18#..SAP |
8 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
NDE180;NRE180,ZRE18#..SAP |
8 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
NDE180;NRE180,ZRE18#..SAP |
8 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-02150 |
NDE180,NRE180,ZRE18#..N..SAP |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-02150 |
NDE180,NRE180,ZRE18#..N..SAP |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-02140 |
NDE180,NRE180,ZRE18#..N..SAP |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-02140 |
NDE180,NRE180,ZRE18#..N..SAP |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-02921 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-02420 |
NDE180,NRE180,ZRE18#..N..SAP |
1 | ||
| 81481-02370 |
NDE180,NRE180,ZRE18#..D..SAP |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-02420 |
NDE180,NRE180,ZRE18#..N..SAP |
1 | ||
| 81481-02370 |
NDE180,NRE180,ZRE18#..D..SAP |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 81482-02360 |
NDE180,NRE180,ZRE18#..D..SAP |
1 | ||
| 81482-02410 |
NDE180,NRE180,ZRE18#..N..SAP |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 81482-02360 |
NDE180,NRE180,ZRE18#..D..SAP |
1 | ||
| 81482-02410 |
NDE180,NRE180,ZRE18#..N..SAP |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NDE180,NRE180,ZRE18#..SAP (J) |
3 | ||
| 52161-0K040 |
NDE180,NRE180,ZRE18#..SAP (L) |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02300 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-02080 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 52618-02081 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-02470 |
NDE180,NRE180,ZRE18#..SAP NO PAINT REQ. |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
NDE180;NRE180,ZRE18#..SAP |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
NDE180;NRE180,ZRE18#..SAP |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
NDE180;NRE180,ZRE18#..SAP |
4 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-02400 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81481-02400 |
NDE180,NRE180,ZRE18#..N..SAP FRONT FOG LAMP-WITH |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-02390 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81482-02390 |
NDE180,NRE180,ZRE18#..N..SAP FRONT FOG LAMP-WITH |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90119-W0089 | ||||
| 90119-W0192 | ||||
| 90159-50388 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90467-05170 | ||||

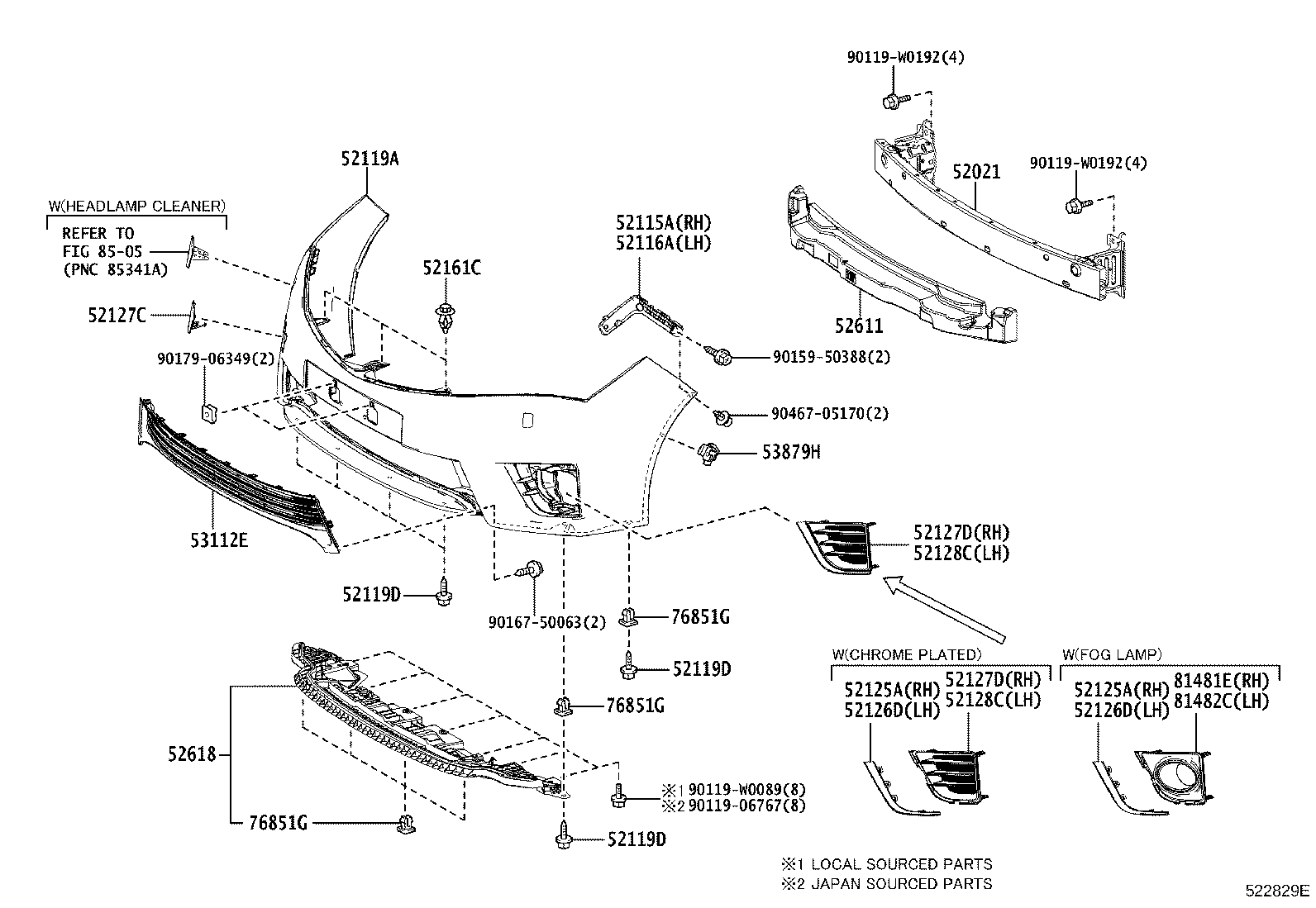

| Linked diagrams | ||||
| 8505 | ||||
(1606- )TUP ; (1701- )SAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-02250 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-02250 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0Z932 |
NDE180,NRE180,ZRE18#..N..SAP PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52119-0Z931 |
NDE180,NRE180,ZRE18#..SAP PAINT REQ. |
1 | ||
| 52119-0Z932 |
NDE180,NRE180,ZRE18#..N..SAP PAINT REQ.,HEADLAMP CLEANER-WITH |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
NDE180;NRE180,ZRE18#..SAP |
8 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
NDE180;NRE180,ZRE18#..SAP |
8 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
NDE180;NRE180,ZRE18#..SAP |
8 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-02921 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-02420 |
NDE180,NRE180,ZRE18#..N..SAP |
1 | ||
| 81481-02370 |
NDE180,NRE180,ZRE18#..D..SAP |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 81482-02360 |
NDE180,NRE180,ZRE18#..D..SAP |
1 | ||
| 81482-02410 |
NDE180,NRE180,ZRE18#..N..SAP |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NDE180,NRE180,ZRE18#..SAP (J) |
3 | ||
| 52161-0K040 |
NDE180,NRE180,ZRE18#..SAP (L) |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02300 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-02080 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 52618-02081 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-02470 |
NDE180,NRE180,ZRE18#..SAP NO PAINT REQ. |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
NDE180;NRE180,ZRE18#..SAP |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
NDE180;NRE180,ZRE18#..SAP |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
NDE180;NRE180,ZRE18#..SAP |
4 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-02400 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81481-02400 |
NDE180,NRE180,ZRE18#..N..SAP FRONT FOG LAMP-WITH |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-02390 |
NDE180,NRE180,ZRE18#..N..SAP HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81482-02390 |
NDE180,NRE180,ZRE18#..N..SAP FRONT FOG LAMP-WITH |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90119-W0089 | ||||
| 90119-W0192 | ||||
| 90159-50388 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 8505 | ||||
