NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1401- )ZRE182..N..SA ; (1401- )NRE180,ZRE181..SA

Click highlighted areas on diagram

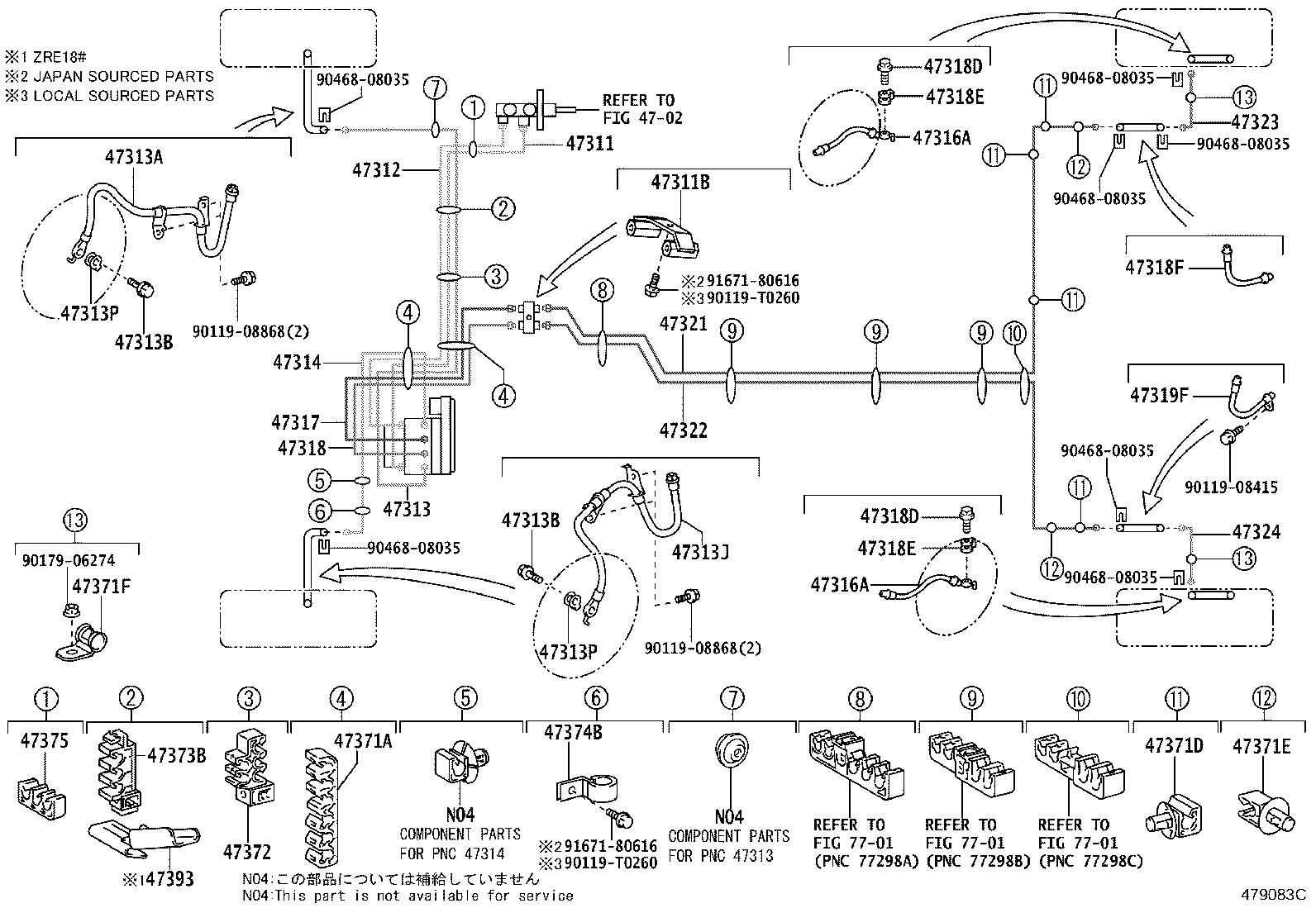

BRAKE TUBE, W(ABS)

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47316A 47316A 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47371A 47371D 47371E 47371F 47372 47373B 47374B 47375 47393 7701 7701 7701 9011908415 9011908868 9011908868 90119T0260 90119T0260 9017906274 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180616 9167180616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-02870

NDE180,NRE180,ZRE18#..SA

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10285

NDE180,NRE180,ZRE18#..SAP

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-02730

NDE180,NRE180,ZRE18#..SA

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02A60

NDE180,NRE180,ZRE18#..SA

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-W2042

NDE180,NRE180,ZRE18#..SAP

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NDE180,NRE180,ZRE18#..SAP

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NDE180,NRE180,ZRE18#..SAP

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-W2043

NDE180,NRE180,ZRE18#..SAP

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NDE180,NRE180,ZRE18#..SAP

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NDE180,NRE180,ZRE18#..SAP

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-02870

NDE180,NRE180,ZRE18#..SA

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-W2044

NDE180,NRE180,ZRE18#..SAP

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-W2044

NDE180,NRE180,ZRE18#..SAP

 2
47317 - TUBE, FRONT BRAKE, NO.7
47317-02810

NDE180,NRE180,ZRE18#..SA

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02830

NDE180,NRE180,ZRE18#..SA

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NDE180,NRE180,ZRE18#..SAP

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NDE180,NRE180,ZRE18#..SAP

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NDE180,NRE180,ZRE18#..SAP

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NDE180,NRE180,ZRE18#..SAP

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-W2045

NDE180,NRE180,ZRE18#..SAP

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-W2046

NDE180,NRE180,ZRE18#..SAP

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-02420

NDE180,NRE180,ZRE18#..SAP

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-02420

NDE180,NRE180,ZRE18#..SAP

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-02190

NDE180,NRE180,ZRE18#..SAP

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-02190

NDE180,NRE180,ZRE18#..SAP

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00890

NDE180,NRE180,ZRE18#..SA

 2
47371D - CLAMP, BRAKE TUBE, NO.8
90949-01D17

NDE180,NRE180,ZRE18#..SAP

 4
47371E - CLAMP, BRAKE TUBE, NO.9
90949-01D29

NDE180,NRE180,ZRE18#..SAP

 2
47371F - CLAMP, BRAKE TUBE, NO.10
90461-10843

NDE180,NRE180,ZRE18#..SAP

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D45

NDE180,NRE180,ZRE18#..SA

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D32

NDE180,NRE180,ZRE18#..SA

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90461-10843

NDE180,NRE180,ZRE18#..SAP

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90464-00868

NDE180,NRE180,ZRE18#..SA

 1
Common parts
90119-08415
90119-08868
90119-T0260
90179-06274
90468-08035
91671-80616
Linked diagrams
4702
7701

ILLUST NO. 2 OF 2(1401- )G..GEN ; (1401- )ZRE18#..SA ; (1401- )ZRE182..6F..D..GEN ; (1401-

Click highlighted areas on diagram

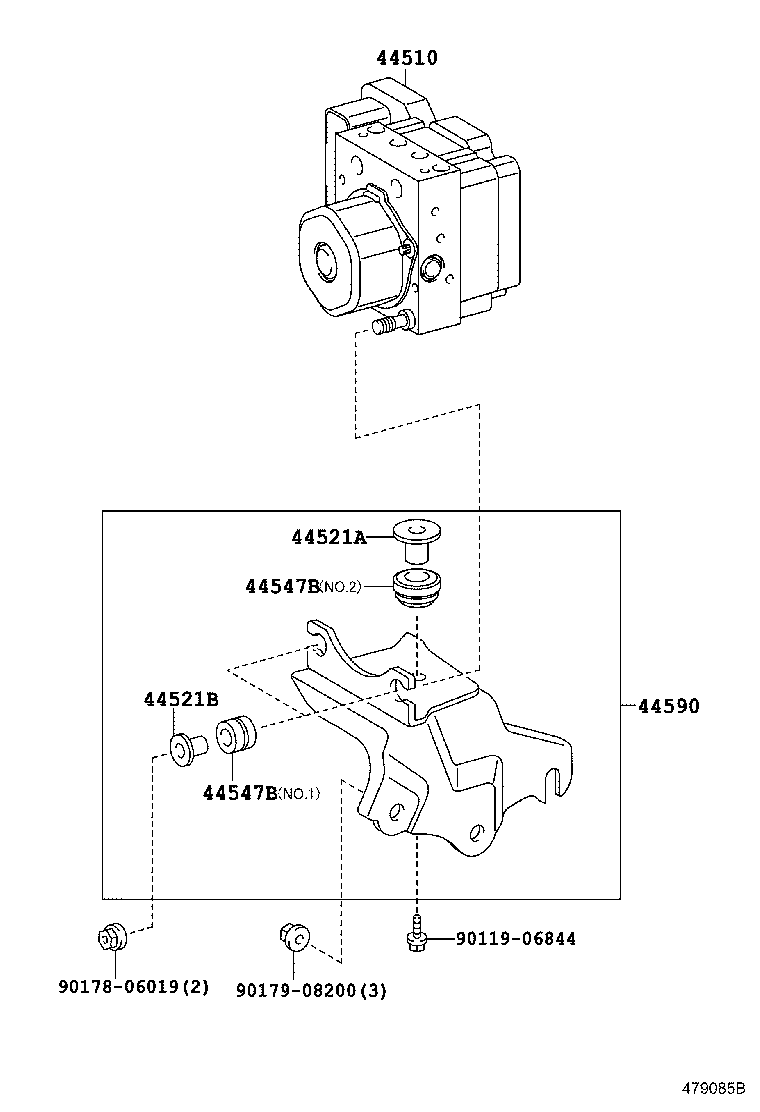

BRAKE ACTUATOR, W(VSC)

diagram 44510 44521A 44521B 44547B 44547B 44590 9011906844 9017806019 9017908200
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-02750

NDE180,NRE180,ZRE18#..SAP

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12060

NDE180,NRE180,ZRE18#..SAP

 1
44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2
44521-12070

NDE180,NRE180,ZRE18#..SAP

 2
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-12030

NDE180,NRE180,ZRE18#..SAP

(J),NO.1:SEE ILLUST

 2
44547-02030

NDE180,NRE180,ZRE18#..SAP

(L),NO.1:SEE ILLUST

 2
44547-12010

NDE180,NRE180,ZRE18#..SAP

NO.2:REFER ILLUST.

 1
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-12030

NDE180,NRE180,ZRE18#..SAP

(J),NO.1:SEE ILLUST

 2
44547-02030

NDE180,NRE180,ZRE18#..SAP

(L),NO.1:SEE ILLUST

 2
44547-12010

NDE180,NRE180,ZRE18#..SAP

NO.2:REFER ILLUST.

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-02330

NDE180,NRE180,ZRE18#..SAP

 1
Common parts
90119-06844
90178-06019
90179-08200
