NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )NRE180..SAP

Click highlighted areas on diagram

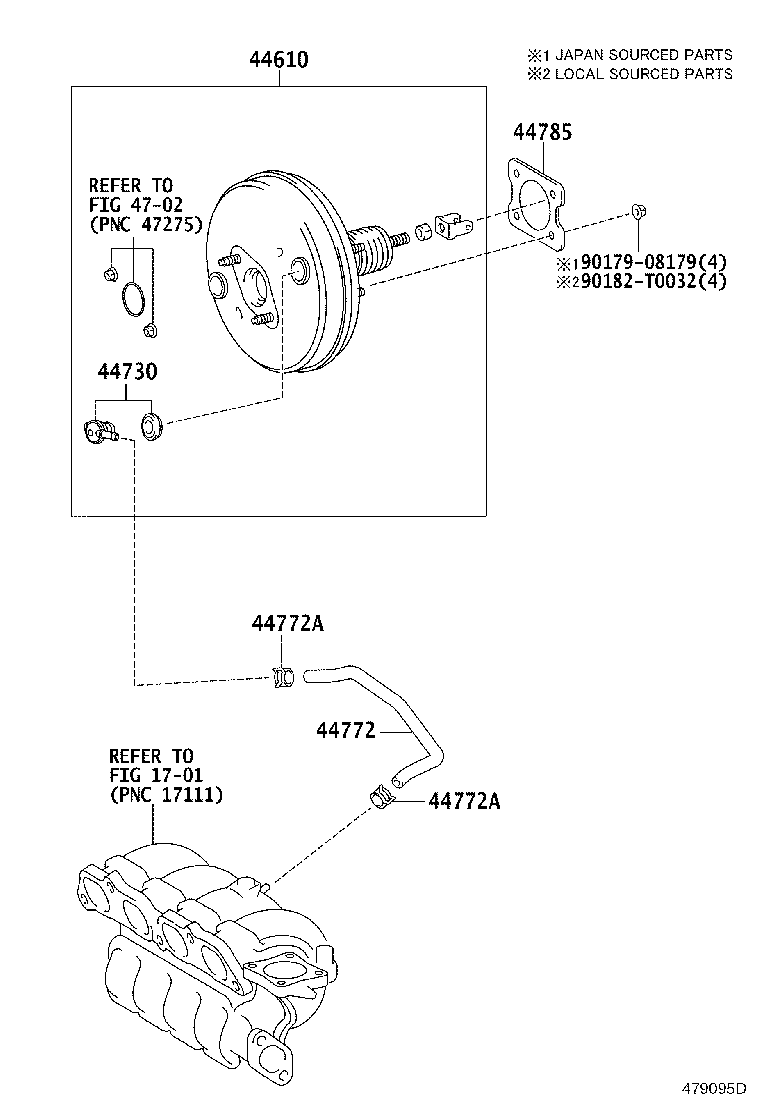

diagram 1701 44610 44730 44772 44772A 44772A 44785 4702 9017908179 90182T0032
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09C40

NDE180,NRE180,ZRE18#..SA

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-09020

NDE180,NRE180,ZRE18#..SAP

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12701

NRE180..SAP

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

NDE180,NRE180..SAP

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

NDE180,NRE180..SAP

 2
44785 - GASKET, BRAKE BOOSTER
44785-05020

NDE180,NRE180,ZRE18#..SAP

(L)

 1
44785-12040

NDE180,NRE180,ZRE18#..SAP

(J)

 1
Common parts
90179-08179
90182-T0032
Linked diagrams
1701
4702
