NRE180R-GEFNKN (2014)
Toyota Corolla
Production
Jan 2014
-
Jan 2017
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1401- )SA

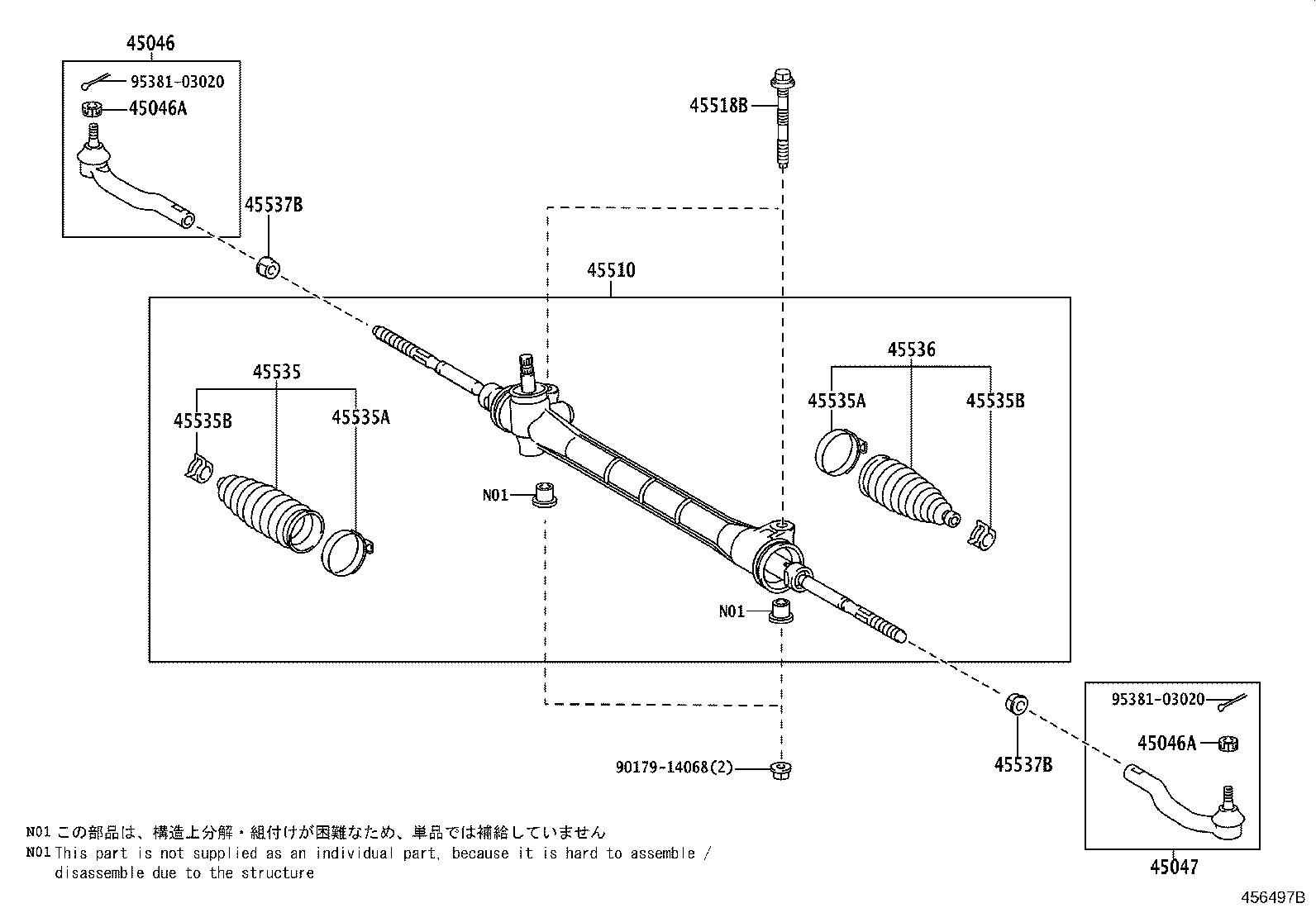

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-09570 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-09270 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-02700 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 45518B - BOLT, STEERING RACK HOUSING | ||||
| 90119-14129 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-09120 |
NDE180,NRE180,ZRE18# |
1 | ||
| 45535-09440 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 45538-05010 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 45538-47010 |
NDE180,NRE180,ZRE18# |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 45538-05010 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 45538-47010 |
NDE180,NRE180,ZRE18# |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 45537-02010 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 45537-02010 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-09440 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 45535-09120 |
NDE180,NRE180,ZRE18# |
1 | ||
| 45537B - NUT, RACK END LOCK | ||||
| 90179-15006 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 45537B - NUT, RACK END LOCK | ||||
| 90179-15006 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| Common parts | ||||
| 90179-14068 | ||||
| 95381-03020 | ||||
