NRE180R-GEFNKN (2014)
Toyota Corolla
(1401- )SAP
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-02Y20C0 |
NDE180,NRE180,ZRE18#..D..SAP 3-SPOKE,URETHANE,STEERING SWITCH-AUDIO & DISP SWITCH ONLY,BLACK,TRIM2# |
1 | ||
| 45100-02Y60C0 |
NDE180,NRE180,ZRE18#..N..SAP 3-SPOKE,LEATHER,AUDIO-*DA & DVD & *BT & USB & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 45100-02Y30C0 |
NDE180,NRE180,ZRE18#..D..SAP 3-SPOKE,URETHANE,BLACK,TRIM2# |
1 | ||
| 45100-02Y10C0 |
NDE180,NRE180,ZRE18#..D..SAP 3-SPOKE,URETHANE,STEERING SWITCH-WITHOUT,BLACK,TRIM2# |
1 | ||
| 45100-02Y70C0 |
NRE180,ZRE18#..N..SA 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO-EXTRA & CD & USB & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 45100-02Y90C0 |
NRE180,ZRE18#..N 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 45100-02Y70C0 |
NRE180,ZRE18#..N 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO-RADIOLESS 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 45100-02Y40C0 |
NDE180,NRE180,ZRE18#..N..SAP 3-SPOKE,LEATHER,AUDIO-RADIOLESS 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 45100-02Y40C1 |
ZRE182..N..SAP;ZRE181..CVT..SA;NDE180,NRE180,ZRE181..6F..N..SAP 3-SPOKE,LEATHER,AUDIO-RADIOLESS 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45100-02Y40C1 |
NDE180,NRE180,ZRE18#..N..SA 3-SPOKE,LEATHER,AUDIO-EXTRA & CD & USB & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45100-02Y50C0 |
NDE180,NRE180,ZRE18#..N..SAP 3-SPOKE,LEATHER,BLACK,TRIM2# |
1 | ||
| 45100-02Y10C1 |
NDE180,NRE180,ZRE18#..D..SAP 3-SPOKE,URETHANE,STEERING SWITCH-WITHOUT,EU BLACK,TRIM2# |
1 | ||
| 45100-02Y70C1 |
ZRE182..N..SAP;ZRE181..CVT..SA;NRE180,ZRE181..6F..N..SAP 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO-RADIOLESS 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45100-02Y40C0 |
NDE180,NRE180,ZRE18#..N..SA 3-SPOKE,LEATHER,AUDIO-EXTRA & CD & USB & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 45100-02Y80C0 |
NRE180,ZRE18#..N 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,BLACK,TRIM2# |
1 | ||
| 45100-02Y50C1 |
ZRE182..N..SAP;ZRE181..CVT..SA;NDE180,NRE180,ZRE181..6F..N..SAP 3-SPOKE,LEATHER,EU BLACK,TRIM2# |
1 | ||
| 45100-02Y20C1 |
NDE180,NRE180,ZRE18#..D..SAP 3-SPOKE,URETHANE,STEERING SWITCH-AUDIO & DISP SWITCH ONLY,EU BLACK,TRIM2# |
1 | ||
| 45100-02Y80C1 |
ZRE182..N..SAP;ZRE181..CVT..SA;NRE180,ZRE181..6F..N..SAP 3-SPOKE,LEATHER,CRUISE CONTROL-WITH,EU BLACK,TRIM2# |
1 | ||
| 45100-02Y70C1 |
NRE180,ZRE18#..N..SA 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO-EXTRA & CD & USB & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45100-02Y60C1 |
ZRE182..N..SAP;ZRE181..CVT..SA;NDE180,NRE180,ZRE181..6F..N..SAP 3-SPOKE,LEATHER,AUDIO-*DA & DVD & *BT & USB & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45100-02Y30C1 |
NDE180,NRE180,ZRE18#..D..SAP 3-SPOKE,URETHANE,EU BLACK,TRIM2# |
1 | ||
| 45100-02Y90C1 |
ZRE182..N..SAP;ZRE181..CVT..SA;NRE180,ZRE181..6F..N..SAP 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-02050 |
NDE180,NRE180,ZRE18#..D..SAP STEERING SWITCH-WITHOUT |
1 | ||
| 45107-02080 |
NDE180,NRE180,ZRE18#..D..SAP STEERING SWITCH-WITHOUT |
1 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-02120C1 |
NDE180,NRE180,ZRE18#..D..SAP STEERING SWITCH-WITHOUT,EU BLACK,TRIM2# |
1 | ||
| 45116-02120C0 |
NDE180,NRE180,ZRE18#..D..SAP STEERING SWITCH-WITHOUT,BLACK,TRIM2# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-02601C0 |
NDE180,NRE180,ZRE18#..SAP BLACK,TRIM2# |
1 | ||
| 45130-02601C1 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP EU BLACK,TRIM2# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-02240C0 |
NRE180,ZRE18#..N CRUISE CONTROL-WITH&AUDIO-RADIOLESS 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 45186-02240C0 |
NRE180,ZRE18#..N..SA CRUISE CONTROL-WITH&AUDIO-EXTRA & CD & USB & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 45186-02240C0 |
NRE180,ZRE18#..N CRUISE CONTROL-WITH,BLACK,TRIM2# |
1 | ||
| 45186-02230C1 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP EU BLACK,TRIM2# |
1 | ||
| 45186-02240C1 |
ZRE182..N..SAP;ZRE181..CVT..SA;NRE180,ZRE181..6F..N..SAP CRUISE CONTROL-WITH,EU BLACK,TRIM2# |
1 | ||
| 45186-02240C1 |
ZRE182..N..SAP;ZRE181..CVT..SA;NRE180,ZRE181..6F..N..SAP CRUISE CONTROL-WITH&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-02230C0 |
NDE180,NRE180,ZRE18#..SAP BLACK,TRIM2# |
1 | ||
| 45186-02240C0 |
NRE180,ZRE18#..N CRUISE CONTROL-WITH&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 45186-02240C1 |
ZRE182..N..SAP;ZRE181..CVT..SA;NRE180,ZRE181..6F..N..SAP CRUISE CONTROL-WITH&AUDIO-RADIOLESS 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-02240C1 |
NRE180,ZRE18#..N..SA CRUISE CONTROL-WITH&AUDIO-EXTRA & CD & USB & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-02240C0 |
NRE180,ZRE18#..N CRUISE CONTROL-WITH&AUDIO-RADIOLESS 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 45186-02240C0 |
NRE180,ZRE18#..N..SA CRUISE CONTROL-WITH&AUDIO-EXTRA & CD & USB & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 45186-02240C0 |
NRE180,ZRE18#..N CRUISE CONTROL-WITH,BLACK,TRIM2# |
1 | ||
| 45186-02230C1 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP EU BLACK,TRIM2# |
1 | ||
| 45186-02240C1 |
ZRE182..N..SAP;ZRE181..CVT..SA;NRE180,ZRE181..6F..N..SAP CRUISE CONTROL-WITH,EU BLACK,TRIM2# |
1 | ||
| 45186-02240C1 |
ZRE182..N..SAP;ZRE181..CVT..SA;NRE180,ZRE181..6F..N..SAP CRUISE CONTROL-WITH&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-02230C0 |
NDE180,NRE180,ZRE18#..SAP BLACK,TRIM2# |
1 | ||
| 45186-02240C0 |
NRE180,ZRE18#..N CRUISE CONTROL-WITH&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 45186-02240C1 |
ZRE182..N..SAP;ZRE181..CVT..SA;NRE180,ZRE181..6F..N..SAP CRUISE CONTROL-WITH&AUDIO-RADIOLESS 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45186-02240C1 |
NRE180,ZRE18#..N..SA CRUISE CONTROL-WITH&AUDIO-EXTRA & CD & USB & 6SPEAKER,EU BLACK,TRIM2# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

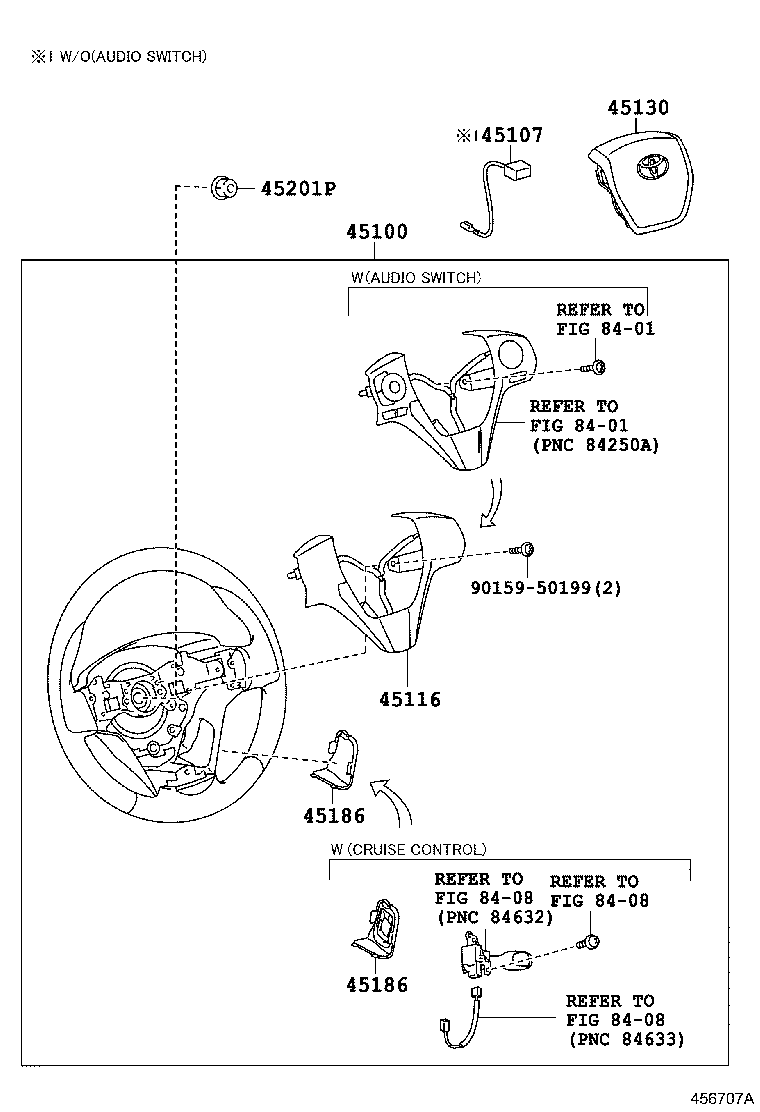

| Linked diagrams | ||||
| 8401 | ||||
| 8408 | ||||
