NRE180R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )SA

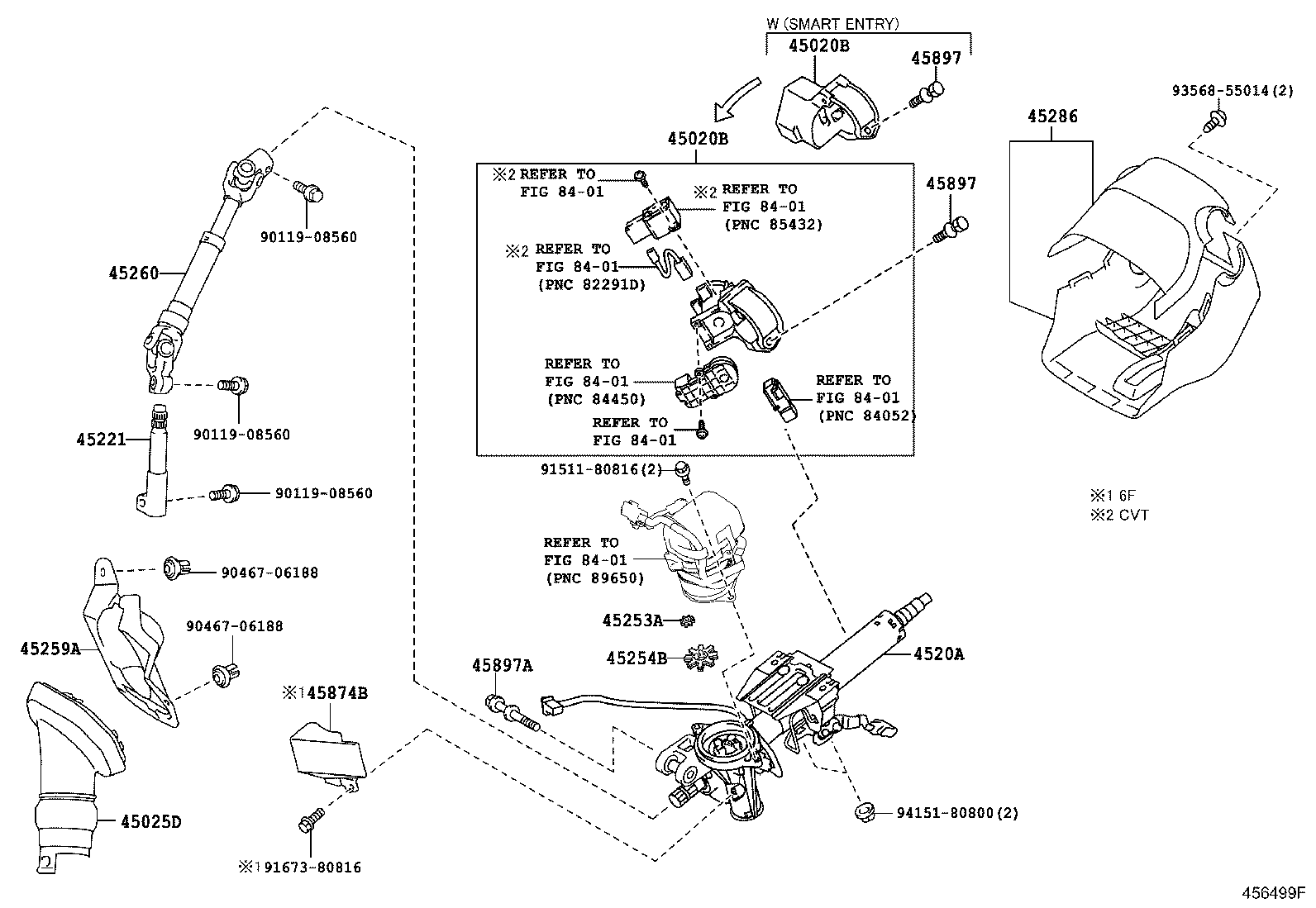

Click highlighted areas on diagram

diagram 45020B 45020B 45025D 4520A 45221 45253A 45254B 45259A 45260 45286 45874B 45897 45897 45897A 8401 8401 8401 8401 8401 8401 8401 9011908560 9011908560 9011908560 9046706188 9046706188 9151180816 9167380816 9356855014 9415180800
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-0D120

NDE180,NRE180,ZRE18#..N..SAP

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
45020-02480

NDE180,NRE180,ZRE18#..6F..SAP

 1
45020-02760

NDE180,NRE180,ZRE18#..6F..SAP

 1
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-0D120

NDE180,NRE180,ZRE18#..N..SAP

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
45020-02480

NDE180,NRE180,ZRE18#..6F..SAP

 1
45020-02760

NDE180,NRE180,ZRE18#..6F..SAP

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-02080

NDE180,NRE180,ZRE18#..SA

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-02131

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
4520A-02142

NDE180,NRE180,ZRE18#..SA

 1
4520A-02140

NDE180,NRE180,ZRE18#..SA

 1
4520A-02141

NDE180,NRE180,ZRE18#..SA

 1
4520A-02130

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
4520A-02143

NDE180,NRE180,ZRE18#..SA

 1
4520A-02132

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-02100

NDE180,NRE180,ZRE18#..SAP

 1
45253A - SPACER, ELECTRIC POWER STEERING MOTOR SHAFT
45253-28130

NDE180,NRE180,ZRE18#..SAP

 1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040

NDE180,NRE180,ZRE18#..SAP

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02070

NDE180,NRE180,ZRE18#..SA

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02160

NDE180,NRE180,ZRE18#..SAP

 1
45286 - COVER, STEERING COLUMN
45286-02945C0

NDE180,NRE180,ZRE18#..N..SAP

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK,TRIM2#

 1
45286-02946C0

NDE180,NRE180,ZRE18#..SAP

BLACK,TRIM2#

 1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-02040

NDE180,NRE180,ZRE18#..6F..SA

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NDE180,NRE180,ZRE18#..SAP

 1
45897-12050

NDE180,NRE180,ZRE18#..SAP

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

NDE180,NRE180,ZRE18#..SAP

 1
45897-12050

NDE180,NRE180,ZRE18#..SAP

 1
45897A - BOLT, TILT STEERING PAWL SET
90119-10981

NDE180,NRE180,ZRE18#..SAP

 1
Common parts
90119-08560
90467-06188
91511-80816
91673-80816
93568-55014
94151-80800
Linked diagrams
8401
